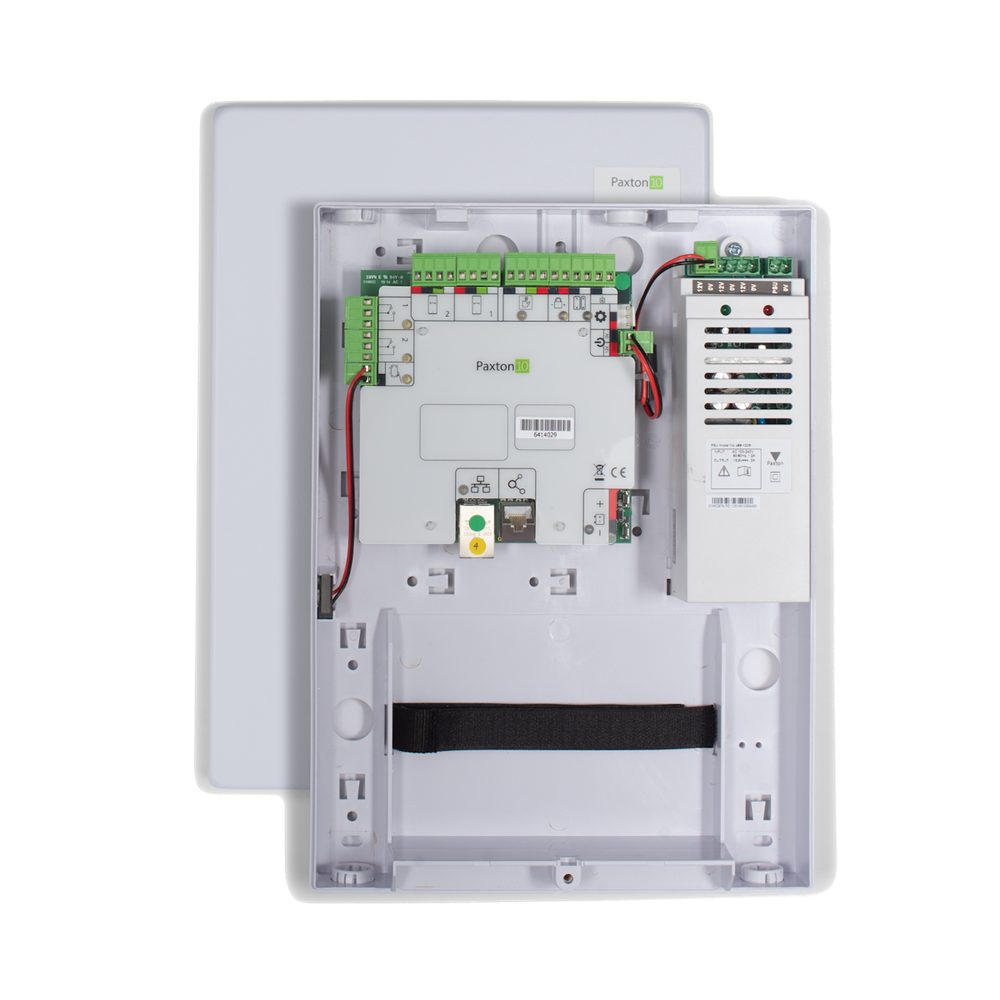

Paxton10 Door Controller With PoE+ Power Over Ethernet

The Paxton10 Door Controller PoE+ (010-052) is the essential building block for your networked Paxton10 access control system. Designed to control and monitor a single door, this network device communicates over TCP/IP and integrates seamlessly into your existing network infrastructure.

With its built-in PoE+ splitter, the controller allows both the unit and the door lock to be powered directly via Power over Ethernet, eliminating the need for a local 230V mains connection at the door. It features a distributed intelligence architecture, meaning programming is stored locally. This ensures the door remains fully operational and secure even if the connection to the central server is lost.

Installation is straightforward thanks to clearly labelled, colour-coded terminals and diagnostic LEDs that indicate system status. The unit is suitable for wall mounting and includes a port to support up to three Paxton10 wireless connectors for easy system expansion.

Technical Specifications

• Manufacturer Reference: 010-052
• Format: Proximity
• Input Voltage: 36-57V DC, 25.5W (IEEE 802.3at Type 2)
• Current Consumption: 108mA / 5.6W
• Relay Output: 30V DC / 2A
• Operating Temperature: 0°C to 45°C
• Width: 23.6cm
• Depth: 77mm
• Weight: 1.7kg
• Finish: White
• Tamper Protection: Yes (Tamper Input)
• Guarantee: 5 Year

Key Features

• Single Door Control: Controls and monitors a single door with support for up to two readers for read-in/read-out access.
• Power Over Ethernet (PoE+): Built-in PoE+ splitter allows both the controller and the door lock to be powered via Ethernet, reducing cabling requirements.
• Distributed Intelligence: Locally stored programming ensures the door continues to operate normally even if server connection is lost.
• Expandable Design: Dedicated port supports up to three Paxton10 wireless connectors for added functionality.
• Simple Installation: Features clearly labelled, colour-coded terminals and diagnostic LEDs for hassle-free setup.
• Tamper Protection: Built-in tamper input to alert against unauthorised physical interference.
