PAXTON 409-711 Switch2 / Net2 Cardlock Reader

The Paxton 409-711 Switch2 / Net2 Cardlock Reader is a robust, slimline cardswipe reader designed for use with Paxton's Switch2 and Net2 access control systems. Featuring a durable metal construction with an elegant satin chrome finish, this reader is built to withstand demanding environments. With an IPX7 rating, it is fully weather-resistant and highly suitable for both internal and external installations.

Installation is straightforward and highly accurate, thanks to a central cable exit at the back of the reader and a surface-mounting design. The reader comes pre-wired with a 5-metre cable, allowing for a maximum distance of up to 100 metres from the controller. It provides clear visual and audible feedback to users upon swiping, ensuring a seamless access experience.

Please note: This reader is suitable as an addition or replacement within an existing standalone system. It is not possible to build a new standalone system with this reader as Cardlock Starter packs are no longer available.

Technical Specifications

• Brand: Paxton
• Manufacturer Reference: 409-711SC
• Format: Cardswipe
• Compatibility: Switch2 and Net2 systems
• Finish: Satin Chrome
• Fitting: Surface mounted
• IP Rating: IPX7 (Weather resistant)
• Input Voltage: 12V DC
• Current Consumption: 0.9A
• Operating Temperature: -20°C to 55°C
• Connections: Pre-wired (5m cable)
• Max Distance from Controller: 100m

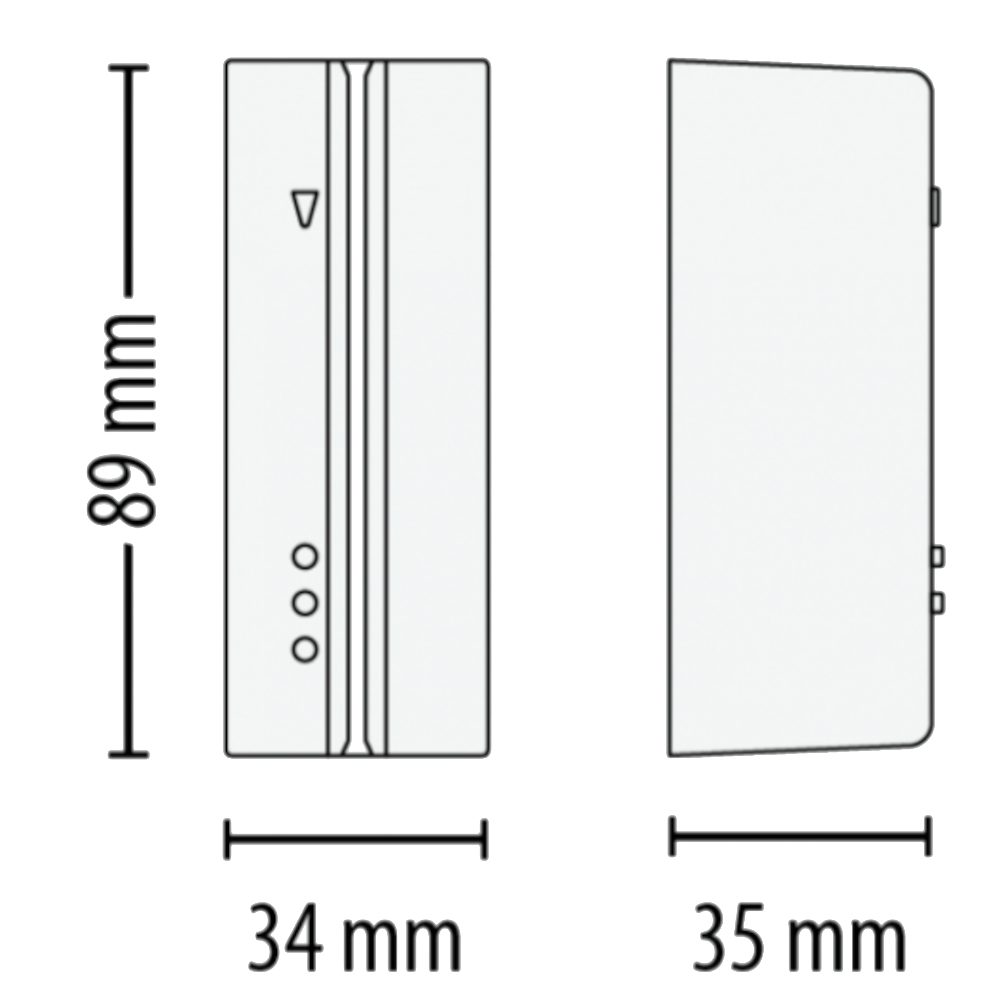

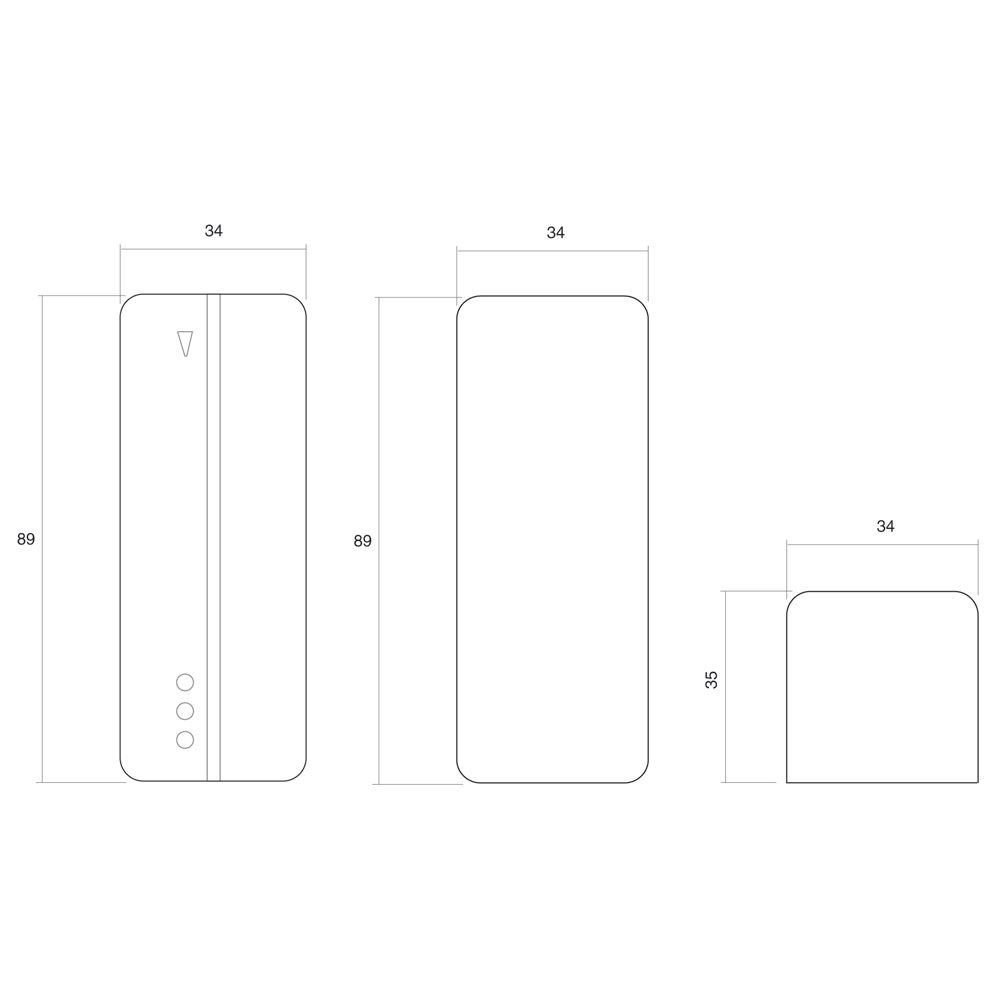

• Dimensions: 34mm (W) x 34mm (D)
• Weight: 430g
• Visual Indication: Yes
• Audible Indication: Yes

Key Features

• Dual System Compatibility: Works with both Switch2 standalone and Net2 networked systems.
• Weatherproof Design: IPX7 rating makes it highly suitable for external, outdoor use.
• Accurate Mounting: Central rear cable exit allows for precise drilling and surface installation.
• Clear User Feedback: Built-in visual and audible indicators confirm access status.
• Sleek Aesthetics: Slimline metal construction with a premium satin chrome finish.
• Economical Operation: Uses low-cost Cardlock swipe cards for cost-effective access control.
