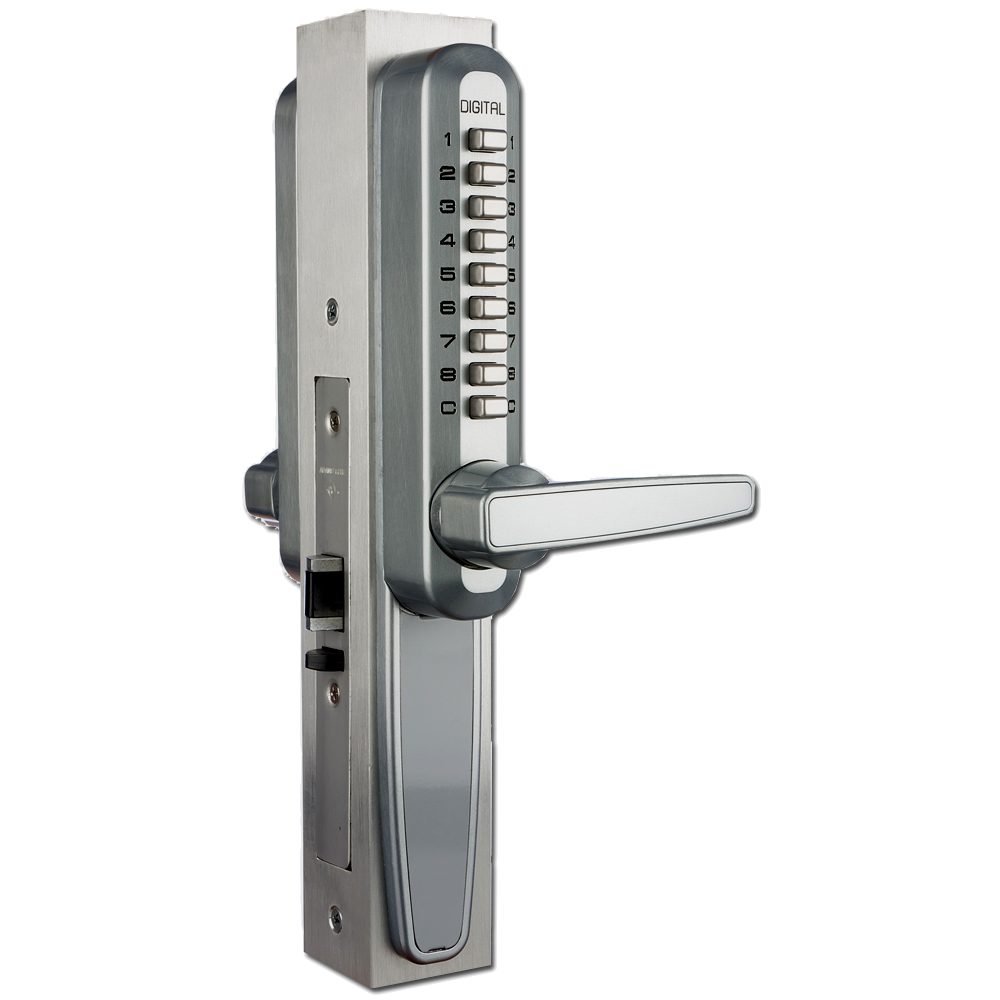

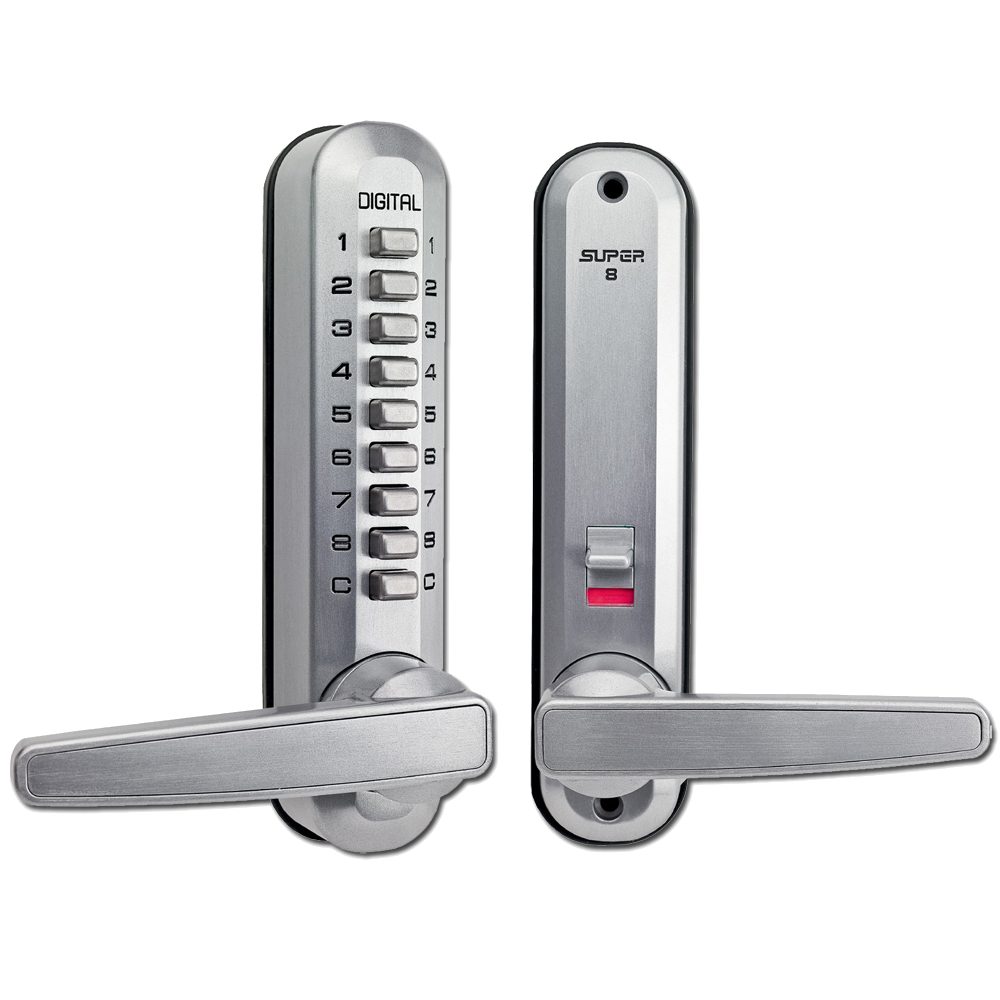

LOCKEY Super 8 Narrow Style Digital Lock

The Lockey Super 8 Narrow Style Digital Lock is a heavy-duty, weather-resistant mechanical keypad lock designed specifically for narrow-stile aluminium doors. Measuring just 40mm wide, this slimline digital lock provides robust security without compromising on style or functionality. It features Lockey's patented code chamber, which offers over 7,000 combinations and provides the unique flexibility to use the same digit twice in a code.

To prevent damage from forced entry, the lever handles are equipped with a slipping clutch mechanism. Inside, Teflon-coated components ensure smooth, long-lasting operation. The lock is designed to retrofit with an Adams Rite 4710 latch (not supplied) and comes complete with fixing plates to suit multiple centre measurements.

This digital lock is available in multiple configurations, with options for key override (using a Euro cut-out plate, cylinder sold separately) or no key override (using a blank plate). Please select your preferred manufacturer reference, barcode, and key override option from the choices below.

Technical Specifications

• Brand: Lockey

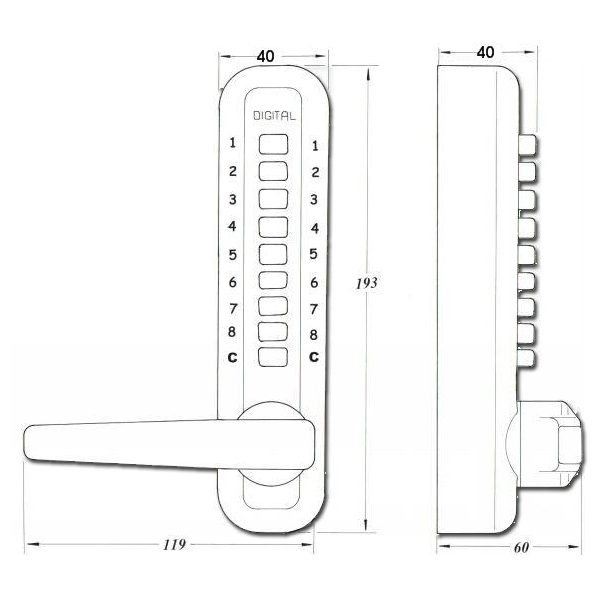

• Width: 40mm
• Door Thickness: 35mm to 55mm
• Centres: 72mm, 85mm, or 92mm (supplied with 70/72/85/92mm fixing plates)
• Backset: Variable
• Case Depth Required: 50mm
• Handing: Reversible
• Finish: Satin Chrome
• Code Length: 5 digits (over 7,000 combinations)
• Buttons: 9 (including 8 large, easy-press buttons)
• Latch Compatibility: To suit Adams Rite 4710 (not supplied)
• Operation: Lever handle entry on code (outside), free exit lever (inside)
• Weather Resistant: Yes, suitable for internal and external use
• Holdback: Yes
• Guarantee: Limited Lifetime

Key Features

• Slimline 40mm Profile: Perfect for narrow-stile aluminium doors.
• Flexible Coding: Patented code chamber allows the same digit to be used twice in a code.
• Multiple Configurations: Available with or without a key override facility (please choose from the options below).
• Clutch Protection: Slipping clutch on handles prevents damage if forced.
• Durable Construction: Teflon-coated internal parts enhance operation and delay natural wear and tear.
• Easy Retrofitting: Supplied with multiple fixing plates to suit various lock centres.
• Heavy-Duty Performance: Designed for high-traffic internal and external applications.
