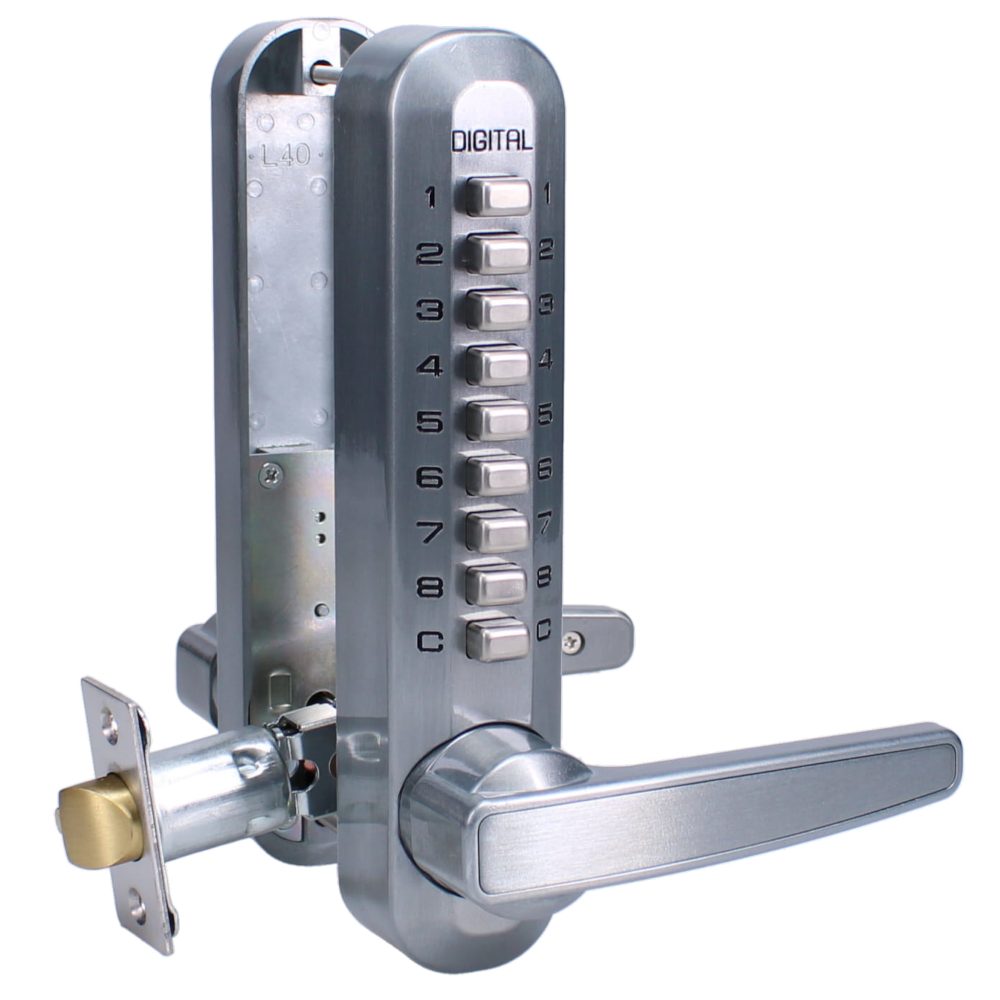

LOCKEY Super 8 Digital Lock

The LOCKEY Super 8 Digital Lock (7055) is a highly versatile, slimline mechanical digital lock designed for medium to heavy-duty applications. Measuring just 40mm wide, its sleek and narrow profile makes it the perfect choice for narrow stile doors, including timber, aluminium, and UPVC, where standard digital locks are too wide to fit.

Built to withstand demanding environments, this lock features Teflon-coated internal components to reduce friction and delay natural wear and tear. It incorporates a patented code chamber that offers a unique advantage: the flexibility to use the same digit twice in your code (for example, C2244). For added security and durability, the reversible lever handles are equipped with a slipping clutch mechanism, preventing damage to the internal lock mechanism if forced. Suitable for both internal and external installations, it comes complete with an adjustable 60mm to 70mm latch and an optional holdback facility for passage mode.

Technical Specifications

• Brand: Lockey
• Manufacturer Reference: 7055 (L22200)

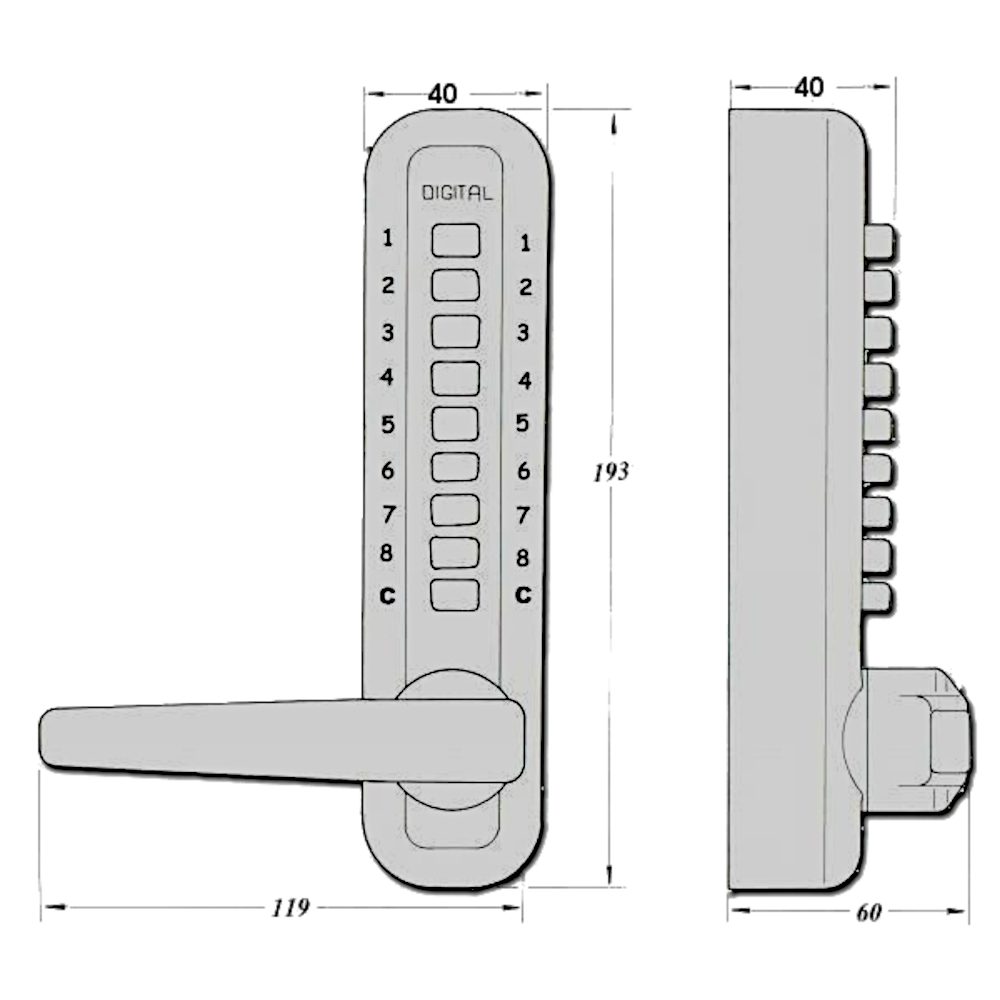

• Width: 40mm
• Depth: 40mm
• Backset: 60mm to 70mm adjustable latch
• Case Depth Required: 95mm
• Door Thickness: 35mm to 55mm
• Finish: Satin Chrome
• Handing: Reversible
• Code Length: 5 digits
• Combinations: 7,000+
• Operation Inside: Lever handle free exit
• Operation Outside: Lever handle on entry of code
• Holdback: Yes
• Key Override: No
• Weather Resistant: Yes
• Guarantee: Limited Lifetime

Key Features

• Slimline Design: At only 40mm wide, it is perfect for narrow stile doors.
• Patented Code Chamber: Provides the flexibility to use the same code digit twice (e.g., C2244).
• Slipping Clutch Handle: Prevents damage to the internal mechanism when forced.
• Teflon-Coated Parts: Enhances operation and delays natural wear and tear.
• Heavy-Duty Construction: Designed for medium to heavy-duty usage on internal and external doors.
• Easy-Press Buttons: Features large, easy-to-press buttons for convenient access.
