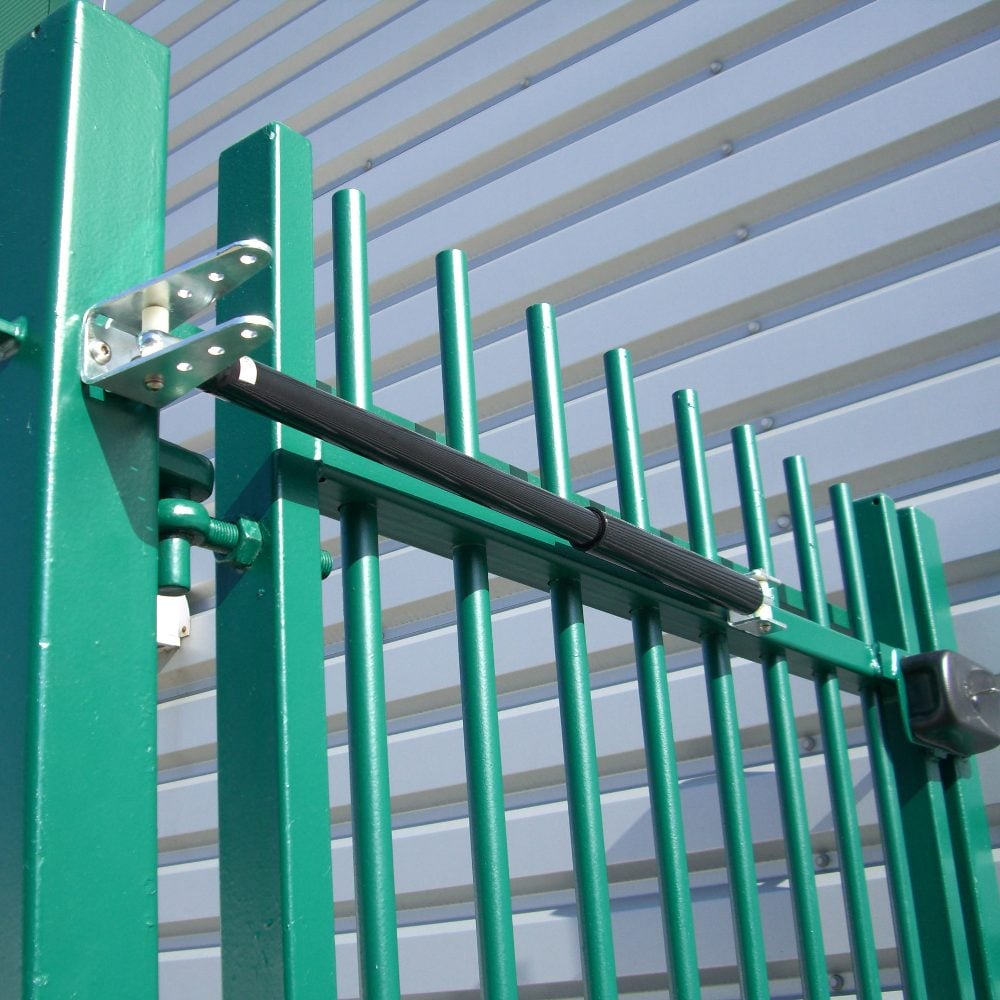

LOCKEY GC200 Pedestrian Gate Closer

The Lockey GC series automatic pedestrian gate closers are designed for both domestic and commercial use on left or right-handed metal or timber gates. Hydraulically controlled, these closers provide a smooth, soft-closing action that ensures quiet operation and prevents damage caused by slamming.

Featuring a robust, PVC-coated steel construction, the closer's force can be adjusted during installation by mounting the brackets further away from the gate post. The closing speed is pre-tensioned and pre-set, removing any risk of tampering or maladjustment after fitting. The dual bracket design allows for easy adjustment on both in-line and offset hinge configurations, and the closer can be integrated with most security or hold-open devices.

Important Installation Note: To maintain the manufacturer's warranty, gate stops must be fitted. A primary stop (often the lock itself) must restrict the gate from swinging past the post line when closing, and a second gate stop must be installed to limit the opening angle to a maximum of 90 degrees.

These gate closers are available in multiple capacities to suit gates ranging from 0.8m to 2.0m in width and up to 150kg in weight. Please select your required model from the options below.

Technical Specifications

• Material: Steel (Plastic Covered)
• Finish: Black & Silver
• Mechanism: Hydraulic
• Maximum Opening Angle: 90°
• Handing: Reversible (suitable for left or right-handed gates)
• Maximum Door Weight: 80kg to 150kg (model dependent - please choose from the options below)
• Maximum Door Width: 1200mm to 2000mm (model dependent - please choose from the options below)
• Suitability: Timber or metal gates (0.8m to 2.0m wide, up to 150kg depending on selected option)
• Manufacturer Reference: GC200/TB200, GC400/TB400, or GC600/TB600 (please choose from the options below)
• Pack Quantity: 1

Key Features

• Soft Closing Action: Hydraulic control provides a quiet, controlled close to prevent slamming and reduce wear.
• Anti-Tamper Design: Pre-set, pre-tensioned closing speed prevents unauthorized adjustment or tampering after installation.

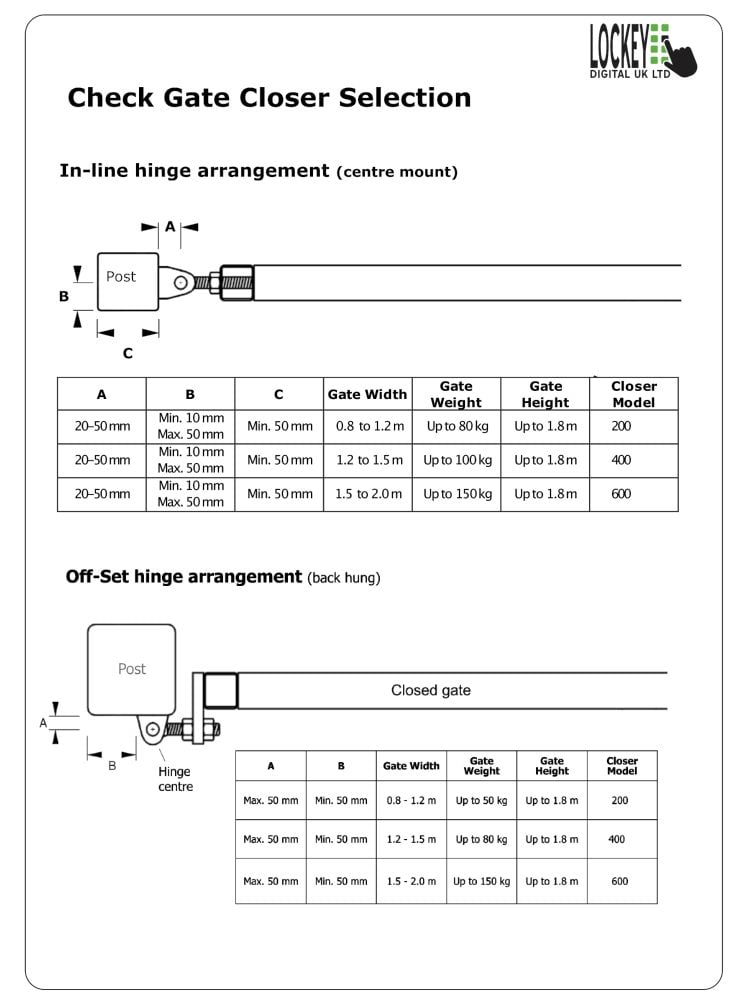

• Versatile Hinge Compatibility: Dual bracket design accommodates both in-line and offset hinge configurations.
• Robust Construction: Durable steel build with a protective PVC coating for reliable outdoor use.
• Security Integration: Compatible with most forms of security, access control, or hold-open devices.
• Reversible Fitting: Suitable for mounting on the opening side of either left or right-handed gates.
• Easy Installation: Supplied with instructions and a clamp bracket to assist with fitting.
