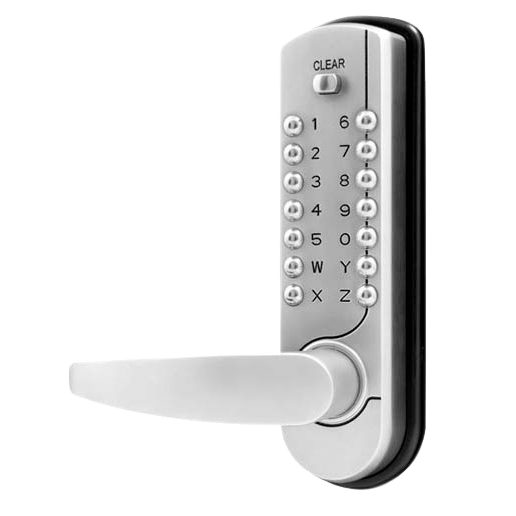

LOCKEY 7300 Lever Handle Digital Lock With Easy Code & 8mm Spindle

The Lockey 7300 Lever Handle Mechanical Digital Lock is a medium-duty, reversible digital lock designed for reliable access control. Featuring a simplified, easy-to-use code change system on the reverse of the keypad, this lock allows you to quickly update your entry code with a simple flick of the switches. It is equipped with ball-bearing push buttons that offer enhanced resistance to code manipulation, providing over 7,000 non-sequential combination options of 3 to 7 digits.

This model is supplied with an 8mm square bar spindle, making it ideal for use with various DIN locks and lock cases (available separately). For added convenience, it includes a passage function for free passage when restricted access is not required. The outside handle is fitted with a clutched mechanism to prevent damage if forced, ensuring long-lasting durability. Suitable for doors between 35mm and 55mm in thickness, the Lockey 7300 offers a robust and flexible security solution in a stylish satin chrome finish.

Technical Specifications

• Brand: Lockey
• Manufacturer Reference: 7300
• Finish: Satin Chrome
• Spindle: 8mm square bar spindle
• Door Thickness: 35mm to 55mm
• Code Length: 3 to 7 digits
• Combinations: 7,000+ non-sequential code groups
• Backset: 60mm
• Case Depth Required: 88mm
• Handing: Left Hand (reversible onsite)
• Operation Outside: Lever handle on entry of code
• Operation Inside: Lever handle free exit
• Holdback: No
• Key Override: No
• Latch: 60mm Standard
• Width: 50mm
• Weight: 1.455kg

Key Features

• Easy Code Change: Simplified code change function on the reverse of the keypad for quick and easy updates.
• Clutched Handle Mechanism: Slipping clutch on the outside handle prevents damage to the internal mechanism if forced.
• Over 7,000 Combinations: Non-sequential code groups ranging from 3 to 7 digits for high-security configuration.
• Passage Function: Allows the lock to be set for free passage when restricted access is not required.
• Ball Bearing Push Buttons: Enhances resistance to code manipulation for improved security.
• Reversible Handing: Can be easily adjusted onsite for left or right-hand opening.
