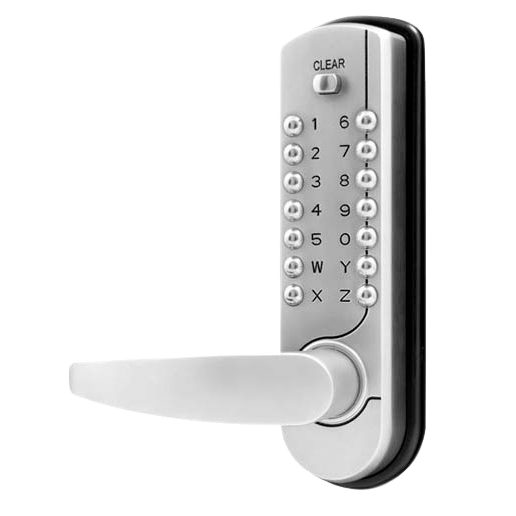

LOCKEY 7100 Lever Handle Digital Lock With Easy Code & 60mm Deadlatch

The Lockey 7100 is a medium-duty mechanical digital lock featuring a convenient lever handle and an innovative, simplified "easy code" change system. Designed to eliminate code change errors, this system allows you to change the combination with a quick flick of the switches on the reverse of the keypad. It is supplied with a 60mm spring deadlatch featuring a 12.5mm throw and an anti-thrust pin, making it an excellent choice for secure, keyless entry.

This robust lock is built with a clutched handle mechanism that slips to prevent damage if forced, alongside ball bearing style push buttons that offer enhanced resistance to code manipulation. Fully reversible onsite, the Lockey 7100 is suitable for both left and right-handed doors with a thickness of 35mm to 55mm. It provides over 7,000 non-sequential code combinations (ranging from 3 to 7 digits) and includes a passage function and hold-back facility for flexible access control when free passage is required.

Technical Specifications

• Brand: Lockey
• Model: 7100
• Finish: Satin Chrome
• Backset: 60mm
• Case Depth Required: 88mm
• Door Thickness: 35mm to 55mm
• Code Length: 3 to 7 digits (over 7,000 combinations)
• Latch: 60mm spring latch with 12.5mm throw and anti-thrust pin
• Handing: Reversible (onsite handing)
• Operation Inside: Lever handle free exit
• Operation Outside: Lever handle on entry of code

Key Features

• Easy Code Change: Simplified code change method on the reverse of the keypad with a quick flick of the switches
• Clutched Handle Mechanism: Slipping clutch mechanism on the outside handle to prevent damage when forced
• Enhanced Security: Ball bearing style push buttons increase resistance to code manipulation
• Reversible Handing: Onsite handing adjustment makes it suitable for both left and right-handed doors
• Flexible Access: Features passage function and hold-back facility for unrestricted entry when needed
• Complete Kit: Supplied with all required fixings for straightforward installation
