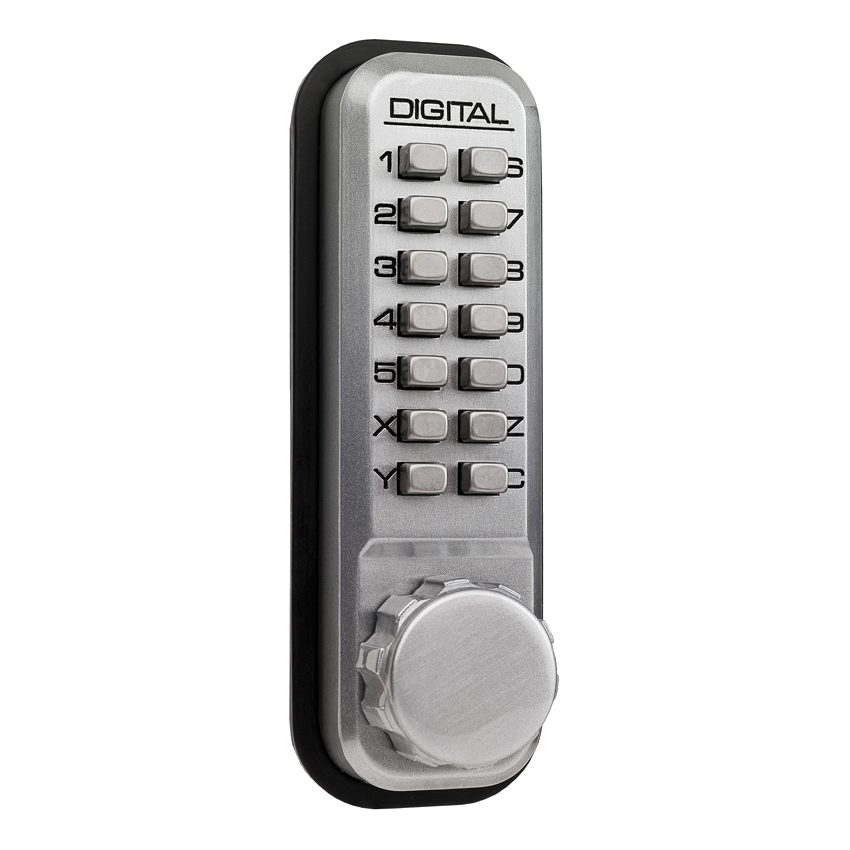

LOCKEY 2230 Series Front Only Digital Lock

The Lockey 2230 Series (2230NL) is a front-only digital keypad designed for use with your own rim nightlatch case or internal fire exit panic hardware. This mechanical digital lock is supplied as the front keypad section only, making it an ideal choice for replacement installations or for upgrading existing narrow stile doors to keyless entry.

Operating via a digital code from the outside, it provides secure, mechanical access control without the need for keys or wiring. It is fully reversible, weather-resistant, and suitable for both internal and external doors.

This digital lock is available in multiple finishes, including Polished Brass and Satin Chrome, with weights ranging from 800g to 810g depending on your selection. Please choose your preferred finish, weight, and barcode option from the selections below.

Technical Specifications

• Brand: Lockey
• Manufacturer Reference: 2230NL
• Width: 40mm
• Door Thickness: 35mm to 55mm
• Case Depth Required: 45mm
• Code Length: 4 to 6 digits
• Number of Buttons: 14
• Combinations: 1,000+
• Handing: Reversible (non-handed)
• Weather Resistant: Yes

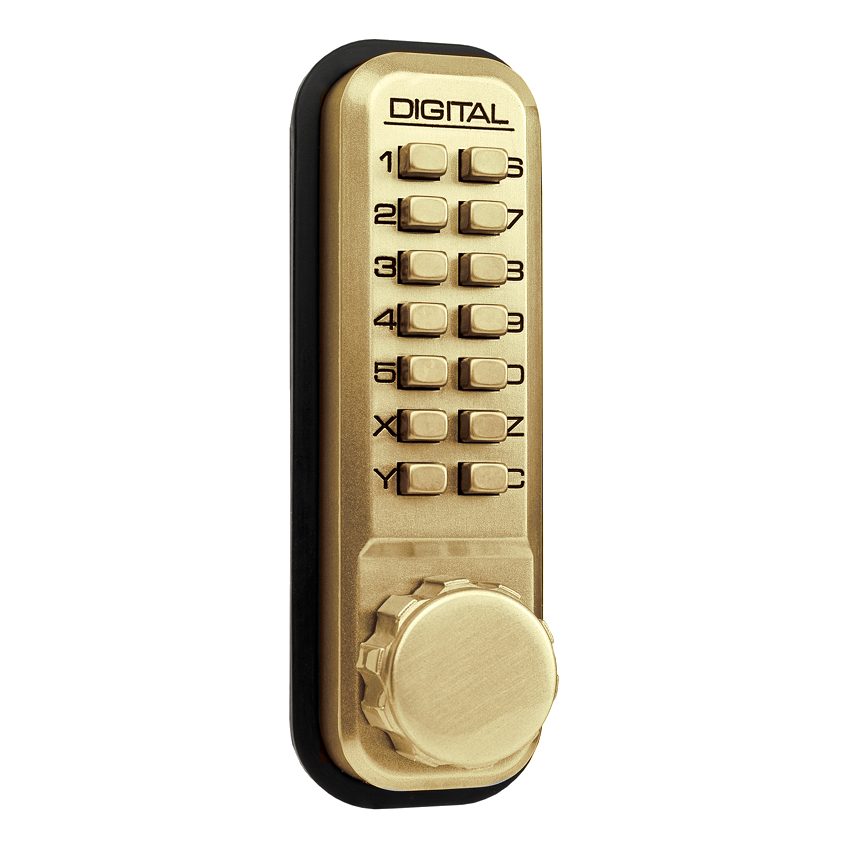

• Finish: Available in Polished Brass or Satin Chrome (please select from the options below)
• Weight: 800g to 810g (please select from the options below)
• Latch: Not supplied (for use with own nightlatch case)

Key Features

• Front-Only Keypad: Supplied as the front digital section only, ideal for replacement use or integration with existing hardware.
• Versatile Compatibility: Adapted for use with rim nightlatches and internal fire exit/panic hardware.
• Narrow Stile Design: Specifically designed to suit narrow stile doors.
• Mechanical Operation: Reliable keyless entry via a thumbturn after entering a 4 to 6-digit code.
• Weather Resistant: Suitable for both internal and external door installations.
• Limited Lifetime Guarantee: Backed by Lockey's limited lifetime manufacturer guarantee.
