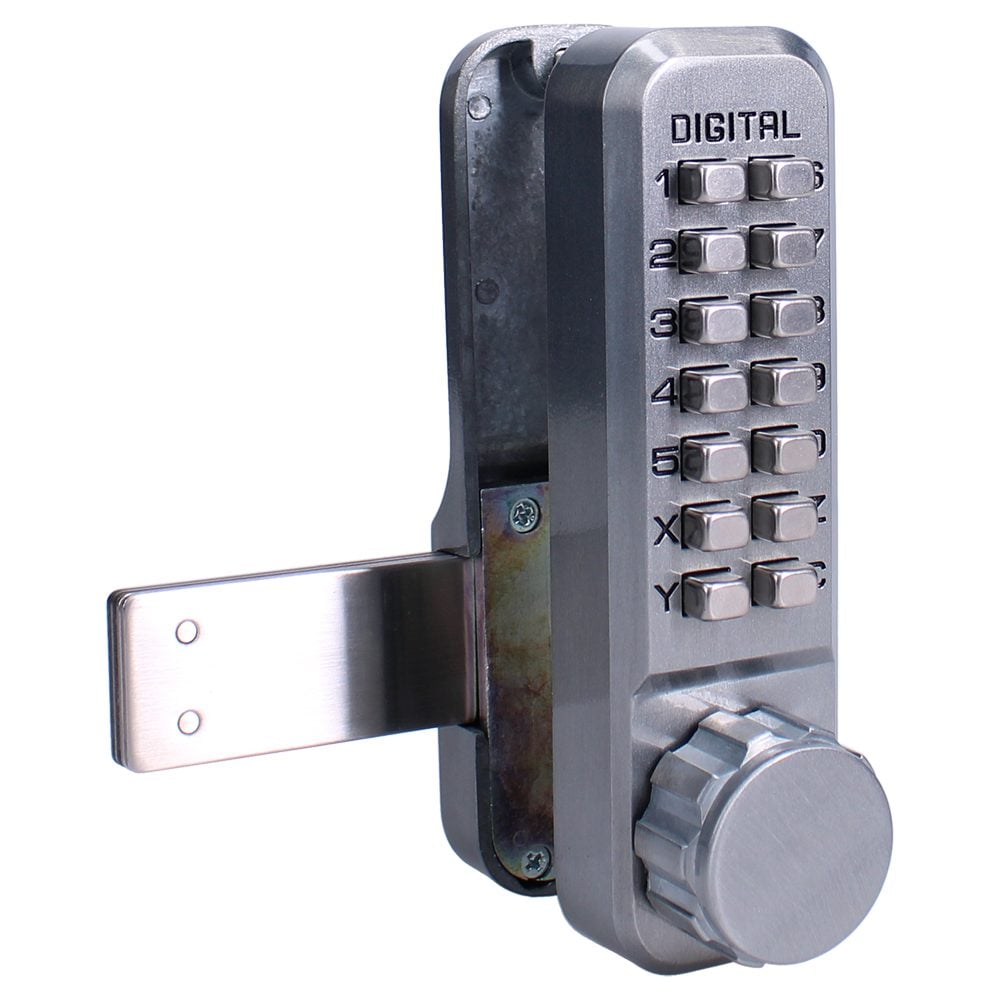

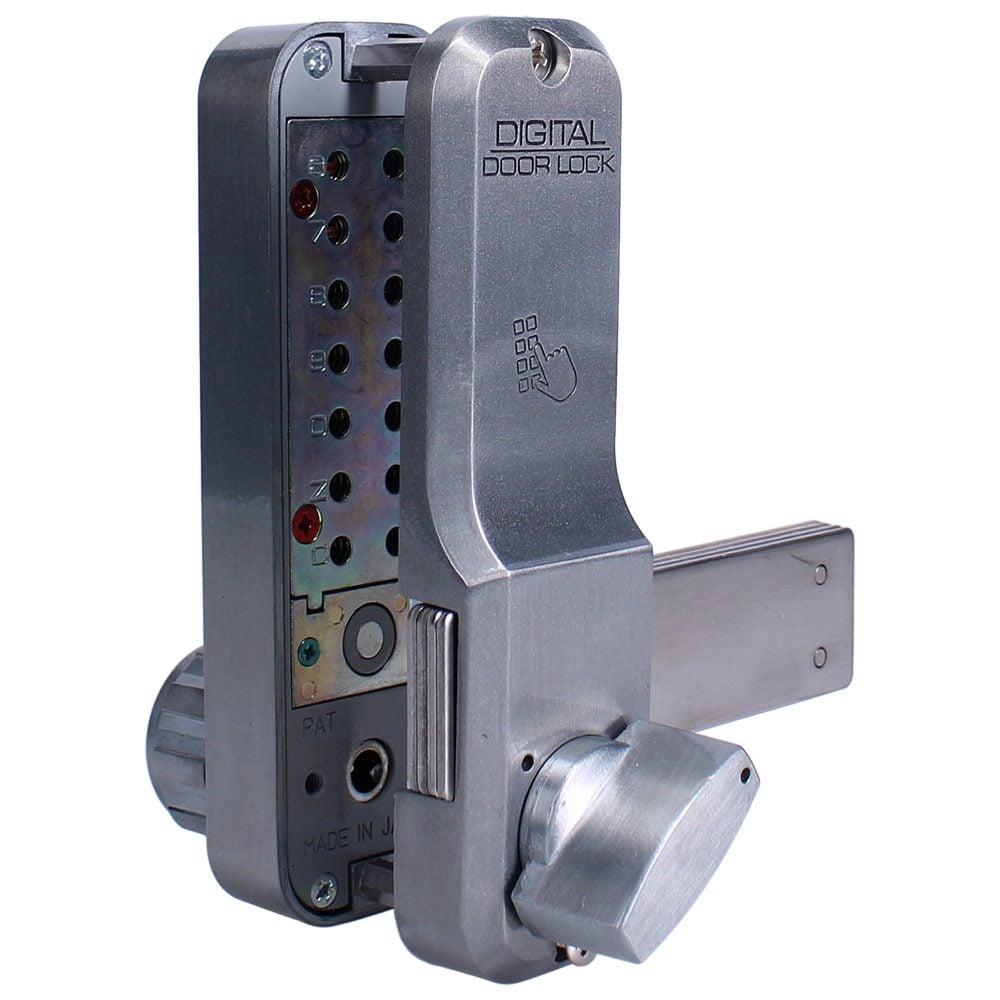

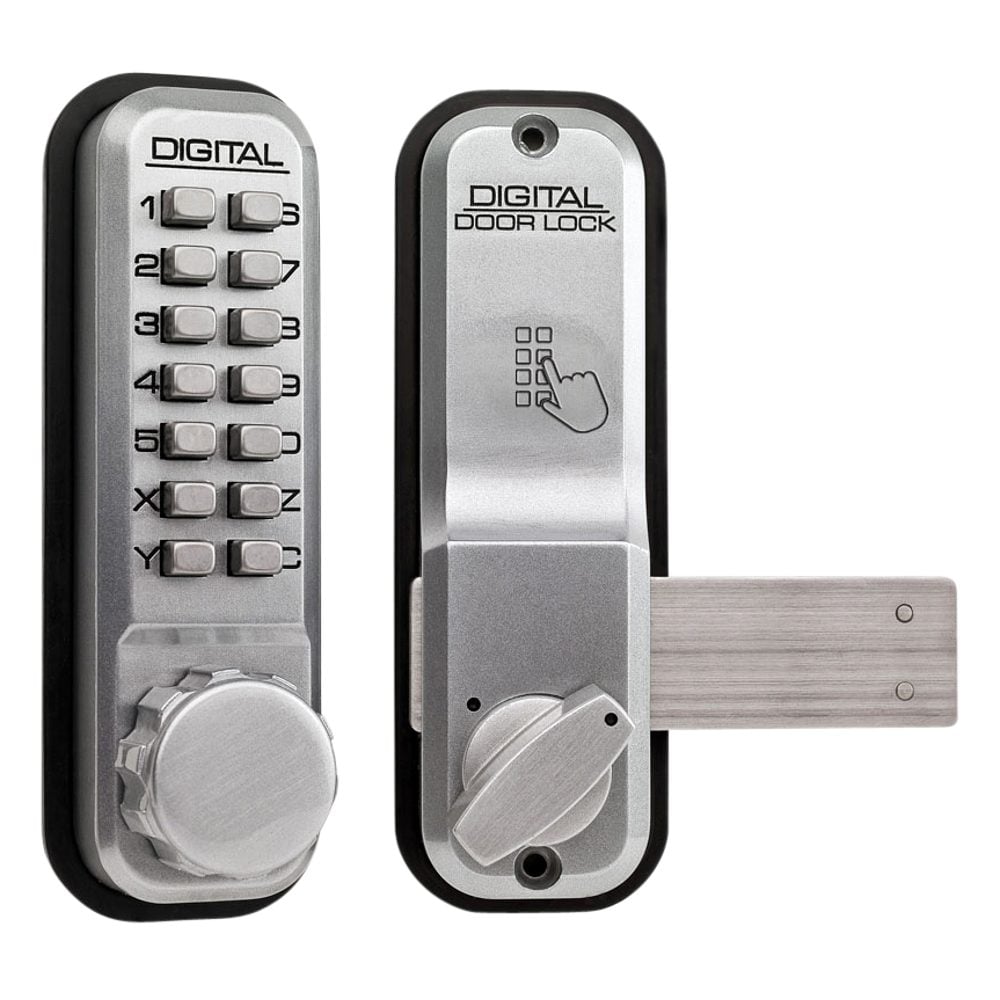

LOCKEY 2200 Series Digital Lock With Rim Dead Bolt

The Lockey 2200 Series Digital Lock is a reliable, medium-duty mechanical digital keypad featuring a surface rim-mounted internal sliding bar. Designed for both internal and external installations, this robust lock is ideal for securing doors, cabinets, and narrow stile configurations where a standard mortice lock may not be suitable.

With its non-handed, reversible design, the Lockey 2200 can be installed as close to the edge of the door as required. It features Teflon-coated internal components to enhance operation and significantly delay natural wear and tear. Security is managed via a 14-button keypad supporting 4 to 6-digit codes, offering over 1,000 combinations. The lock operates via a thumbturn on entry of the correct code from the outside, with a free exit thumbturn on the inside, requiring a manual throwback to re-lock.

This versatile digital lock is available in multiple finishes, including Polished Brass and Satin Chrome, with weights ranging from 1.37kg to 1.41kg. Please choose your preferred finish, weight, and barcode options from the selection below.

Technical Specifications

• Backset: 60mm
• Case Depth Required: 80mm
• Width: 40mm
• Door Thickness: 35mm to 55mm
• Code Length: 4 to 6 digits (1,000+ combinations)
• Number of Buttons: 14 (including 'C' clear button)
• Operation Outside: Thumbturn on entry of code
• Operation Inside: Thumbturn free exit
• Latch Type: Rim deadbolt (sliding bar with 57mm throw)
• Handing: Reversible (non-handed)
• Weather Resistant: Yes

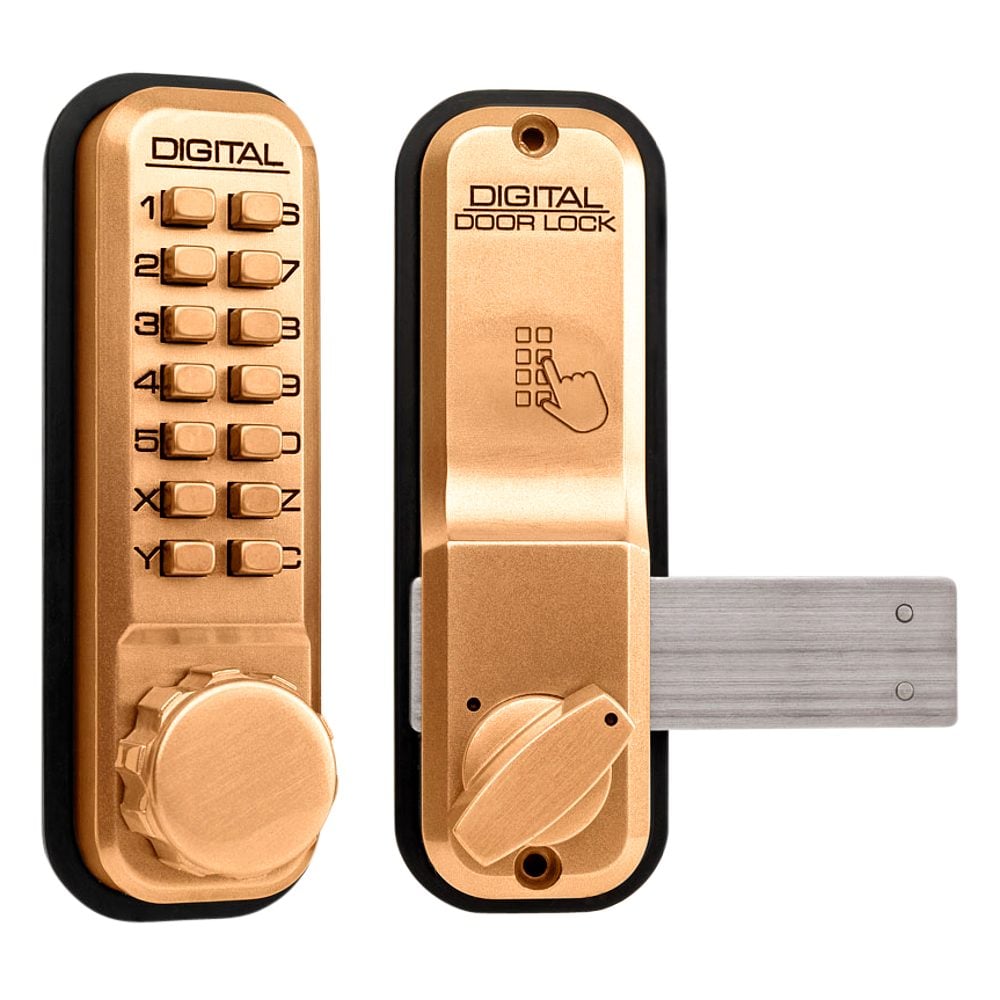

• Finish: Polished Brass or Satin Chrome (please select below)
• Weight: 1.37kg to 1.41kg (please select below)
• Barcode: Multiple options available (please select below)

Key Features

• Surface Rim Mounted: Features an internal sliding bar with a 57mm throw, allowing installation close to the door edge.
• Teflon Coated Parts: Internal stainless steel components are Teflon-coated to ensure smooth operation and resist wear.
• Weather Resistant: Suitable for both internal and external applications.
• Manual Re-locking: Requires a manual throwback of the thumbturn to re-lock, preventing accidental lockouts.
• Easy Code Change: Simple mechanical code change process with over 1,000 possible combinations.
• Limited Lifetime Guarantee: Backed by Lockey's limited lifetime mechanical warranty.
