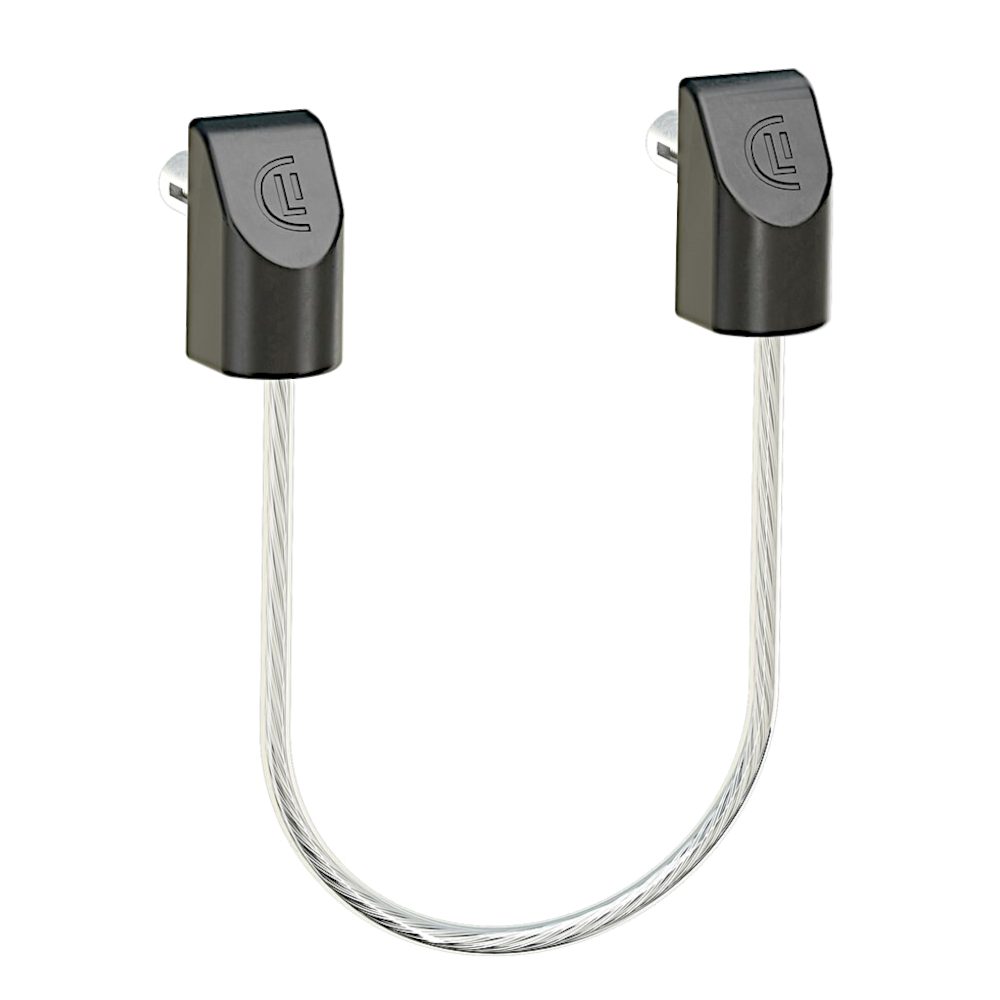

LOCINOX U-Safe SS Safety Cable For Gates up to 500Kg

The Locinox U-Safe is a high-quality stainless steel safety cable designed to prevent swing gates weighing up to 500kg from falling in the event of a hinge failure. Developed in accordance with the European Standard EN 12604, this safety cable ensures that a gate leaf cannot fall or deviate dangerously if a load-bearing hinge fails, providing crucial protection for users and nearby property.

The cable features a robust 5mm diameter stainless steel core encased in a 1mm thick transparent protective sleeve, bringing the total diameter to 6mm. This protective sleeve prevents the cable from scratching or damaging the gate's finish.

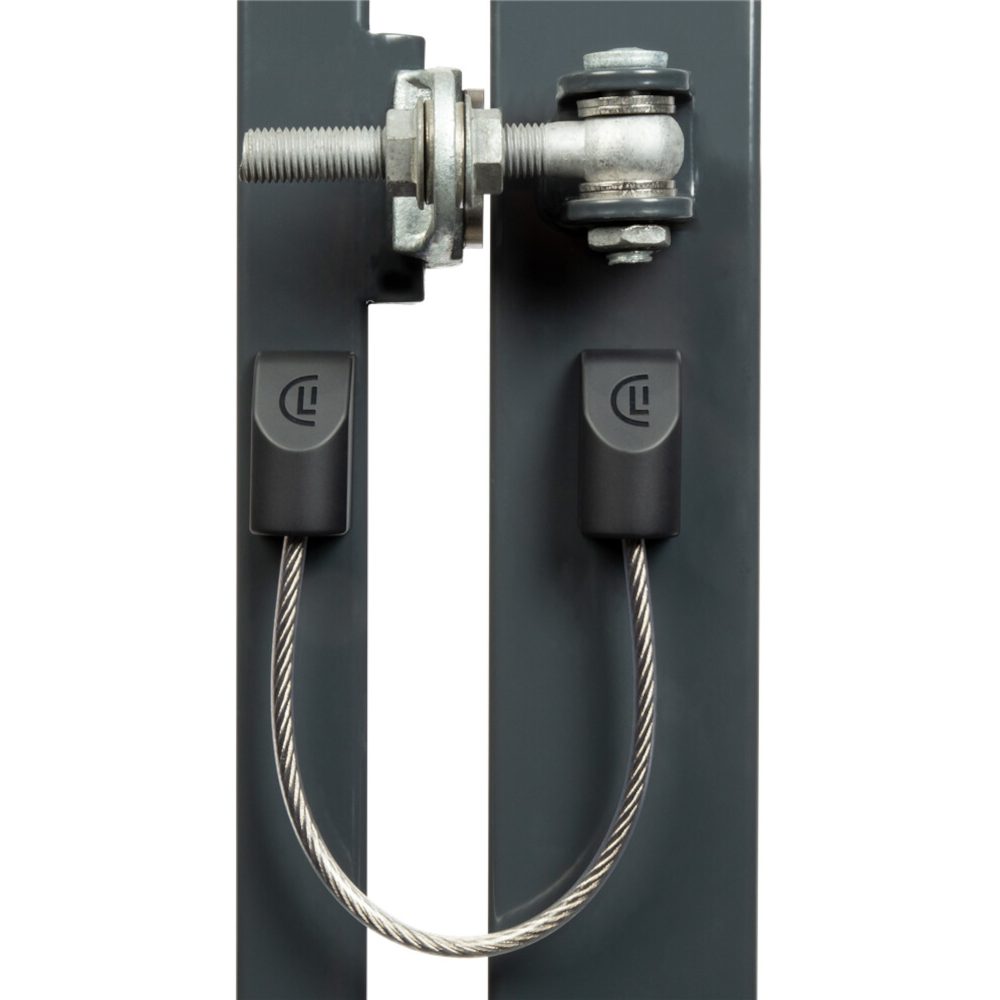

Installation is quick and highly secure thanks to Locinox's patented Quick-Fix system, which firmly anchors the cable to both the gate post and the frame. With a pulling force rating of up to 1500kg, the U-Safe offers reliable, heavy-duty fall protection while maintaining a discreet, minimalist appearance on the inside of the gate.

Technical Specifications

• Brand: Locinox
• Manufacturer Reference: 601076 (L34599)
• Cable Length: 300mm (30cm)
• Cable Diameter: 5mm (with 1mm transparent protective sleeve, 6mm total)
• Material: Stainless Steel
• Maximum Gate Weight: 500kg
• Pulling Force Rating: 1500kg
• Standards Compliance: EN 12604
• Weight: 360g
• Pack Quantity: 1

Key Features

• Hinge Failure Protection: Prevents heavy gates up to 500kg from falling if one or both hinges fail.
• EN 12604 Compliant: Developed to meet European safety standards for swing gates.
• Patented Quick-Fix System: Ensures a fast, simple, and incredibly secure installation.
• Protective Sleeve: 1mm transparent cover prevents the stainless steel cable from scratching the gate or post.
• Discreet Design: Minimalist aesthetic that mounts neatly to the inside of the gate frame.
