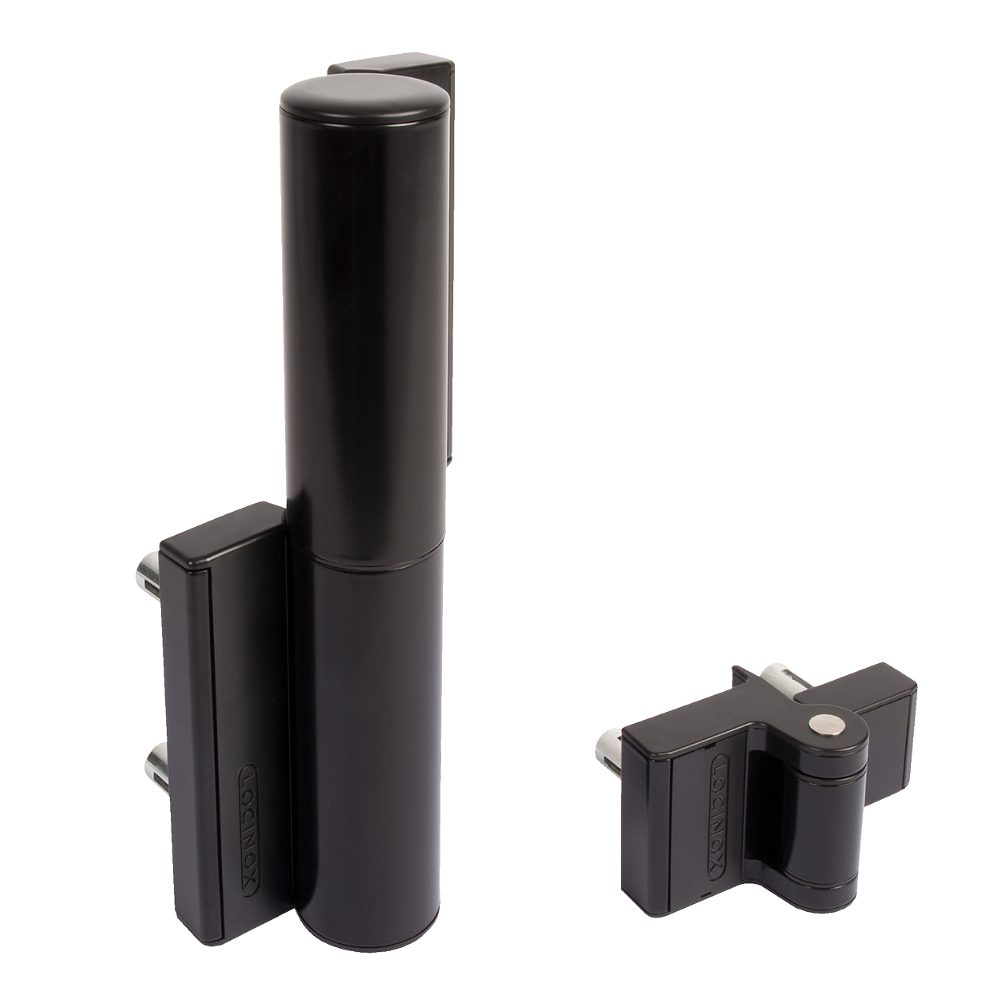

LOCINOX Tiger Hydraulic Gate Closer Kit With Puma Hinge

The Locinox Tiger Hydraulic Gate Closer is a compact, high-performance self-closing hinge kit designed for outdoor gates. Supplied complete with the matching Puma bottom hinge, this dual-hinge system provides a sleek, aesthetic, and highly reliable solution for gates weighing up to 75kg.

Engineered specifically for outdoor use, the Tiger features a powder-coated aluminium housing and patented hydraulic damping. It operates flawlessly across a wide temperature range of -30°C to +70°C, ensuring a consistent closing speed that remains unaffected by changes in temperature or humidity. Both the closing speed and the final snap (latching action) are fully adjustable to suit your specific requirements.

Installation is quick and straightforward thanks to the included patented Quick-Fix fittings. The non-handed design is easily reversible, making it suitable for both left-handed and right-handed gate applications. Tested to 500,000 cycles and conforming to RoSPA regulations, this durable gate closer is an excellent choice for residential, commercial, and public environments, such as playground gates.

Technical Specifications

• Brand: Locinox
• Manufacturer Reference: 604004 (L30707)
• Finish: Black
• Maximum Gate Weight: 75kg
• Maximum Gate Width: 1.1m
• Opening Angle: 180°
• Operating Temperature Range: -30°C to +70°C

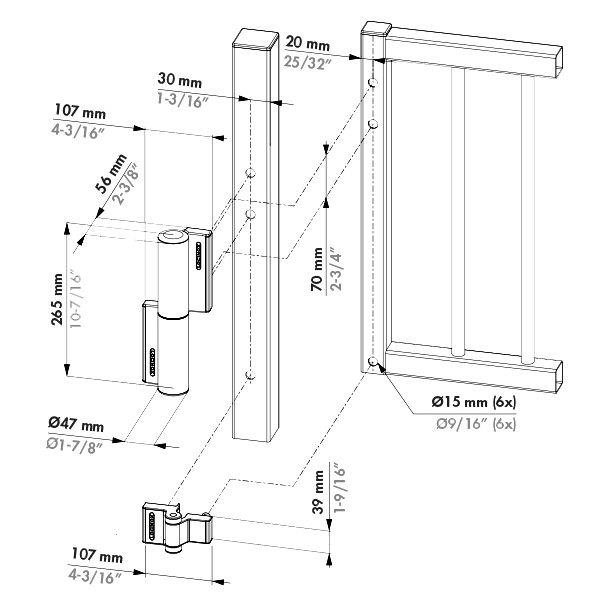

• Screw Centres: 70mm
• Length: 25.6cm
• Width: 10.7cm
• Weight: 2.46kg
• Handing: Non-handed (reversible)
• Tested Cycles: 500,000 movements
• Guarantee: 3 years

Key Features

• Complete Kit: Supplied with the matching Puma bottom hinge for a complete self-closing solution.
• Adjustable Closing & Latching: Fully adjustable closing speed and final snap to ensure controlled, secure closing.
• Weather Resistant: Patented hydraulic damping guarantees a constant closing speed unaffected by temperature or humidity.
• Easy Installation: Includes patented Quick-Fix fittings for fast, secure, and simple mounting.
• RoSPA Compliant: Conforms to RoSPA regulations, making it ideal for safety-critical applications like playground gates.
• Durable Construction: Features a robust powder-coated aluminium housing designed to withstand harsh outdoor environments.
