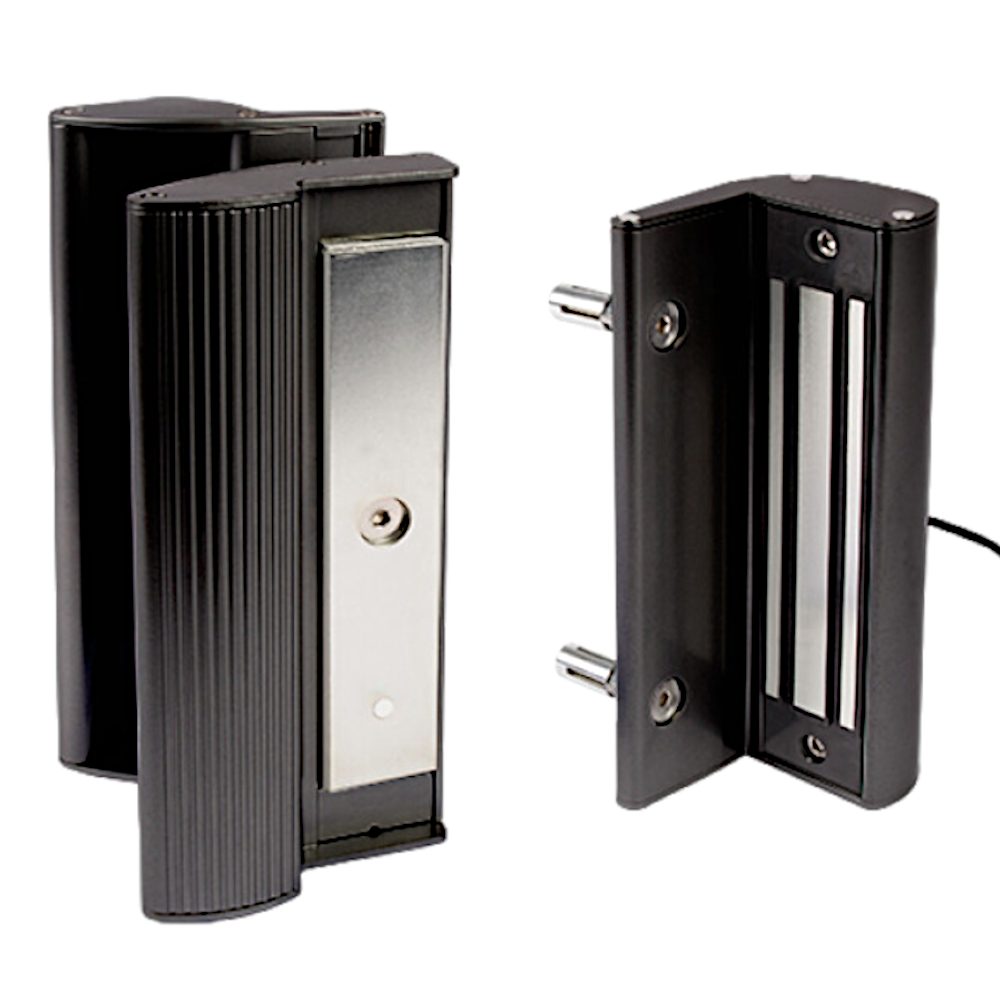

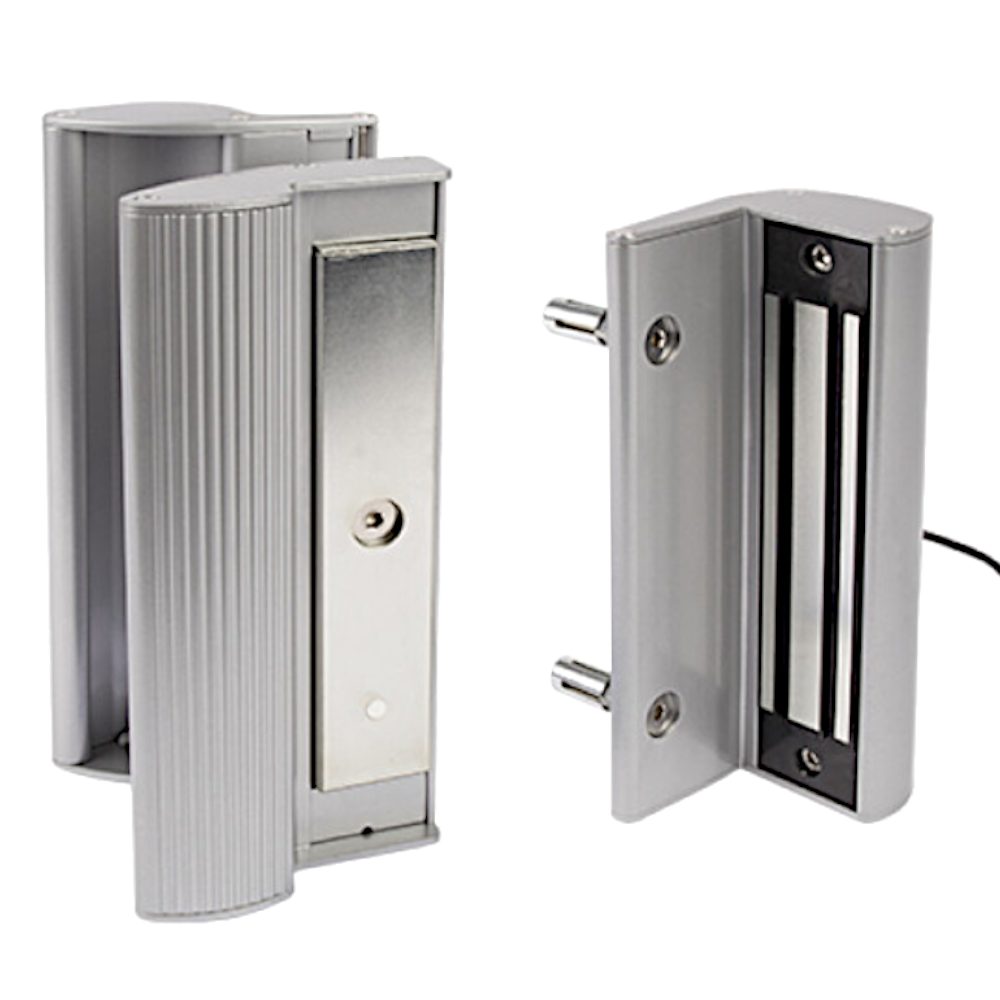

LOCINOX Surface Mounted MAG3000 Electromagnetic Gate Lock With Integrated Handle
Locinox
The Locinox MAG3000 is a robust, surface-mounted electromagnetic gate lock designed specifically for outdoor access control. Suitable for square posts and gate profiles ranging from 40mm to 80mm, this high-quality lock is supplied complete with stylish, integrated handles. It provides a reliable holding force of 300kg (660lbs) to keep your property secure.
Engineered for durability in harsh environments, the MAG3000 features a powder-coated aluminium housing that is 500-hour salt spray resistant. Security is enhanced by a raised edge on the magnet housing, which deters crowbar attacks by preventing tools from being inserted between the magnet and the armature plate. Additionally, an integrated anti-residual magnetism kick-off system ensures smooth and immediate gate release when power is cut.
Installation is quick and straightforward thanks to the patented Locinox Quick-Fix expanding bolts, eliminating the need for time-consuming welding. This fail-safe (fail-open) lock operates on 12V or 24V DC.
This product is available in multiple finishes, including Black and Silver, with corresponding manufacturer references (605012 or 6050111) and barcodes (5414768062548 or 5414768062555). Please choose your preferred options from the selection below.
Technical Specifications
- Holding Force: 300kg (660lbs)
- Input Voltage: 12V / 24V DC
- Current Consumption: 500mA @ 12V DC / 250mA @ 24V DC
- Operation: Fail Safe (Fail Open)

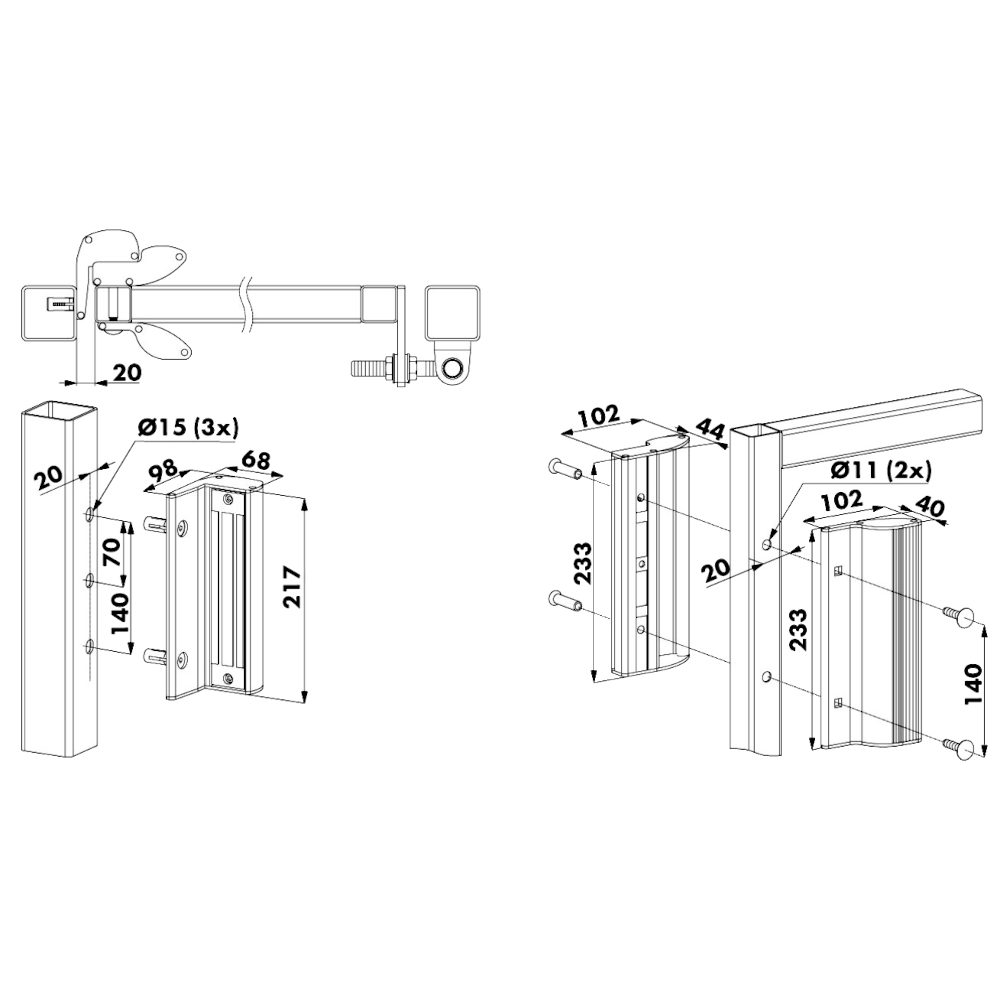

- Gate Profile Compatibility: 40mm to 80mm (square posts)
- Weather Resistance: Yes (500-hour salt spray resistant)
- Housing Material: Powder-coated aluminium
- Weight: 4.14kg
- Guarantee: 2 Year
Key Features
- Integrated Handles: Supplied complete with stylish, integrated design handles for a clean finish.
- Anti-Crowbar Protection: Raised edge on the magnet housing prevents crowbar entry between the magnet and armature plate.
- Anti-Residual Magnetism: Built-in kick-off system ensures immediate gate release when power is disconnected.
- Easy Installation: Patented Quick-Fix expanding bolts allow for fast, secure mounting without the need for welding.
- Weatherproof Design: Two-layer protective coating and powder-coated aluminium housing designed for outdoor use.
- Multiple Finishes: Available in Black or Silver finishes to match your gate aesthetics (please select below).
