LOCINOX Gatelock Fiftylock Insert Set with Keep For 50mm Box Section SAA

The Locinox Fiftylock Gate Kit is a comprehensive, high-security insert lock set designed specifically for 50mm box section gates. Suitable for metal, aluminium, and PVC gates, this complete kit provides everything required for a robust and professional installation. It includes a high-quality insert mortice lock, a Euro profile cylinder with three keys, a surface-mounted SFKO keep, and matching handles and escutcheons in a stylish Satin Anodised Aluminium (SAA) finish.

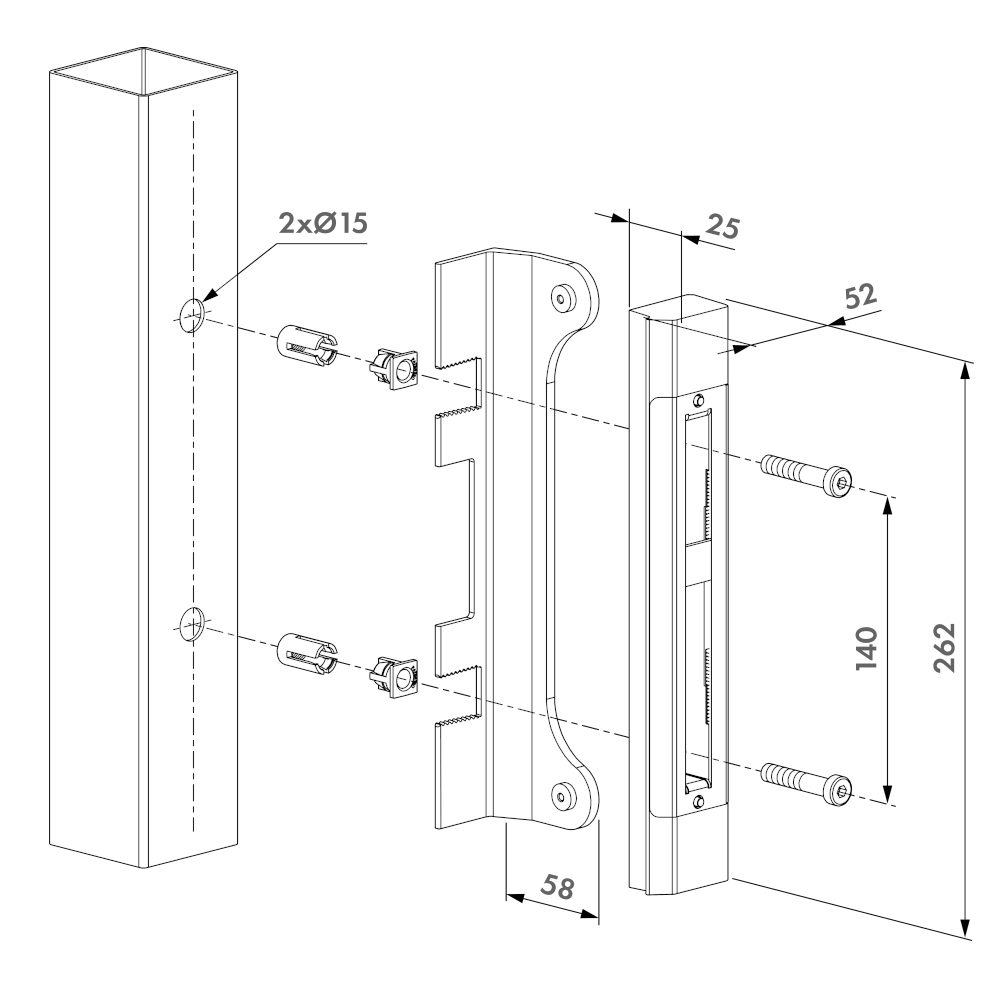

At the core of this set is a 100% stainless steel lock mechanism featuring an adjustable self-latching day bolt and a secure hook. When paired with the included SFKO keep, the hook guarantees a solid closure that prevents gate wings from being forced apart or pried open. The latch bolt offers up to 10mm of continuous adjustment without needing to dismantle the lock, and it can be easily reversed to suit both left- and right-handed gates.

Installation is exceptionally fast and secure thanks to the innovative Quick-Fix mounting system. Additionally, this premium gate lock set is Secured by Design certified, offering peace of mind and proven security for residential or commercial perimeter gates.

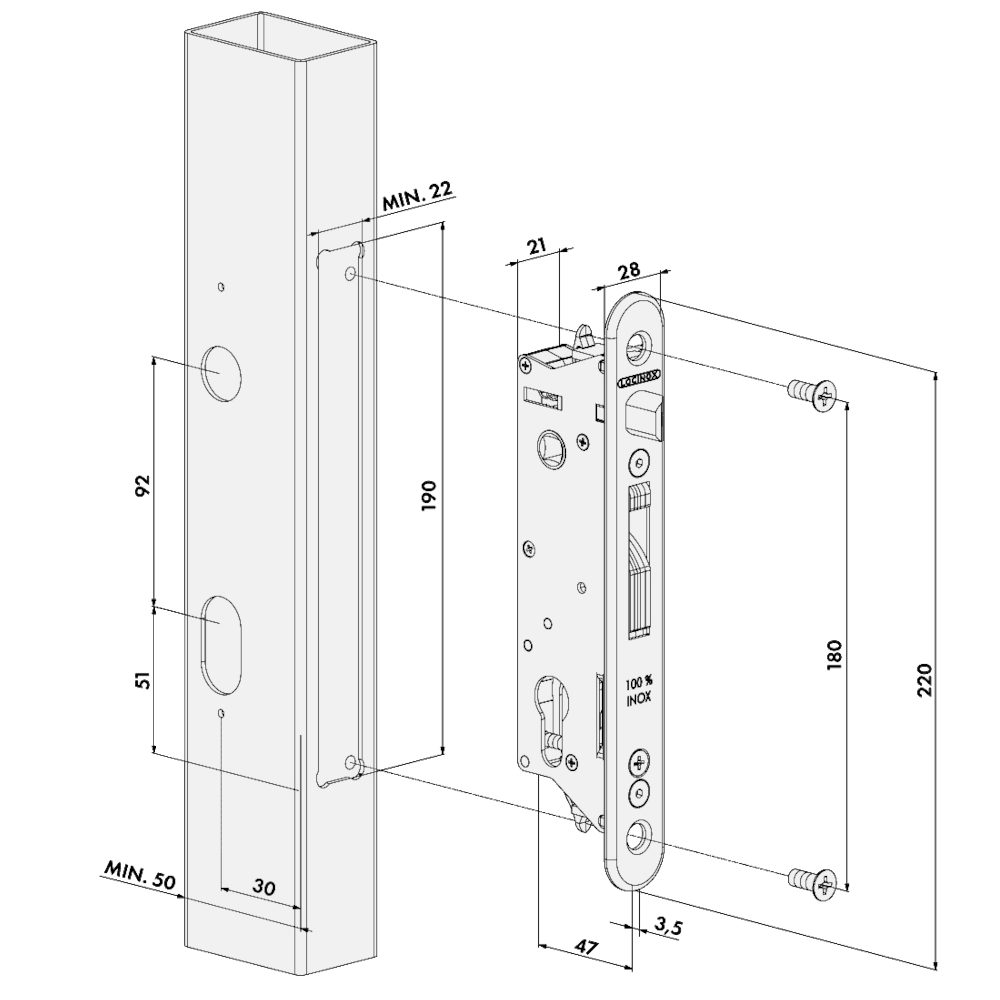

Technical Specifications

• Backset: 30mm
• Case Depth: 47mm
• Case Width: 21mm
• Faceplate Dimensions: 220mm (H) x 28mm (W)
• Screw Centres: 180mm
• Bolt Throw: 21mm (hook throw)
• Latch Adjustment: Up to 10mm continuous adjustment
• Compatibility: Suitable for 50mm box section gates (metal, aluminium, or PVC)
• Cylinder: Euro profile cylinder (keyed to differ, 3 keys supplied)
• Finish: Satin Stainless Steel mechanism with SAA (Satin Anodised Aluminium) hardware
• Standards: Secured by Design certified

Key Features

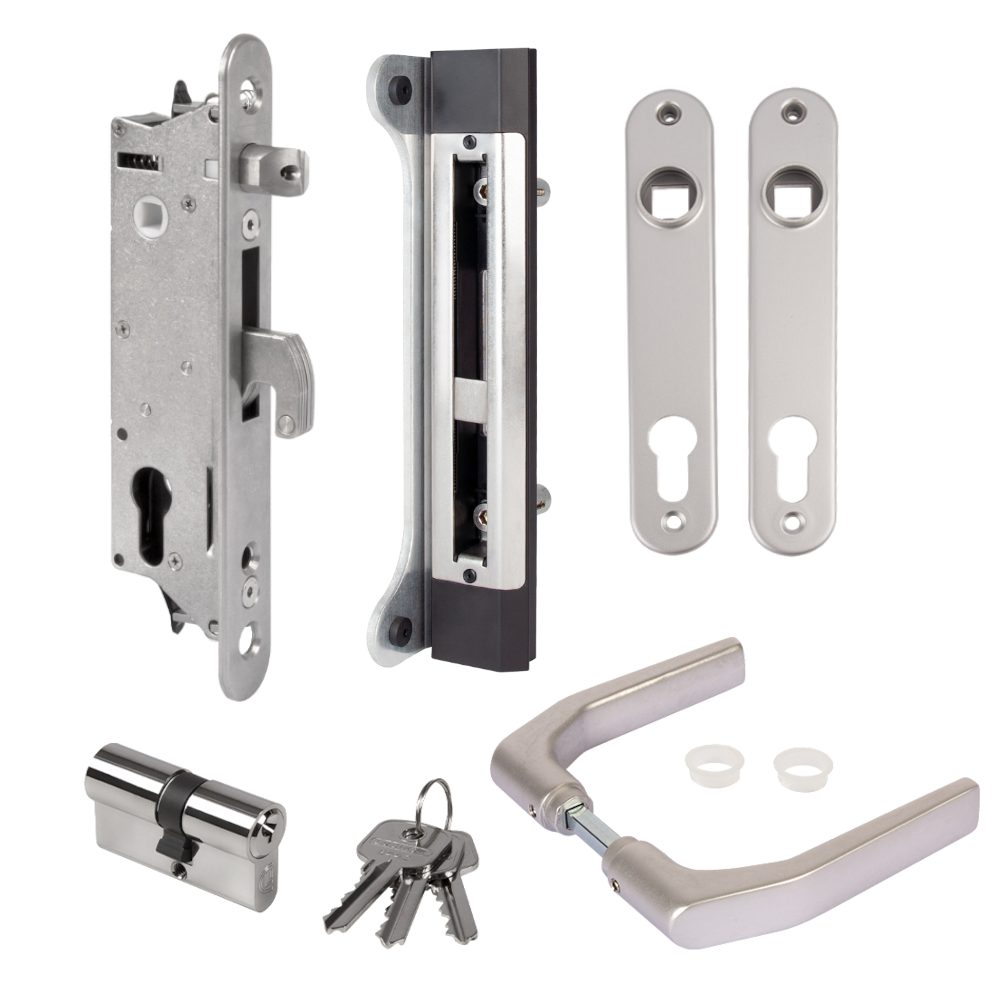

• All-in-One Kit: Includes the insert lock, Euro cylinder, SFKO keep, handles, and escutcheons for a complete installation.
• Corrosion-Resistant Construction: Features a 100% stainless steel mechanism, hook, and latch bolt for long-lasting outdoor durability.
• Enhanced Security: The secure hook and keep combination prevents gate wings from being forced or pulled apart.
• Quick-Fix Mounting: Patented system ensures fast, strong, and hassle-free installation on the gate profile.
• Reversible Latch: Easily adjustable self-latching day bolt can be reversed for left- or right-handed gates.
• Continuous Adjustment: Latch bolt can be adjusted up to 10mm without dismantling the lock box.
