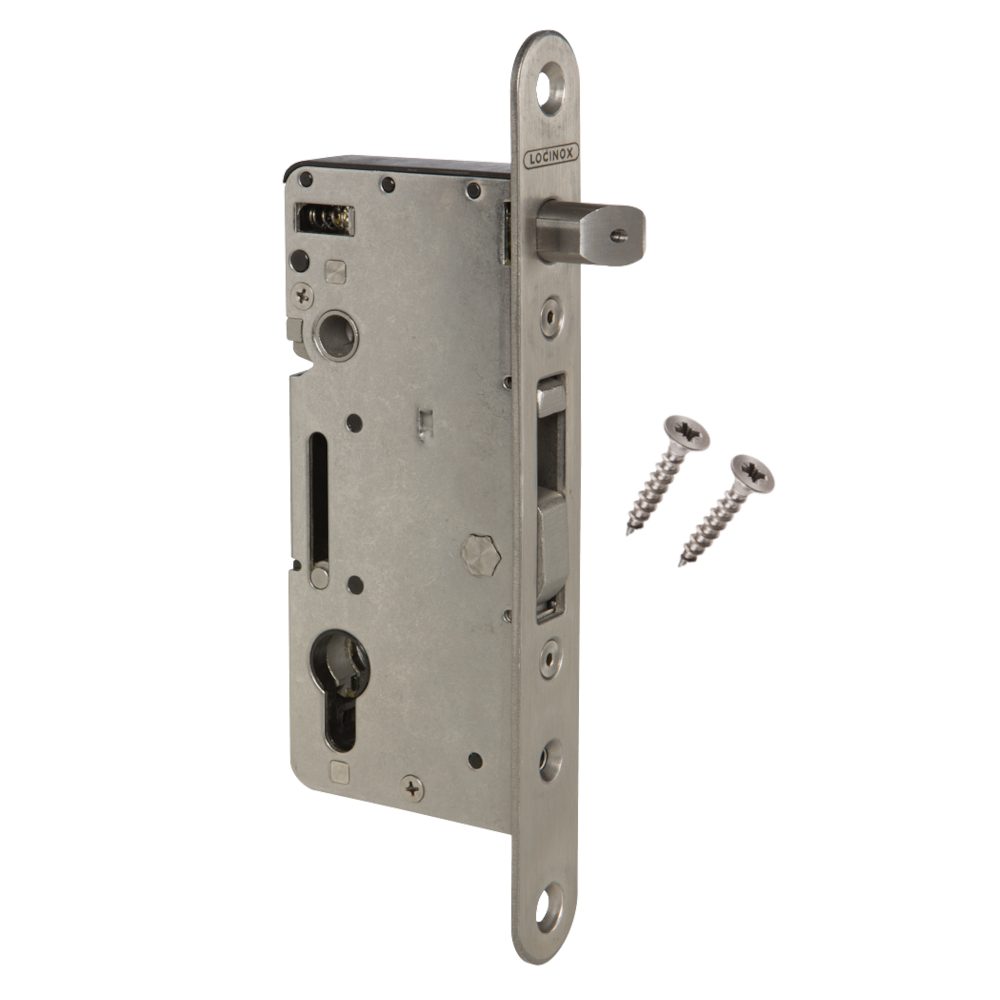

LOCINOX Gate Insert Lock H-WOOD With Hook

The Locinox H-WOOD is a premium-grade insert lock engineered specifically for wooden swing gates. Featuring a 100% stainless steel mechanism, front plate, latch, and hook, this lock offers exceptional corrosion resistance and durability in demanding outdoor environments.

Designed for seamless integration into timber gates with a minimum depth of 85mm, the H-WOOD features a 60mm backset and a fully reversible latch bolt to suit both left and right-handed configurations. The self-latching bolt can be adjusted continuously by up to 20mm without dismantling the lock, ensuring a perfect fit. For robust security, the heavy-duty stainless steel hook bolt provides a 33mm throw. When paired with a compatible SHKW keep, this hook deadbolt securely anchors the gate to prevent it from being forced or pried open.

Please note: The Euro profile cylinder, handles, and keep are not included and must be purchased separately.

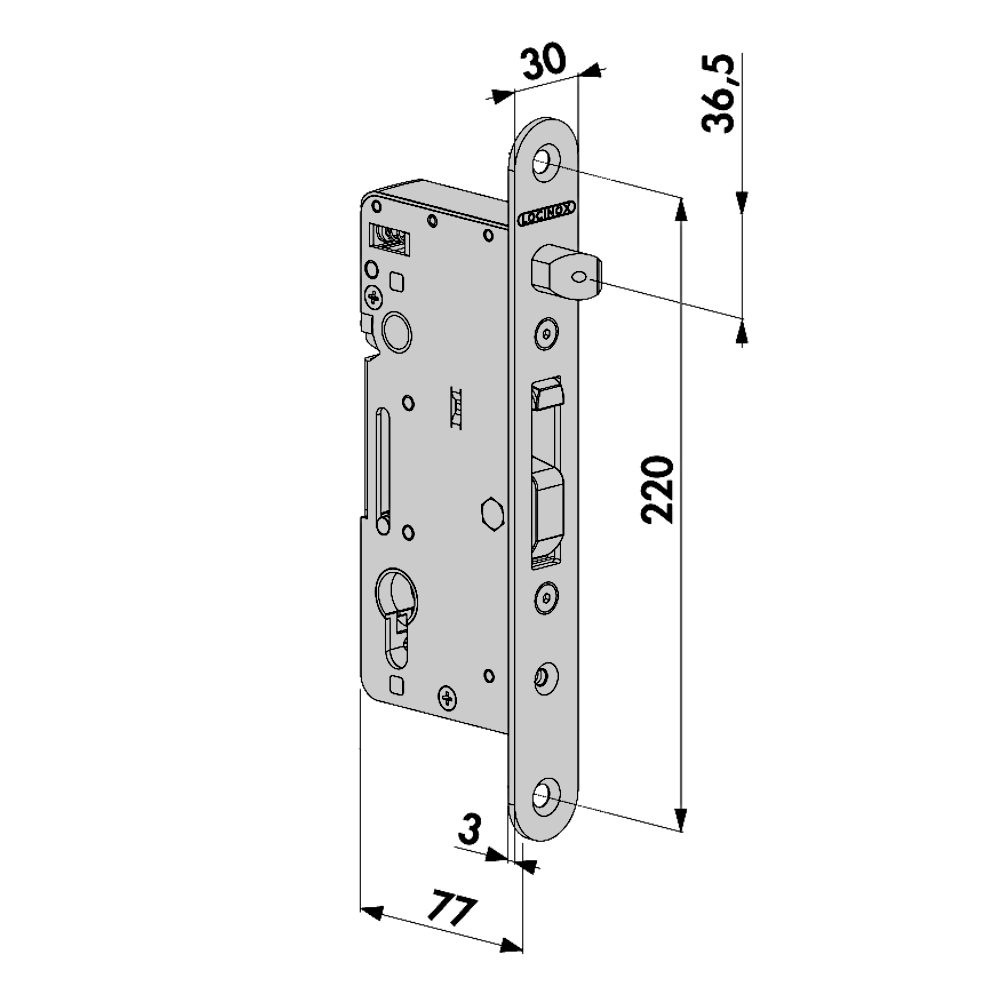

Technical Specifications

• Brand: Locinox
• Backset: 60mm
• Bolt Throw: 33mm
• Case Depth: 77mm
• Height: 230mm
• Width: 30mm
• Plate Depth: 3mm
• Screw Centres: 170mm
• Cylinder to Handle Centres: 92mm
• Minimum Gate Depth: 85mm
• Mechanism: Euro Cylinder (not included)
• Handing: Reversible (left or right-handed)
• Material: Stainless steel mechanism, front plate, latch, and hook
• Weight: 970g

Key Features

• Weather-Resistant Construction: 100% stainless steel internal mechanism and faceplate for ultimate outdoor durability.
• Adjustable Latch Bolt: Up to 20mm of continuous latch adjustment without needing to dismount the lock.
• Secure Hook Deadbolt: 33mm hook throw provides robust anchoring, preventing the gate from being pried open when used with a SHKW keep.
• Fully Reversible: Easily configured for left or right-handed wooden swing gates.
• Euro Cylinder Compatible: Designed to work with standard Euro profile cylinders for flexible keying options.
