LOCINOX 4DW Vandal Proof SSS Gate Hinge With 4 Dimension Adjustment

Locinox More Locinox Gate

From

£197.72

Select size, finish, and quantity from the variant table.

View options

The Locinox 4DW A2 is a premium, vandal-proof hinge system specifically engineered for wooden gates. Manufactured from high-quality stainless steel, this robust hinge offers exceptional durability and weather resistance, making it ideal for external installations.

A key benefit of the Locinox 4DW is its 4-dimensional adjustability. You can easily adjust the height, depth, left/right alignment, and rotational direction of the gate. Crucially, these adjustments can be made even after the gate has been fully installed. This allows you to keep your wooden gate perfectly aligned over time, compensating for any natural warping or movement caused by changing weather conditions.

Designed for versatility, this hinge provides a full 180-degree opening angle and is suitable for both left and right-turning gates. It is capable of supporting heavy gates up to 150kg in weight.

This product is supplied as a pair and is available in multiple lengths, weights, and pre-drilled hole configurations to suit your specific gate requirements. Please choose your preferred length and specification from the options below.

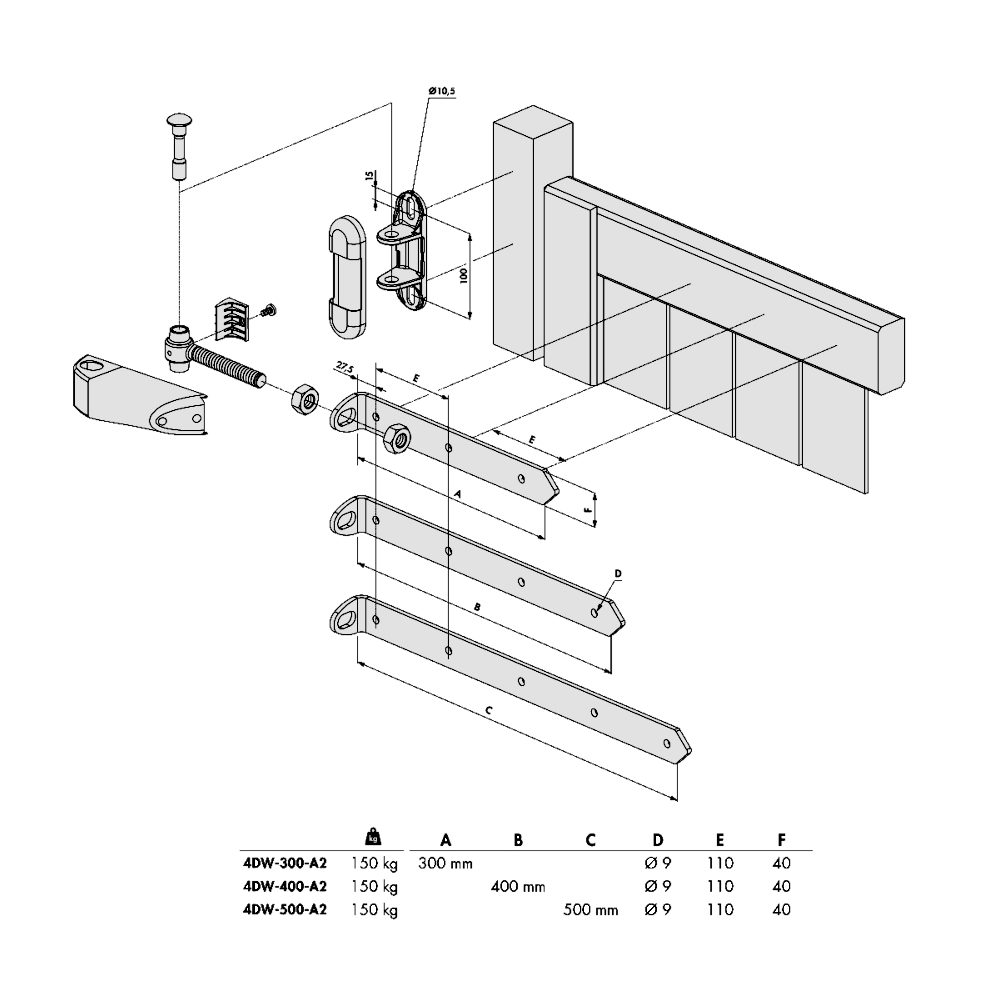

Technical Specifications

Brand: Locinox
Body Material: Stainless Steel
Max Gate Weight: 150kg
Opening Angle: 180°
Adjustability: 4-dimensional (height, depth, left/right alignment, and rotational direction)
Longitudinal Adjustability: +/- 50mm
Depth Adjustability: 20mm
Pack Quantity: 1 Pair (2 pieces)
Length: 30cm, 40cm, or 50cm (please choose from the options below)
Weight: 1.6kg, 1.98kg, or 2.2kg (please choose from the options below)
Pre-drilled Holes: 3, 4, or 5 x 9mm holes (please choose from the options below)
Manufacturer Reference: 6010771, 6010772, or 6010773 (please choose from the options below)
Barcode: 5414768015926, 5414768015940, or 5414768015964 (please choose from the options below)

Key Features

Vandal-Proof Construction: Robust design protects against tampering and vandalism.
4D Adjustability: Easily adjust height, depth, alignment, and rotational direction for a perfect fit.
Post-Installation Adjustment: Adjustments can be made after installation to correct gate warping from weather.
180° Opening: Allows the gate to open fully for unobstructed access.
Reversible: Suitable for both left and right-hand opening wooden gates.
Heavy-Duty Capacity: Supports robust wooden gates weighing up to 150kg.
Premium Stainless Steel: Offers superior corrosion resistance and long-lasting performance.
