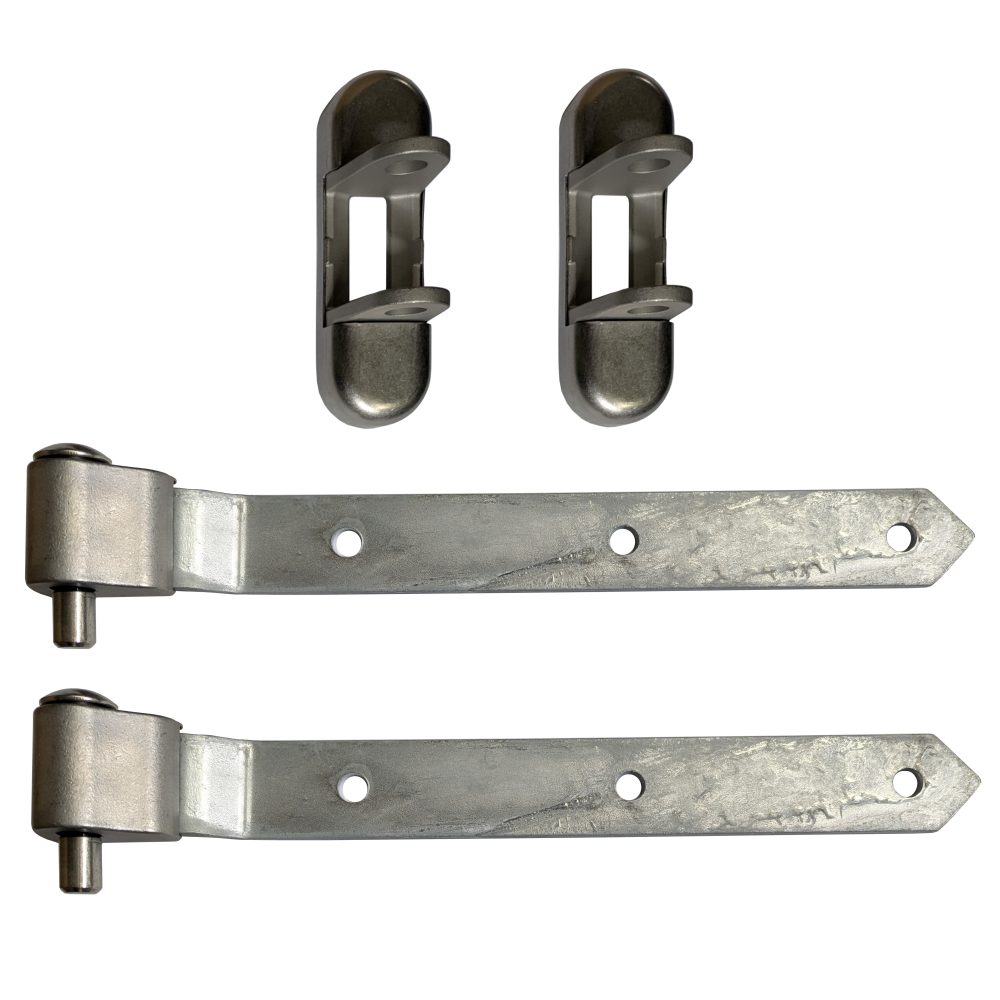

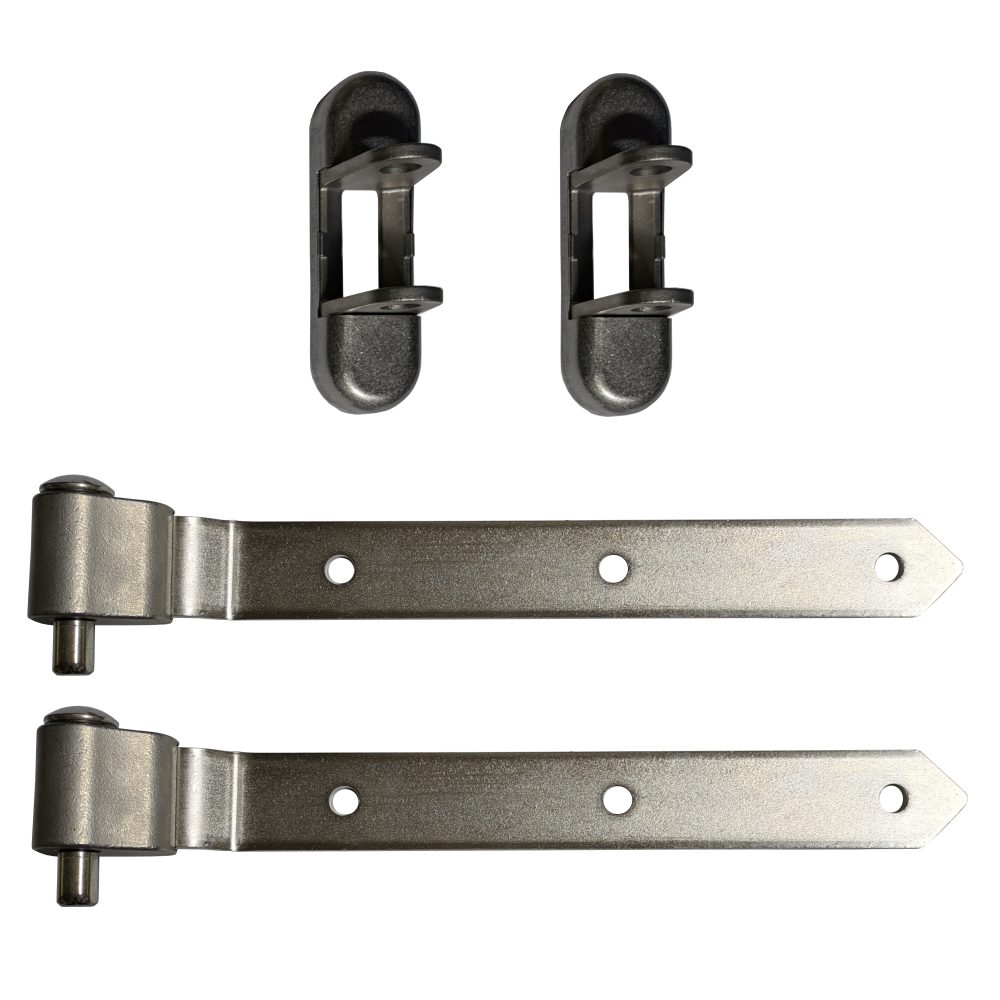

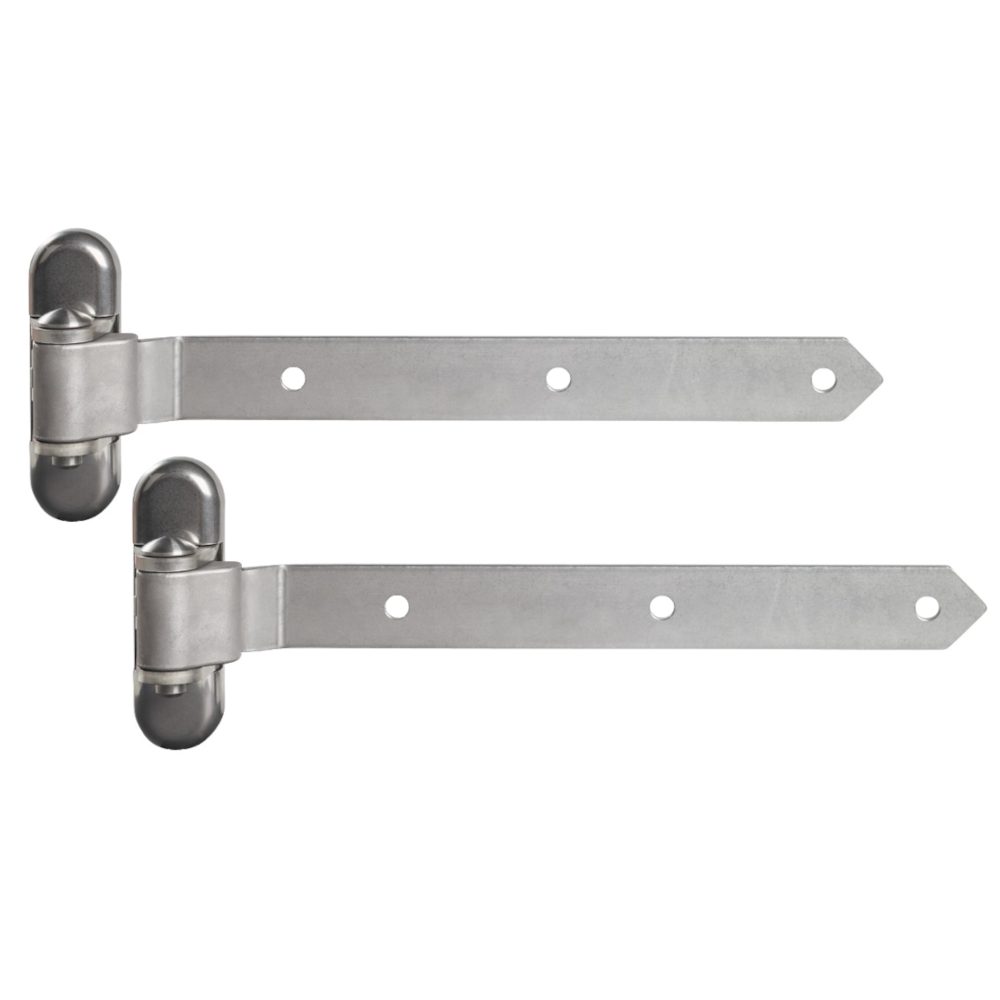

LOCINOX 3DW 350 Vandal Proof Gate Hinge With 3 Way Adjustment

The Locinox 3DW 350 is a robust, vandal-proof strap hinge designed specifically for wooden gates. Engineered to offer exceptional durability and security, this heavy-duty hinge provides a full 180-degree opening angle and can support gates weighing up to 350kg.

A key advantage of the 3DW 350 is its versatile three-way adjustment system. This allows for precise post-installation alignment, enabling you to adjust the height, left/right alignment, and swing direction with ease. It is also fully reversible, making it suitable for both left and right-hand opening gates.

Constructed with a stainless steel body (including the hinge socket, axle, and socket cover plate), this hinge is built to withstand harsh outdoor environments. It is available in a choice of finishes and weights - please select your preferred options from the list below.

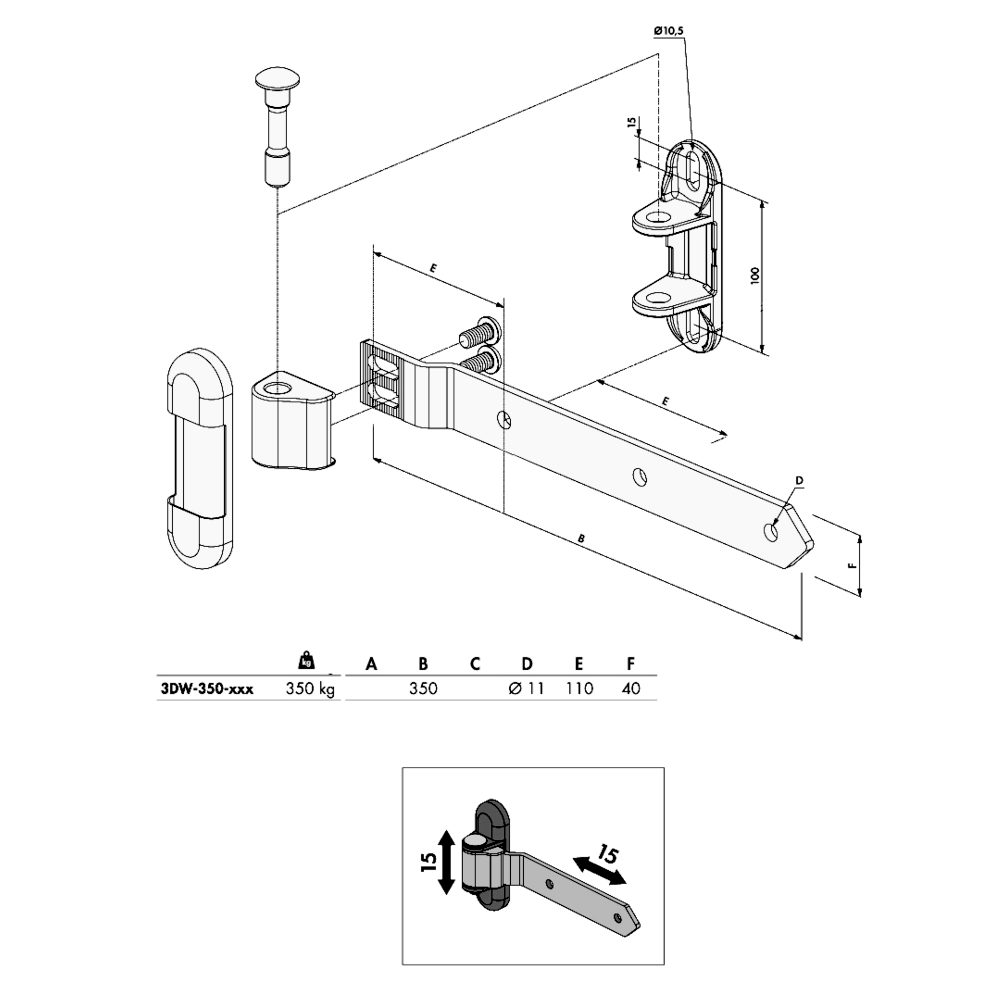

Technical Specifications

• Brand: Locinox
• Length: 35cm (350mm)
• Maximum Gate Weight: 350kg
• Body Material: Stainless Steel
• Pack Quantity: 1 Pair
• Finish: Galvanised or Stainless Steel (please choose from the options below)
• Weight: 1.48kg or 1.52kg (please choose from the options below)
• Manufacturer Reference: 601077 or 6010762 (please choose from the options below)
• Barcode: 5414768011720 or 5414768011713 (please choose from the options below)

Key Features

• Three-Way Adjustment: Easily adjust height, left/right alignment, and swing direction for a perfect fit.
• Vandal-Proof Design: High-security construction protects against tampering and vandalism.
• 180° Opening Angle: Allows the gate to open fully for unobstructed access.
• Reversible Handing: Suitable for both left-hand and right-hand opening wooden gates.
• Heavy-Duty Capacity: Supports wooden gates weighing up to 350kg.
• Corrosion Resistant: Built with high-quality stainless steel components for long-lasting outdoor durability.
