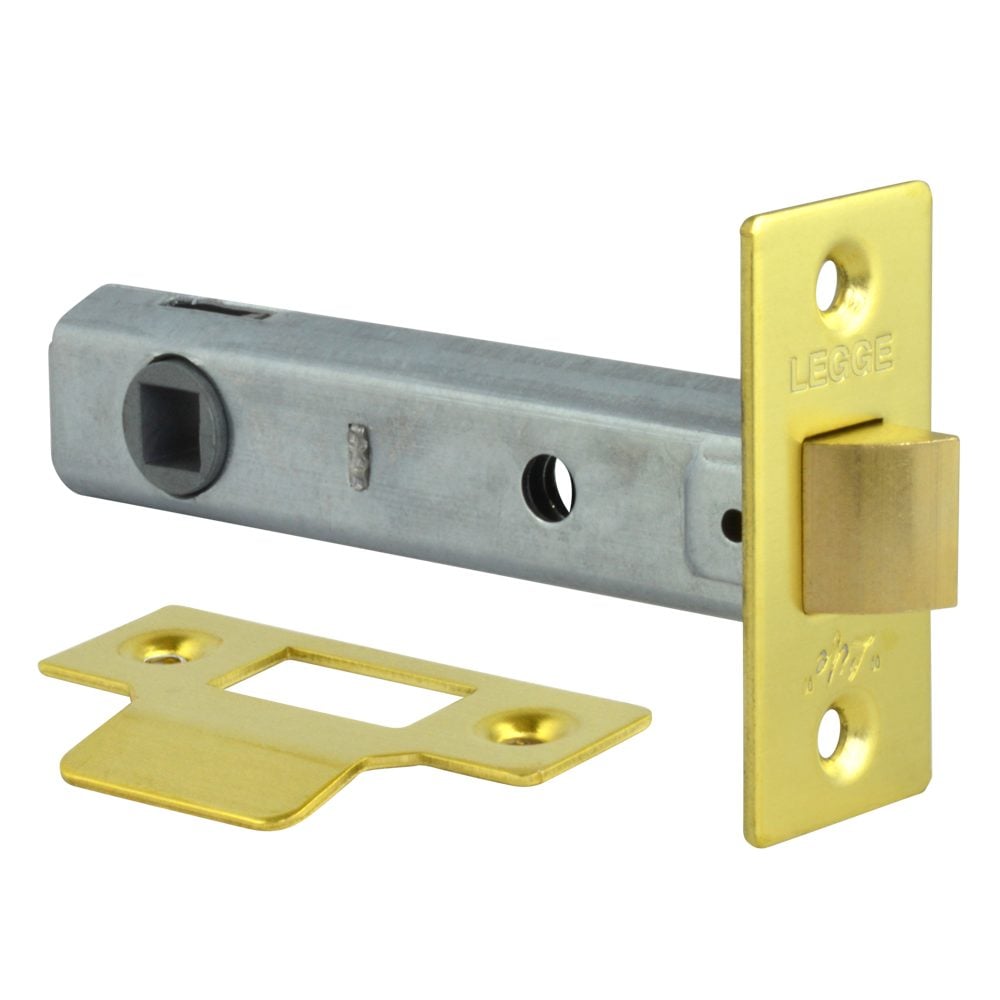

Legge 3722 & 3724 Tubular Latch

The Legge 3722 and 3724 tubular latches are reliable, high-quality latch mechanisms designed for internal timber doors. Suitable for both left and right-handed doors, these latches are operated by lever handles from either side. They feature a robust zinc-plated case construction and are available in a choice of finishes to match your door hardware.

These latches are fitted with a slot to allow locking with a No. 14 thumbturn, providing a simple and effective privacy locking function.

Please select your preferred backset, case depth, and finish from the options below.

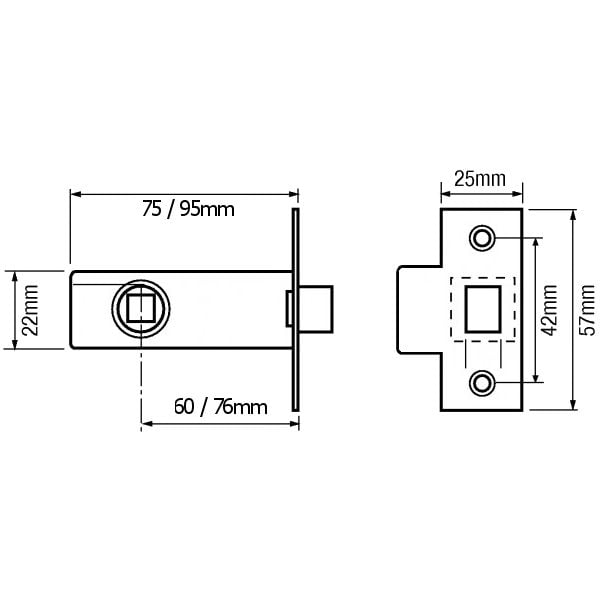

Technical Specifications

• Backset: 60mm or 76mm (please select from the options below)
• Case Depth: 79mm or 95mm (depending on backset selected)
• Case Height: 22mm
• Follower: 8mm
• Forend Dimensions: 57mm (Length) x 25mm (Width)

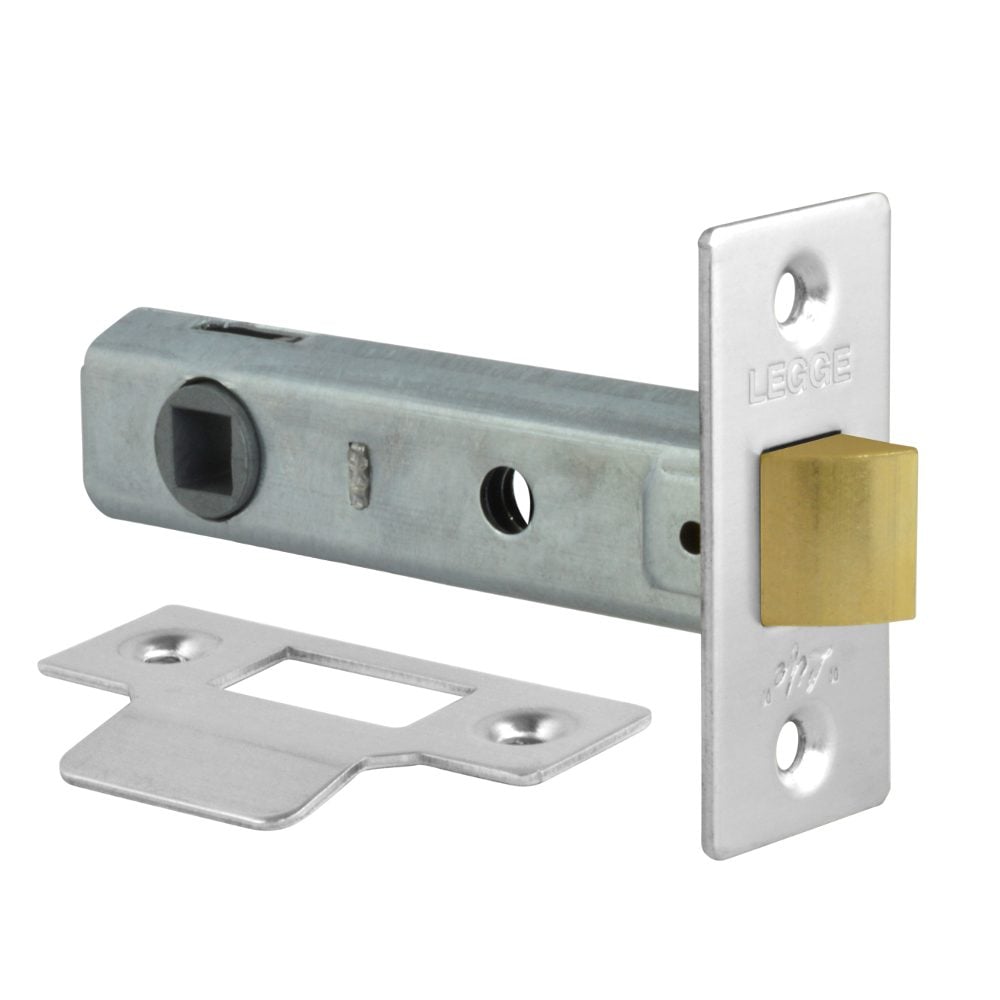

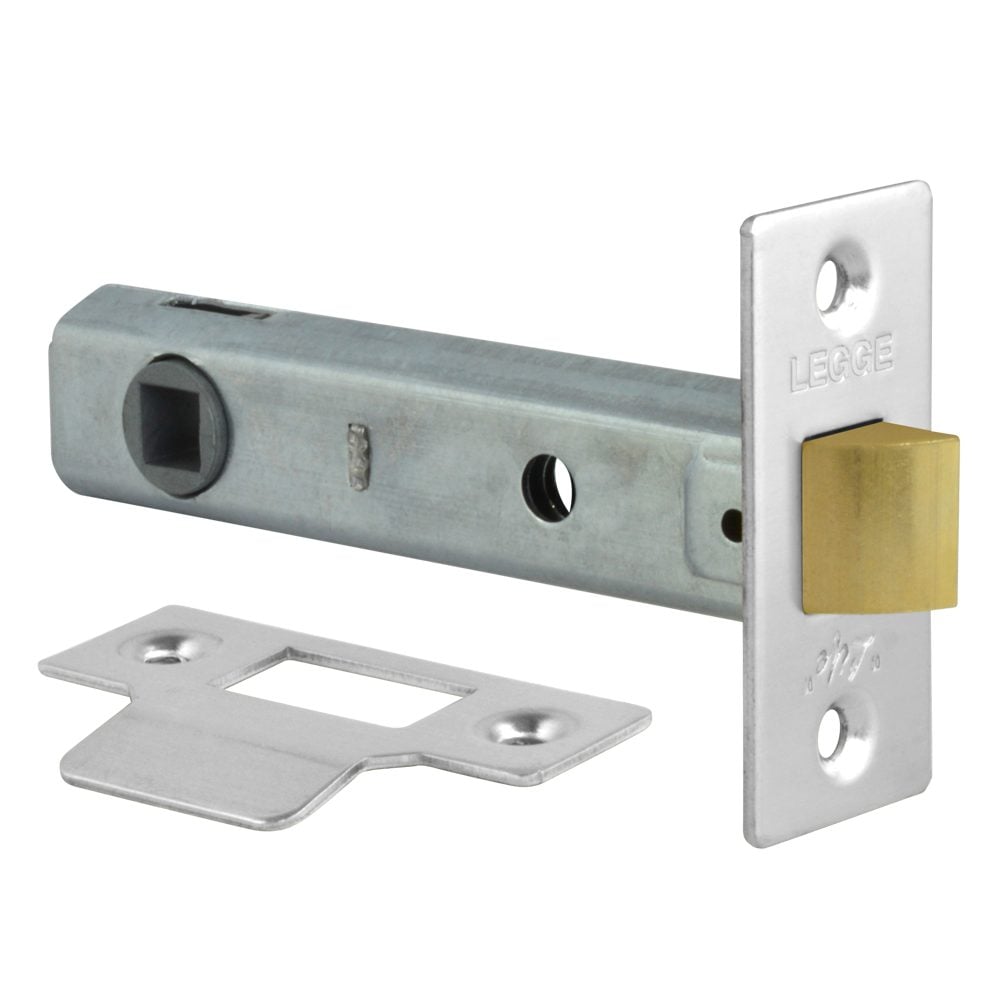

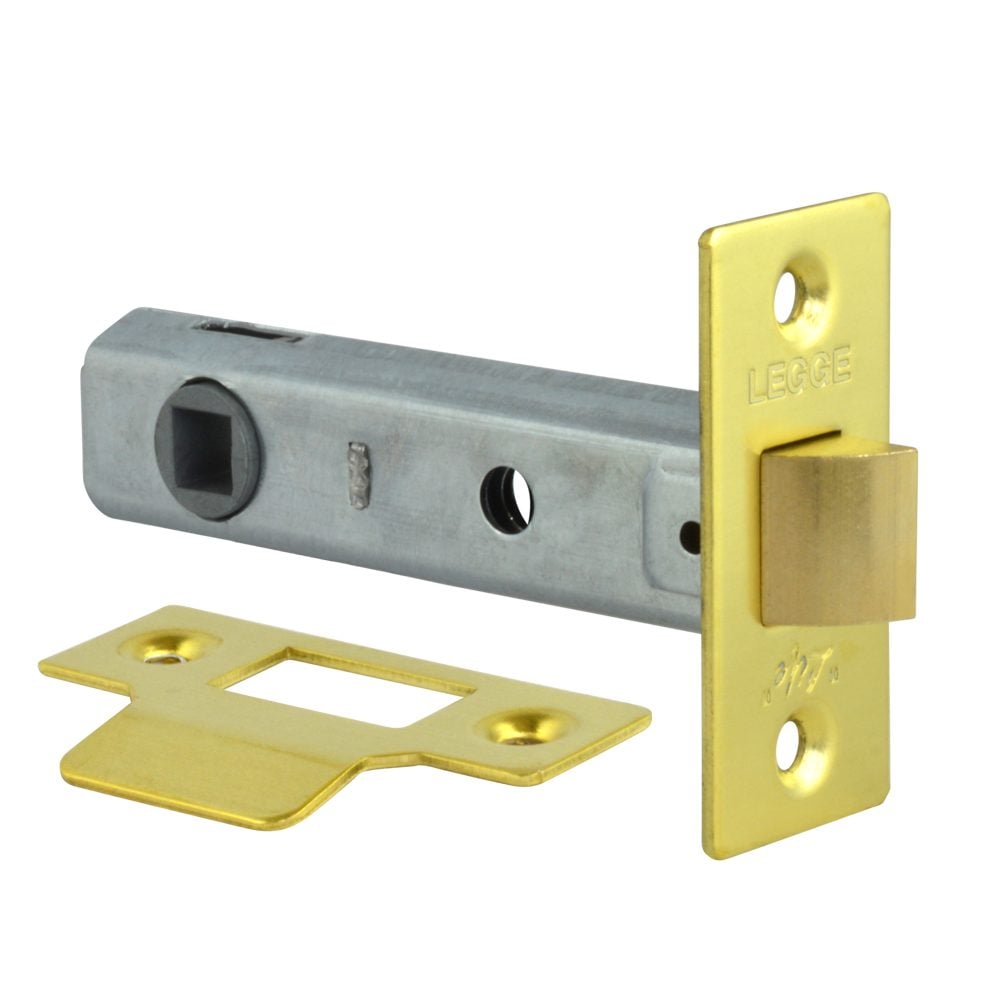

• Finishes Available: Polished Brass or Nickel Plated (please select from the options below)
• Case Finish: Zinc Plated
• Mechanism: Latch only (fitted with a slot to allow locking with a No. 14 thumbturn)
• Weight: 110g or 120g (depending on size selected)

Key Features

• Fully reversible latchbolt suitable for both left and right-handed internal doors
• Operated by lever handles from either side
• Fitted with a slot to allow locking with a No. 14 thumbturn for privacy applications
• Durable zinc-plated case construction
• Available in multiple backsets and finishes to suit your door requirements
