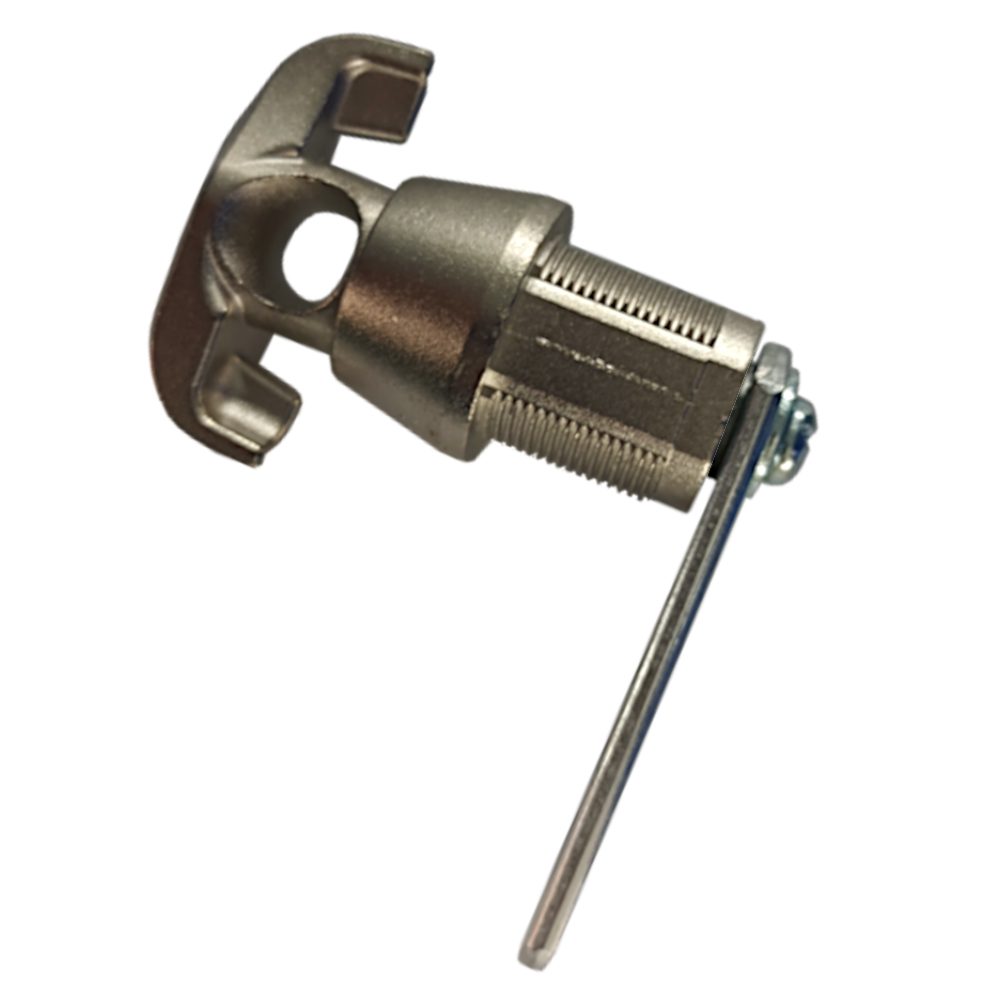

L&F 5720 Push-To-Turn 20mm Latch Lock

The Lowe & Fletcher (L&F) 5720 is a robust, push-to-turn latch lock designed for secure, keyless storage. Ideal for lockers, office furniture, and personal storage cabinets, this padlockable cam lock offers a convenient security solution where users provide their own padlocks.

Constructed from durable die-cast zinc with a high-quality nickel-plated finish, the L&F 5720 features a 20mm body length and is secured using a reliable nut fix housing. It is designed to accommodate padlock shackles with a diameter between 5mm and 8mm.

Operation is smooth and intuitive: simply push the handle inward to engage the mechanism, then rotate it 90° clockwise to latch or unlatch. When a padlock is fitted, the free-wheel system disengages the handle, allowing it to spin freely to prevent the lock from being forced. Additionally, a positive "click" provides clear tactile feedback when the handle reaches the fully open or closed position.

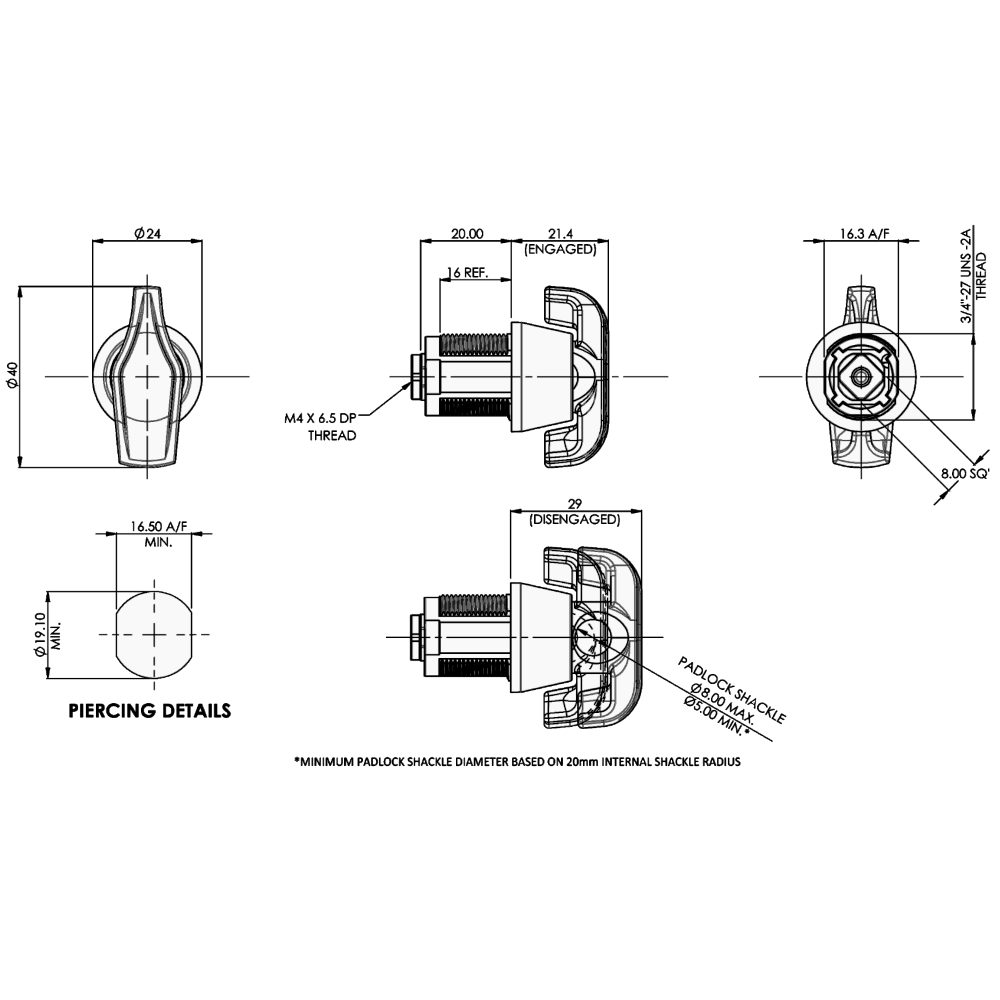

Technical Specifications

• Brand: Lowe & Fletcher (L&F)
• Body Length: 20mm
• Body Width: 16mm
• Material: Zinc (Die Cast)
• Finish: Nickel Plated
• Cam Bar Dimensions: 58mm (L) x 15mm (W)
• Fixing Type: Nut fix housing (suitable for panels up to 13mm thick)
• Movement: 90° clockwise
• Recommended Padlock Shackle Diameter: Min 5mm / Max 8mm
• Manufacturer Reference: 5720017B

Key Features

• Push-to-Turn Operation: Smooth handle engagement requires pushing inward before rotating to operate.

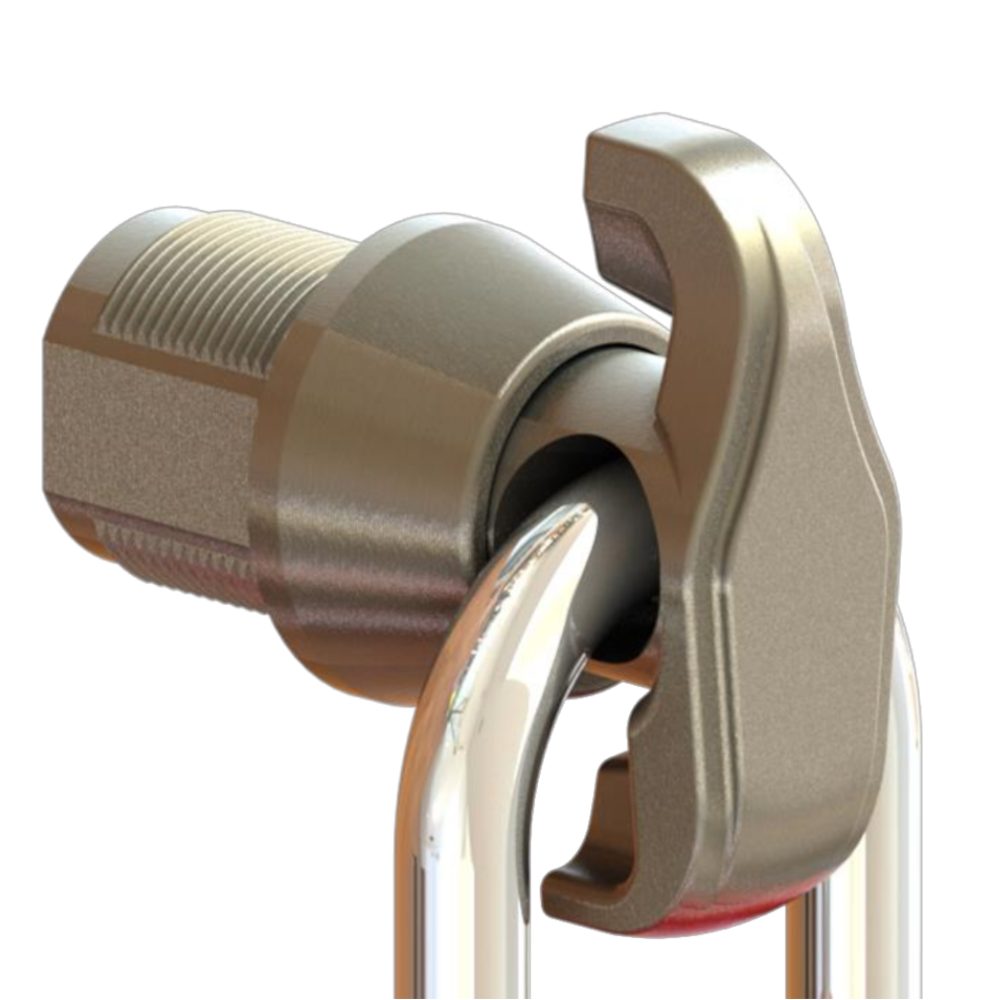

• Free-Wheel Security: When a padlock is fitted, the handle spins freely to help prevent the lock from being forced.
• Tactile Click: Positive position click provides clear feedback between the open and closed positions.
• Padlock Compatible: Accepts standard padlocks with shackle diameters from 5mm to 8mm, ideal for shared locker environments.
• Durable Construction: Made from robust die-cast zinc with a corrosion-resistant nickel-plated finish.
• Easy Installation: Supplied with a secure nut fixing for straightforward mounting on panels up to 13mm thick.
