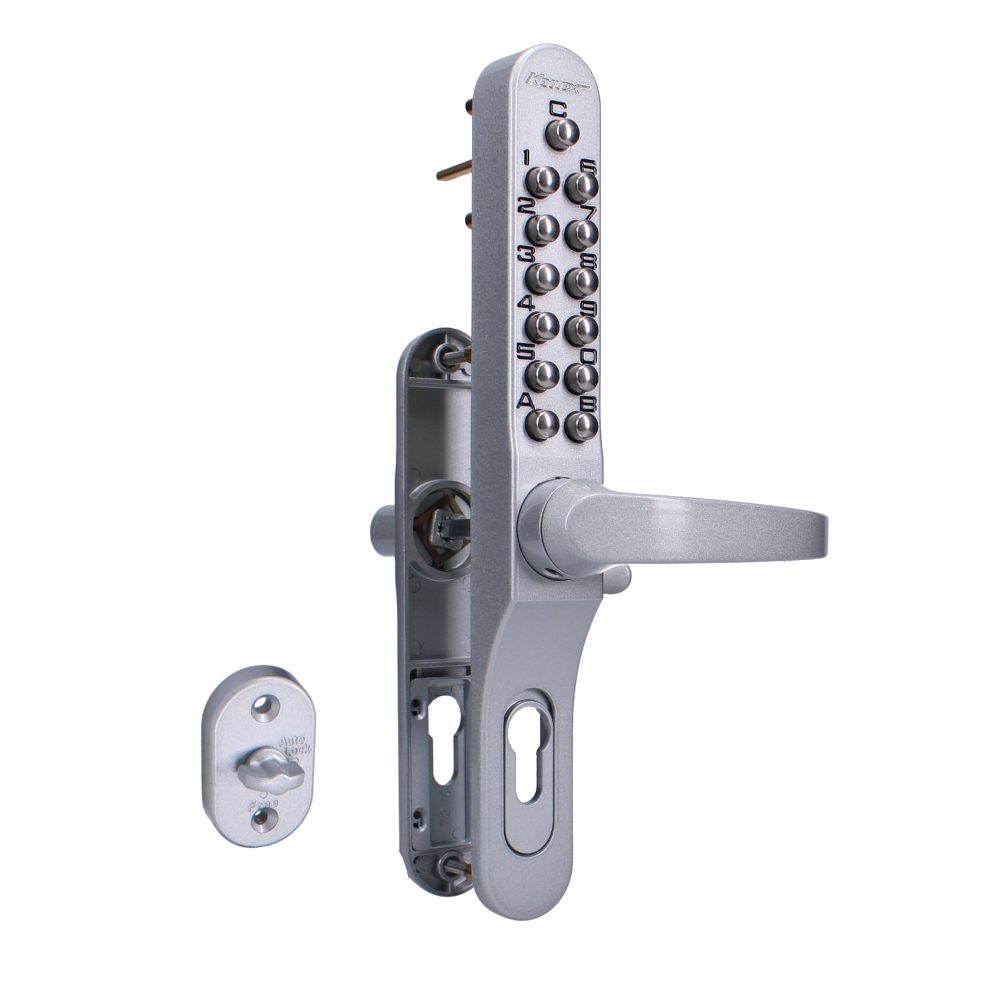

KEYLEX 700 Series

The Keylex 700 Series (K700L.72.72.SC) is a standard-duty, high-security mechanical digital lock designed for both internal and external door installations. Operating entirely mechanically, this lock requires no batteries or electrical wiring, providing a highly reliable and cost-effective access control solution for busy environments.

Equipped with a slipping clutch mechanism, the Keylex 700 is built to withstand vandalism and forced attacks. If forced, the outside lever slips harmlessly, protecting the internal gear mechanism from damage. The lock features a convenient passage set function, allowing free passage from both sides when required. For safety and ease of escape, the inside lever handle provides immediate, code-free exit at all times.

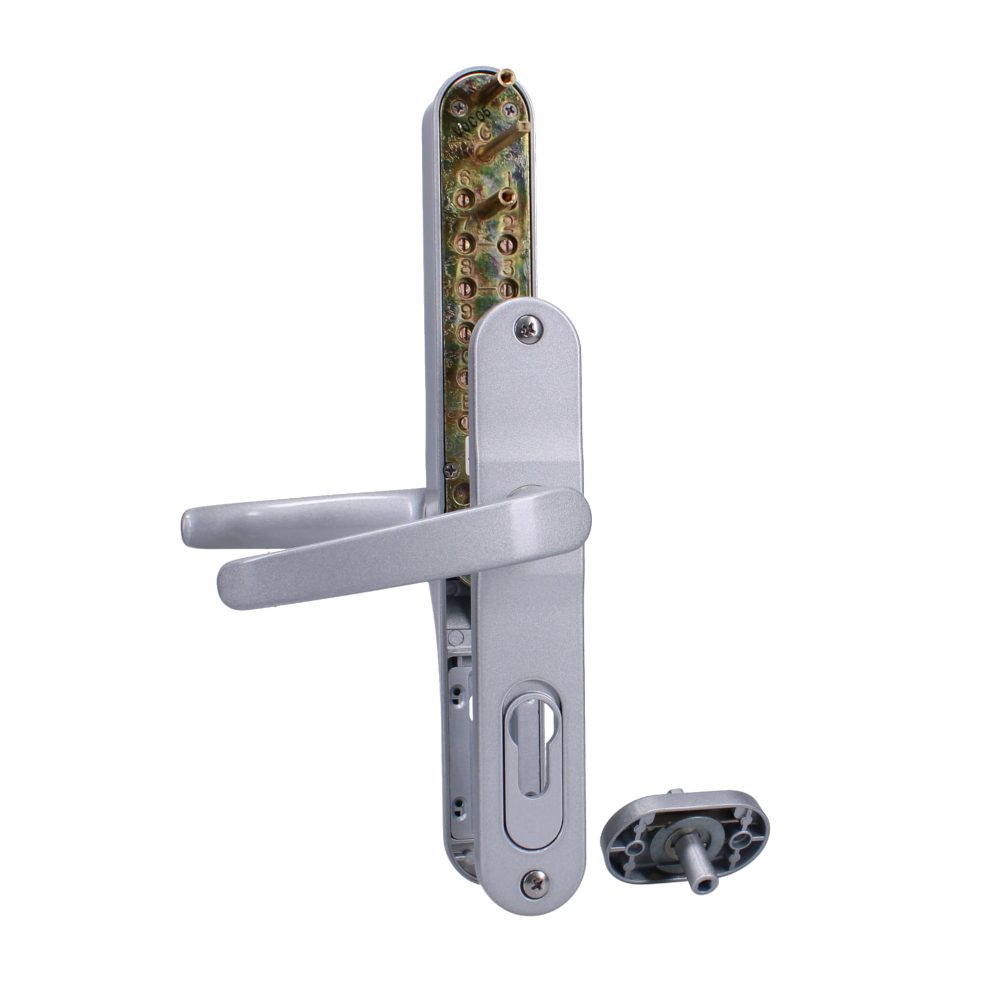

This model features a key override facility designed to accommodate a Euro profile cylinder (purchased separately), ensuring authorised keyholders can always gain access. With its weather-resistant satin chrome finish and durable buttons that prevent code wear indication, the Keylex 700 is an ideal choice for standard-duty security.

Technical Specifications

• Manufacturer Reference: K700L.72.72.SC
• Mechanism: Mechanical Digital
• Buttons: 13
• Code Length: Up to 12 digits
• Combinations: 1,000+
• Door Thickness: 30mm to 50mm
• Finish: Satin Chrome
• Handing: Reversible (non-handed)
• Key Override: Yes (Euro profile cylinder purchased separately)
• Latch: Not supplied (less lock case)
• Width: 40mm
• Weight: 1.89kg

Key Features

• Battery-Free Operation: Entirely mechanical system requiring no electrical wiring or batteries.
• Slipping Clutch Mechanism: Protects internal gears from forced entry and vandalism by allowing the lever to rotate under excessive force.
• Passage Set Function: Allows the lock to be set for free passage from both sides when unrestricted access is needed.
• Free Exit: Inside lever handle ensures immediate, code-free egress at all times.
• Weather Resistant: Suitable for both internal and external door installations.
• Durable Buttons: Satin chrome finish with robust buttons designed to resist wear and prevent code identification.
• 2-Year Guarantee: Manufacturer-backed peace of mind.
