KEYLEX 500 Series

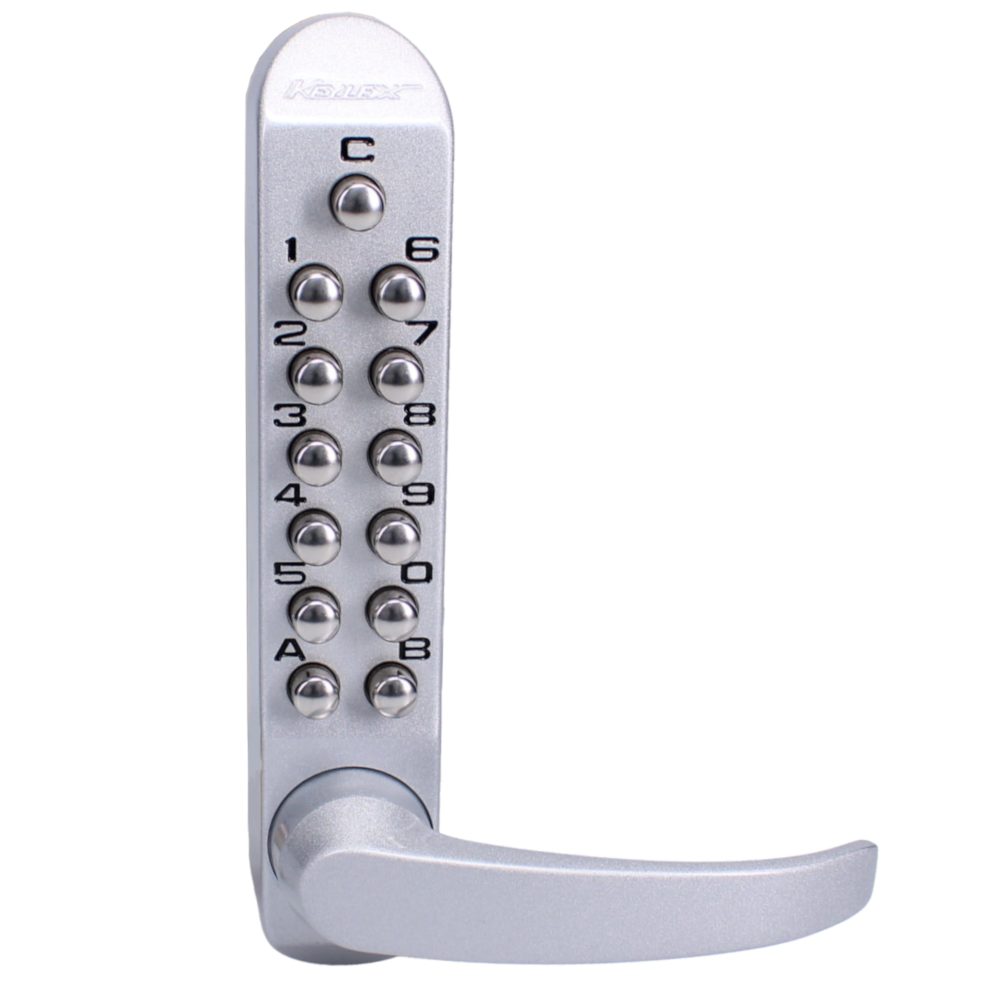

The Keylex 500 Series (K500L.60/70.SC) is a standard-duty mechanical digital lock featuring lever handles on both sides, designed specifically for low-security internal door installations. Ideal for offices, staff rooms, and commercial spaces, this battery-free lock offers a reliable and cost-effective way to manage access control without the need for complex wiring or ongoing maintenance.

Equipped with a passage function facility, the Keylex 500 allows users to set the lock to "free passage" mode from both sides, enabling unrestricted entry and exit during busy periods. Egress from the inside is always free via the internal lever handle, ensuring safe exit at all times.

Its narrow-stile design makes it highly versatile, fitting timber and composite doors with stiles as narrow as 80mm. The lock is fully reversible for left- or right-hand hung doors and comes complete with an adjustable 60mm to 70mm tubular latch. Finished in a sleek satin chrome, it provides a durable and weather-resistant solution for everyday internal use.

Technical Specifications

• Brand: Keylex
• Manufacturer Reference: K500L.60/70.SC
• Finish: Satin Chrome
• Mechanism: Mechanical Digital
• Buttons: 13
• Code Length: Up to 12 digits
• Combinations: 1,000+

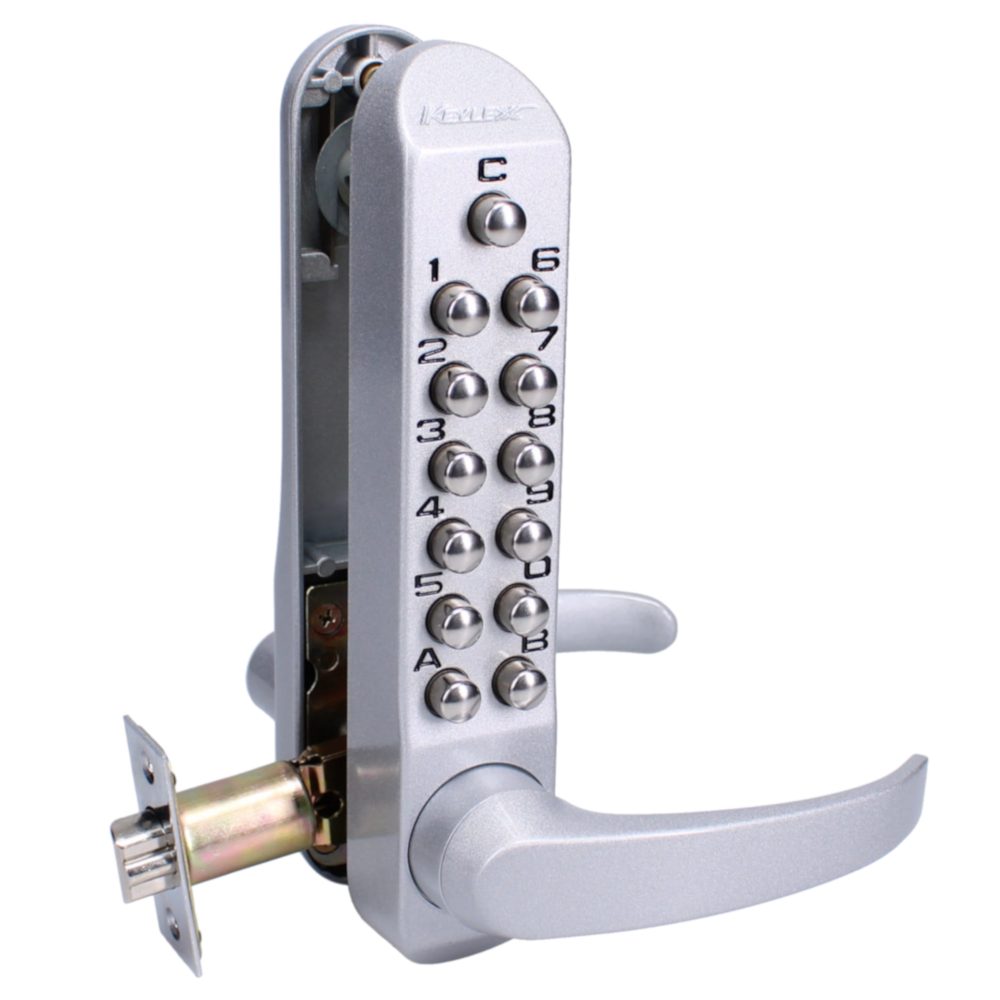

• Latch: 60mm to 70mm adjustable tubular latch
• Case Depth Required: 90mm
• Door Thickness: 30mm to 45mm
• Handing: Reversible (non-handed)
• Weather Resistant: Yes
• Guarantee: 2 Year

Key Features

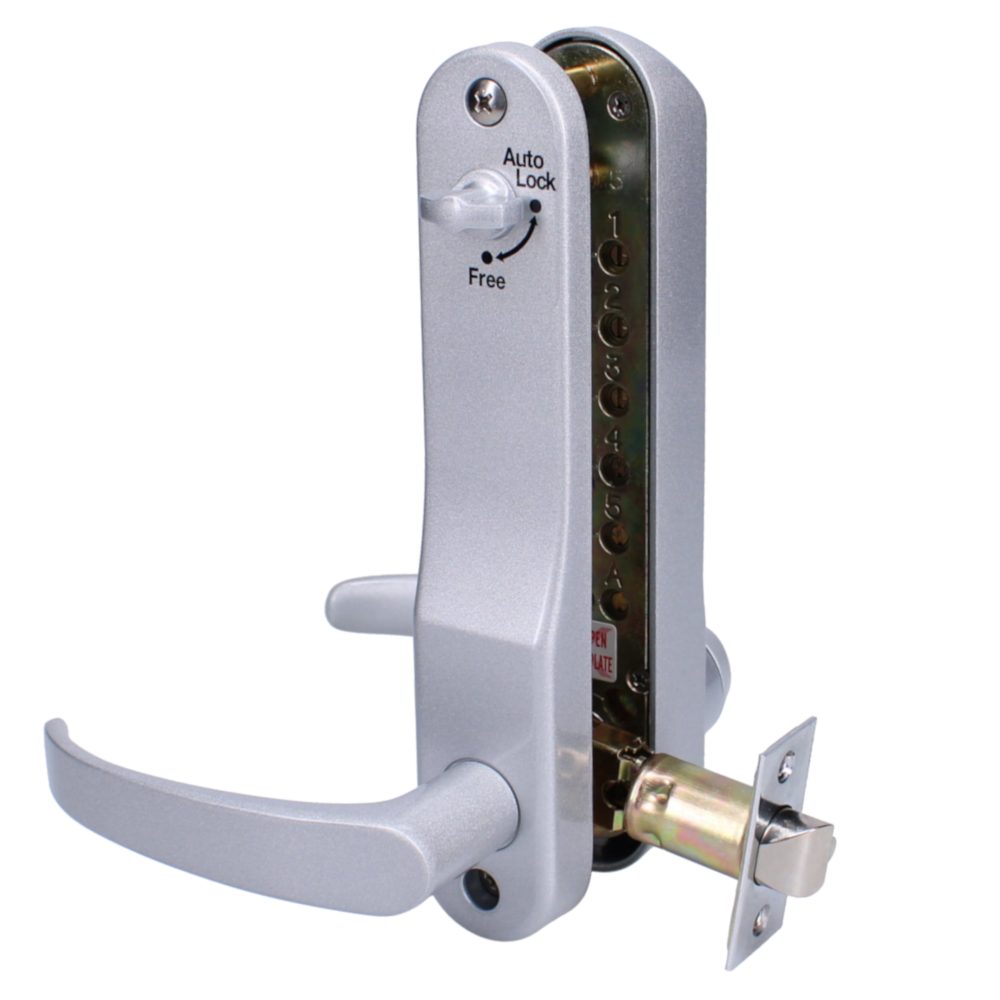

• Passage Function Facility: Allows unrestricted free passage from both sides at the user's discretion.

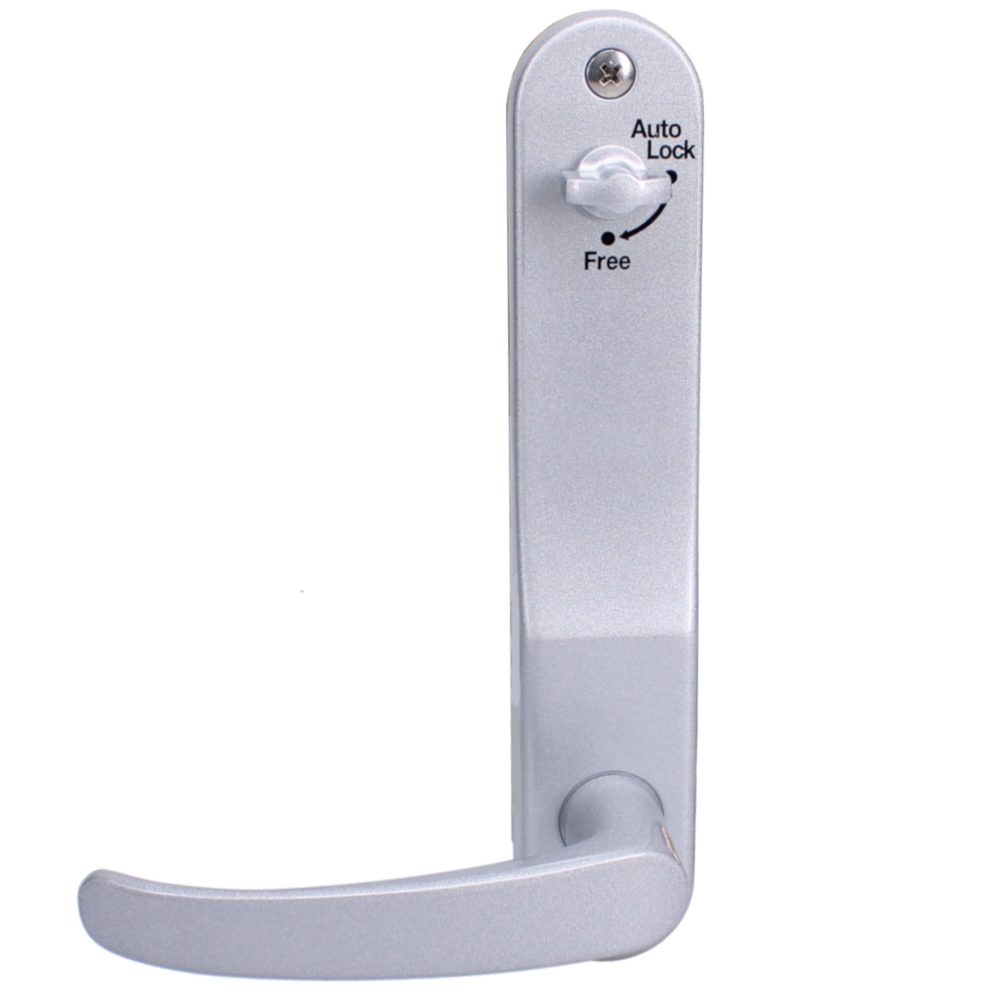

• Free Egress: Lever handle on the inside provides immediate, code-free exit.
• Standard-Duty Internal Security: Ideal for low-security internal timber or composite doors.
• Battery-Free Operation: Fully mechanical design requires no wiring, batteries, or electrical maintenance.
• Narrow Stile Compatibility: Slim 40mm width design makes it suitable for narrow door stiles.
