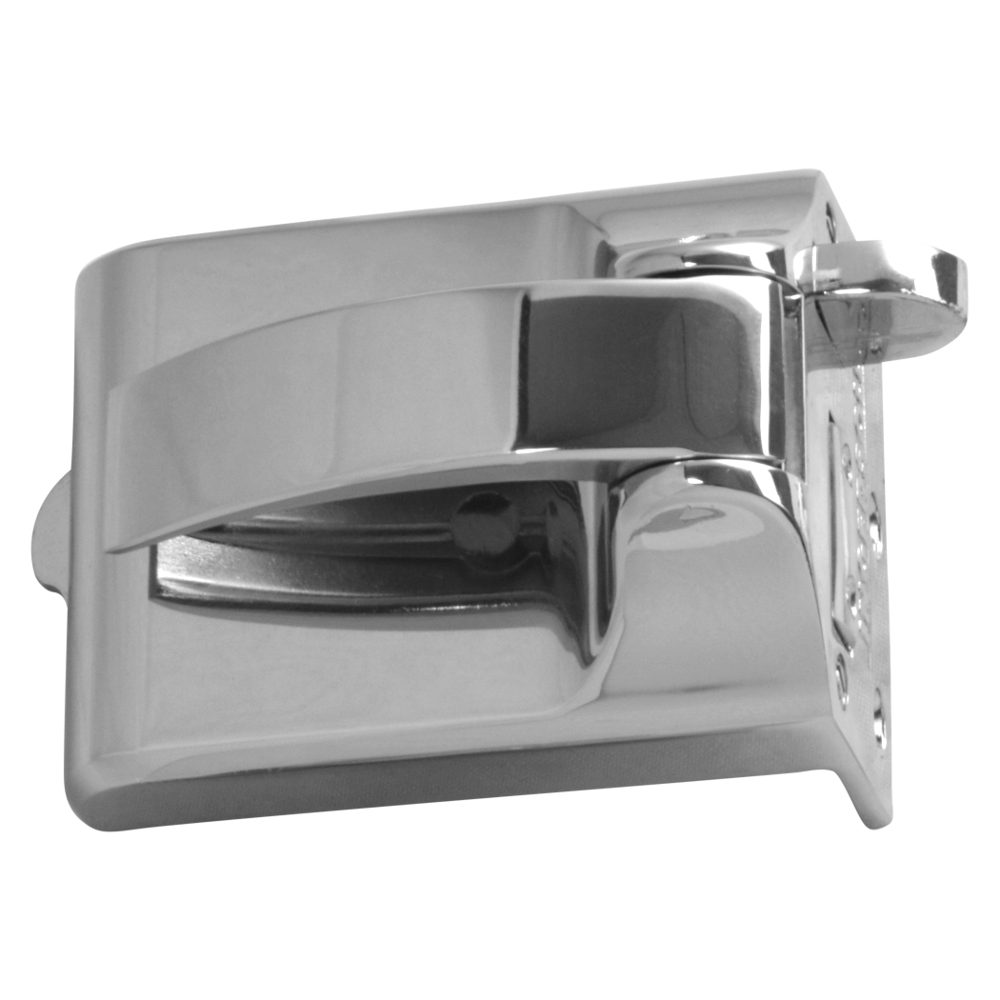

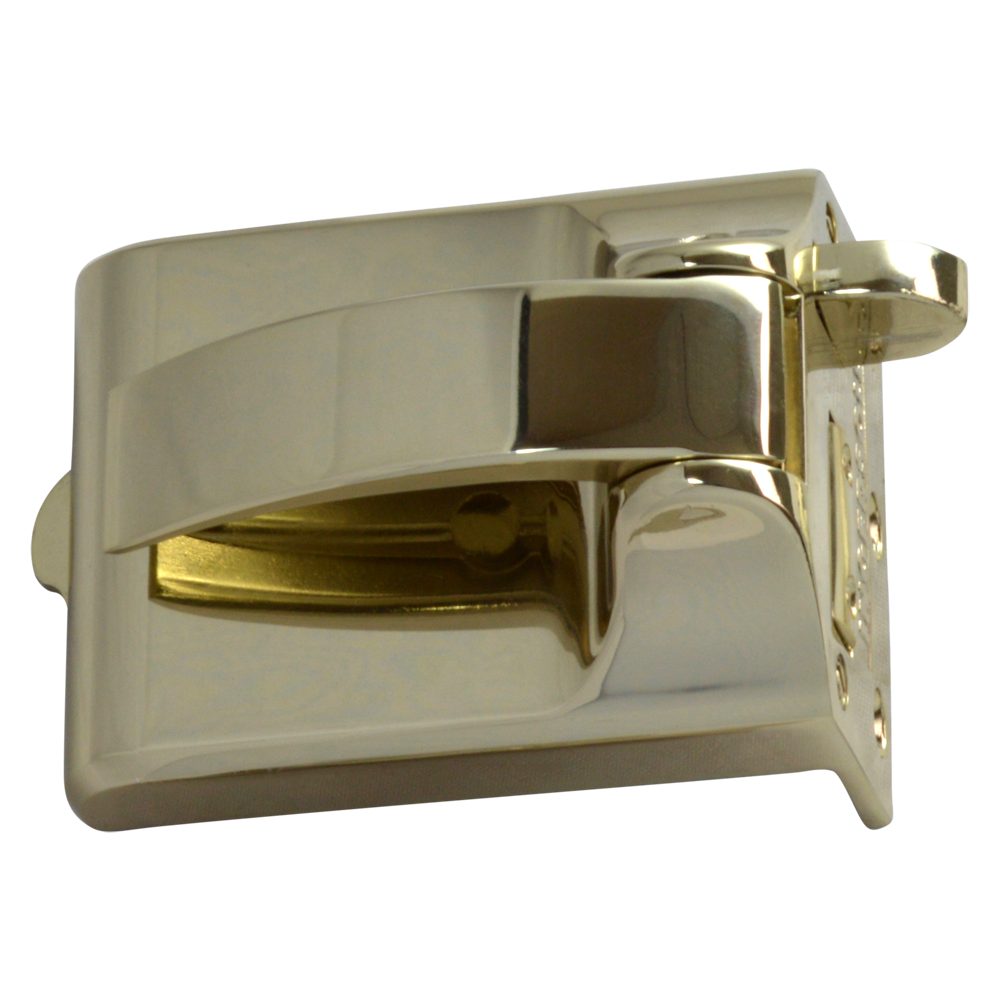

Ingersoll RA73 & SC73 Fire Escape Nightlatch

The Ingersoll RA73 & SC73 Fire Escape Nightlatch is a high-security, non-double-locking rim lock designed specifically for fire doors, emergency exits, and hotel bedrooms. Unlike standard nightlatches, this model does not feature an internal deadlocking facility, ensuring that the inside handle remains active at all times to allow for a swift, unobstructed escape in an emergency.

When the door is closed, the latch automatically deadlocks with a robust 14mm bolt throw, providing excellent security against physical attack and carding.

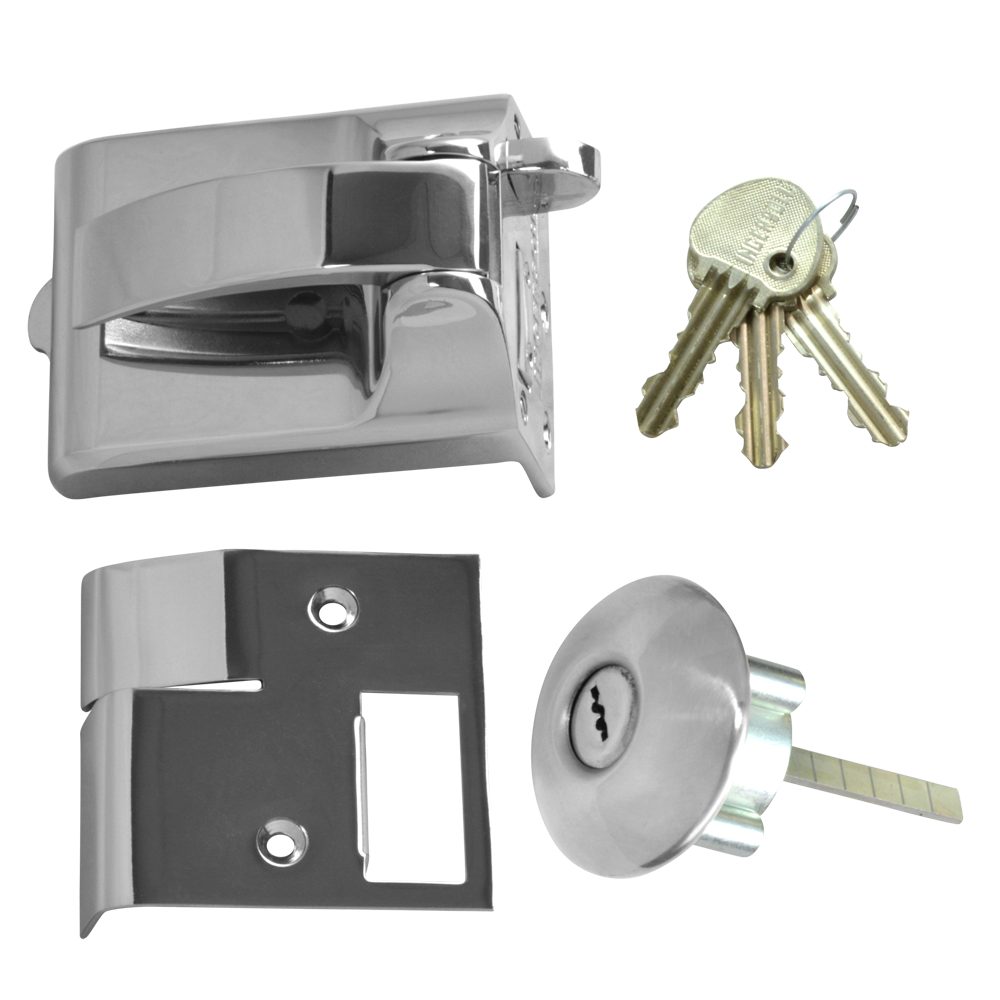

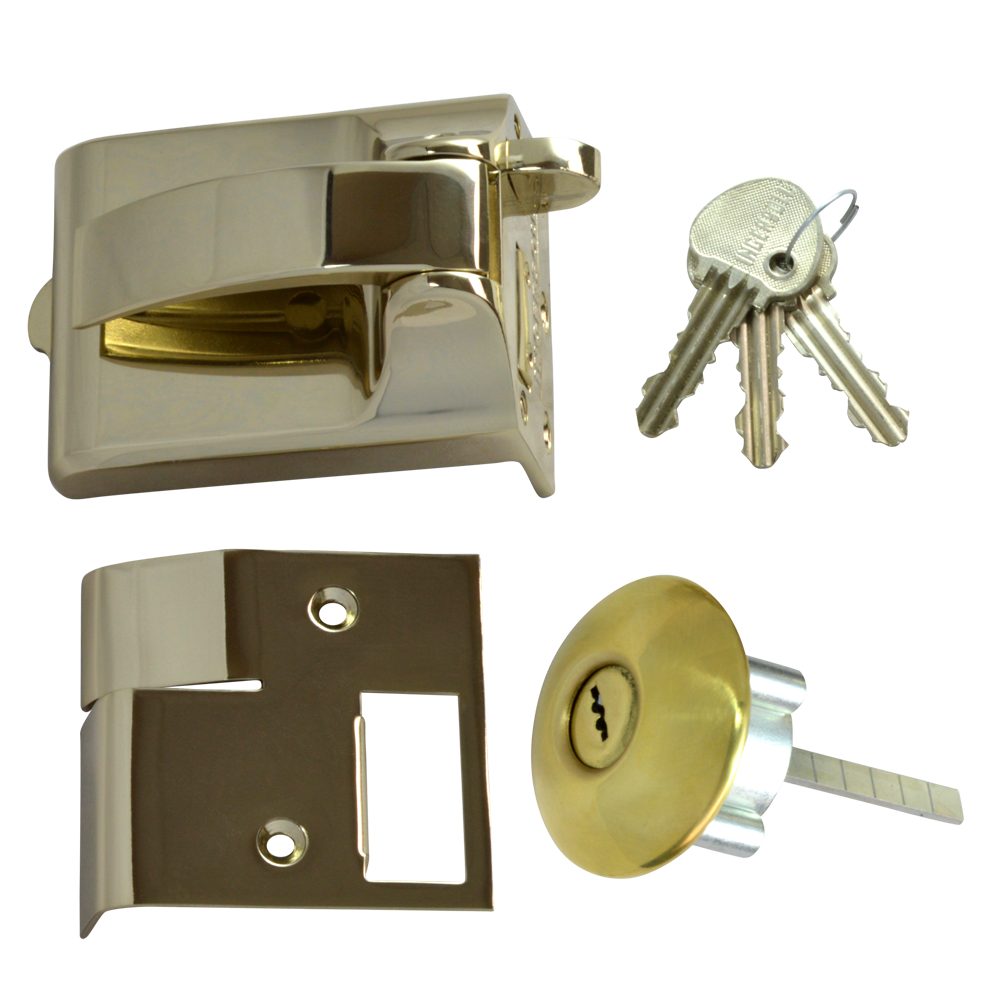

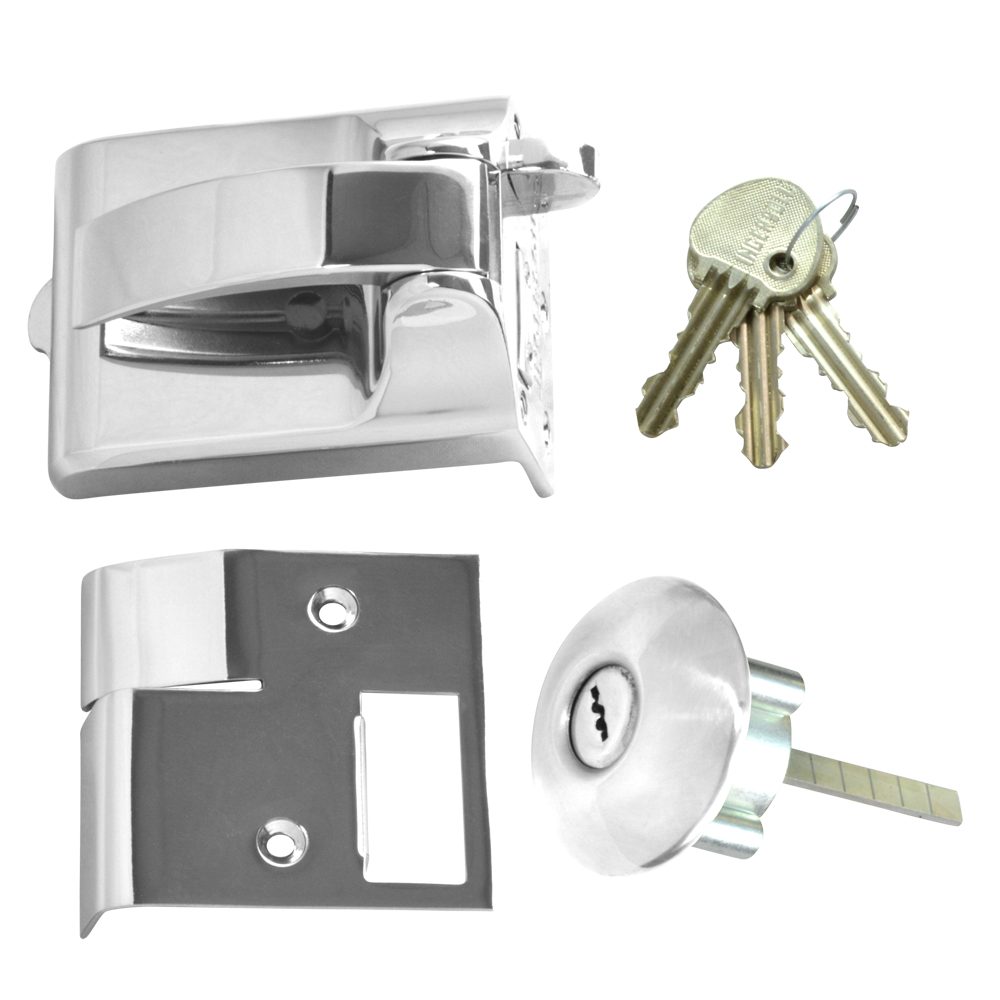

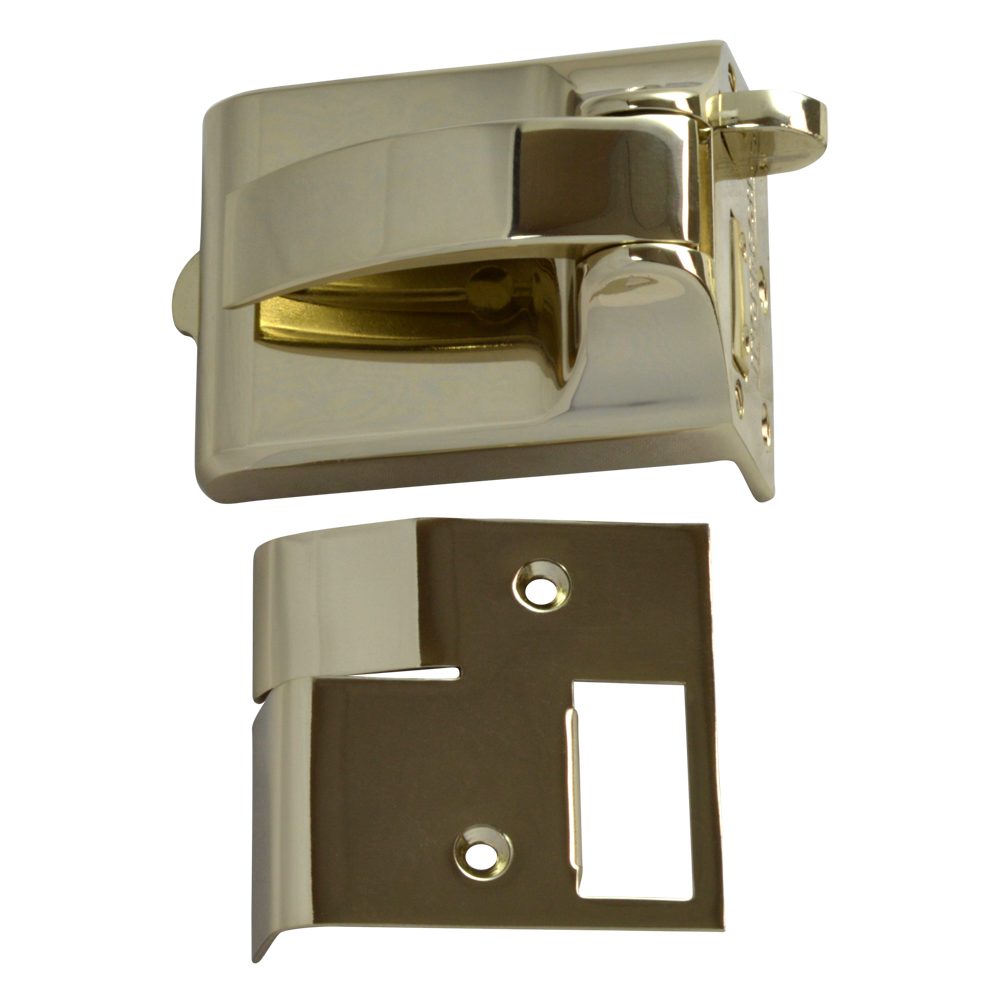

This nightlatch is available in multiple configurations to suit your needs. You can choose between the complete SC73 nightlatch package - which includes a high-security Ingersoll 10-lever cylinder, three keys, and all necessary fixings - or the RA73 / SC73 replacement case-only option if you are simply replacing an existing lock body.

A variety of finishes and weights are available, including Chrome Plated, Polished Brass, Polished Chrome, and Satin Chrome. Please select your preferred manufacturer reference, finish, and configuration from the options below.

Technical Specifications

• Backset: 60mm
• Case Width: 89mm
• Case Height: 67mm
• Bolt Throw: 14mm
• Door Thickness: Suitable for doors 35mm to 60mm thick
• Mechanism: High-security 10-lever cylinder (included with complete SC73 variants)
• Finishes: Available in Chrome Plated, Polished Brass, Polished Chrome, and Satin Chrome (please choose from the options below)
• Manufacturer Reference: Available as RA73 or SC73 (please choose from the options below)
• Weight: Ranges from 630g to 1.14kg depending on configuration (please choose from the options below)
• Keys Supplied: 3 keys (supplied with complete cylinder variants only)

Key Features

• Emergency Escape Design: Non-double-locking handle ensures the inside lever can always be operated for a quick exit, making it ideal for fire doors, exits, and hotel bedrooms.
• Automatic Deadlocking: The latch automatically deadlocks upon closing the door, preventing unauthorised entry.
• Robust Security: Features a strong 14mm bolt throw to resist physical attacks.
• Flexible Options: Available as a complete lockset with a 10-lever cylinder or as a replacement case only (RA73/SC73).
• Multiple Finishes: Choose from Chrome Plated, Polished Brass, Polished Chrome, or Satin Chrome to match your door hardware.
