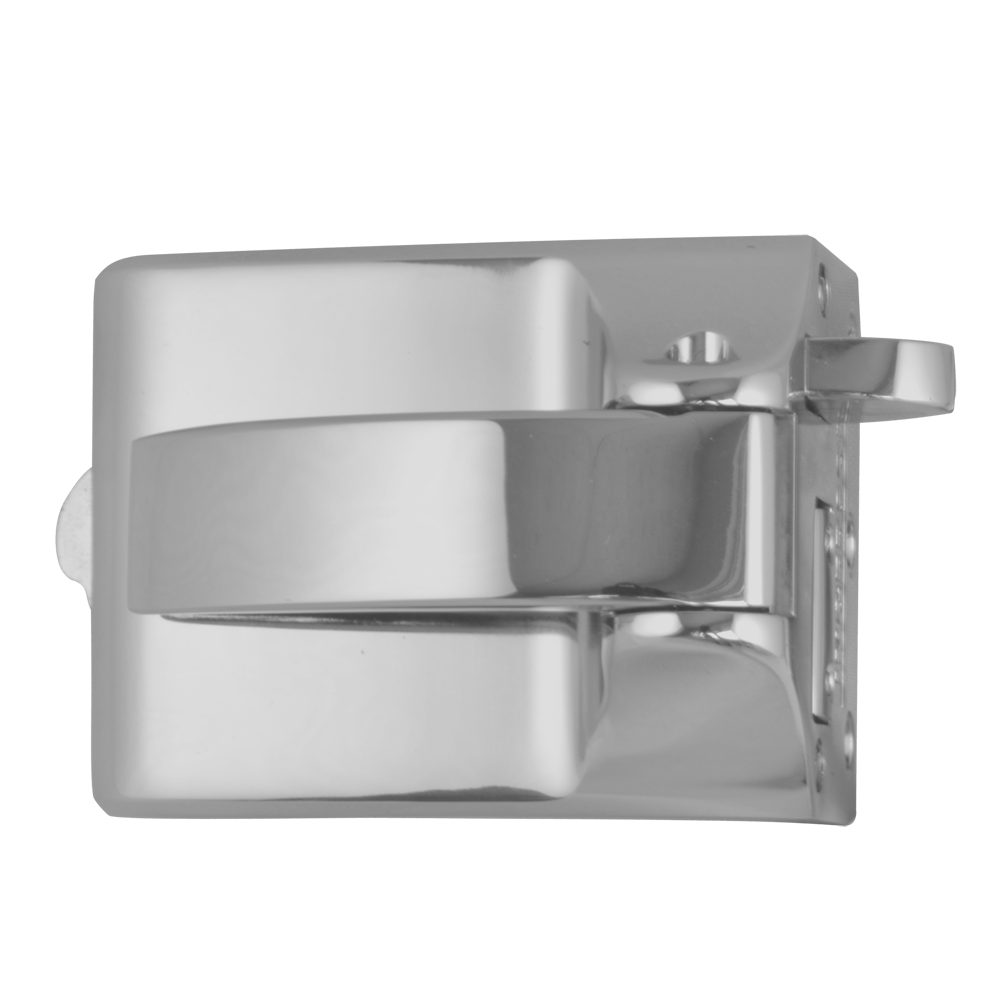

Ingersoll RA71 & SC71 Nightlatch

The Ingersoll RA71 & SC71 Nightlatch is a legendary high-security deadlocking rim lock, renowned for its strength and reliability. Featuring a robust 10-lever mechanism, this nightlatch provides exceptional resistance to picking and tampering, making it a trusted choice for residential and commercial properties alike.

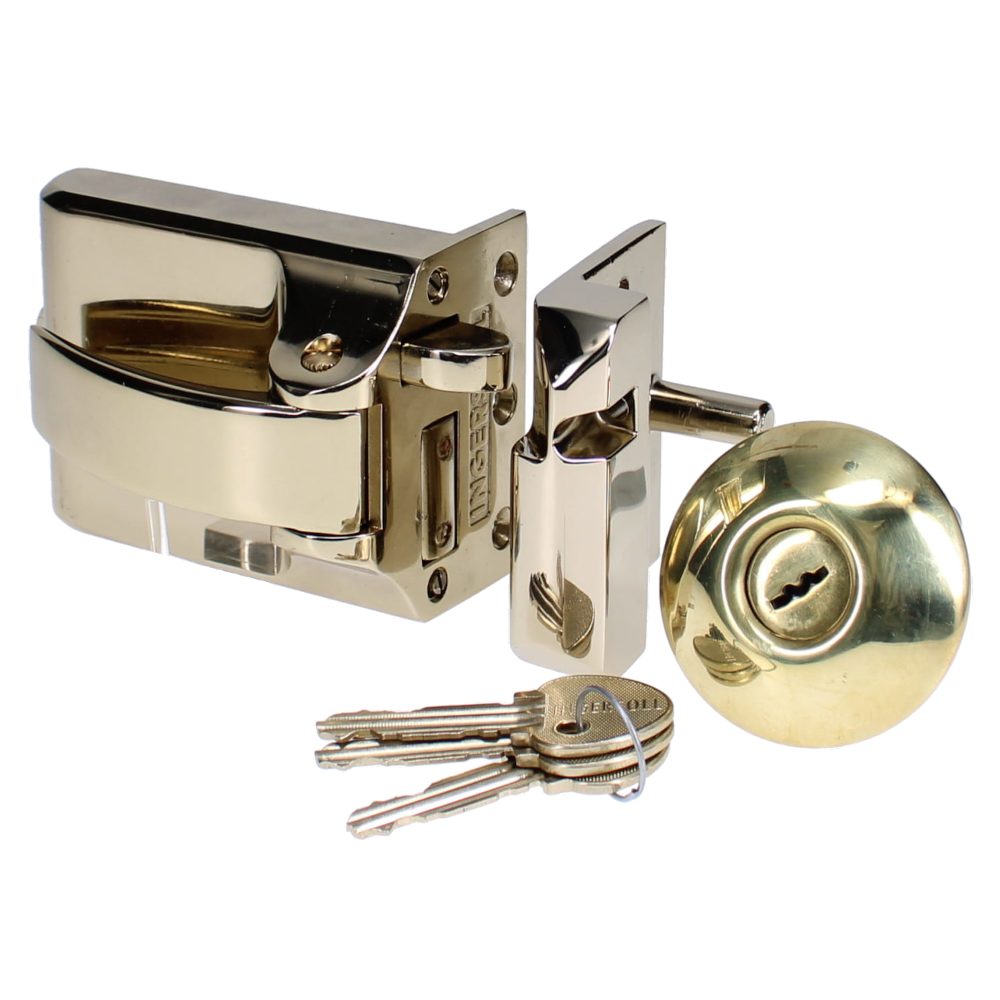

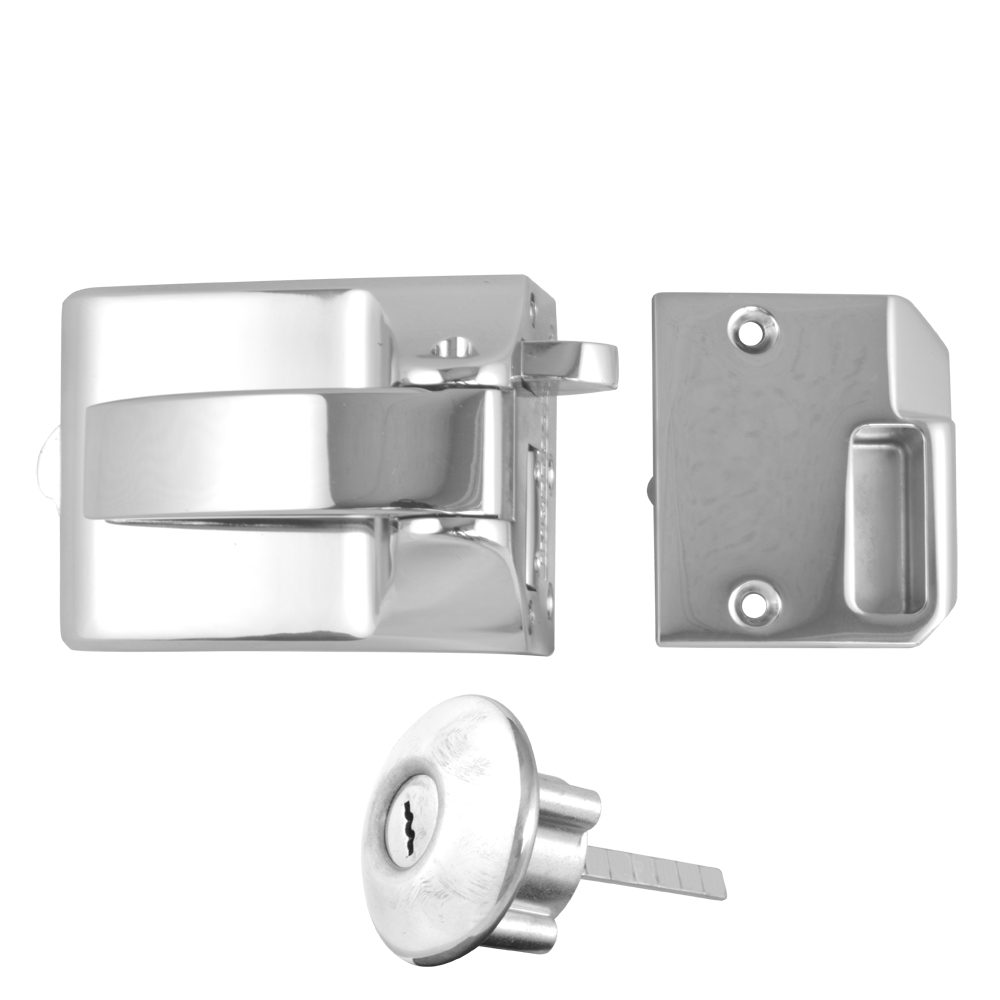

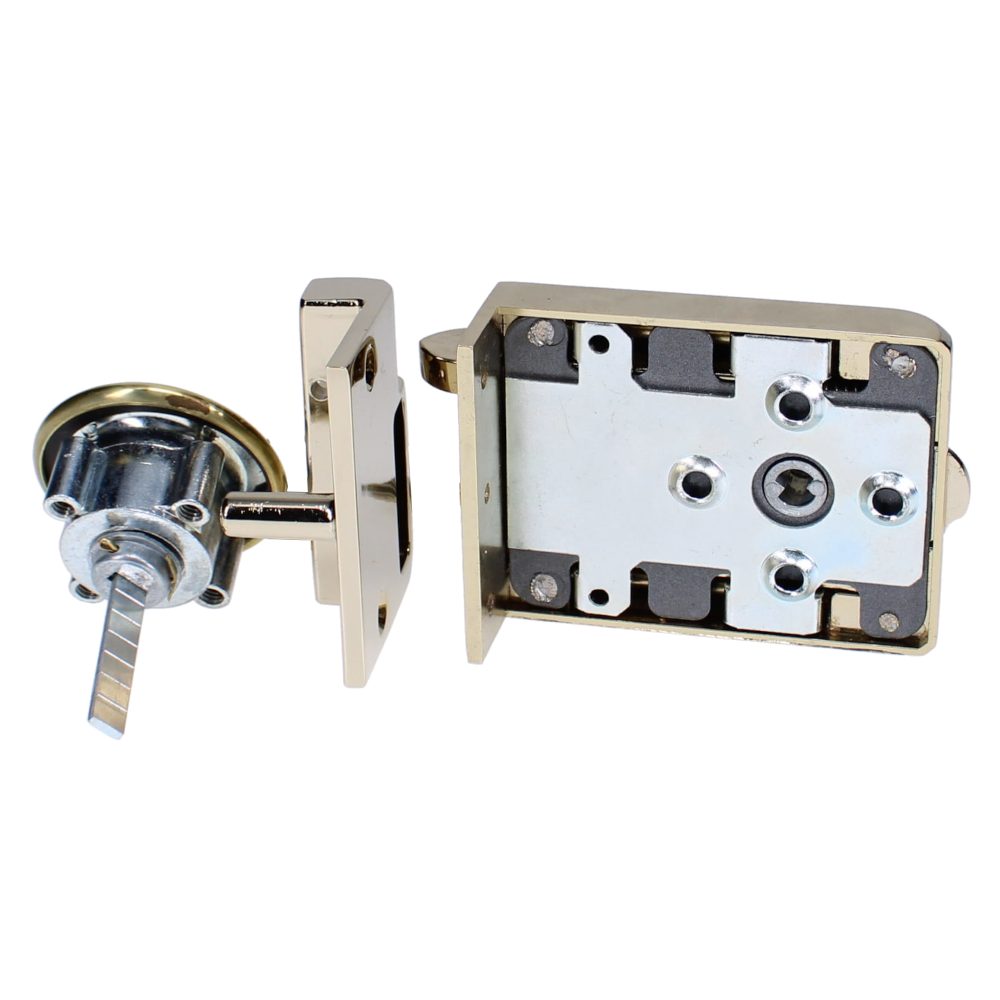

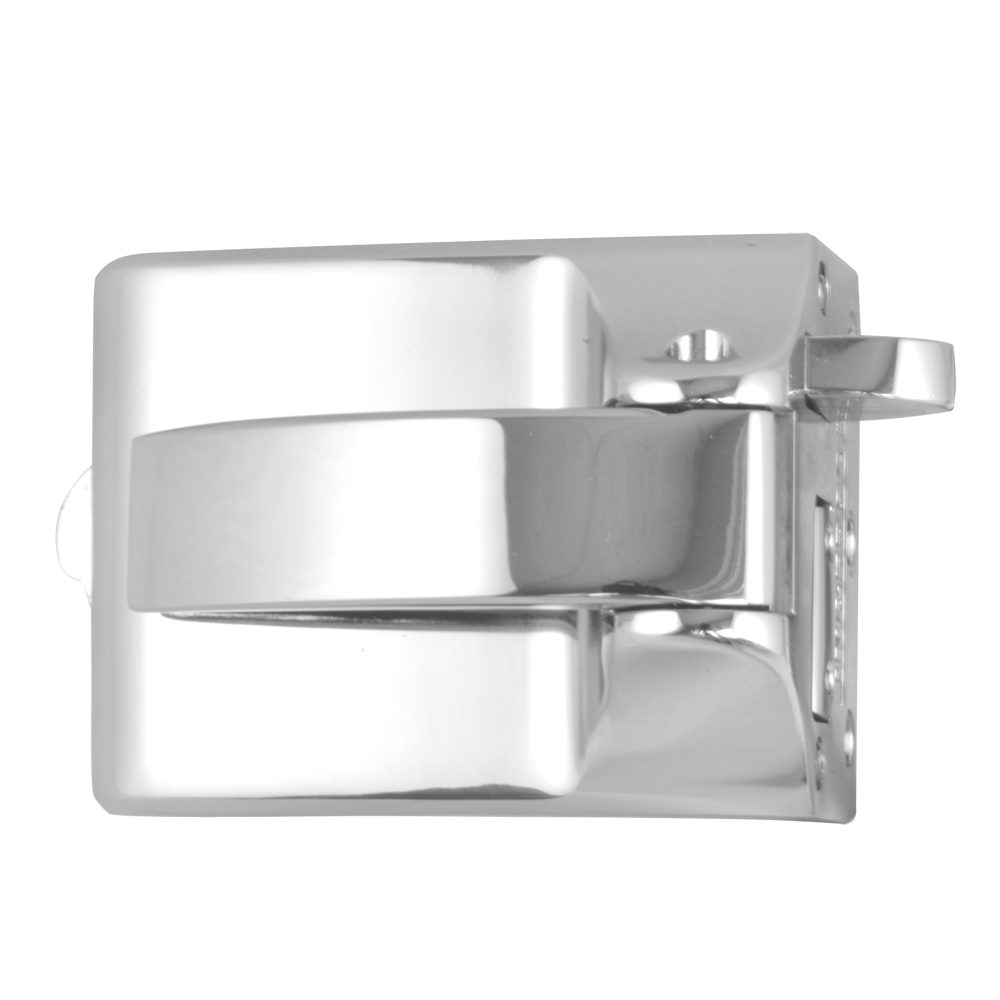

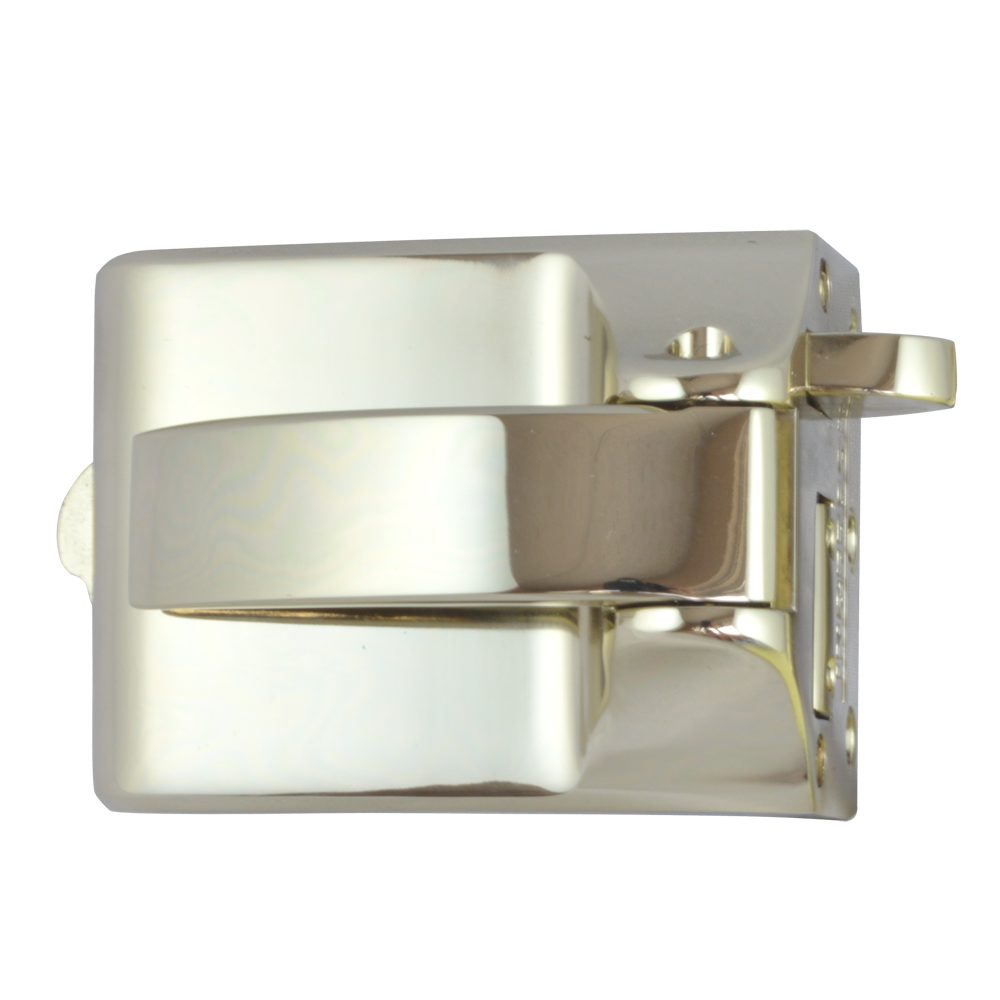

This lock is available in two distinct configurations to suit your needs. The SC71 is a complete lock package, supplied with an external 10-lever cylinder, three keys, and a standard strike plate suitable for inward-opening doors. The RA71 is a replacement lockcase-only version, supplied without a cylinder, keys, or strike plate, which is ideal if you are upgrading or replacing an existing worn lockcase.

Both versions feature automatic deadlocking when the door closes, a 14mm bolt throw, and an internal snib for a convenient hold-open function. Additionally, a double-locking feature can be activated by turning the key in the opposite direction from the outside.

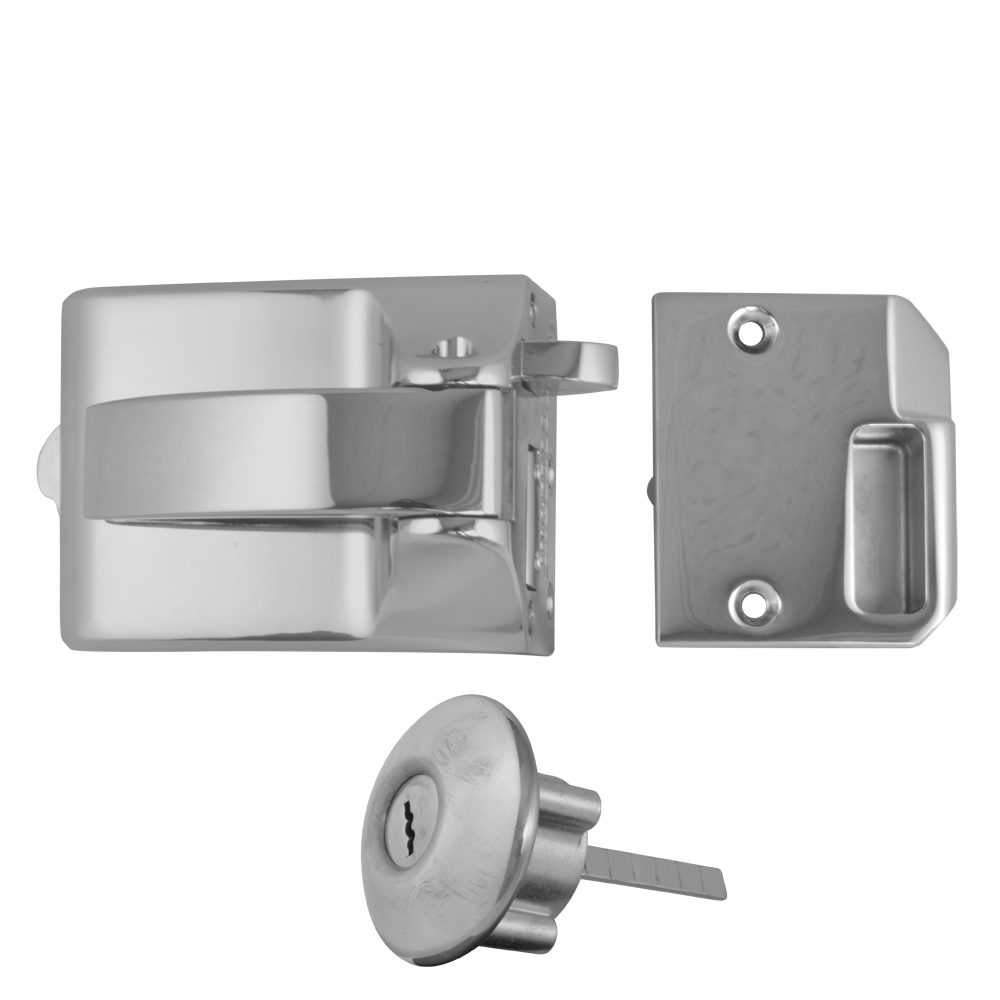

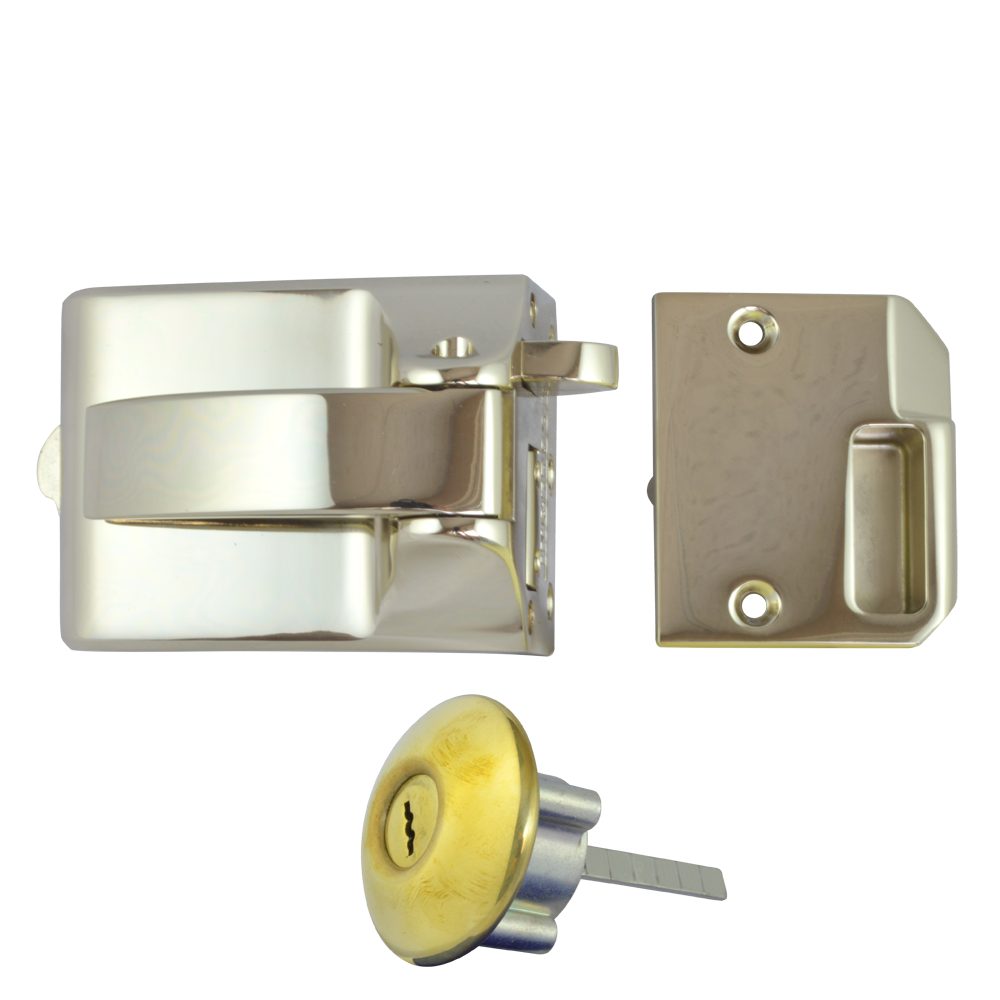

These locks are available in multiple finishes, including Chrome Plated, Polished Brass, and Satin Chrome, with weights ranging from 670g to 1.14kg. Please choose your preferred configuration, finish, and keying options from the selections below.

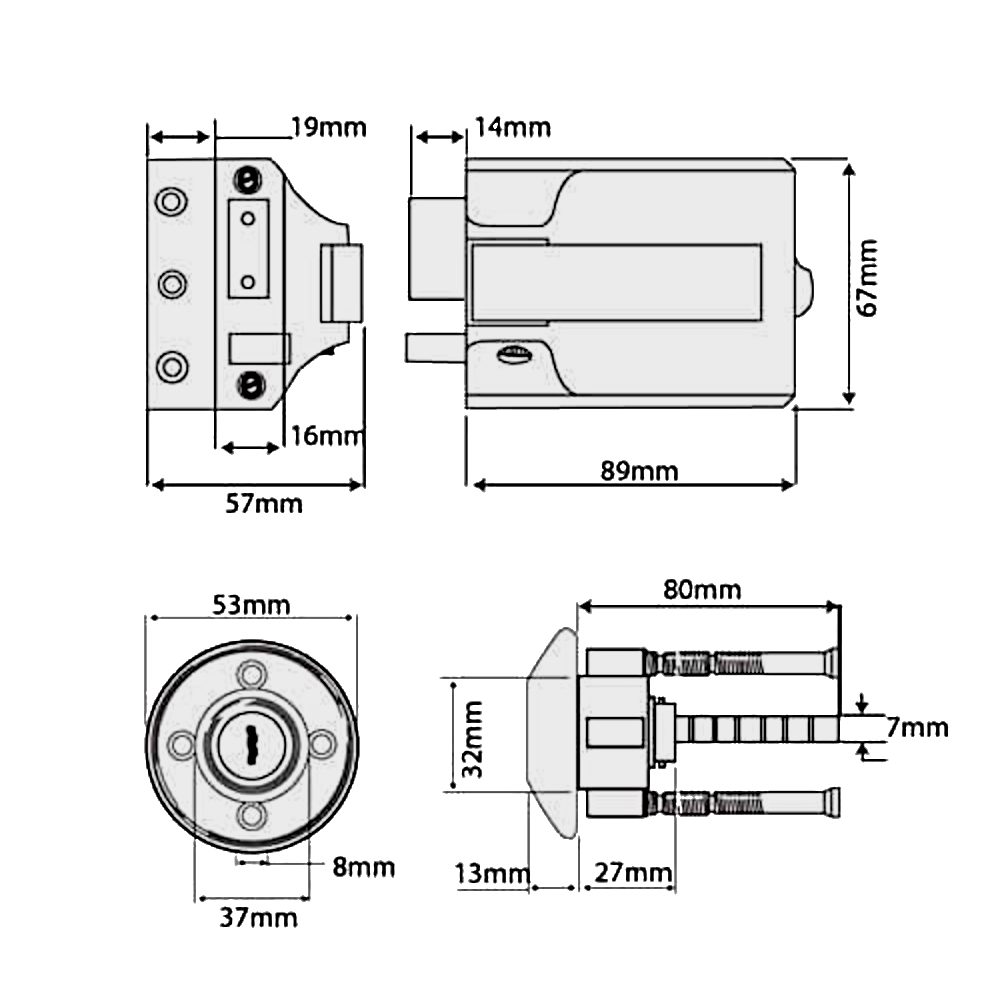

Technical Specifications

• Backset: 60mm
• Door Thickness: Suitable for standard doors 38mm to 58mm thick
• Bolt Throw: 14mm
• Mechanism: High-security 10-lever
• Configurations: RA71 (Case Only) or SC71 (Complete Lock) - please choose below
• Finishes: Chrome Plated, Polished Brass, or Satin Chrome - please choose below
• Keys Supplied: 0 (RA71 Case Only) or 3 (SC71 Complete) - please choose below
• Weight: 670g to 1.14kg (depending on configuration)

Key Features

• Automatic Deadlocking: The lock automatically deadlocks when the door is closed for immediate security
• Double Locking Action: Turn the key in the opposite direction from the outside to double-lock the mechanism
• Hold-Open Snib: Features an internal snib to temporarily hold the latch back when unrestricted access is needed
• High-Security Cylinder: Symmetrical 10-lever mechanism offers superb resistance to picking and physical attack
• Flexible Options: Available as a complete lockset or a replacement case-only unit to suit your installation needs
• Inward Opening Strike: Complete SC71 versions are supplied with a standard strike plate (outward-opening doors require a separate strike)
