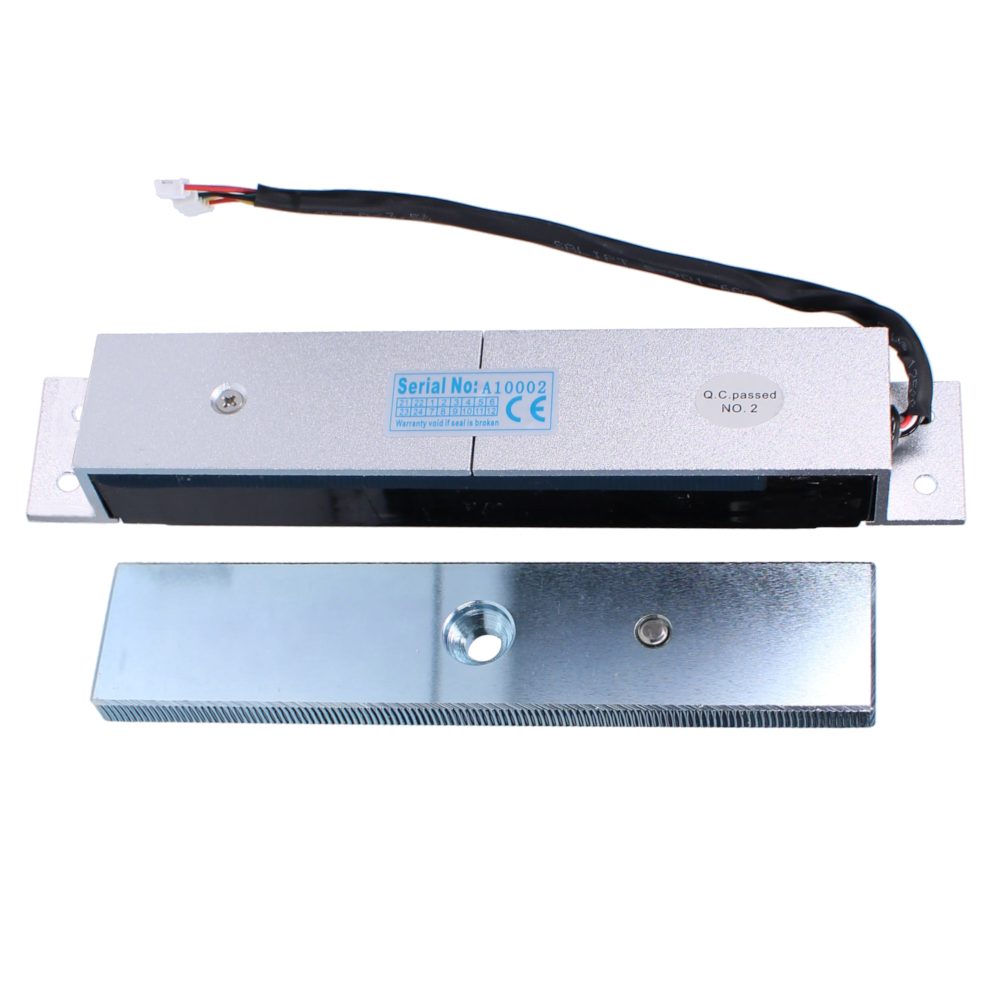

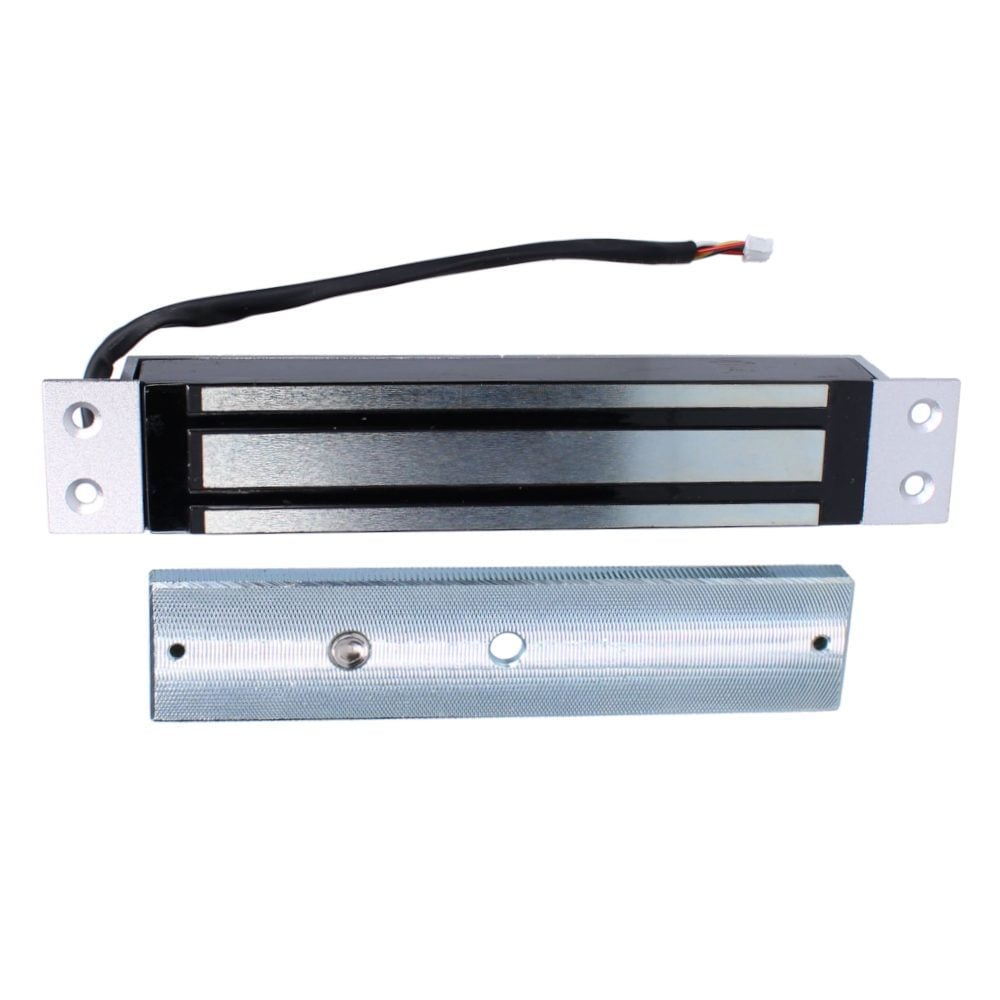

ICS U10000R 12/24VDC Monitored Mortice Magnet

The ICS U10000R is a high-quality, monitored mortice magnetic lock designed for secure, flush-fit installations. Operating on a selectable 12V or 24V DC power supply, this fail-unlocked (fail-safe) magnet provides a robust holding force of up to 272kg (600lbs), making it an ideal choice for a wide range of commercial and residential access control applications.

Equipped with an integrated magnetic bond sensor, the U10000R allows for reliable remote monitoring of the door's lock status. Its low-profile mortice design ensures a clean, flush installation within the door frame. Constructed with a satin anodised aluminium housing and a brushed stainless steel armature plate, it offers excellent durability and a professional finish.

Technical Specifications

• Operating Voltage: 12V DC / 24V DC (Selectable)
• Current Consumption: 500mA @ 12V DC / 250mA @ 24V DC
• Holding Force: 272kg (600lbs)
• Operation: Fail Unlocked (Fail Safe)
• Monitoring: Yes (Magnetic bond sensor)
• Fitting: Mortice
• Finish: Satin Anodised Aluminium
• Material: Steel (Stainless Brushed)
• Magnet Dimensions: 230mm (L) x 38mm (H) x 27mm (D)
• Armature Plate Dimensions: 185mm (L) x 38mm (H) x 12mm (D)
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Humidity: 0 to 95% (Non-condensing)
• Weight: 1.9kg
• Guarantee: 1 Year

Key Features

• Monitored Output: Integrated magnetic bond sensor allows for remote monitoring of lock status.
• Flush Mortice Fitting: Designed for seamless, low-profile installation within the door frame.
• Selectable Dual Voltage: Operates on either 12V DC or 24V DC to suit your power supply setup.
• Fail-Safe Operation: Automatically unlocks in the event of a power failure to ensure safe egress.
• Robust Holding Force: Provides up to 272kg (600lbs) of resistance for reliable security.
• Durable Construction: Features a satin anodised aluminium finish and a brushed stainless steel armature plate.
