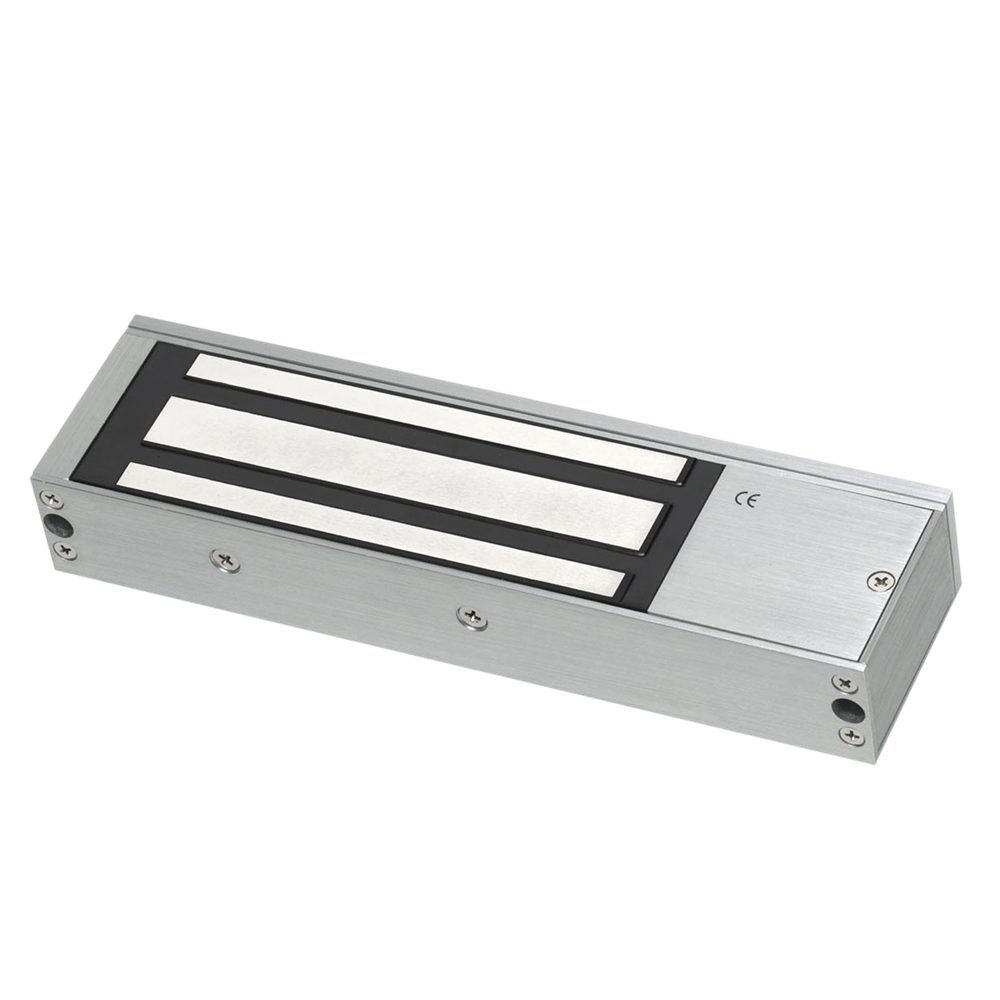

ICS U-Series 12/24VDC Standard Surface Magnet

The ICS U-Series 12/24VDC Standard Surface Magnet is a reliable, high-performance electromagnetic lock designed for secure access control. Housed in durable satin anodised aluminium, this single surface-mounted magnet is ideal for timber or metal doors, providing a robust holding force of up to 544kg (1200lbs).

Operating on a selectable 12V or 24V DC input, the magnet features a fail-safe operation, meaning it unlocks automatically in the event of a power failure to ensure safe egress. It is designed to perform reliably in a wide range of environments, with an operating temperature range of -10°C to 55°C and a non-condensing humidity tolerance of up to 95%.

This standard surface magnet is available in both monitored and non-monitored versions to suit your specific security and system integration requirements. The monitored version (U10020) features a built-in sensor to remotely monitor the door's lock status, while the unmonitored version (U10010) offers standard fail-safe locking. Please choose your preferred monitoring option and manufacturer reference from the options below.

Technical Specifications

• Input Voltage: 12/24V DC (Selectable)
• Holding Force: Up to 544kg (1200lbs)
• Current Consumption: 480mA at 12Vdc / 240mA at 24Vdc (at 20°C)
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Humidity Range: 0 to 95% non-condensing
• Finish: Satin Anodised Aluminium
• Operation: Fail Safe (unlocked when power is lost)

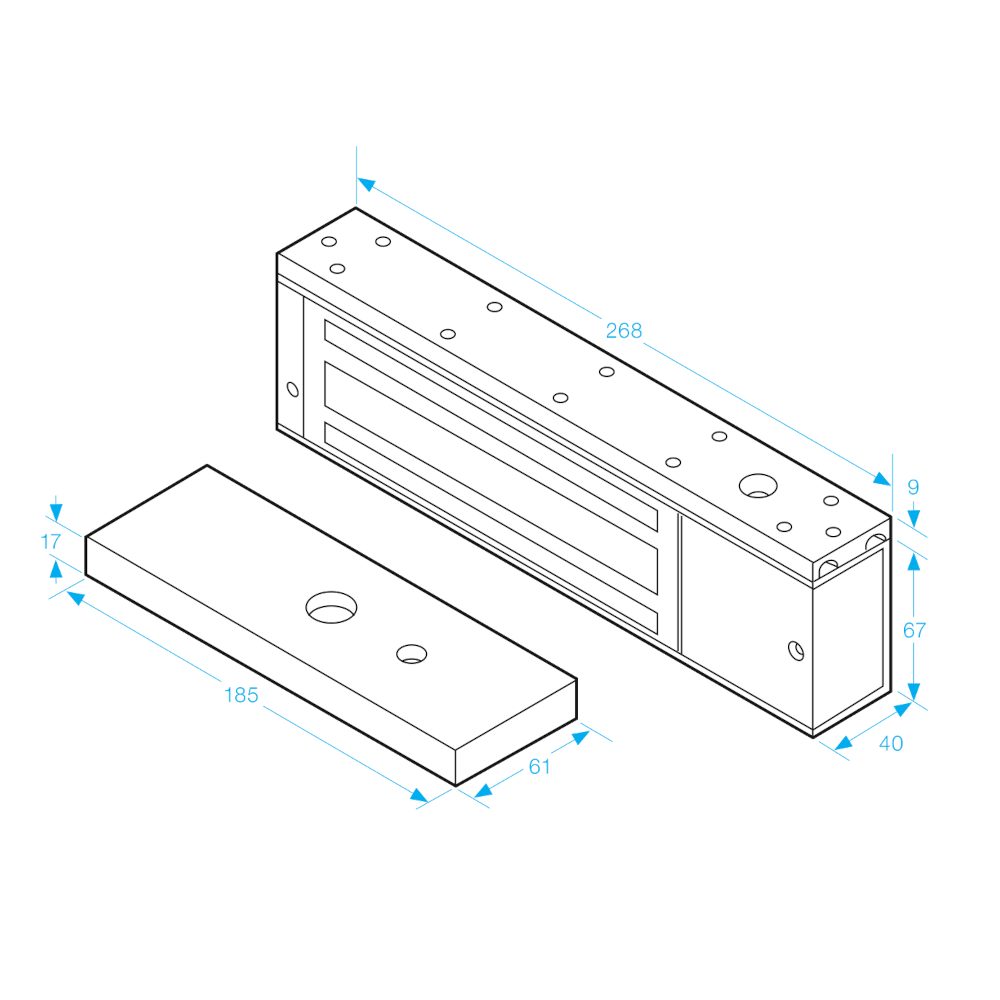

• Armature Dimensions: 185mm (Length) x 61mm (Height) x 17mm (Depth)
• Magnet Dimensions: 268mm (Width) x 40mm (Height) x 40mm (Depth)
• Weight: 4.8kg
• Monitoring Options: Available as Monitored (U10020) or Non-Monitored (U10010)

Key Features

• High Security Holding Force: Provides up to 544kg (1200lbs) of resistance to keep doors securely locked.
• Fail-Safe Operation: Automatically unlocks when power is cut, ensuring safe emergency exit.
• Selectable Voltage: Dual-voltage capability (12V or 24V DC) for versatile installation.
• Monitoring Options Available: Choose between monitored and non-monitored variants to match your access control system.
• Durable Construction: Features a robust aluminium housing and electro-less nickel-plated armature for long-lasting performance.
• Weather Resistant: Operates reliably in temperatures ranging from -10°C to 55°C.
