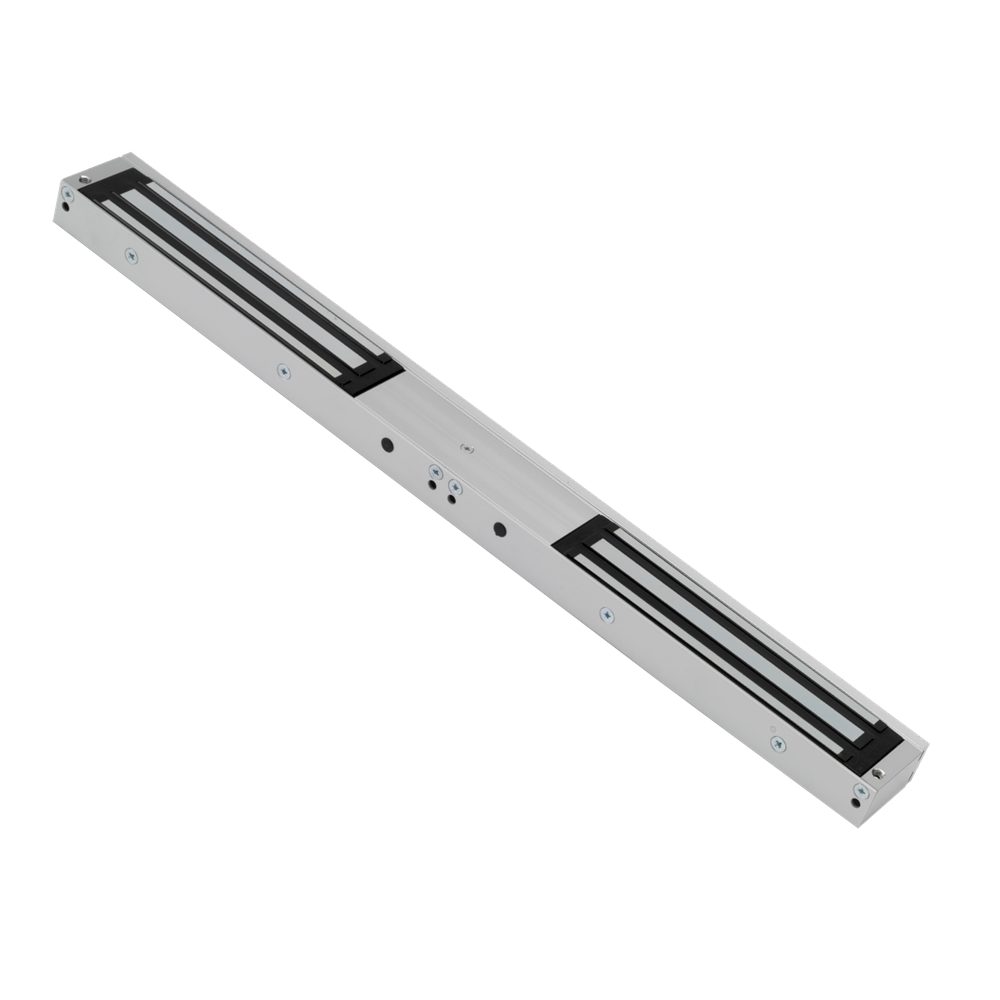

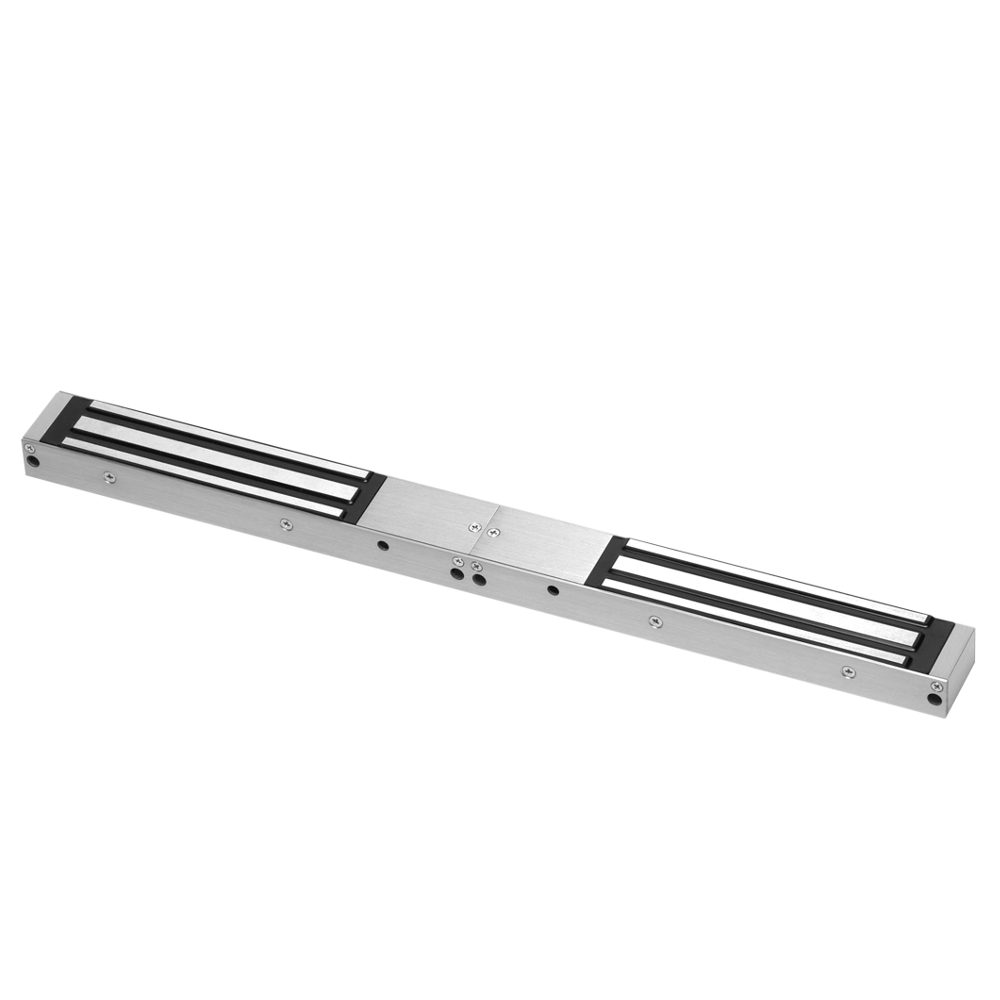

ICS U-Series 12/24VDC Mini Double Surface Magnet

The ICS U-Series 12/24VDC Mini Double Surface Magnet is a high-quality, reliable double magnetic lock designed for double-leaf outward-opening doors. Housed in a durable satin anodised aluminium casing, this surface-mounted mini magnet provides a robust holding force of up to 272kg (600lbs) per door, making it an excellent choice for securing commercial and residential access points.

Operating on a selectable 12V or 24V DC power supply, this fail-safe magnetic lock automatically unlocks in the event of a power failure to ensure safe emergency egress. It is built to perform in demanding environments, withstanding temperatures from -10°C to 55°C and operating in humidity levels up to 95% non-condensing.

This double mini magnet is available in multiple configurations to suit your specific security setup, including monitored, non-monitored, and non-monitored with door status options. Please select your preferred monitoring type, manufacturer reference, weight, and current consumption from the options below.

Technical Specifications

• Brand: ICS
• Fitting: Surface
• Input Voltage: 12/24V DC
• Holding Force: 272kg (600lbs) per door
• Operation: Fail Safe - Unlocked
• Material: Aluminium
• Finish: Satin Anodised Aluminium
• Handing: Outward Opening

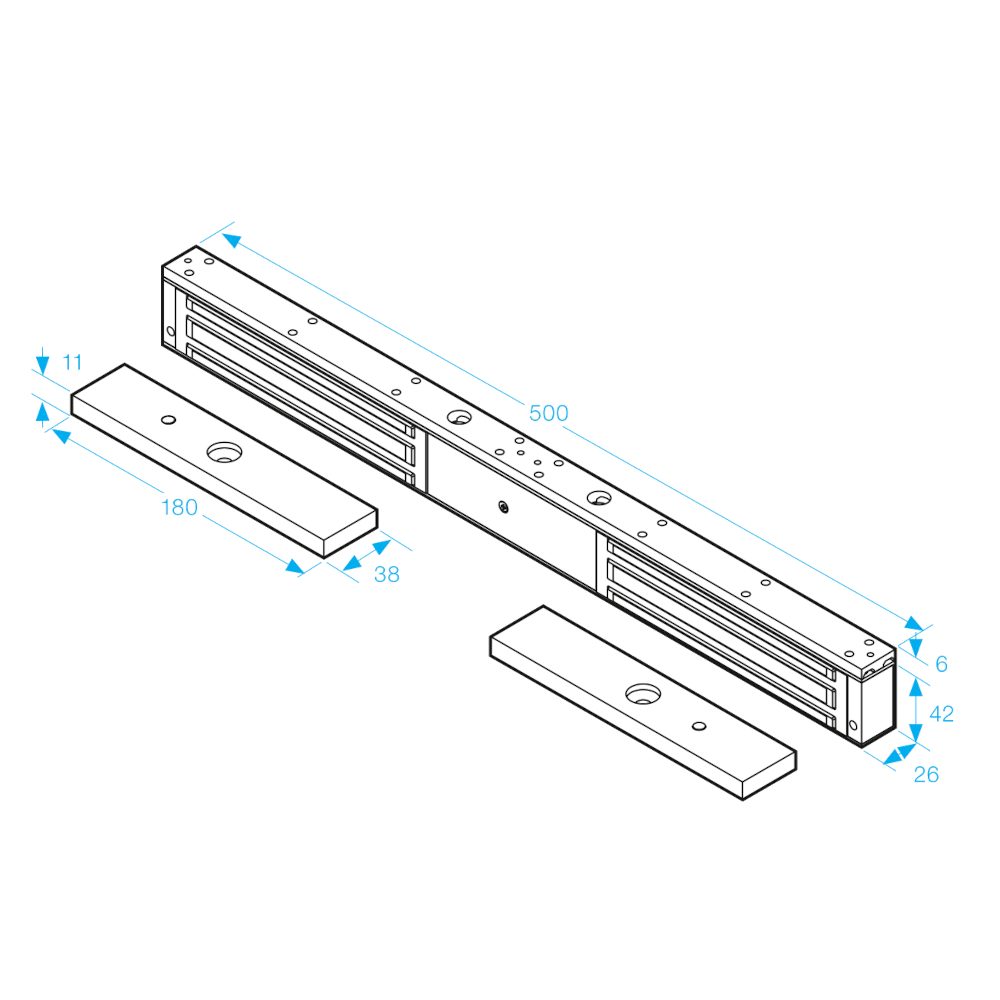

• Magnet Dimensions: 500mm (Length) x 42.5mm (Height) x 25mm (Depth)
• Armature Plate Dimensions: 185mm (Length) x 38mm (Height) x 12mm (Depth)
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 0 to 95% non-condensing
• Guarantee: 1 Year
• Monitoring Options: Monitored, Non-Monitored, or Non-Monitored with Door Status (please choose from the options below)
• Weight: 3.64kg or 3.8kg (please choose from the options below)
• Current Consumption: 480mA to 500mA at 12VDC / 240mA to 250mA at 24VDC (please choose from the options below)

Key Features

• High Holding Force: Delivers up to 272kg (600lbs) of secure holding force per door.
• Double Door Security: Specifically designed for double-leaf outward-opening doors.
• Selectable Voltage: Supports both 12V DC and 24V DC operation for installation flexibility.
• Fail-Safe Operation: Automatically unlocks when power is cut, ensuring safe emergency egress.
• Multiple Configurations: Available in monitored, non-monitored, and non-monitored with door status versions (please choose from the options below).
• Durable Construction: Housed in robust satin anodised aluminium for long-lasting performance.
