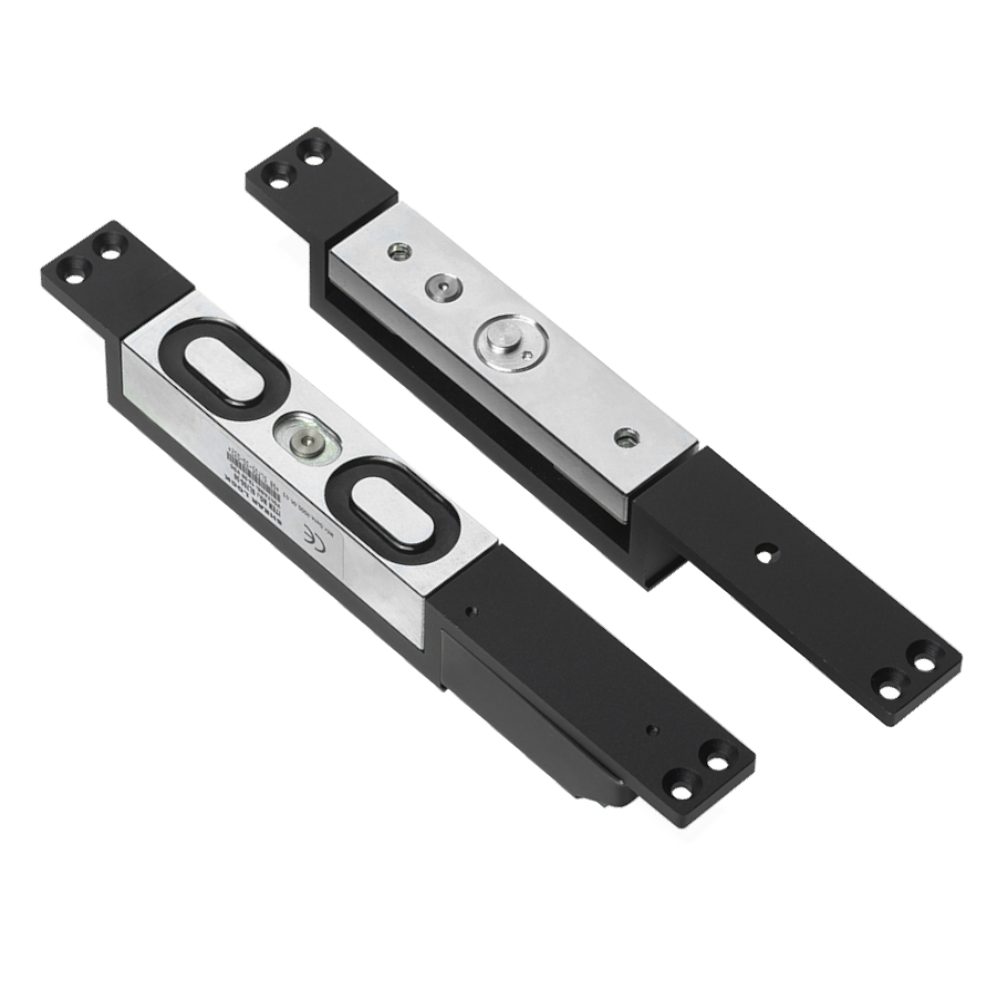

ICS Shear Magnet GS705 12/24VDC

The ICS GS705 Shear Magnet is a high-security, discreet electric locking solution designed for mortice installation, allowing it to be fully concealed within the door and frame. It is suitable for both horizontal mounting in the transom or vertical mounting in the frame jamb, making it highly versatile for various door types.

This shear lock operates on a dual 12/24V DC voltage and features a fail-unlocked (fail-safe) operation, ensuring the door automatically unlocks in the event of a power failure to maintain safety. It provides an impressive holding force of up to 2,700lbs (1,226kg) in shear and includes an adjustable locking time delay of between 1 and 6 seconds. Additionally, the built-in magnetic bond sensor monitor output allows for remote tracking of the door's locked or unlocked status.

The ICS GS705 is available in two widths - 30mm (GS705-30) and 35mm (GS705-35). Please select your required width and manufacturer reference from the options below.

Technical Specifications

• Input Voltage: 12/24V DC
• Current Consumption: Pull 2.2A / Hold 0.5A (at 12V DC); Pull 1.4A / Hold 0.3A (at 24V DC)
• Holding Force: 1,226kg (2,700lbs) in shear
• Operation: Fail Unlocked (Fail Safe)

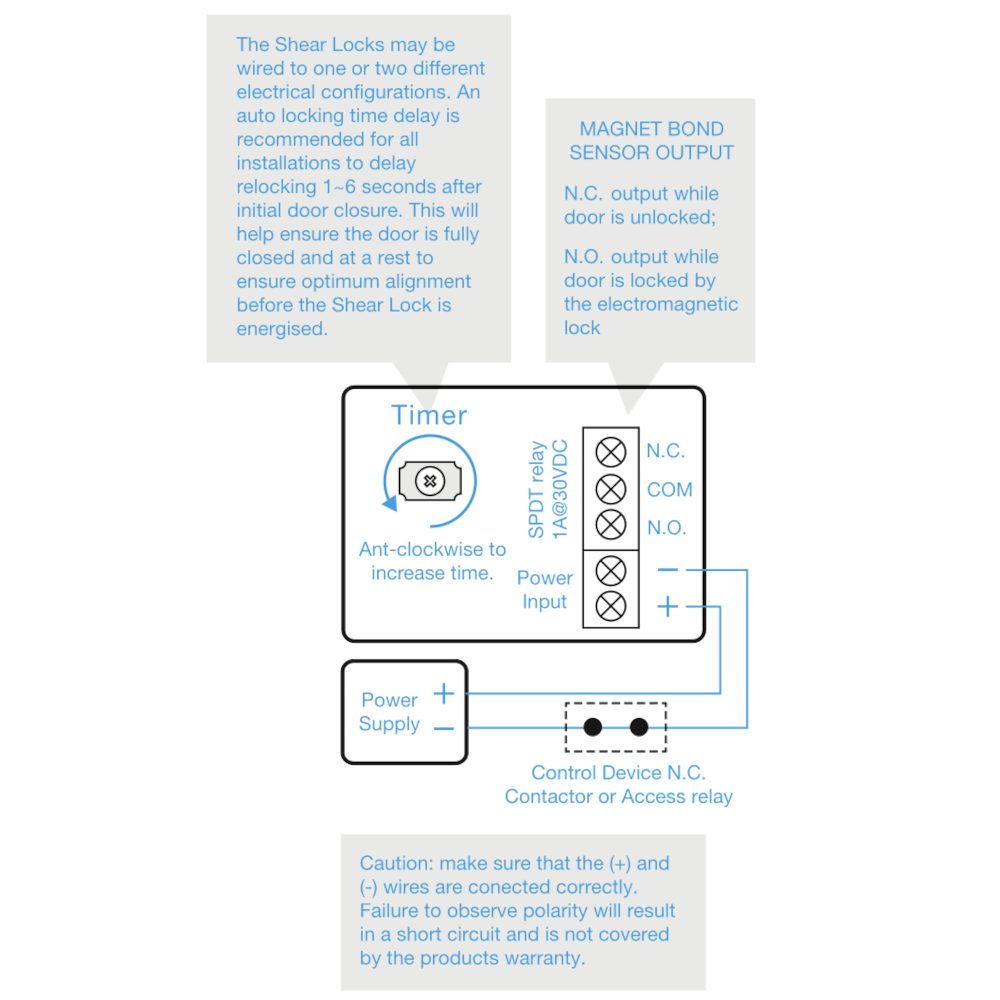

• Monitoring: Yes (N.C. Output - door opened; N.O. Output - door closed)
• Fitting: Mortice

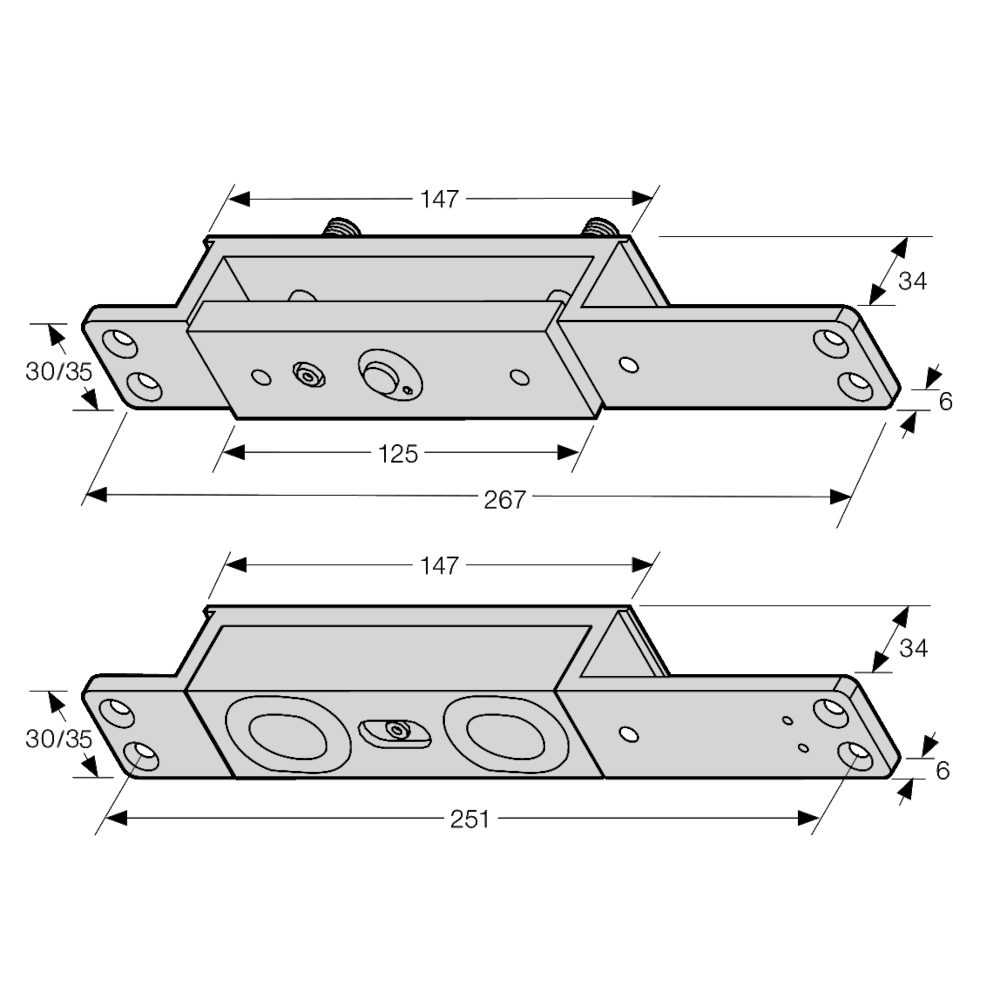

• Width: 30mm or 35mm (please select from the options below)
• Length: 26.7cm
• Depth: 34mm
• Magnet Length: 125mm
• Plate Depth: 6mm
• Screw Centres: 251mm
• Operating Temperature: -30°C to 55°C
• Weight: 1.5kg
• Finish: Black powder-coated housing with zinc-finished magnet and armature plate

Key Features

• Discreet Security: Mortice-mounted design allows the lock to be fully concealed within the door and frame.
• High Holding Force: Delivers up to 2,700lbs (1,226kg) of shear holding force for robust security.
• Fail-Safe Operation: Automatically unlocks during a power failure to ensure safe egress.
• Adjustable Time Delay: Features an adjustable locking relock time delay of 1 to 6 seconds.
• Integrated Monitoring: Built-in magnetic bond sensor monitor output remotely tracks door lock/unlock status.
• Flexible Installation: Can be fitted horizontally or vertically to suit various door configurations.
