ICS PH800 Magnet Pull Handle Double Monitored

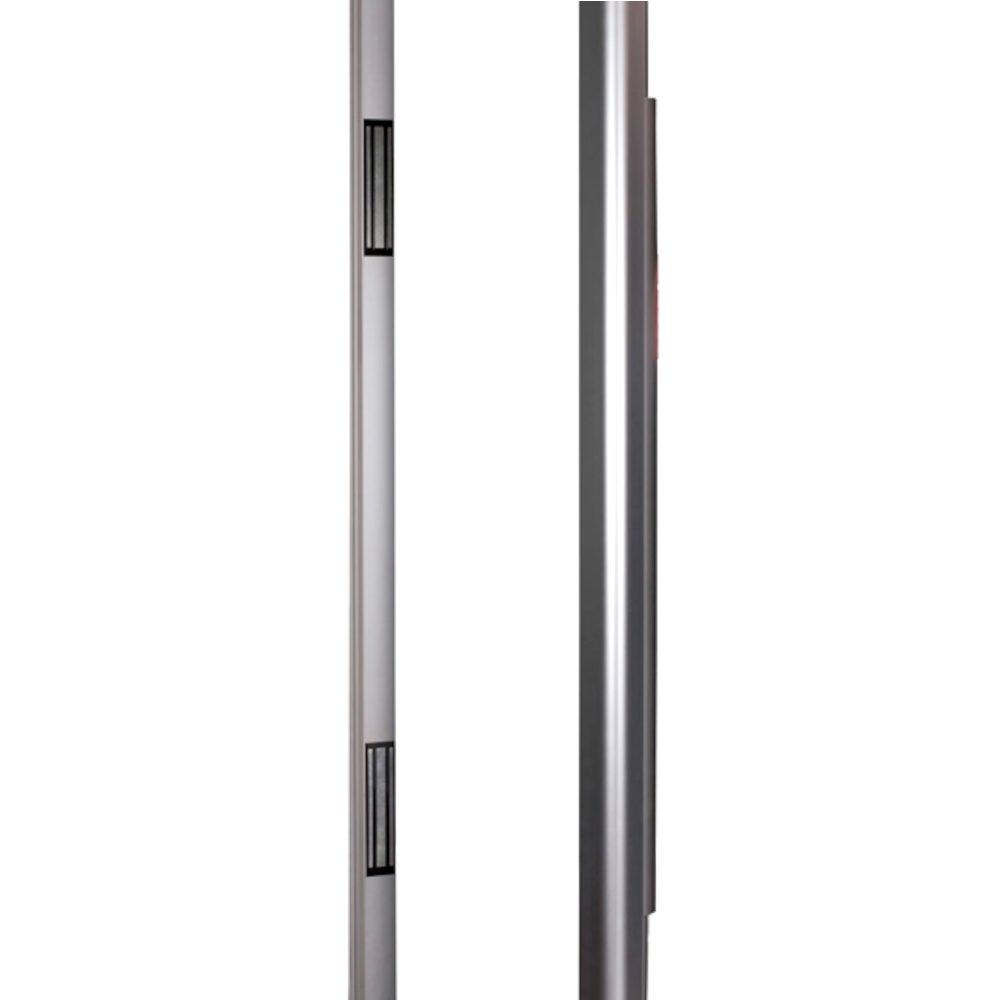

The ICS PH800 is a premium, full-length vertical pull handle designed for inward-opening doors, combining robust security with a sleek, modern aesthetic. Spanning 2500mm in length, this handle can be easily cut to size on-site to suit your specific door requirements. It features an innovative hidden magnet design that cleverly conceals two slimline electromagnetic locks and their armature plates within the anodised aluminium casing, ensuring a clean, uncluttered look that is ideal for office and commercial environments.

With a substantial holding force of 2 x 600lbs (545kg total), the PH800 provides dependable security. It operates on a fail-unlocked (fail-safe) basis, meaning the lock releases in the event of a power failure to ensure safe egress. The handle is fully monitored, featuring a built-in monitoring relay to provide real-time lock status feedback. Designed for vertical installation on the door frame, it supports dual-voltage operation (12V or 24V DC) and features concealed wiring to maintain its high-end appearance.

Technical Specifications

• Manufacturer: ICS
• Model: PH800

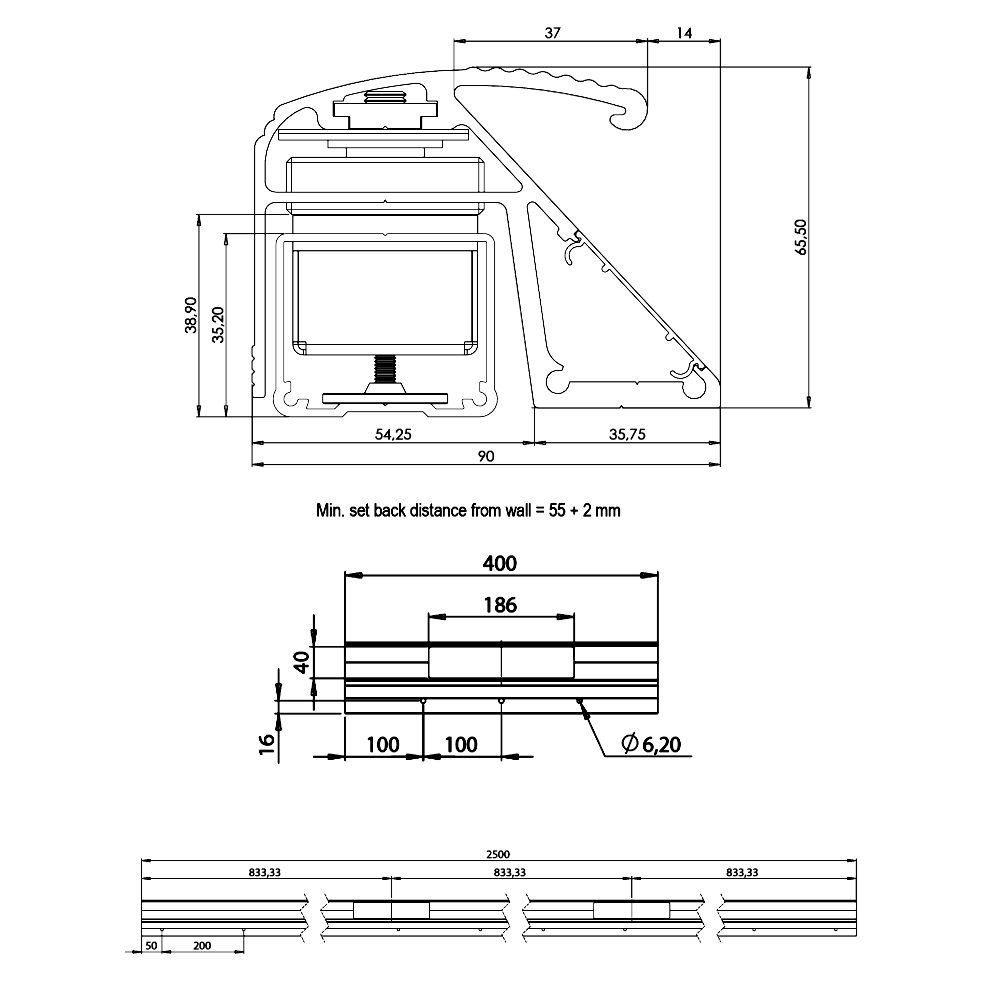

• Length: 2500mm (can be cut to length)
• Width: 90mm
• Depth: 65mm
• Weight: 1.7kg
• Holding Force: 2 x 600lbs / 545kg (275kg per magnet)
• Input Voltage: 12V / 24V DC (selectable)
• Current Consumption: 1A @ 12V DC / 500mA @ 24V DC
• Monitoring Relay: COM/NO/NC (1A @ 24V DC)
• Operation: Fail Unlocked (Fail-Safe)

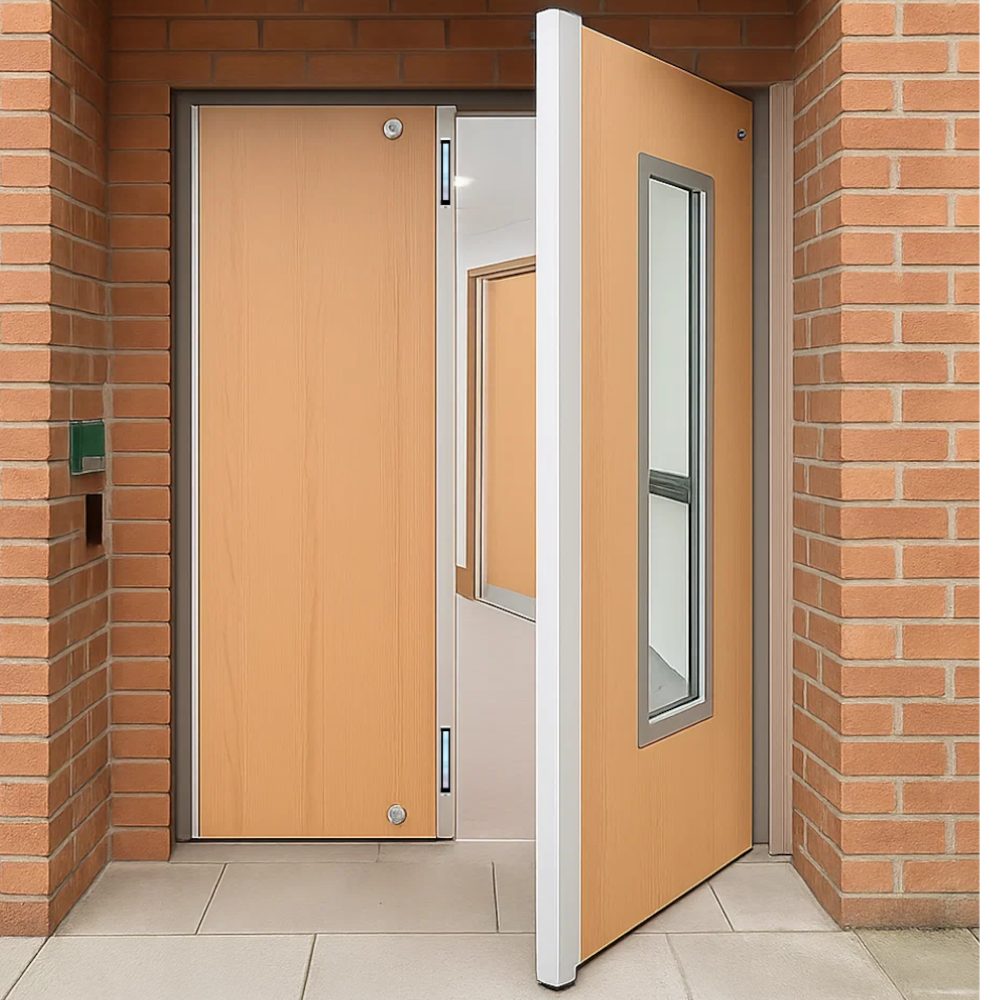

• Handing: Inward Opening (vertically frame mounted)
• Finish: Polished Anodised Aluminium
• Weather Resistance: No (indoor use only)

Key Features

• Concealed Magnet Design: Armature plates and slim maglocks are hidden within the handle enclosure for a clean, modern aesthetic.
• Fully Monitored: Integrated lock status monitoring with COM/NO/NC relay contacts.
• Customisable Length: 2.5-metre vertical handle can be cut down on-site to fit your door perfectly.
• Fail-Safe Security: Fail-unlocked operation ensures doors release automatically during power cuts for safe emergency exit.
• Robust Construction: Durable anodised aluminium casing designed for high-traffic commercial and office environments.
• Concealed Wiring: Keeps cables hidden from view, improving both security and appearance.
