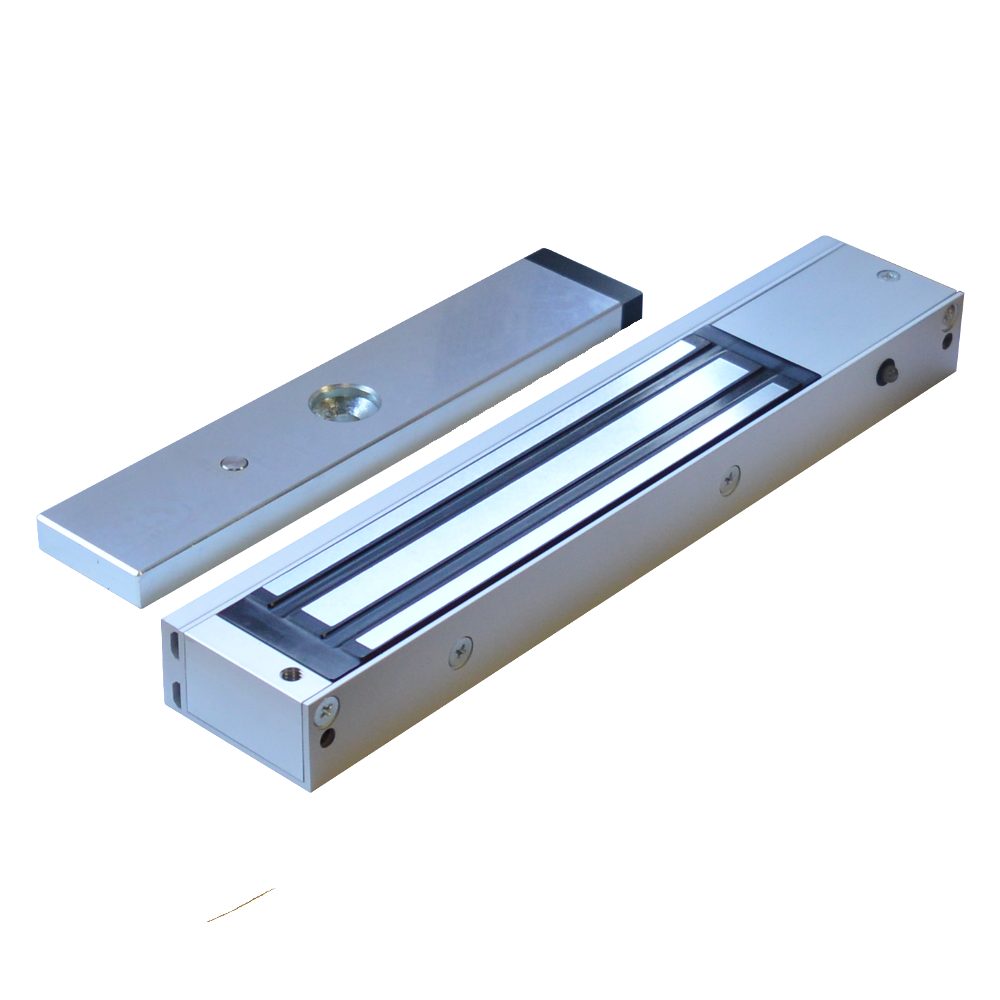

ICS Mini Magnet With Door Status

The ICS Mini Magnet with Door Status (U10002-DSU) is a compact, surface-mounted electromagnetic lock designed for reliable access control. Offering a robust holding force of 272kg (600lbs), this fail-safe (fail unlocked) maglock is ideal for commercial and residential security applications where safety and monitoring are paramount.

Constructed with a durable aluminium housing in a satin anodised finish, it operates on a selectable dual-voltage input of either 12V or 24V DC. The integrated monitoring feature includes a dedicated door status contact, allowing security systems to independently verify whether the door is physically open or closed, rather than just indicating the lock's power status.

Technical Specifications

• Manufacturer Reference: U10002-DSU
• Holding Force: 272kg (600lbs)
• Input Voltage: 12V / 24V DC (Selectable)
• Current Consumption: 0.5A @ 12V DC / 0.25A @ 24V DC
• Operation: Fail-safe (Fail Unlocked)
• Monitoring: Monitored with Door Status
• Fitting: Surface mounted
• Material: Aluminium
• Finish: Satin Anodised Aluminium
• Magnet Dimensions: 250mm (L) x 42mm (H) x 26mm (D)
• Armature Plate Dimensions: 185mm (W) x 38mm (H) x 12mm (D)
• Operating Temperature: -10°C to 55°C
• Weight: 1.9kg
• Guarantee: 1 Year

Key Features

• Integrated Door Status Monitoring: Features an independent contact to monitor the physical state of the door (open/closed) separately from the lock status.
• Fail-Safe Operation: Automatically unlocks in the event of a power failure, ensuring safe egress.
• Dual-Voltage Compatibility: Supports both 12V and 24V DC operation for flexible installation options.
• Durable Aluminium Housing: Finished in satin anodised aluminium for excellent corrosion resistance and a clean aesthetic.
• High Holding Force: Provides up to 272kg (600lbs) of magnetic resistance to secure standard doors.
