ICS FR-GK450 Fire Rated Mortice Electric Release 12/24VDC FL/FU Reversible
ICS
The ICS FR-GK450 range of fire-rated mortice electric releases offers a highly secure, versatile, and reliable solution for commercial and residential access control systems. Designed to suit aluminium, steel, and timber frames, these electric strikes are fully non-handed and site-reversible, allowing easy conversion between fail-safe (fail unlocked) and fail-secure (fail locked) operation during installation.
These robust releases are UK-tested and fire-rated to FD30 and FD60 standards in accordance with BS EN 1634-1, and they come complete with an intumescent strip for enhanced fire safety. Boasting an impressive holding force of 680kg (1500lbs) and a durable brushed stainless steel finish, they are built to withstand demanding environments.
This range is available with or without monitoring, featuring different manufacturer references and barcodes. Please select your preferred options from the choices below.
Technical Specifications
- Brand: ICS
- Input Voltage: 12/24V DC
- Current Consumption: 250mA @ 12VDC / 150mA @ 24VDC
- Holding Force: 680kg (1500lbs)
- Operation: Fail Locked / Fail Unlocked (Site Reversible)
- Fire Tested: To BS EN 1634-1 (FD30 & FD60)
- Fitting: Mortice
- Finish: Stainless Steel

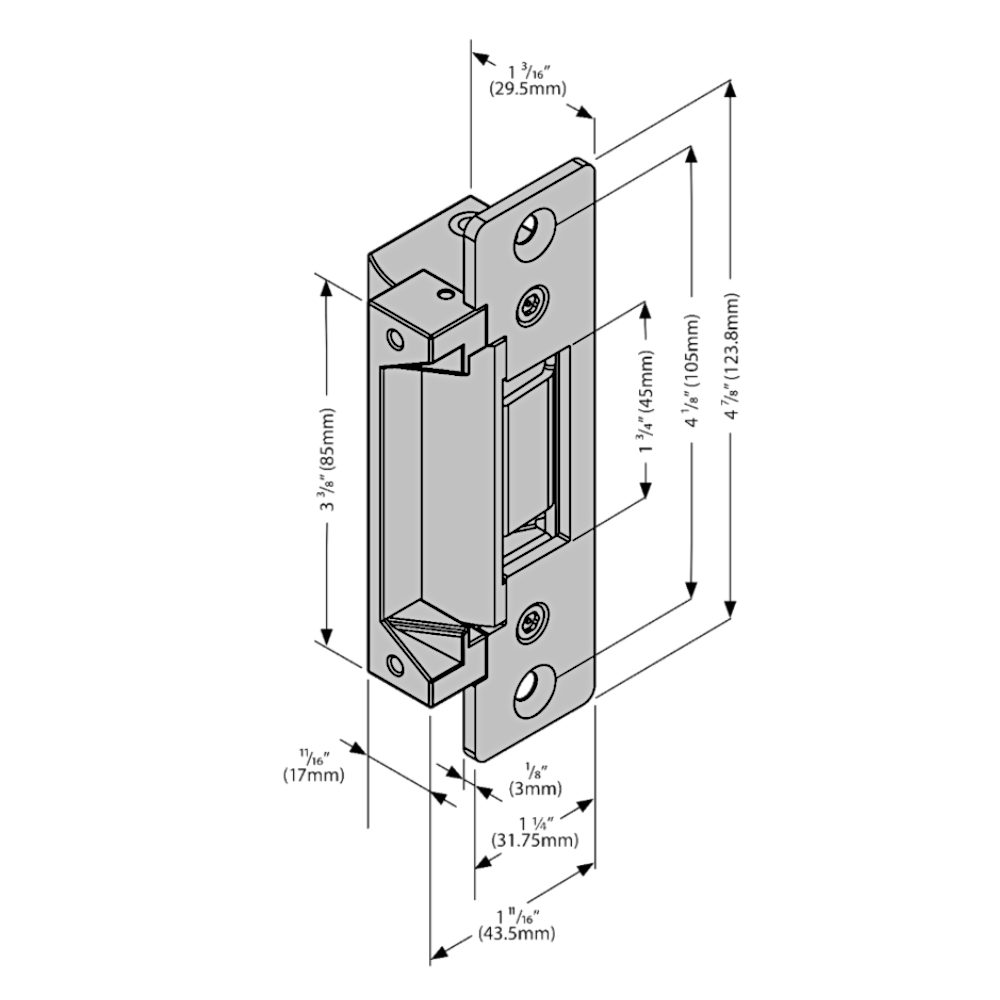

- Body Dimensions: 85mm (H) x 44mm (W) x 29.5mm (D)
- Faceplate Dimensions: 123.8mm (H) x 31.75mm (W)
- Screw Centres: 105mm
- Weight: 500g
- Monitoring: Yes or No options available (please choose from the options below)
- Manufacturer Reference: FR-GK450-ST or FR-GK450M-ST (please choose from the options below)
- Barcode: 5056240129426 or 5056240129433 (please choose from the options below)
Key Features
- Fire Rated: UK tested to FD30 and FD60 standards with an included intumescent strip for compliance and safety.

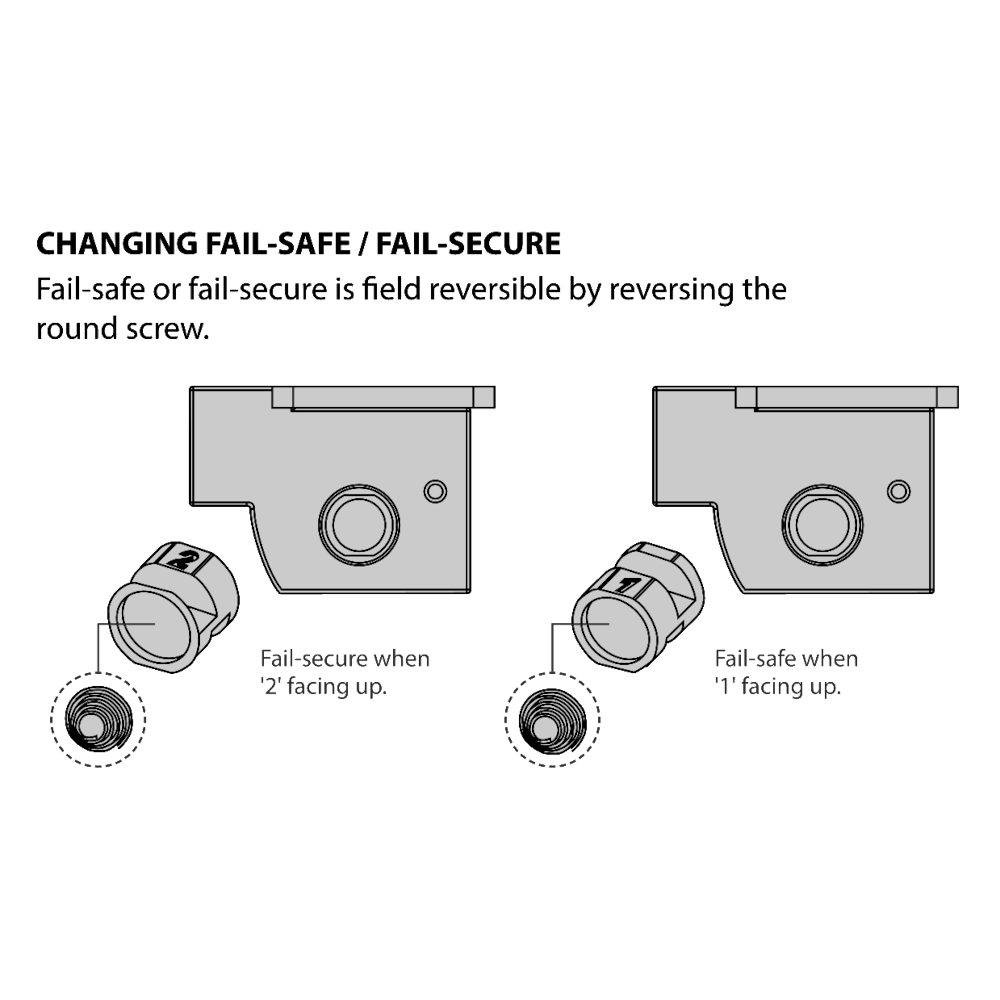

- Site Reversible: Easily switch between fail-safe (fail unlocked) and fail-secure (fail locked) operation on-site.
- Non-Handed: Fully reversible design suitable for both left and right-handed doors.
- High Holding Force: Provides a robust holding force of up to 680kg (1500lbs).
- Dual Voltage: Operates on both 12V DC and 24V DC systems for versatile installation.
- Monitoring Options: Choose between monitored and non-monitored versions to suit your access control requirements.
Master locksmiths with BSI accreditation
MLA approved locksmiths, BSI certified key systems, and independently audited security standards.
| Image | Part No. | Manufacturer Ref | Price | Actions |
|---|---|---|---|---|
|
L33148 | FR-GK450-ST |
£
168.86
|
|
|
L33149 | FR-GK450M-ST |
£
203.86
|
