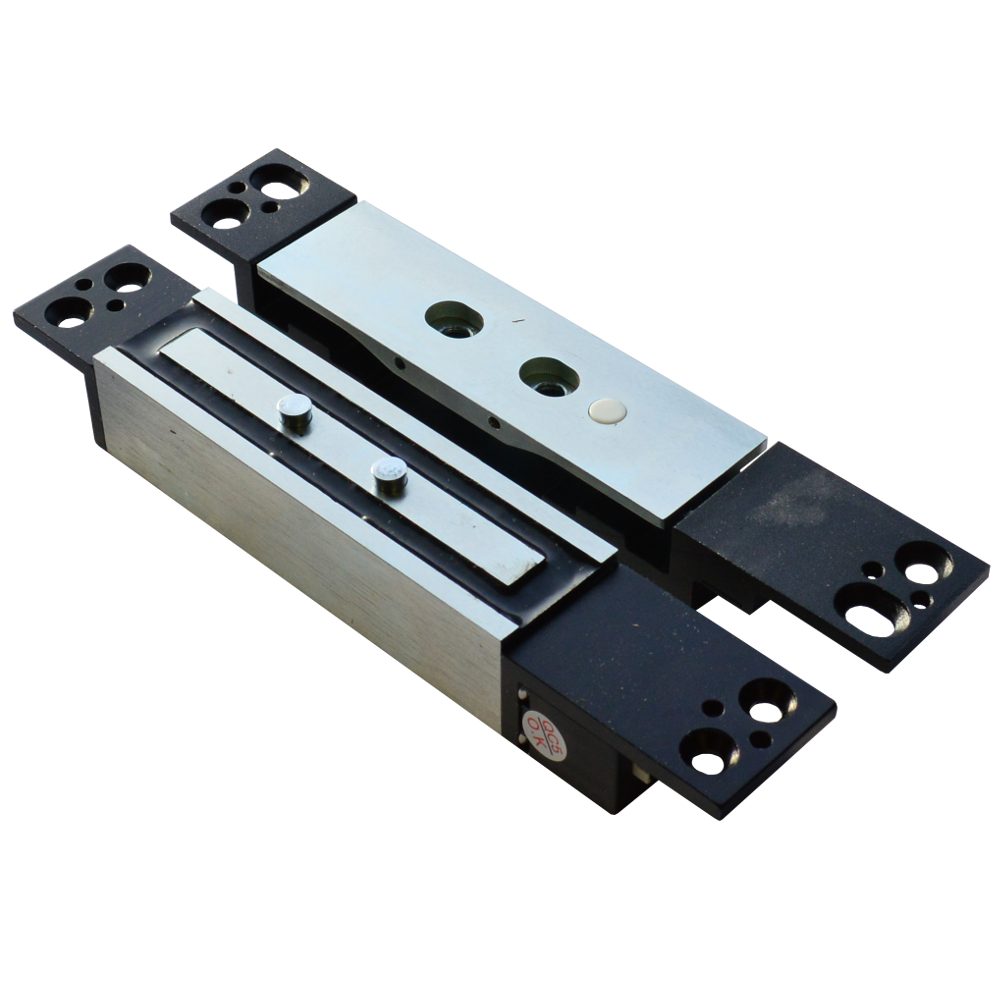

ICS Fire Rated Micro Shearlock Shear Magnet
ICS
The ICS FR-SL500 Fire Rated Micro Shearlock is a high-security, compact electromagnetic locking solution designed for concealed mortice installation. Offering an exceptional holding force of up to 1,200kg in shear, this micro shearlock provides robust security while maintaining a clean, flush aesthetic on your doors.
Engineered for safety and compliance, the FR-SL500 is fire tested to BS EN 1634, making it suitable for both FD30 and FD60 timber door applications. Please note that to achieve and maintain this fire door suitability, the lock must be fitted with the included intumescent pack.
This versatile lock operates on a dual-voltage 12/24V DC input and features a fail-unlocked (fail-safe) operation, ensuring safe egress in the event of a power failure. It also includes an adjustable locking time delay ranging from 0.5 to 25 seconds and full lock status monitoring (N.O/N.C/COM) for seamless integration with access control systems.
Technical Specifications
- Manufacturer Reference: FR-SL500
- Finish: Satin Anodised Aluminium
- Input Voltage: 12/24V DC
- Operation: Fail Unlocked (Fail Safe)
- Holding Force: 1200Kg / 2654Lbs in shear
- Fire Tested: Yes (BS EN 1634)
- Locking Time Delay: 0.5 to 25 seconds (adjustable)
- Monitoring: N.C / N.O / COM
- Fitting Type: Mortice
- Plate Width: 182mm
- Plate Height: 30mm
- Plate Depth: 25mm
- Magnet Length: 137mm
- Handed: Non-handed
- Weight: 3Kg
- Guarantee: 1 Year
Key Features
- High Shear Holding Force: Delivers up to 1,200kg of resistance for high-security applications.
- Fire Rated Compliance: Fully tested to BS EN 1634 for 30 and 60-minute timber fire doors.
- Intumescent Pack Included: Supplied with the necessary intumescent kit to ensure fire door certification compliance.
- Adjustable Relock Delay: Built-in timer can be set between 0.5 and 25 seconds to suit traffic flow.
- Concealed Mortice Fitting: Fits discreetly within the door and frame for a clean, tamper-resistant finish.
- Fail-Safe Operation: Automatically unlocks when power is lost, ensuring safe emergency evacuation.
