ICS Fire Rated Door Loop
ICS

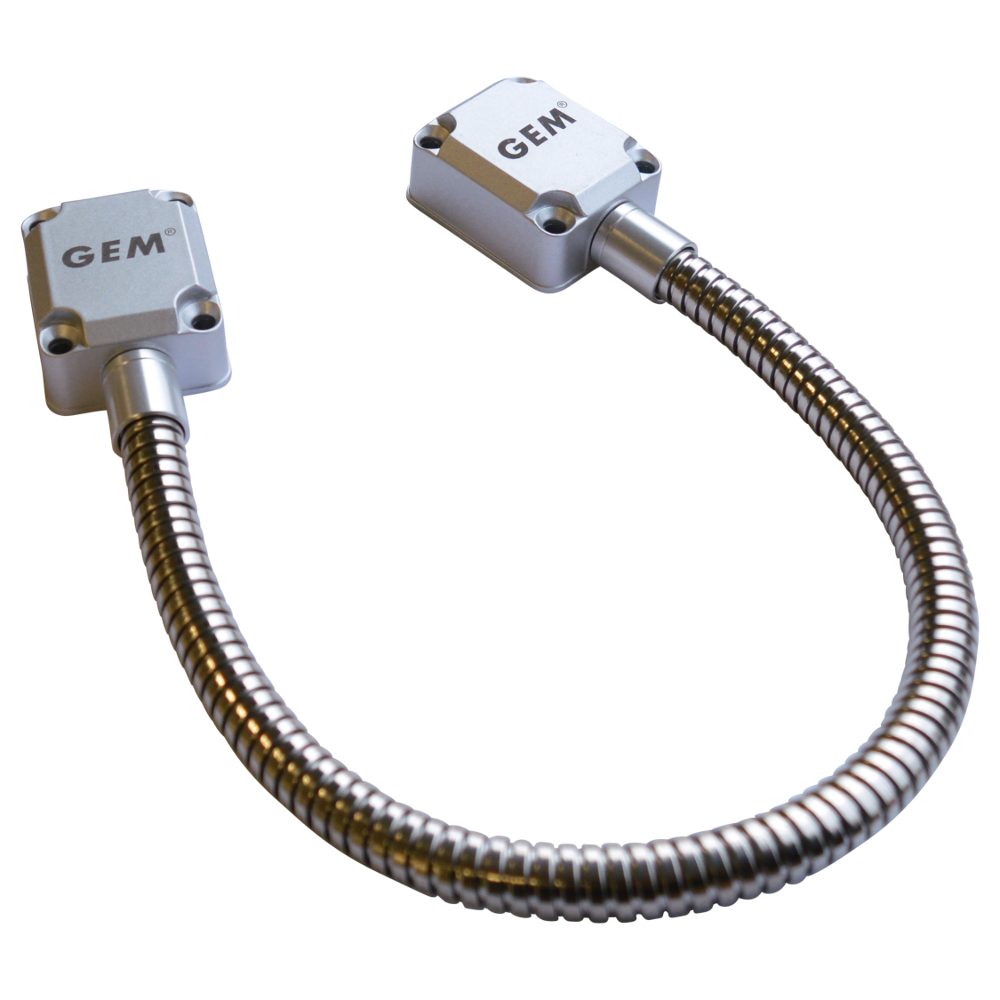

The ICS FR-DL350 Fire Rated Door Loop is a robust, surface-mounted armoured cable transfer designed to protect wiring as it passes between a door frame and the door leaf. Ideal for access control systems, this door loop prevents cables from being pinched, cut, or tampered with, ensuring the ongoing reliability of your electronic security setup.
Constructed with durability in mind, it features a 40cm armoured cable and is finished in a sleek Satin Anodised Aluminium to complement modern architectural hardware. Crucially, the FR-DL350 is fully fire tested to BS EN 1634, making it suitable for use on both FD30 and FD60 fire doors. This ensures compliance with strict UK fire safety standards without compromising on security or cable protection.
Technical Specifications
- Brand: ICS
- Manufacturer Reference: FR-DL350
- Part Number: L30079
- Cable Length: 40cm (400mm)
- Finish: Satin Anodised Aluminium
- Fitting: Surface mounted
- Fire Tested: Yes, to BS EN 1634
- Fire Rating: Suitable for FD30 and FD60 applications (1-hour fire certificate)
- Weight: 700g
- Pack Quantity: 1
Key Features
- Armoured Protection: Heavy-duty armoured cable prevents pinching, cutting, and tampering of vital wiring.
- Fire Safety Compliant: Tested to BS EN 1634 standards, making it safe for installation on FD30 and FD60 fire doors.
- Surface Mounted: Simple and quick surface-mount installation on the door and frame.
- Durable Finish: Satin Anodised Aluminium finish provides a clean, professional look that resists wear.
