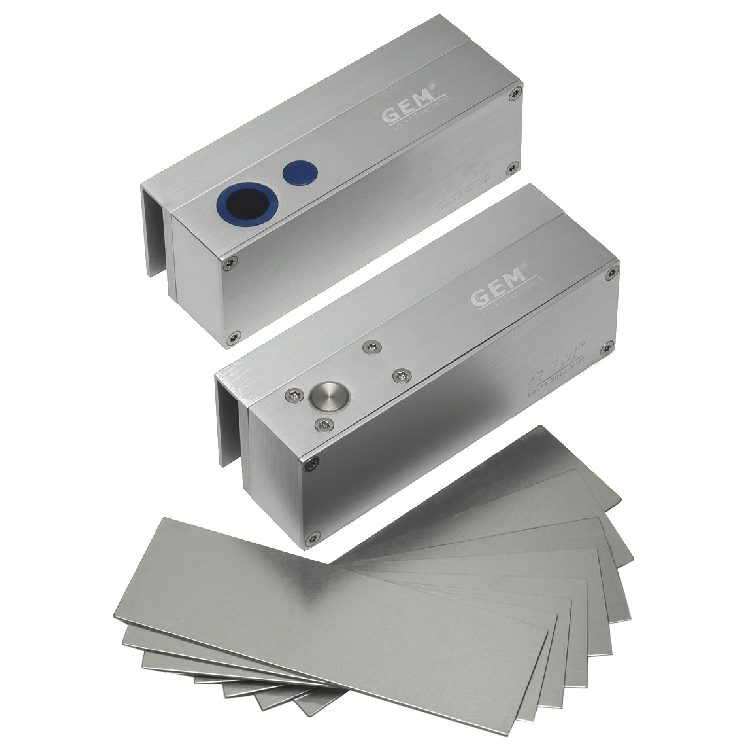

ICS EB300VGL Solenoid Bolt Surface With Glass Mounting Kit

The ICS EB300VGL is a high-quality, surface-mounted electric solenoid drop bolt designed specifically for frameless glass door applications. Supplied complete with a dedicated glass mounting kit, this robust locking solution is ideal for securing glass doors and walls in commercial or residential access control setups.

Operating on 12V DC, this solenoid bolt features a fail-safe (power to lock / fail unlocked) operation, ensuring the door unlocks automatically during a power failure to allow safe emergency egress. It offers a strong holding force of 544kg (1200lbs) and is fully monitored, providing reliable feedback on the door's position status. To prevent premature locking, it includes an adjustable auto-relocking timer delay that can be set to 0, 3, 6, or 9 seconds. Built for longevity, the EB300VGL has been rigorously tested to 500,000 cycles and is housed in a sleek anodised aluminium finish.

Technical Specifications

• Operating Voltage: 12V DC
• Current Consumption: Pull 0.9A, Holding 0.3A
• Holding Force: 544kg / 1200lbs
• Operation: Fail-safe (Power to lock / Fail unlocked)
• Monitoring: Yes (Door position status)
• Timer Delay: Adjustable auto-relocking (0, 3, 6, or 9 seconds)
• Dimensions: 225mm (H) x 42mm (W) x 41mm (D)
• Weight: 1.6kg
• Finish: Anodised Aluminium
• Handing: Non-handed
• Guarantee: 1 Year

Key Features

• Glass Door Solution: Supplied complete with a glass mounting kit, making it ideal for frameless glass doors and walls.
• Surface Mounted: Easy surface-mount installation without the need for complex mortising.
• Fail-Safe Security: Unlocks automatically when power is lost, ensuring compliance with emergency exit requirements.
• High Durability: Rigorously tested to 500,000 cycles for long-lasting, dependable operation.
• Integrated Monitoring: Built-in door position status monitoring to ensure the bolt only projects when the door is fully closed.
• Adjustable Relock Delay: Features a configurable timer delay of 0, 3, 6, or 9 seconds to suit your specific traffic flow needs.
