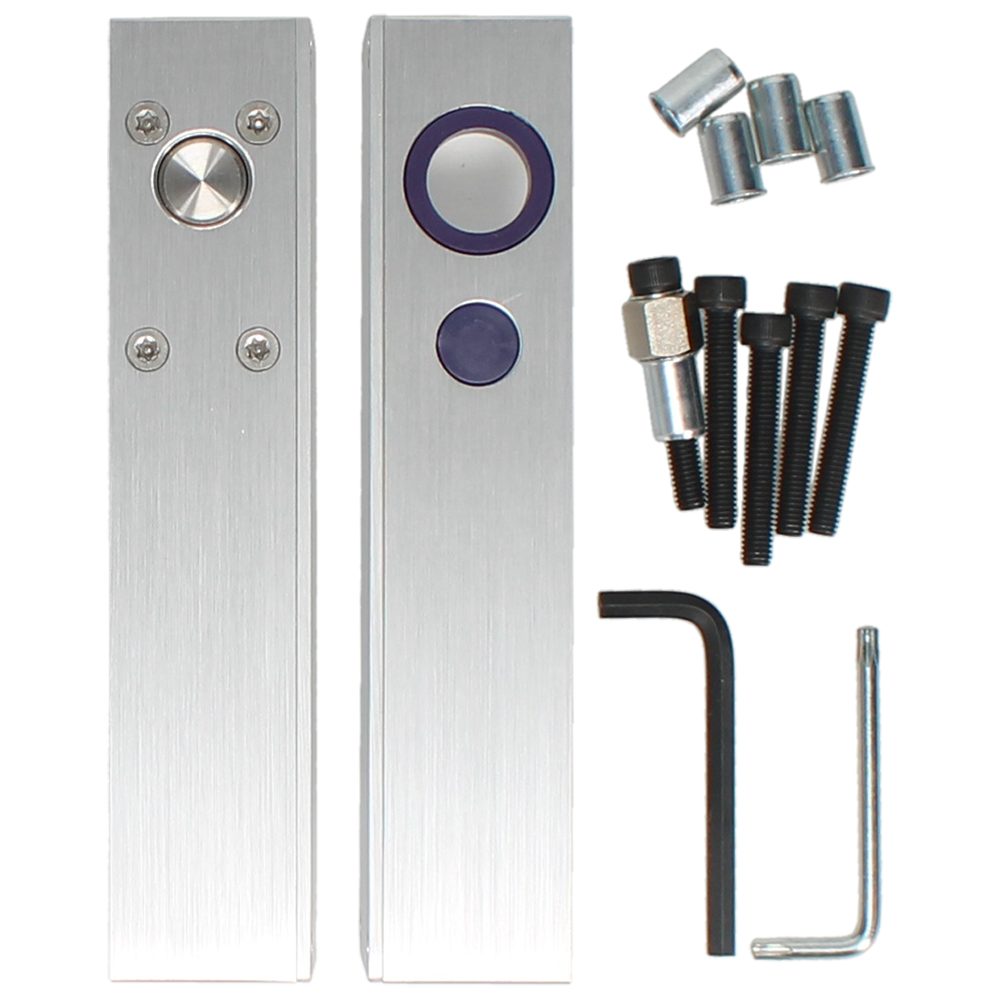

ICS EB300 Solenoid Bolt Surface

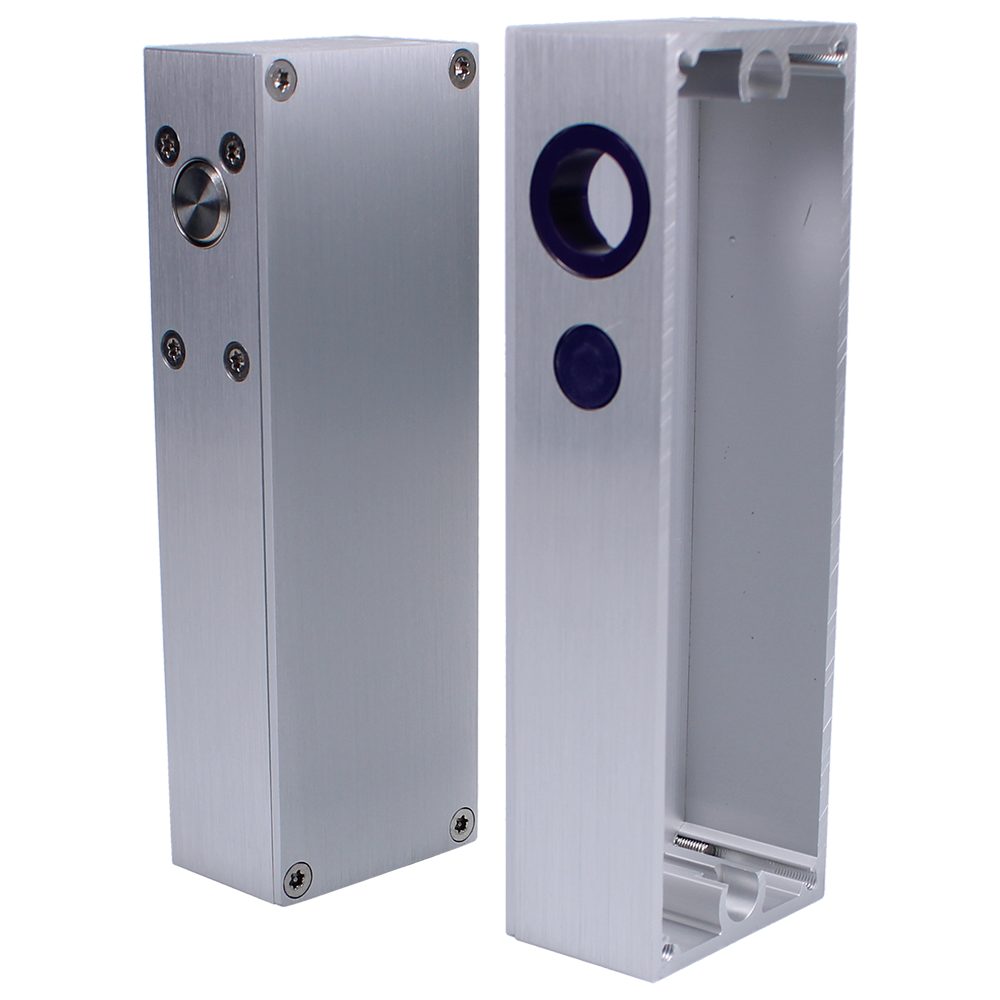

The ICS EB300 is a high-performance, surface-mounted electric drop bolt designed for timber and metal doors. This robust solenoid bolt provides a secure locking solution for single or double-action doors where surface mounting is preferred.

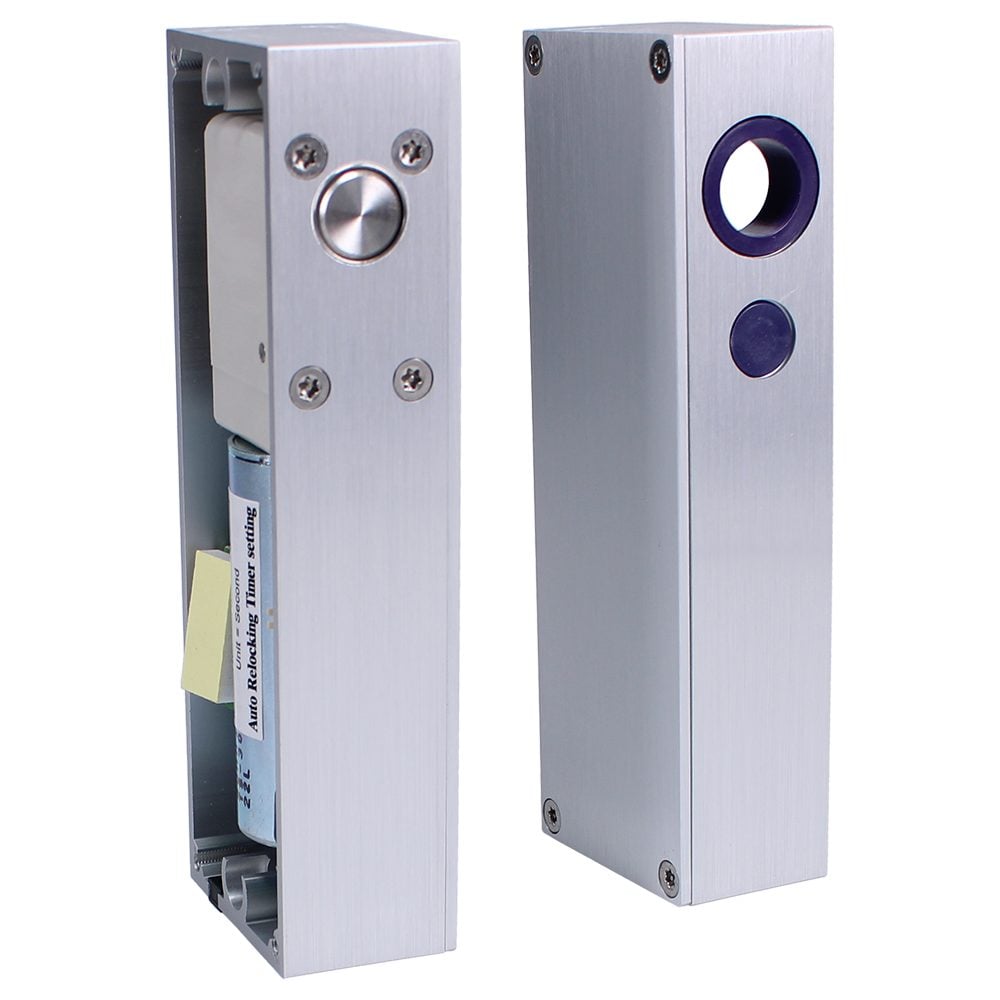

It operates on a 12V DC power supply and features a fail-safe configuration (power to lock), ensuring the door unlocks automatically in the event of a power failure to maintain safe egress. The EB300 is built for longevity, having been rigorously tested to 500,000 cycles. It also includes integrated door position monitoring and an adjustable auto-relocking timer delay (0, 3, 6, or 9 seconds) to prevent the bolt from throwing before the door is fully closed.

Technical Specifications

• Operating Voltage: 12V DC
• Current Consumption: 0.9A (Pull) / 0.3A (Holding)
• Holding Force: 544kg (1200lbs)
• Operation: Fail-Safe (Power to Lock)
• Monitoring: Integrated door position monitoring
• Timer Delay: Adjustable (0, 3, 6, or 9 seconds)
• Fitting: Surface mounted
• Application: Metal and timber doors
• Handing: Non-handed
• Finish: Anodised Aluminium
• Dimensions: 225mm (H) x 42mm (W) x 41mm (D)
• Weight: 948g
• Cycle Tested: 500,000 cycles

Key Features

• Surface Mounted: Ideal for timber and metal doors where flush installation is not possible.
• Fail-Safe Security: Automatically unlocks when power is removed, ensuring safe exit during emergencies.
• Adjustable Auto-Relock: Built-in timer delay can be set to 0, 3, 6, or 9 seconds to prevent premature locking.
• High Durability: Tested to 500,000 cycles to ensure long-term reliability in high-traffic environments.
• Robust Holding Force: Provides up to 544kg (1200lbs) of resistance for high physical security.
• Non-Handed: Suitable for left-handed, right-handed, single-action, or double-action doors.
