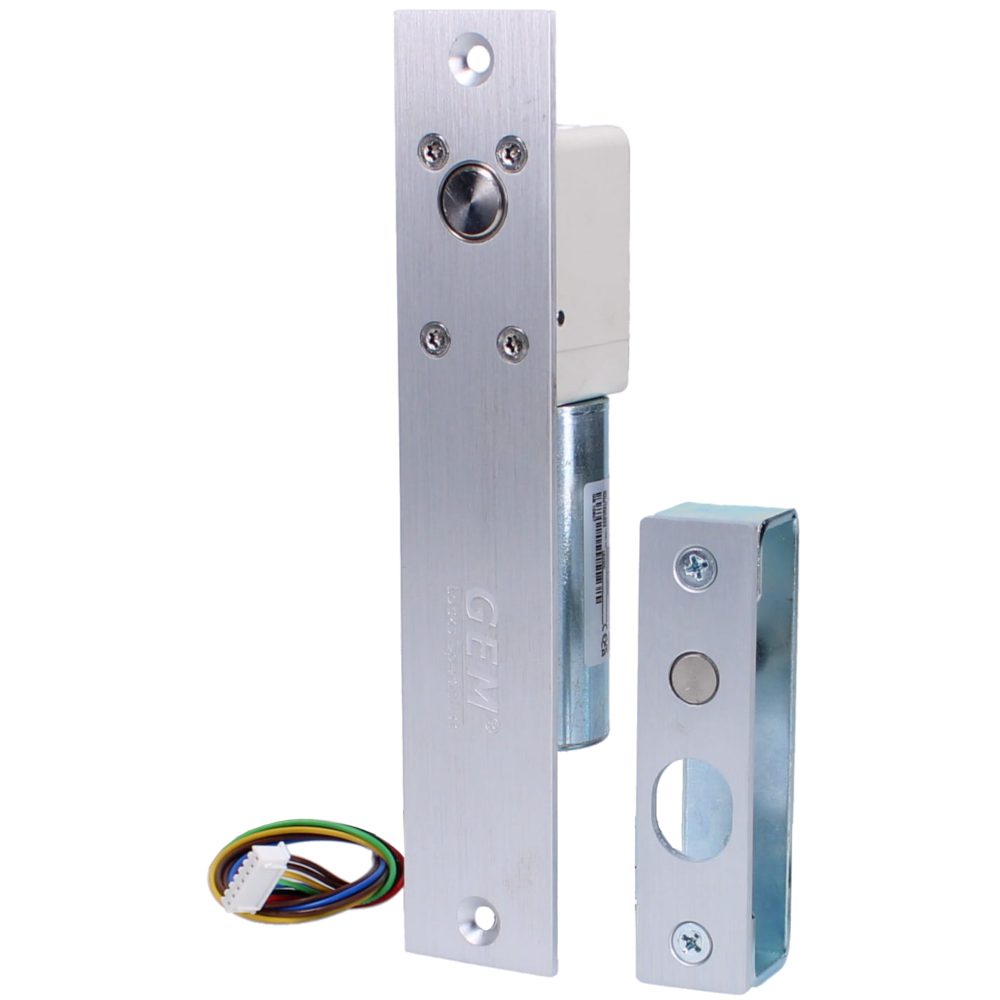

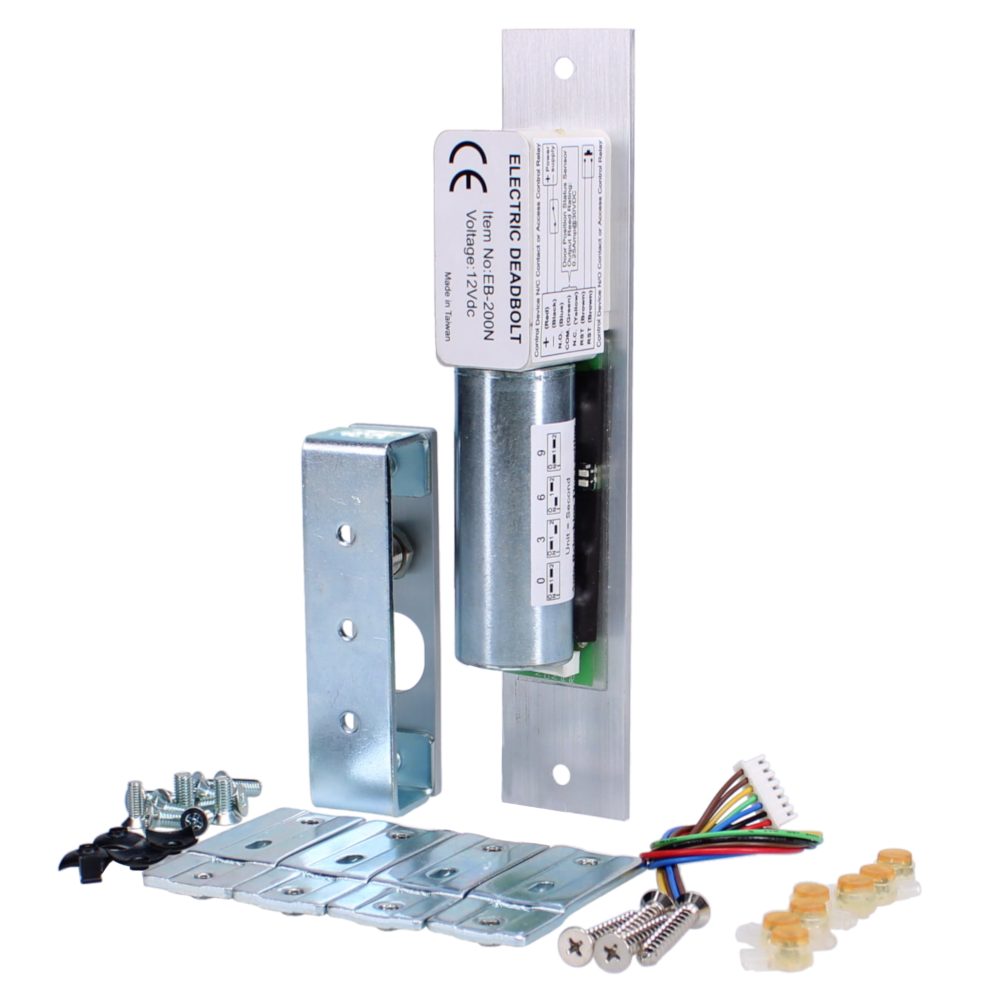

ICS EB200 Solenoid Bolt Mortice

The ICS EB200 Mortice Solenoid Bolt is a high-performance electric drop bolt designed for use with aluminium, timber, and steel doors. It is an ideal solution for secure access control systems, offering robust security and reliable operation in commercial, industrial, or residential environments.

Engineered for versatility, this solenoid bolt can be installed either horizontally or vertically to suit your door configuration. It operates on a fail-safe (power to lock) configuration, ensuring that the door automatically unlocks in the event of a power failure to allow safe egress. The EB200 features an adjustable auto-relock timer delay, allowing you to set the locking delay to 0, 3, 6, or 9 seconds to prevent premature locking before the door is fully closed.

With a high holding force of 544kg (1200lbs) and a durable anodised aluminium finish, this non-handed bolt is built to last. It has been rigorously tested to 500,000 cycles and includes integrated door position monitoring to provide real-time status feedback to your access control system.

Technical Specifications

• Operating Voltage: 12V DC
• Current Consumption: Pull-in 0.9A, Holding 0.3A
• Holding Force: 544kg (1200lbs)
• Body Dimensions: 183mm (H) x 28mm (W) x 41mm (D)
• Finish: Anodised Aluminium
• Fitting: Mortice
• Handing: Non-handed
• Monitoring: Yes (integrated door position status)
• Weight: 1kg

Key Features

• Versatile Installation: Can be mounted horizontally or vertically to suit various door types.
• Fail-Safe Operation: Power-to-lock configuration ensures the door unlocks during a power loss for safety.

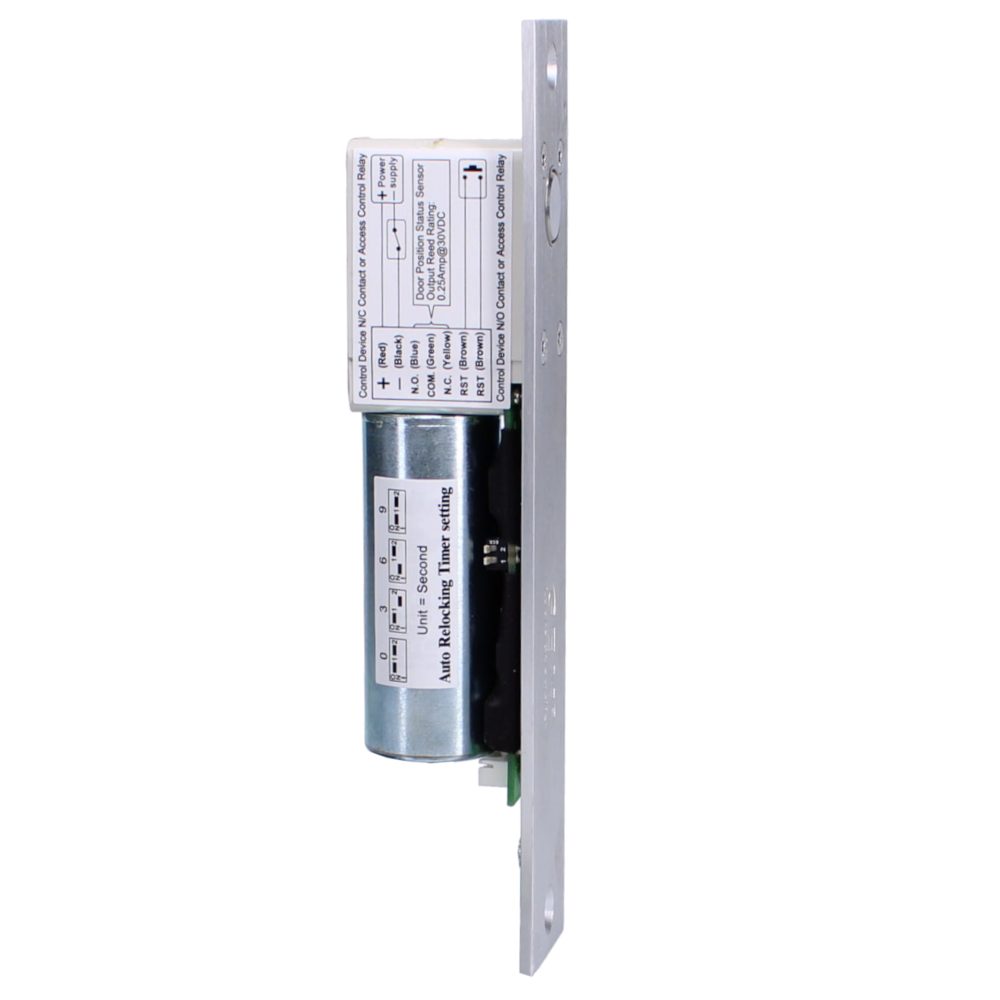

• Adjustable Auto-Relock Timer: Selectable delay of 0, 3, 6, or 9 seconds to prevent premature locking.
• High Durability: Rigorously tested to 500,000 cycles for long-term reliability.
• Universal Application: Suitable for aluminium, timber, and steel doors.
