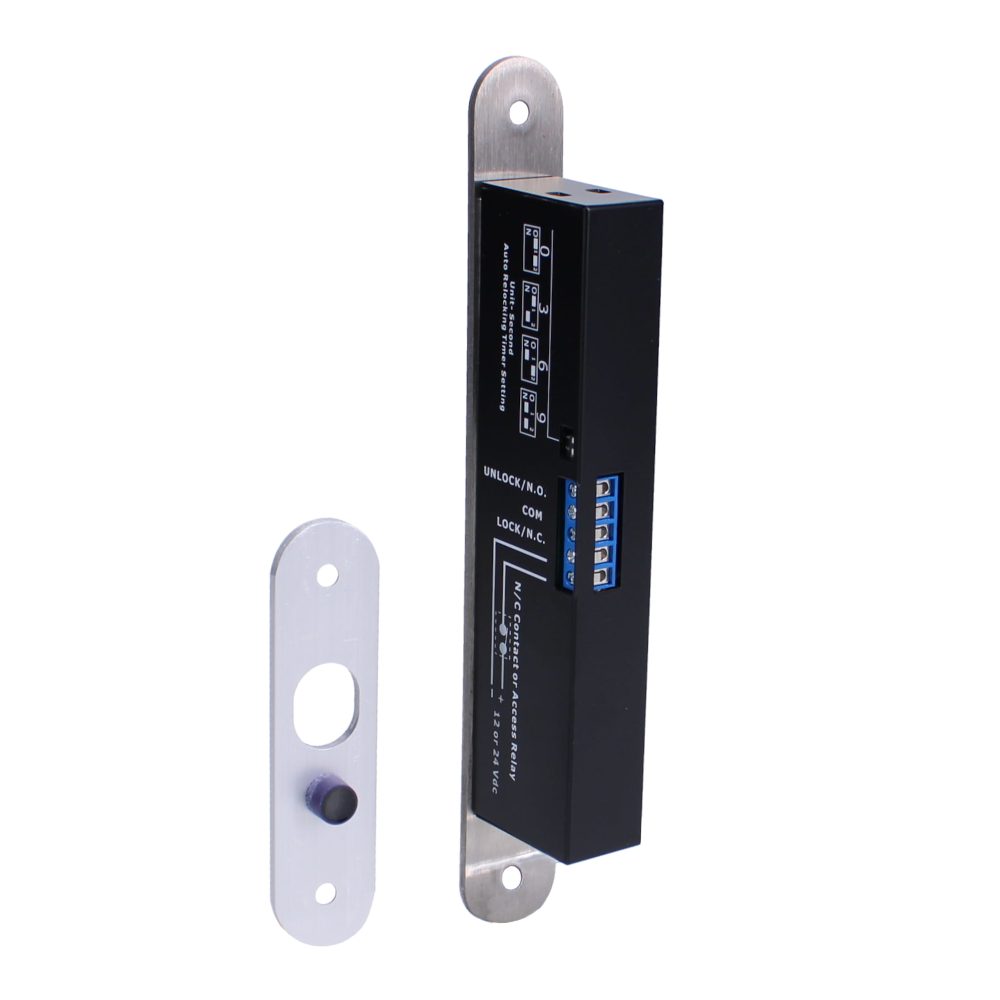

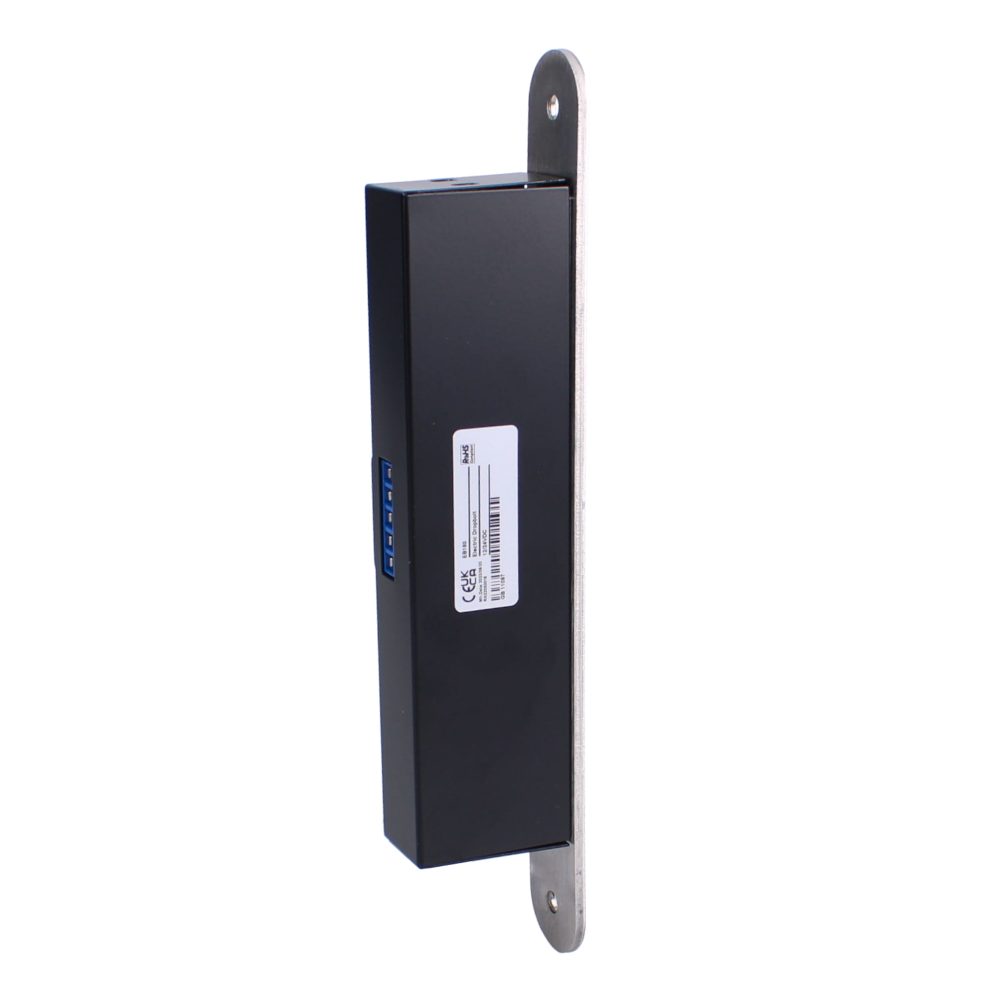

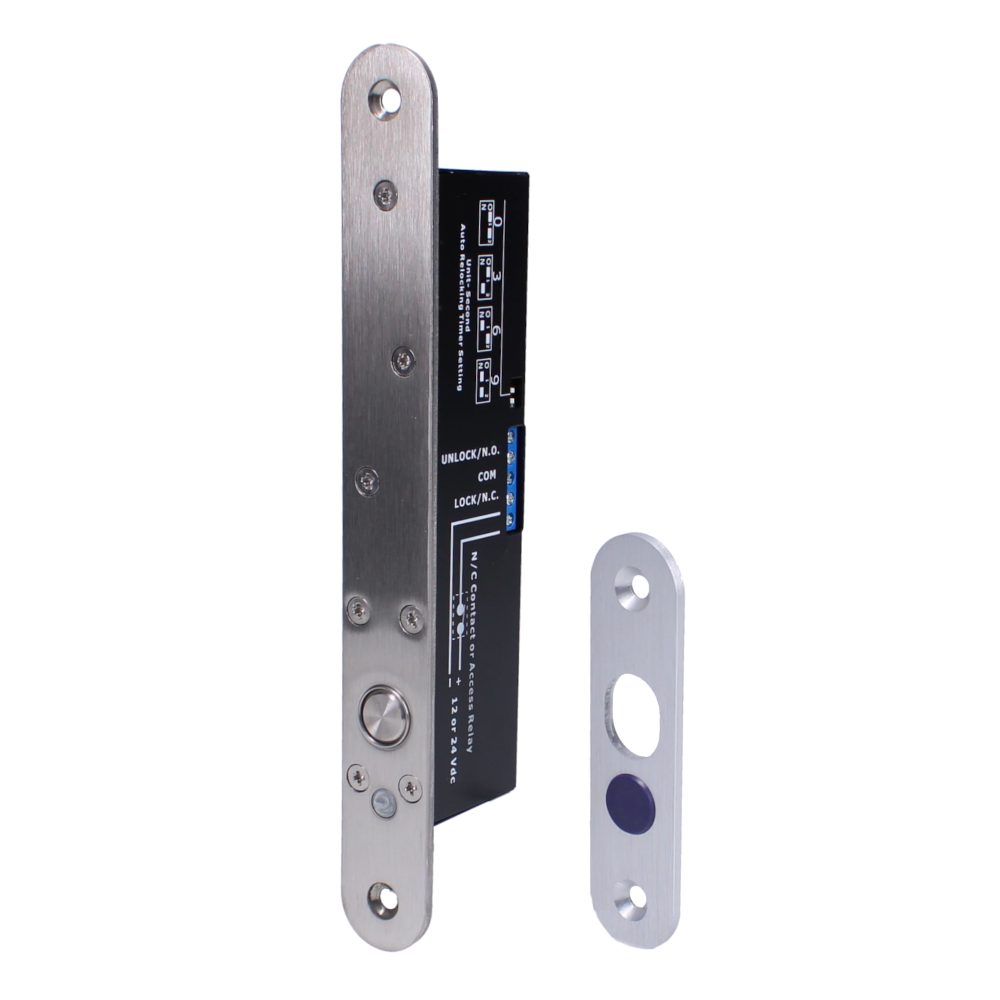

ICS EB180 Solenoid Bolt Slim Mortice

The ICS EB180 Solenoid Bolt Slim Mortice is a high-security, slimline electric drop bolt designed specifically for narrow stile timber and hollow metal doors and frames. Offering exceptional versatility, this compact solenoid bolt can be installed either horizontally or vertically, making it an ideal choice for single or double-action doors. It operates on a fail-safe (power to lock) configuration, ensuring doors unlock automatically in the event of a power failure to maintain safe egress.

Equipped with intelligent logical circuitry, the EB180 features an adjustable auto-relocking timer delay of 0, 3, 6, or 9 seconds. It is fully monitored, providing reliable feedback on the lock status, and boasts a robust vandal-resistant design to prevent tampering. To maximise energy efficiency and prolong the lifespan of the lock, the current consumption automatically drops from a 0.9A pull-in current to a low 0.3A holding current once the bolt is fully projected.

Technical Specifications

• Application: Timber and metal doors
• Fitting: Mortice
• Body Dimensions: 149mm (H) x 25mm (W) x 41mm (D)
• Input Voltage: 12V / 24V DC (self-regulating)
• Current Consumption: Pull-in 0.9A, Holding 0.3A
• Holding Force: 544kg (1200lbs)
• Operation: Fail Unlocked / Fail Safe (Power to Lock)
• Monitoring: Yes
• Key Override: No
• Finish: Anodised Aluminium / Stainless Steel
• Guarantee: 1 Year

Key Features

• Slimline Mortice Design: Engineered specifically for narrow stile wooden or hollow metal doors and frames.
• Adjustable Auto-Relock Delay: Built-in timer delay can be set to 0, 3, 6, or 9 seconds.
• Flexible Mounting: Supports both horizontal and vertical installation.
• Vandal Resistant: Built-in circuitry prevents tampering and unauthorized manipulation.
• Energy Efficient: Smart circuitry drops current draw to 0.3A once locked to reduce power consumption and heat.
• Fail-Safe Security: Automatically unlocks when power is cut, ensuring safe emergency egress.
