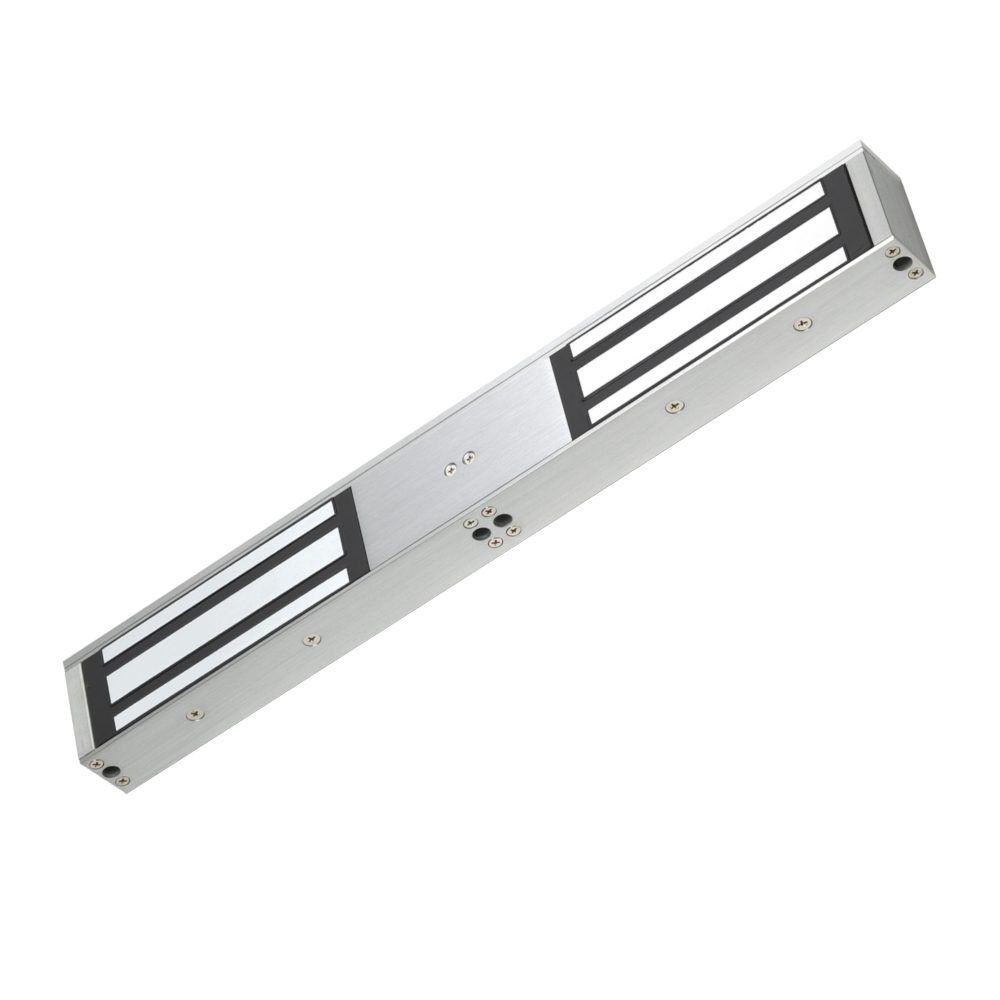

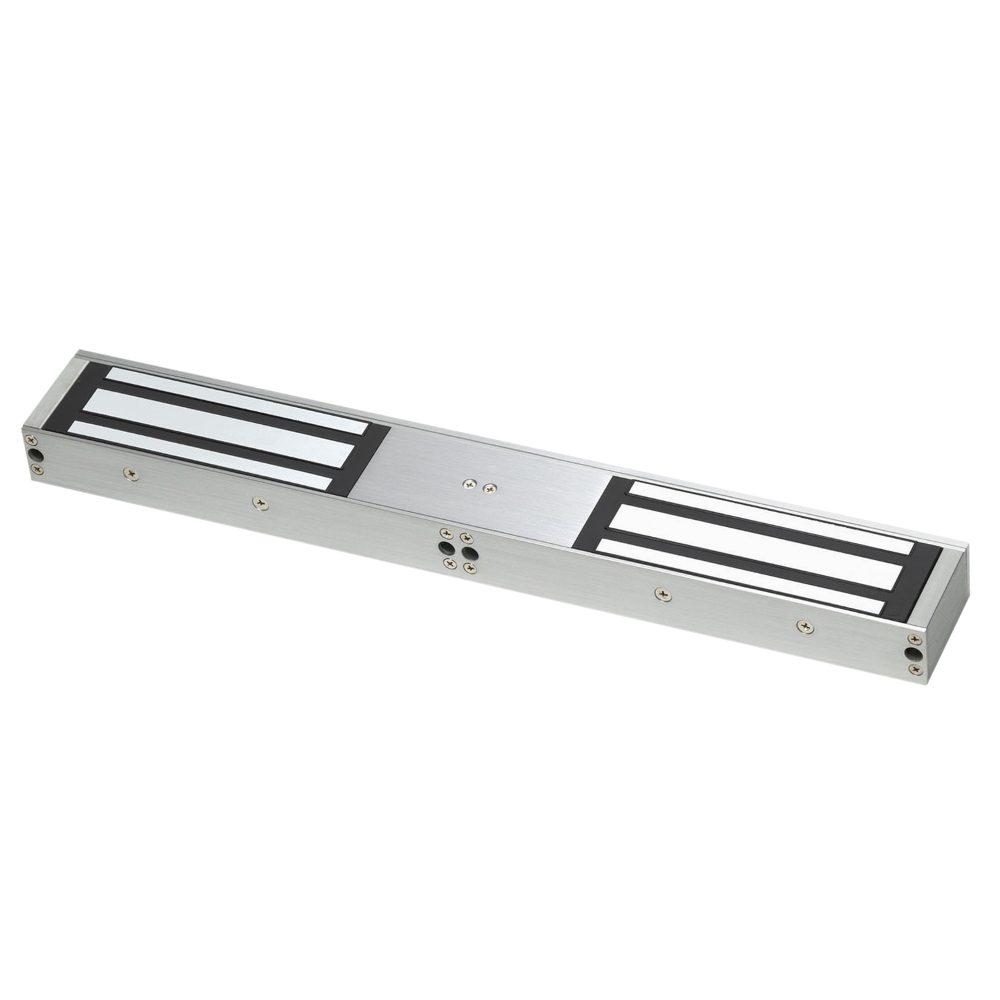

ICS A-Series 12/24VDC Standard Double Magnet

The ICS 12/24VDC Standard Double Magnet range offers robust, reliable electric locking for double doors, making it an ideal choice for commercial, public, and high-traffic access control systems. Designed for surface-mount installation, these high-quality magnetic locks are constructed from durable aluminium with a clean satin anodised finish.

This versatile range is available in several configurations to suit your specific security and installation requirements. Depending on the model selected, the magnets offer a holding force of either 272kg (600lbs) or 545kg (1200lbs) per door. You can also choose between monitored and non-monitored versions to integrate seamlessly with your door status monitoring systems. Please select your preferred holding force, monitoring configuration, and dimensions from the options below.

Operating on a dual-voltage 12/24V DC input, these maglocks feature fail-safe operation (fail unlocked), ensuring doors automatically release in the event of a power loss to allow safe emergency egress.

Technical Specifications

• Input Voltage: 12/24V DC
• Holding Force: 272kg (600lbs) or 545kg (1200lbs) per door (please choose from the options below)
• Monitoring: Available in Monitored or Non-Monitored options (please choose below)
• Operation: Fail-safe (fail unlocked)
• Material & Finish: Aluminium with Satin Anodised Aluminium finish
• Fitting: Surface mounted

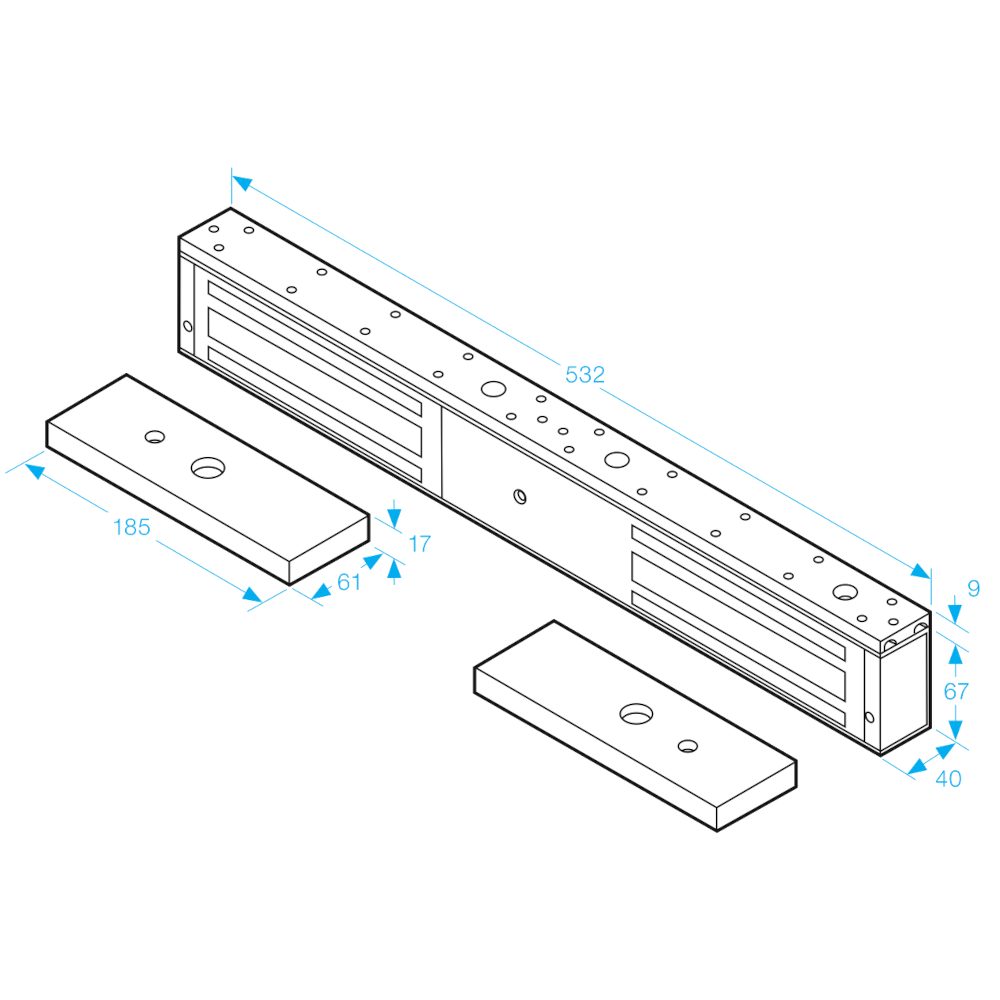

• Armature Dimensions: 185mm (L) x 61mm - 62mm (H) x 16mm - 17mm (D) (please choose below)
• Magnet Dimensions: 530mm - 532mm (L) x 40mm - 67mm (H) x 40mm (D) (please choose below)
• Current Consumption: 0.5A @ 12V / 0.25A @ 24V per door, or 420mA @ 12V / 210mA @ 24V per door (please choose below)
• Operating Temperature: -10°C to 55°C
• Operating Humidity: 0% to 95% non-condensing
• Weight: 9.3kg or 9.6kg (please choose below)
• Guarantee: 1 Year

Key Features

• Double Door Locking: Designed specifically for double door access control applications.
• Fail-Safe Security: Automatically unlocks in the event of a power failure to ensure safe emergency egress.
• Flexible Holding Force: Available in 272kg (600lbs) or 545kg (1200lbs) per door options to suit your security level.
• Monitoring Options: Choose between monitored and non-monitored versions for seamless integration with access control systems.
• Durable Construction: Built from high-quality aluminium with a professional satin anodised finish.
• Wide Temperature Range: Operates reliably in temperatures ranging from -10°C to 55°C.
