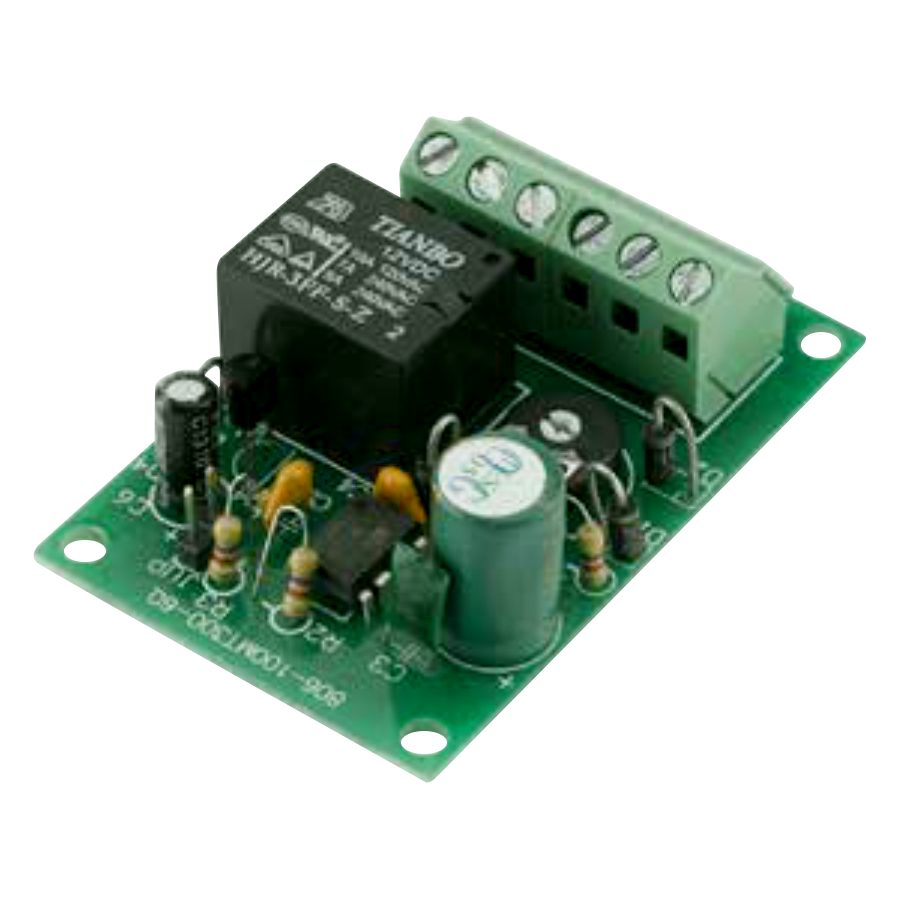

ICS 12V/24V AC/DC MT-Relay

The ICS MT-Relay is a versatile timer relay designed for access control systems, making it ideal for controlling lock open times for magnetic locks (maglocks), electric strikes, and other electronic security devices. It allows installers to easily manage and adjust the duration a door remains unlocked after a trigger event.

Featuring an adjustable timer relay of 0 to 30 seconds, this unit provides precise control over access times. It operates on a 12V DC input and features a negative (VE) trigger input, along with normally open (N/O) and normally closed (N/C) volt-free contacts. Housed in a compact enclosure, it is a reliable and easy-to-integrate solution for any professional security or access control installation.

Technical Specifications

• Brand: ICS
• Manufacturer Reference: MT-RELAY
• Input Voltage: 12V DC
• Relay Rating: 12V DC (5 Amp) or 25V AC (10 Amp)
• Time Delay: 0 to 30 seconds (adjustable)
• Trigger Input: VE Trigger (Negative)
• Reset Input: N/O contact
• Outputs: N/O & N/C Volt Free Contacts (NO/NC/COM)
• Dimensions: 20mm (H) x 60mm (W) x 20mm (D)
• Weight: 540g
• Finish: Chrome Plated
• Pack Quantity: 1

Key Features

• Adjustable Lock Open Times: Easily control the duration that magnetic locks or electric strikes remain unlocked, with an adjustable delay of 0 to 30 seconds.
• Versatile Triggering: Features a negative (VE) trigger input and a normally open (N/O) reset input for flexible system integration.
• Flexible Outputs: Equipped with normally open (N/O) and normally closed (N/C) volt-free contacts to suit various access control setups.
• Compact Design: Small footprint allows for easy installation inside existing access control units or enclosures.
• Robust Construction: High-quality boxed relay with a chrome-plated finish for durability.
