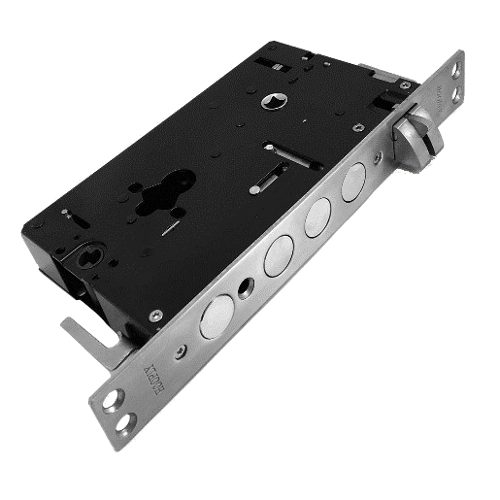

HOOPLY 33 Ultra Container Door Gearbox

The Hooply 33 Ultra Container Door Gearbox is a heavy-duty replacement centre case specifically designed for steel doors, shipping containers, and steel storage units. If your existing container lock is worn or damaged, this unit provides a highly cost-effective solution, allowing you to replace only the central gearbox rather than the entire multipoint locking system.

Featuring a high-security four-deadbolt configuration and a key-operated latch, this gearbox offers reliable and durable performance. The latch is fully reversible, making it suitable for both left-hand and right-hand opening doors. Adjusting the handing is straightforward: simply remove the screw at the top of the case, toggle the slide switch, reverse the latch, slide the toggle back, and secure the screw.

Operation

This unit operates under Locking Method C. Two full turns of the key are required to lock, and two full turns to unlock. An additional turn of the key will fully withdraw the latch.

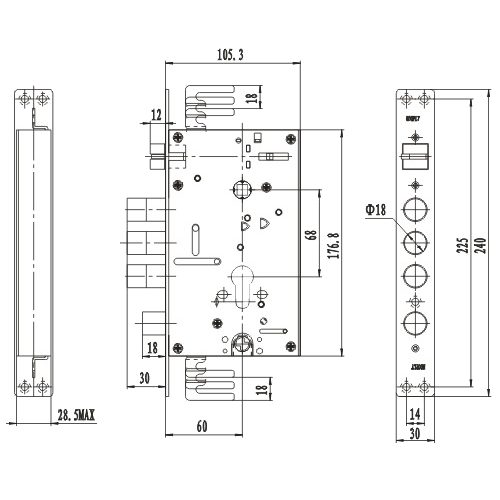

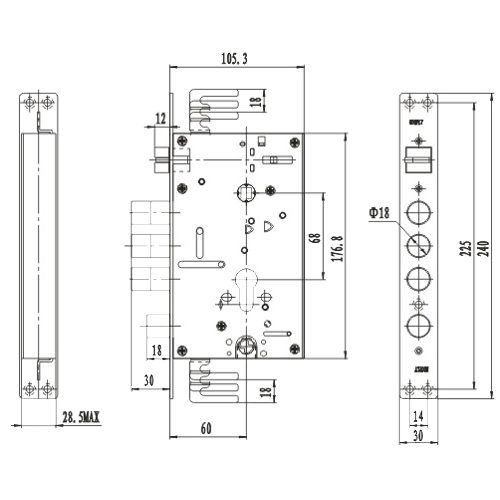

Technical Specifications

• Brand: Hooply
• Manufacturer Reference: HL33
• Centres: 68mm
• Faceplate Width: 30mm
• Faceplate Height: 240mm
• Screw Centres: 225mm
• Case Height: 176.8mm
• Case Width: 105.3mm
• Bolt Diameter: 18mm
• Bolt Throw: 30mm
• Finish: Stainless Steel
• Handing: Reversible
• Weight: 2.5kg
• Packaging: Boxed

Key Features

• Very heavy-duty construction ideal for steel doors, shipping containers, and storage units
• Cost-effective replacement for worn or damaged Hooply centre cases without replacing the entire multipoint lock
• Reversible latch design allows for easy handing adjustment on-site
• High-security four-deadbolt configuration with key-operated latch
• Locking Method C operation: Two full key turns to lock/unlock, with an extra turn to withdraw the latch
