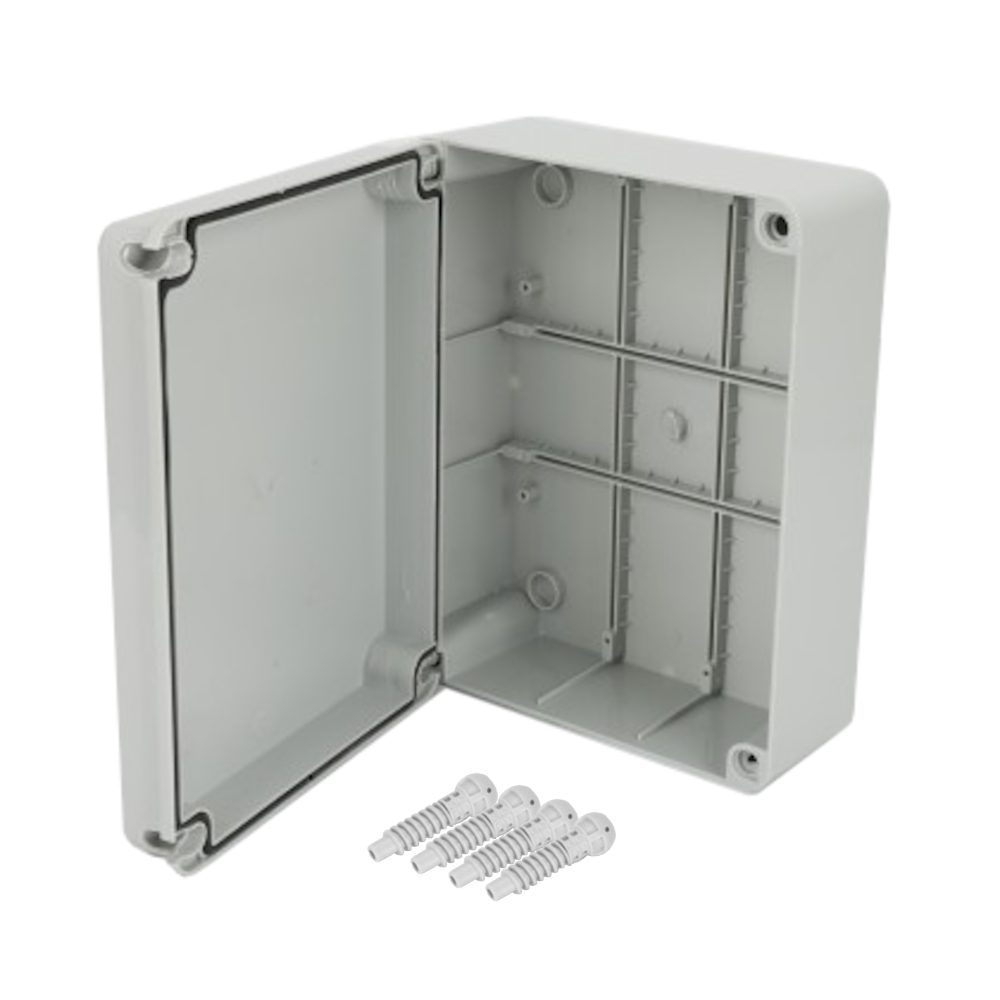

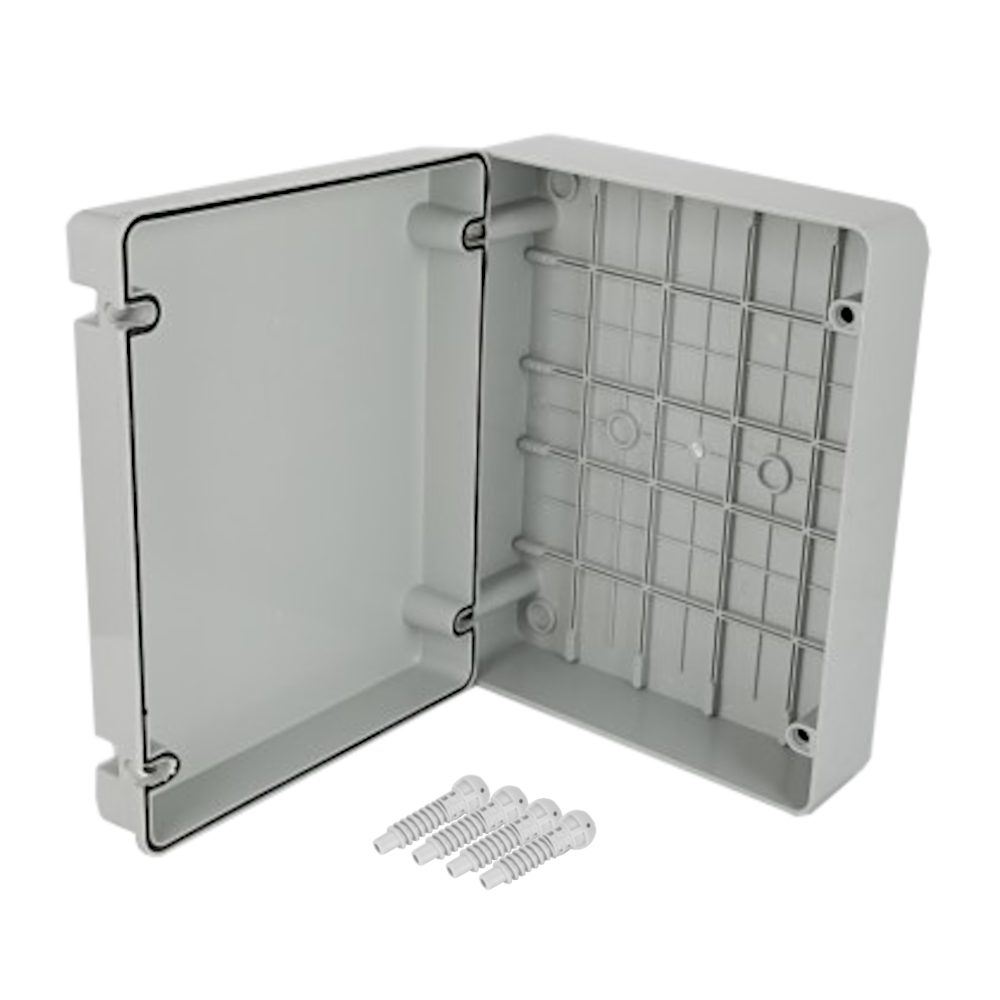

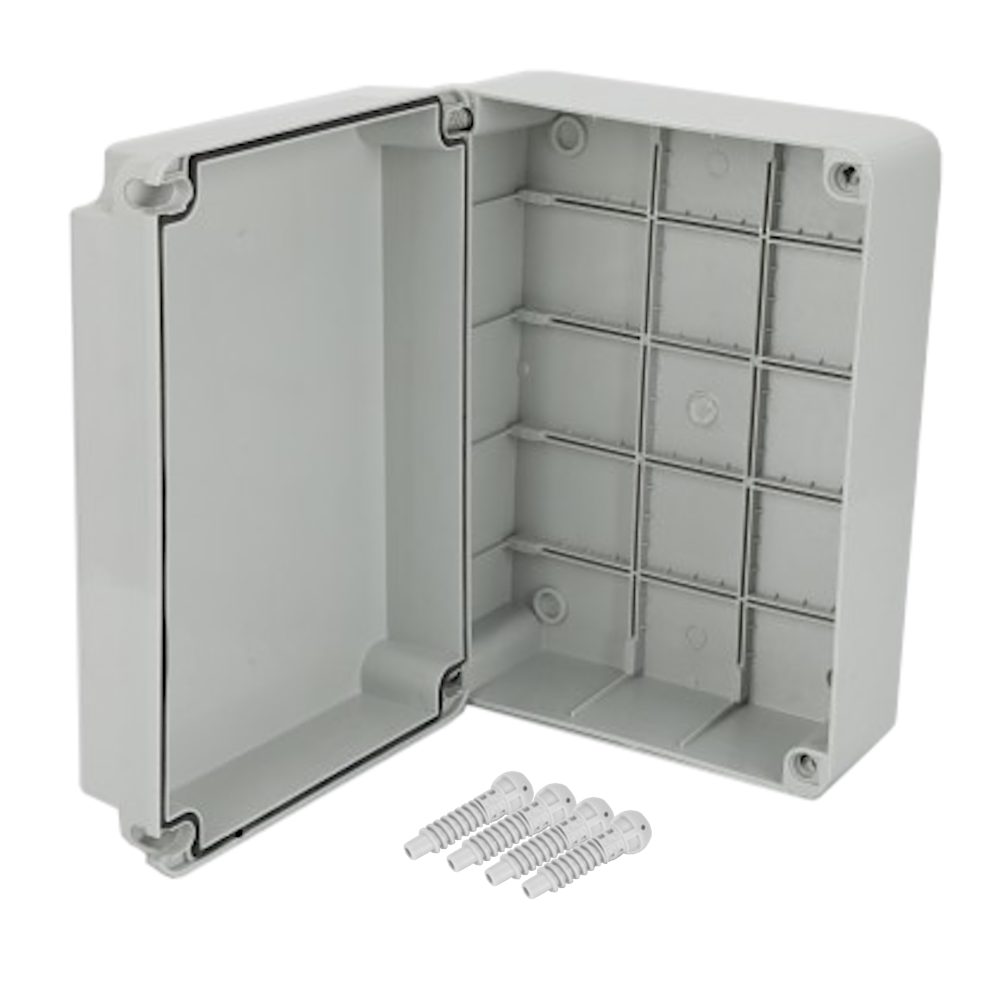

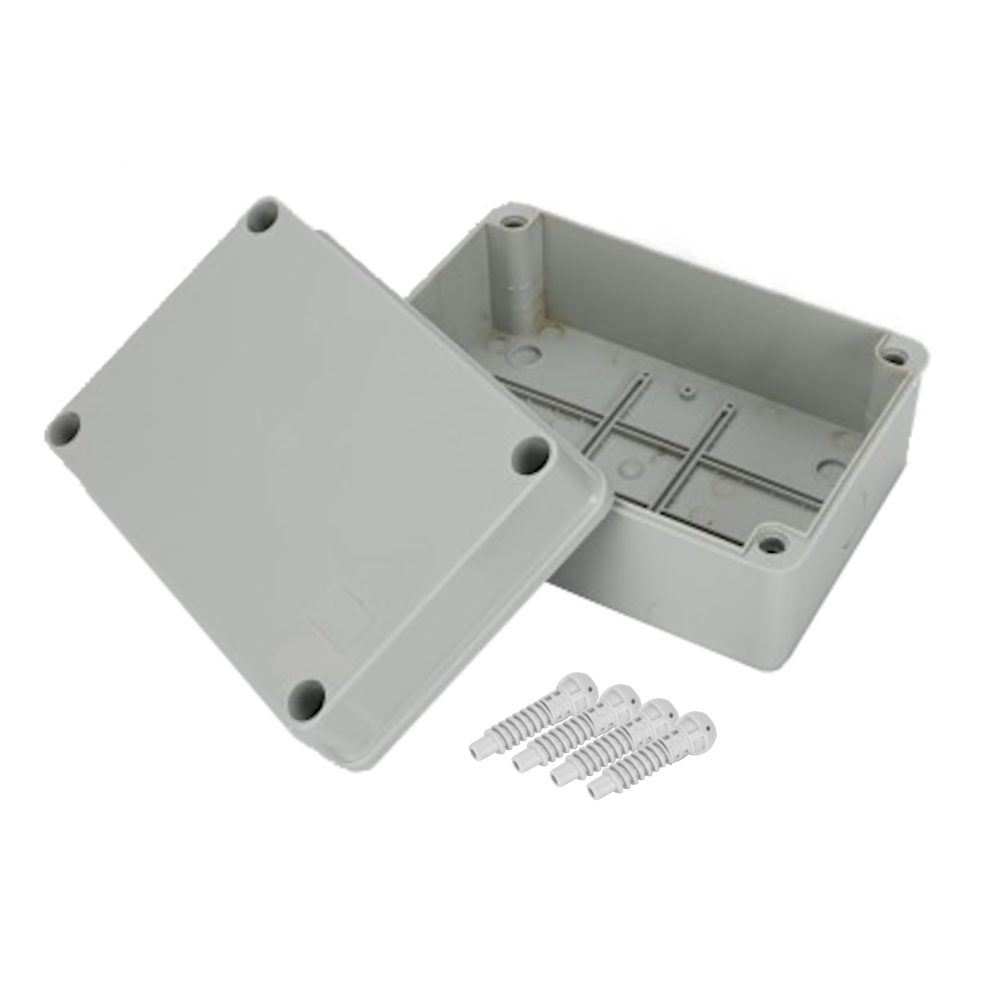

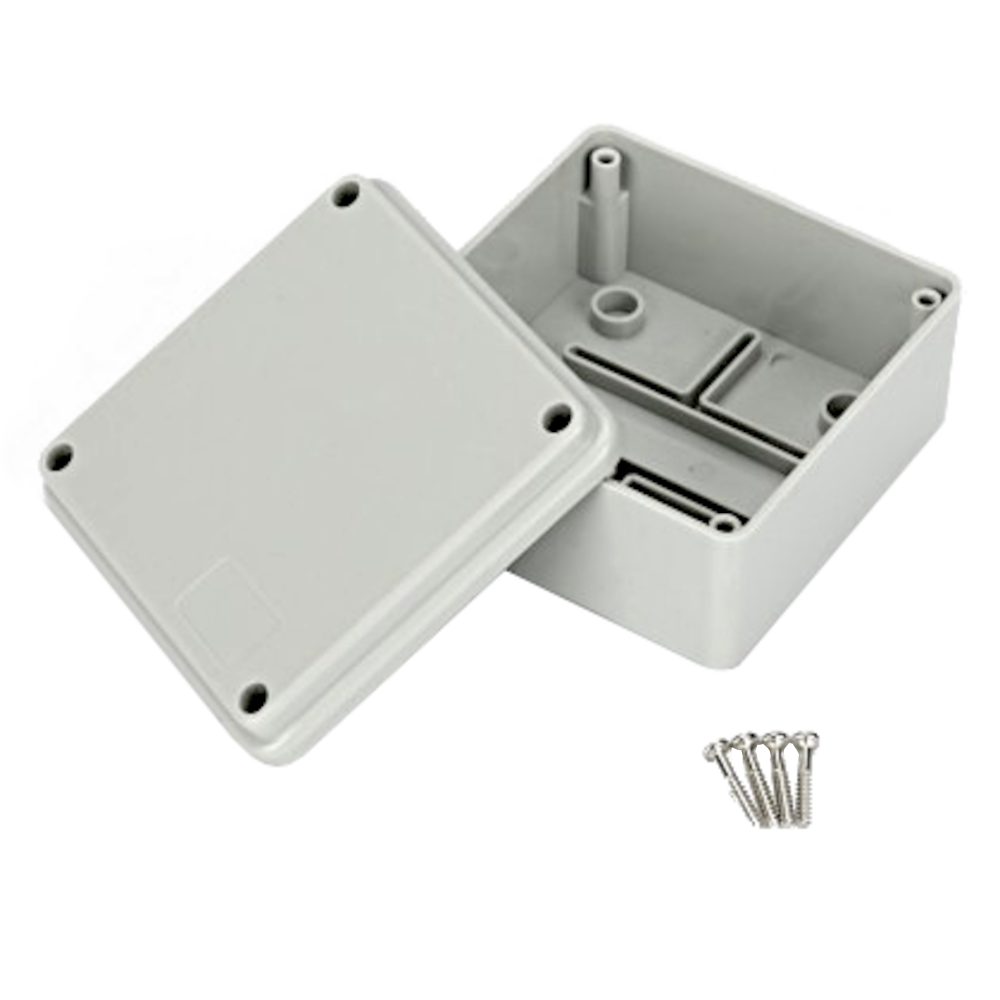

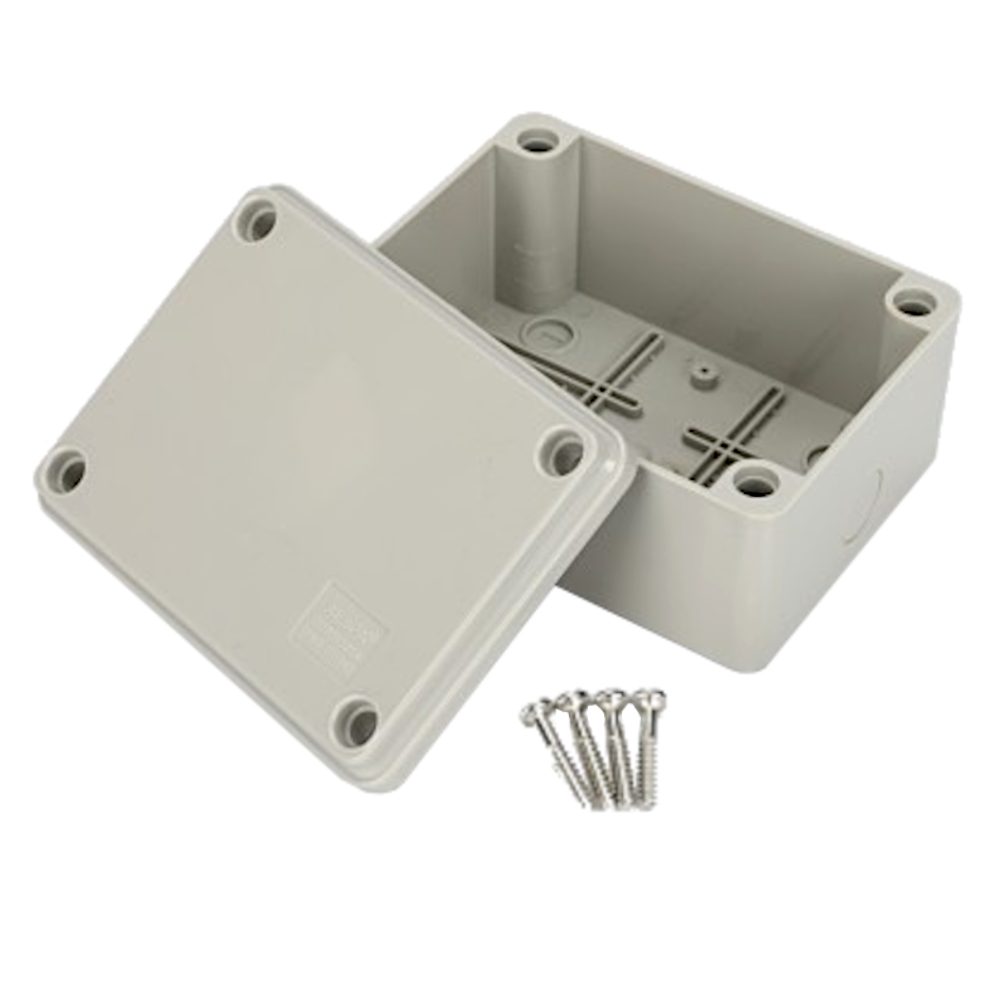

HAYDON MARKETING Junction Box IP65 Rated

The Haydon Marketing IP65 Rated Junction Box is a versatile, high-quality enclosure designed for ordinary electrical and security junctions. Constructed from halogen-free ABS plastic, these durable grey junction boxes are suitable for a wide range of outdoor and indoor applications.

These boxes are available in a variety of sizes to suit your installation requirements, with heights ranging from 100mm to 380mm, widths from 10cm to 30cm, and depths from 50mm to 120mm. Please select your required dimensions, weight, and manufacturer reference from the options below.

Each junction box is supplied complete with four screws for secure fastening and features an IP65 rating, ensuring excellent protection against dust and water ingress. With an insulation class II rating (according to IEC 61140) and a wide operating temperature range of -25°C to 60°C, they provide reliable performance in demanding environments.

Technical Specifications

• Brand: Haydon Marketing
• Material: Halogen-free ABS plastic
• Finish: Grey
• IP Rating: IP65
• Insulation Class: Class II (according to IEC 61140)
• Operating Temperature: -25°C to 60°C
• Height: 100mm to 380mm (please select from the options below)
• Width: 10cm to 30cm (please select from the options below)
• Depth: 50mm to 120mm (please select from the options below)
• Weight: 140g to 1.7Kg (please select from the options below)
• Manufacturer Reference: HAY-JB100 to HAY-JB380 (please select from the options below)

Key Features

• Weatherproof Protection: IP65 rated to safeguard connections from dust and water ingress
• Durable Construction: Manufactured from robust, halogen-free ABS plastic
• Ready to Install: Supplied complete with four screws for secure lid fastening
• Versatile Use: Ideal for ordinary junctions in domestic, commercial, and security installations
• Safe Design: Class II insulation rating according to IEC 61140 standards
• Temperature Resistant: Operates reliably in temperatures ranging from -25°C to 60°C
