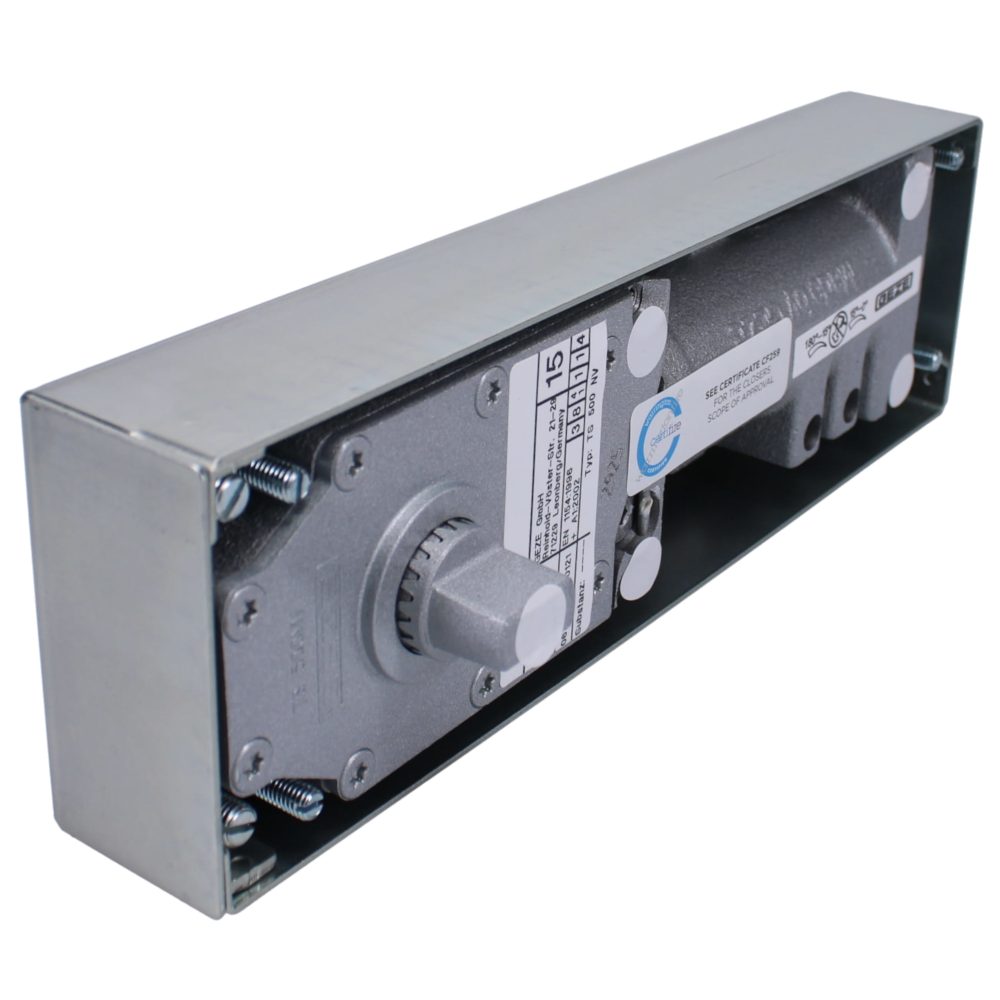

GEZE TS500NV Size 1-4 Floor Spring

The GEZE TS500NV is a compact and highly versatile floor spring designed for single-action (swing) and double-action doors. It is suitable for doors with a maximum leaf width of 1100mm and a weight capacity of up to 150kg. With its exceptionally low body depth of just 42mm, this floor-mounted door closer is an excellent choice for both new builds and retrofitting projects where floor depth is limited.

This unit features an adjustable closing force of sizes 1 to 4 in accordance with BS EN 1154, which can be easily adjusted from above. It also offers fully adjustable closing speed and latching action (end stop) to ensure smooth and controlled closing. A fixed opening buffer (backcheck) is integrated to prevent damage from doors being forcefully thrown open. The TS500NV is non-handed, meaning it can be used on both left and right-handed doors without any conversion.

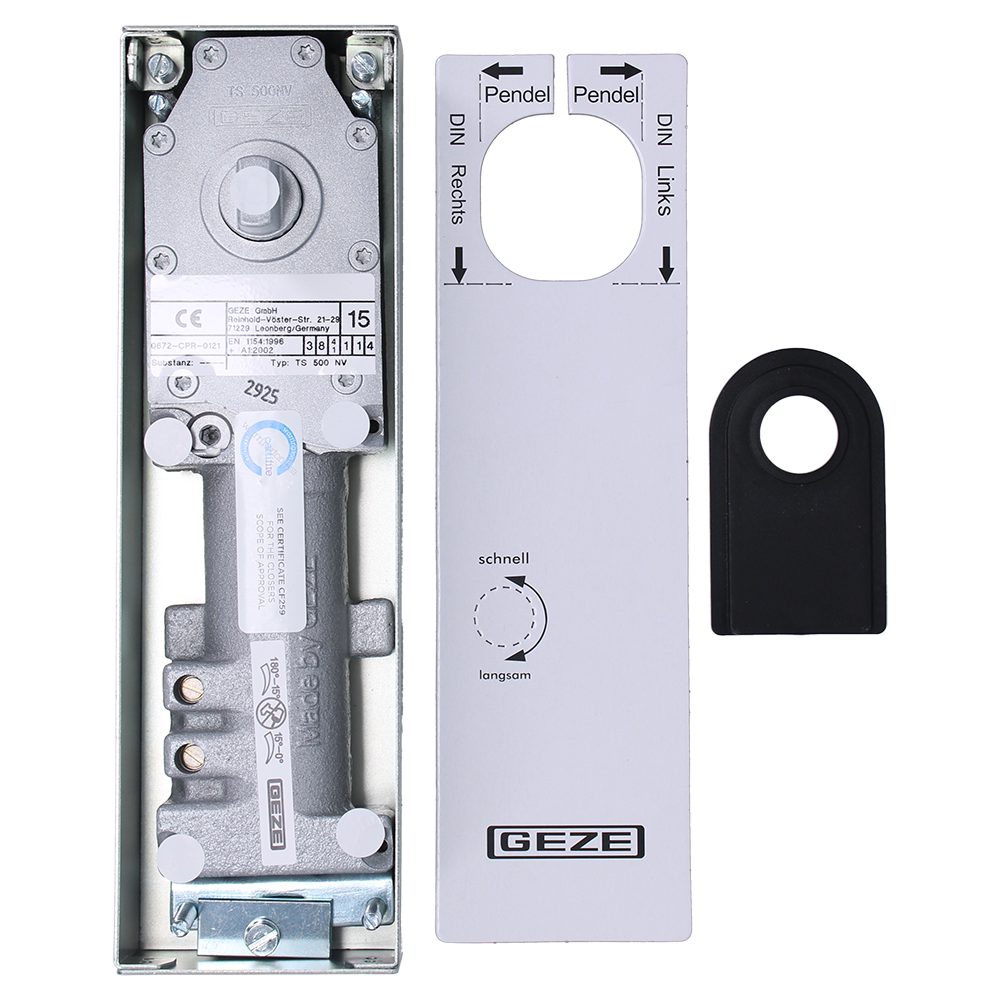

Please note: This is the non-hold-open version of the closer body only. Cover plates and accessories are sold separately.

Technical Specifications

• Brand: Geze
• Model: TS500NV
• Standards: BS EN 1154
• Closing Force: EN 1 - 4 (adjustable)
• Maximum Door Width: 1100mm
• Maximum Door Weight: 150kg

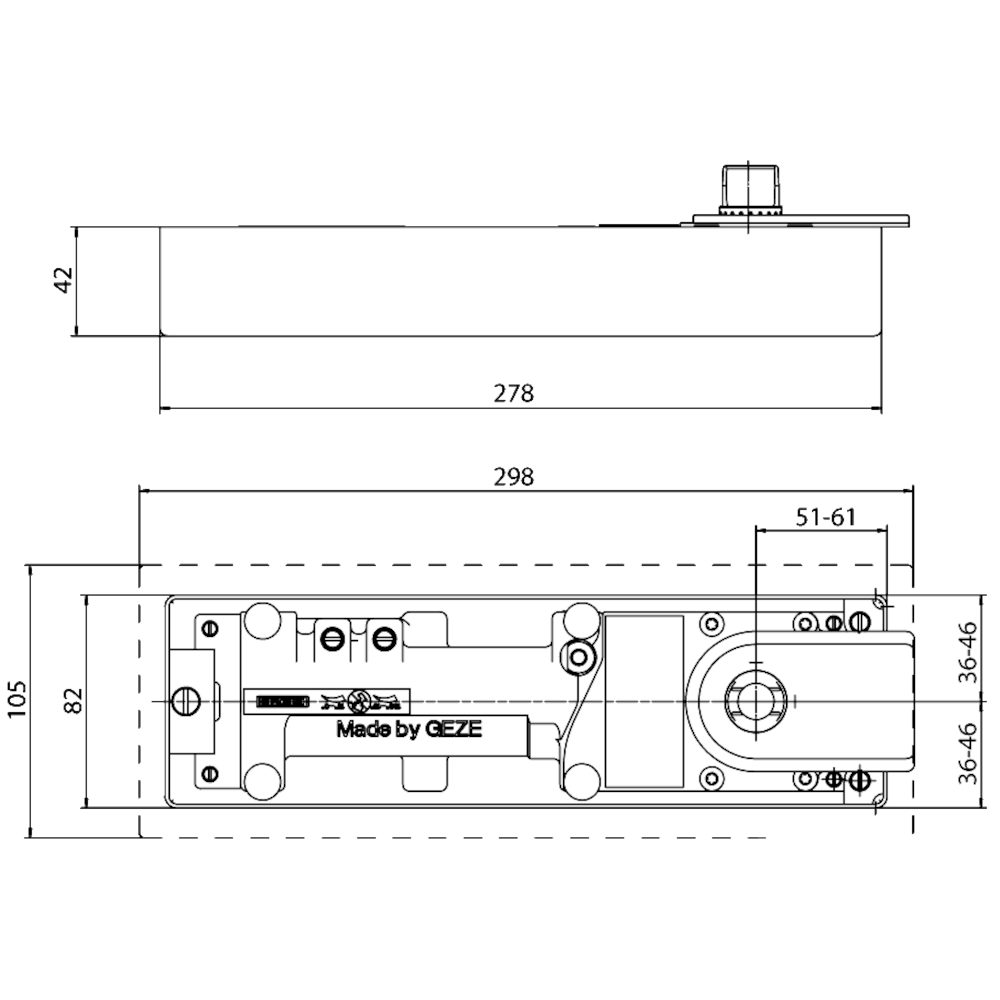

• Body Length: 278mm
• Body Width: 82mm
• Body Depth: 42mm
• Handing: Non-handed (suitable for left or right-handed doors)
• Hold Open: No
• Finish: Silver

Key Features

• Versatile Application: Suitable for both single-action swing doors and double-action doors.
• Low Profile Design: Compact 42mm body depth makes it ideal for installations with limited floor depth.
• Fully Adjustable: Closing speed, latching action, and closing force (sizes 1-4) can all be easily adjusted from above.
• Integrated Backcheck: Fixed opening buffer prevents damage by slowing down doors that are thrown open forcefully.
• Non-Handed: Can be installed on left or right-handed doors without any conversion.
