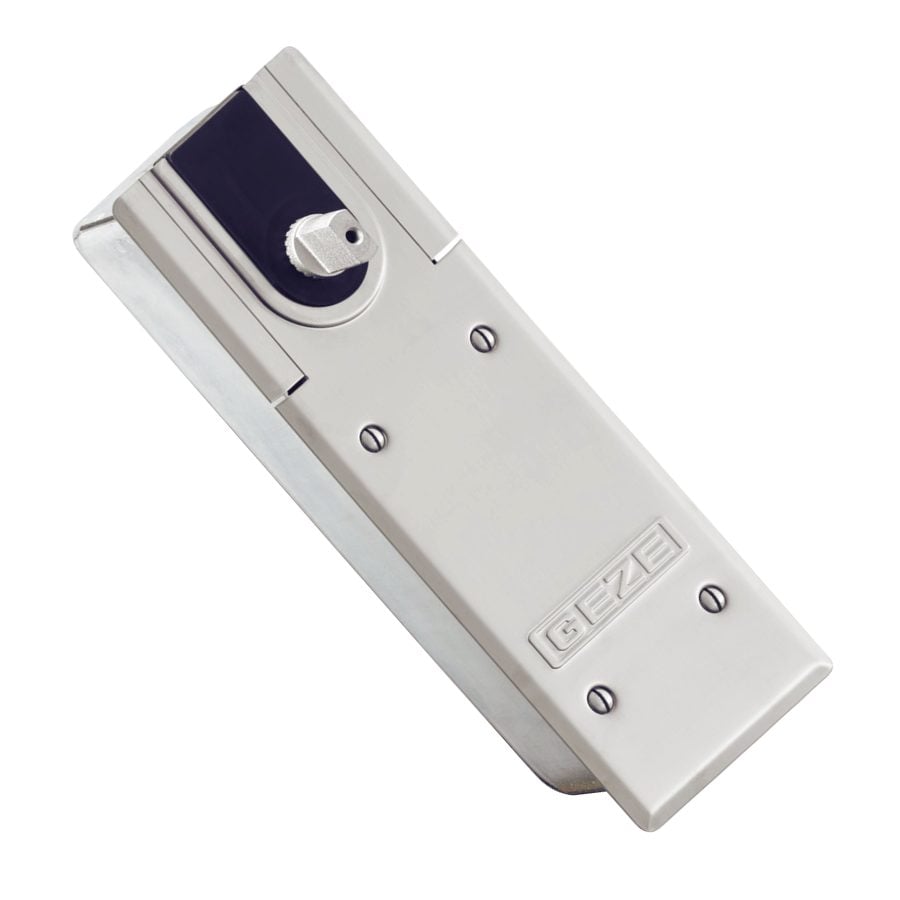

GEZE TS500N EN3 Size 3 Floor Spring

The GEZE TS500N EN3 is a compact and reliable floor spring designed for smaller single-action (swing) and double-action doors. Engineered for doors with a maximum leaf width of 950mm and a weight of up to 100kg, this floor spring provides a fixed EN 3 closing force, making it an ideal choice for various commercial and domestic applications.

With an exceptionally low profile height of just 42mm, the TS500N is highly versatile and easy to install, whether for new builds or retrofitting projects. It features a fixed opening buffer (backcheck) to prevent damage from doors being thrown open forcefully, alongside fully adjustable closing speed and latching action. For ultimate convenience during installation and maintenance, all adjustments can be made quickly and easily from above.

This non-handed unit is suitable for both left and right-handed doors. Please note that this product is supplied as the floor spring mechanism complete with a flat-tapered spindle, cement box, and installation instructions; the cover plate is not included.

Technical Specifications

• Brand: GEZE
• Power Size: EN 3
• Standards: BS EN 1154
• Maximum Door Width: 950mm
• Maximum Door Weight: 100kg

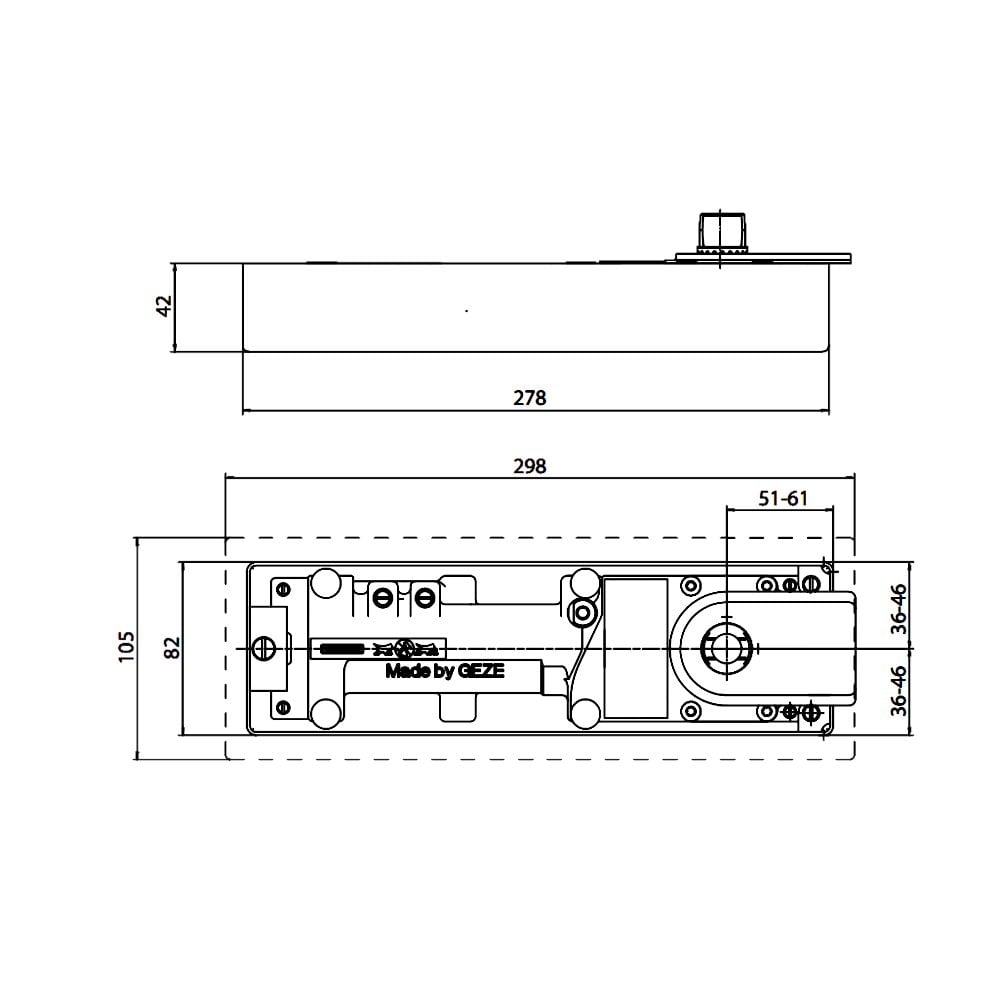

• Body Depth: 42mm
• Body Length: 278mm
• Body Width: 82mm
• Handing: Non-handed
• Hold Open: No

Key Features

• Low Profile Design: With an overall height of just 42mm, it is ideal for both new installations and retrofitting.
• Versatile Application: Suitable for use with both single-action (swing) and double-action doors.
• Easy Adjustment: Closing speed and latching action can be easily adjusted from above once installed.
• Integrated Backcheck: Fixed opening buffer prevents the door from being thrown open forcefully, protecting surrounding walls and the door itself.
• Complete Mechanism: Supplied with a flat-tapered spindle, galvanised cement box, and installation instructions (cover plate sold separately).
