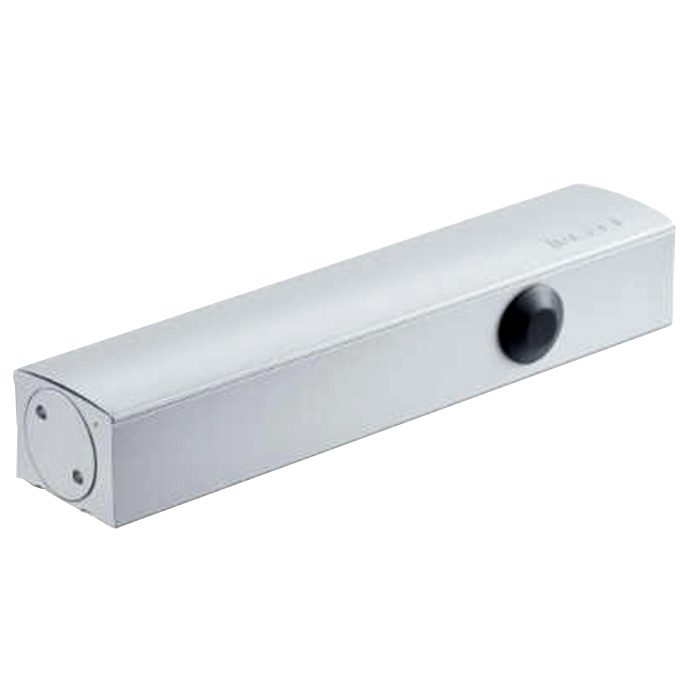

GEZE TS5000 Size 2-6 Overhead Door Closer Body

The GEZE TS5000 Size 2-6 Overhead Door Closer Body is a high-performance, heavy-duty door closer designed for single-action internal doors. Suitable for doors up to 1,400mm wide and weighing up to 120kg, this robust closer body is ideal for high-traffic commercial and public environments, and is fully certified for use on fire and smoke protection doors with a 120-minute fire rating.

A standout feature of the TS5000 is its integrated optical closing force indicator, which allows the power size (EN 2-6) to be easily checked and adjusted. For maximum convenience and ease of installation, all key adjustments - including closing speed, latching action, and backcheck - can be made directly from the front of the closer body. Fully reversible, it can be installed on both left and right-handed doors without any conversion.

Technical Specifications

• Brand: GEZE
• Model Reference: TS5000
• Power Size: EN 2 to 6 (adjustable)
• Max Door Width: 1400mm
• Max Door Weight: 120kg
• Standards: BS EN 1154
• Fire Rating: 120 minutes
• Handing: Reversible (suitable for left or right-handed doors)
• Finish: Silver
• Width: 448.5mm
• Body Height: 60mm
• Body Depth: 47mm
• Weight: 2.375kg

Key Features

• Front-Adjustable Controls: Closing speed, latching action, and backcheck can all be easily adjusted from the front of the closer body.
• Optical Force Indicator: Features a visual power size display to easily check and set the closing force.
• Adjustable Backcheck: Integrated opening buffer prevents damage to the door and adjacent walls if the door is thrown open forcefully.
• Versatile Installation: Fully reversible design suitable for both left and right-mounted doors.
• Fire Door Approved: Certified to BS EN 1154 and suitable for use on fire and smoke protection doors.
