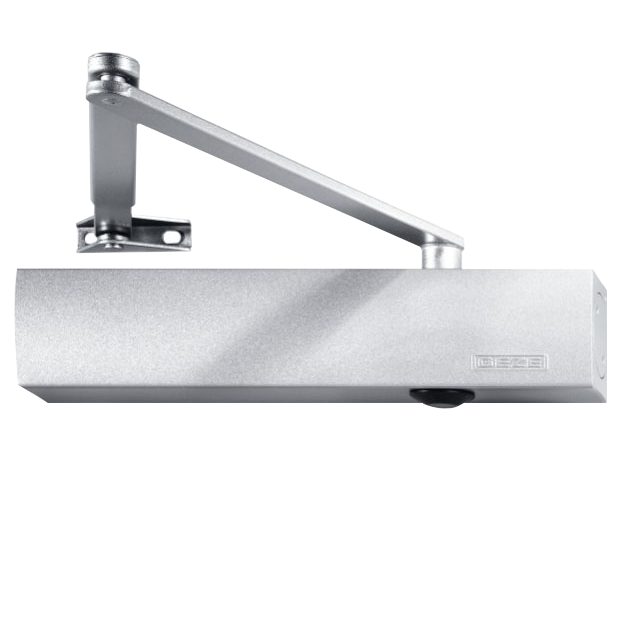

GEZE TS4000 Overhead Door Closer Universal Wetroom Size 1 - 6

The GEZE TS4000 Wetroom Overhead Door Closer is a heavy-duty, surface-mounted rack and pinion door closer designed specifically for damp, humid, or aggressive environments. While offering the same high-performance functionality as the standard TS4000 model, this specialized wetroom version features enhanced corrosion resistance. It is equipped with a nickel-plated spindle, bearing shells, and stainless steel screw accessories, ensuring long-lasting durability in challenging conditions.

This universal, non-handed closer is suitable for both left and right-handed single-action doors up to 1,400mm in width and with a maximum weight of 100kg. It offers exceptional adjustability, allowing you to easily set the closing force (EN sizes 1 to 6), latching action, and hydraulic backcheck. For ultimate convenience, all adjustments can be made directly from the front of the device, which also features a visual closing force display.

Supplied complete with a flat form arm, fixing template, brackets, and screws, it provides a reliable and robust door-closing solution for leisure centres, swimming pools, and other wetroom applications.

Technical Specifications

• Brand: GEZE
• Power Size: EN 1 to 6 (Adjustable)
• Max Door Width: 1400mm
• Max Door Weight: 100kg
• Handing: Reversible (suitable for left and right-handed doors)
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Backcheck: Yes
• Hold Open: Yes
• Standards: BS EN 1154
• Finish: Silver

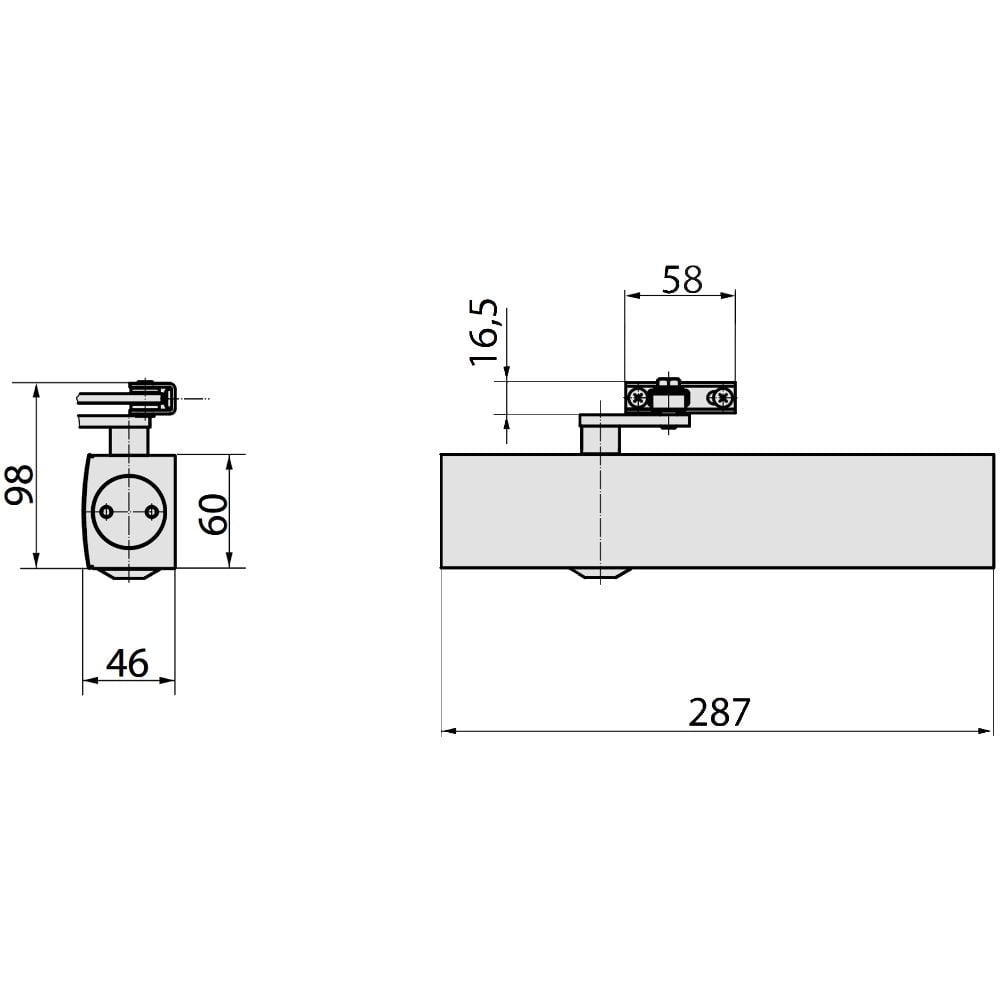

• Dimensions: 287mm (W) x 60mm (H) x 46mm (D)
• Weight: 3.29kg

Key Features

• Corrosion Resistant: Features a nickel-plated spindle, bearing shells, and stainless steel screws, making it ideal for wetrooms and damp environments.
• Fully Adjustable: Easily adjust the closing speed, latch action, and hydraulic backcheck to suit your specific door requirements.
• Front-Facing Controls: All adjustments are conveniently located on the front of the device for simple maintenance and setup.
• Universal Application: Non-handed design suitable for both left and right-handed single-action doors.
• Complete Kit: Supplied with instructions, a direct fitting template, brackets, and fixing screws for straightforward installation.
