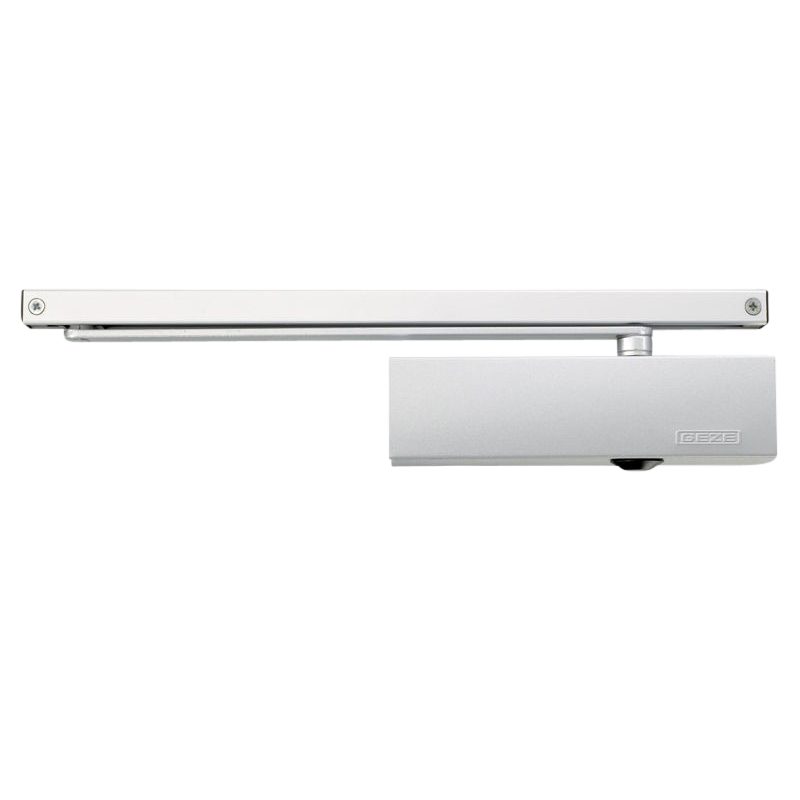

GEZE TS3000BC Size 2-4 Slim Overhead Cam Door Closer

The GEZE TS3000BC (TS3000B) is a premium surface-mounted overhead door closer featuring advanced cam-action technology. Designed for single-leaf internal doors up to 1,100mm wide and weighing up to 130kg, this slimline closer is ideal for modern commercial, residential, and public environments.

Unlike traditional rack-and-pinion systems, the cam-action mechanism significantly reduces the resistance felt when opening the door. This ensures effortless operation for children, elderly users, and those with limited mobility, without compromising on secure and reliable closing.

The TS3000BC offers complete hydraulic control, allowing installers to easily adjust the closing speed, latching action, and backcheck. The integrated backcheck cushions the door if it is thrown open forcefully, preventing damage to surrounding walls, frames, and hinges. Fully reversible for left- or right-handed doors, it is suitable for use on fire and smoke doors and is tested to BS EN 1154 standards.

The closer is supplied complete with a matching slimline guide rail, screw pack, and clear installation instructions for a neat, professional finish.

Technical Specifications

• Brand: Geze
• Manufacturer Reference: TS3000B
• Strength Size: EN 2 to 4 (adjustable)
• Maximum Door Width: 1100mm
• Body Dimensions: 260mm (Width) x 50mm (Height) x 43mm (Depth)
• Overall Width (with rail): 448.5mm
• Overall Depth: 40mm
• Weight: 1kg
• Handing: Reversible
• Finish: Silver
• Standards: BS EN 1154
• Hold Open: Yes
• Pack Quantity: 1

Key Features

• Smooth Cam-Action Performance: Reduces opening resistance for easier door operation, making it ideal for children, elderly users, and those with reduced mobility.
• Fully Adjustable Controls: Features adjustable closing speed, latch action, and backcheck to customize door closing behavior.
• Integrated Backcheck: Cushions forcefully opened doors to protect adjacent walls, frames, and hinges from damage.
• Fire Door Approved: Suitable for use on single-leaf internal fire and smoke doors.
• Slimline Aesthetic: Compact body and matching guide rail provide a neat, modern, and unobtrusive appearance.
• Complete Kit: Supplied complete with guide rail, screw pack, and installation instructions.
