GEZE TS3000 Size 1-4 Overhead Cam Door Closer

The GEZE TS3000 is a high-quality overhead cam door closer supplied as a body-only unit, designed for single-leaf internal doors up to 1,100mm in width. It is fully reversible, making it suitable for both left and right-hand mounted doors, and is appropriate for use on fire and smoke protection doors.

This versatile closer features an adjustable closing force of EN size 1 to 4, alongside fully adjustable latch action and closing speed to ensure smooth and controlled operation. Depending on your requirements, this door closer is available with or without an integrated backcheck function, which cushions forcefully opened doors.

We offer multiple options for this product, with variations in body dimensions (widths from 226mm to 260mm, heights from 50mm to 60mm, and depths from 40mm to 47mm), weight, and standards compliance (including BS EN 1154 and BS EN 1634-1). Please select your preferred variant from the options below.

Technical Specifications

• Brand: Geze
• Manufacturer Reference: TS3000V or TS3000BC (please choose from the options below)
• Closing Force: EN Size 1 to 4
• Max Door Width: 1100mm
• Handing: Reversible (left or right mounted doors)
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Backcheck: Available with or without backcheck (please choose from the options below)

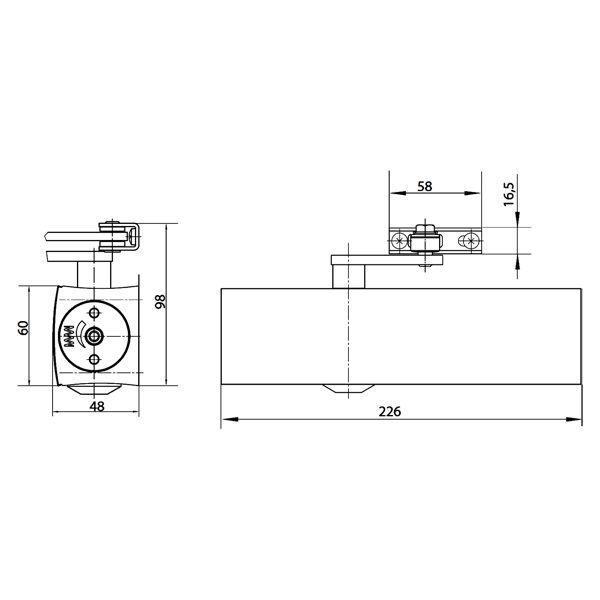

• Body Width: 226mm to 260mm (please choose from the options below)
• Body Height: 50mm to 60mm (please choose from the options below)
• Body Depth: 40mm to 47mm (please choose from the options below)
• Depth: 40mm to 48mm (please choose from the options below)
• Weight: 1.552kg to 1.605kg (please choose from the options below)
• Standards: BS EN 1154, with some models also certified to BS EN 1634-1 (please choose from the options below)
• Barcode: Multiple options available (please choose from the options below)
• Finish: Silver
• Hold Open: No

Key Features

• Body Only Supply: Supplied as a body-only unit, allowing you to pair it with your preferred guide rail and arm.
• Adjustable Closing Force: Variable closing force from EN size 1 to 4 to suit different door sizes.
• Fully Adjustable Control: Features fully adjustable latch action and closing speed for tailored operation.
• Fire Door Suitable: Approved for use on single-leaf fire and smoke protection doors.
• Reversible Handing: Can be installed on both left and right-hand mounted doors without conversion.
• Optional Backcheck: Available with an integrated backcheck function to prevent the door from being thrown open too forcefully (please choose from the options below).
