GATEMASTER Weld-In Double Throw Euro Deadlock

The Gatemaster Weld-In Double Throw Euro Deadlock is a robust and durable locking solution designed to be welded directly into metal gate fabrications. This high-quality deadlock is ideal for a wide range of square-profile gate styles, providing reliable security with a double-throw deadbolt that extends a full 24mm.

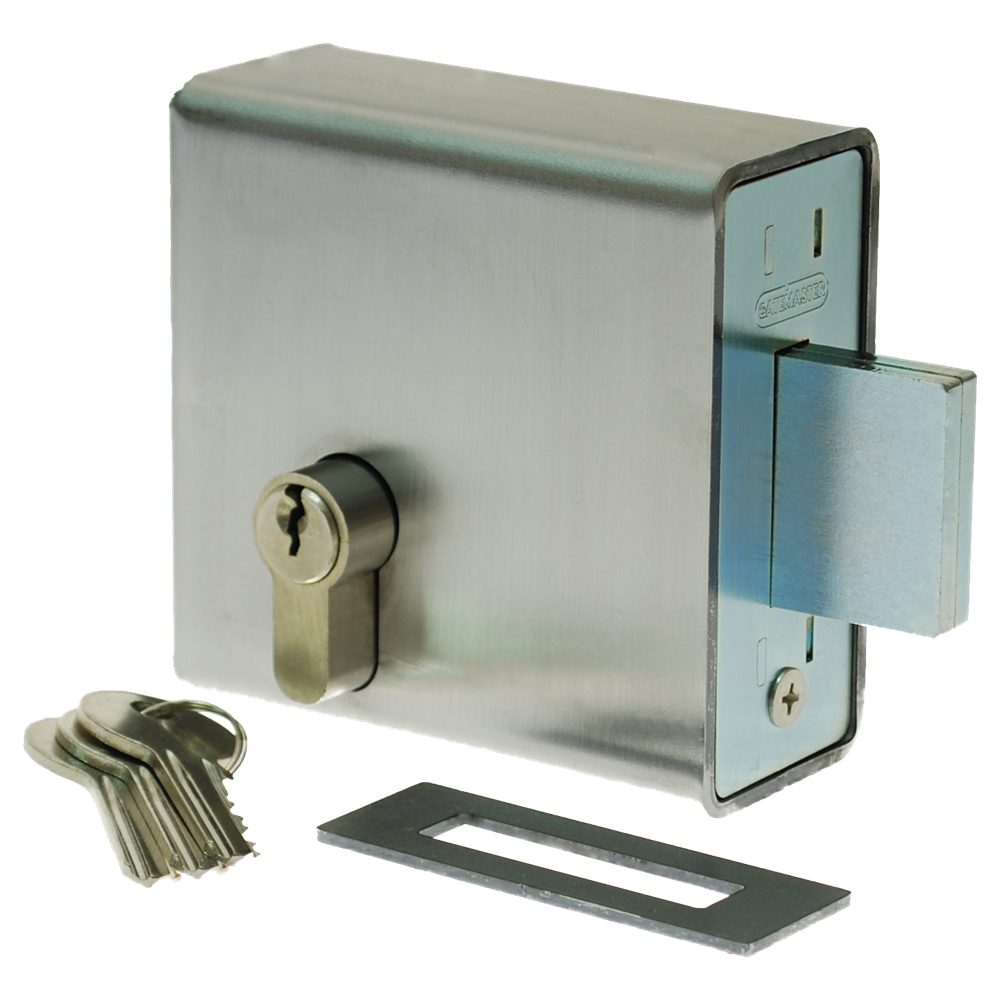

Operating the lock is simple and secure: two full turns of the key from either side will fully shoot or retract the deadbolt. The lockcase is constructed from heavy-duty 2.5mm mild steel, making it perfect for welding and subsequent painting or galvanising. It comes complete with a double-sided 5-pin euro cylinder, three keys, and a flat bolt keep.

This deadlock is available in multiple case widths (40mm or 50mm) and weights (1.1kg or 1.17kg) to suit different gate frame profiles. Please select your preferred case width, manufacturer reference (GD40 or GD50), and barcode from the options below.

Technical Specifications

• Brand: Gatemaster
• Backset: 60mm
• Bolt Throw: 24mm
• Case Depth: 95mm
• Case Height: 90mm
• Case Width: 40mm or 50mm (please select from the options below)
• Manufacturer Reference: GD40 or GD50 (please select from the options below)
• Weight: 1.1kg or 1.17kg (please select from the options below)
• Material: Mild steel (2.5mm lockcase)
• Mechanism: Euro Cylinder (included)
• Keys Supplied: 3

Key Features

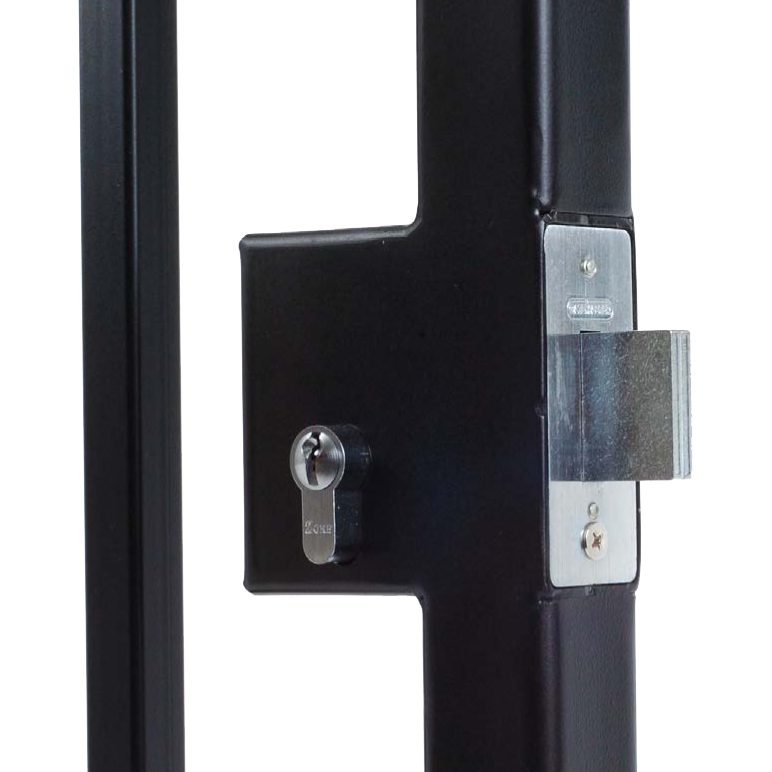

• Weld-In Design: Specifically engineered to be welded directly into metal gate fabrications.
• Double Throw Bolt: Deadbolt moves 24mm with two turns of the key for enhanced security.
• Double-Sided Operation: Can be operated by key from both sides of the gate.
• Robust Construction: Made with a durable 2.5mm mild steel lockcase.
• Complete Package: Supplied with a double-sided 5-pin euro cylinder, three keys, and a flat bolt keep.
• Versatile Sizing: Available in multiple case widths to suit different box section sizes (please select below).
