GATEMASTER Superlock Quick Exit Push Pad Key Access

The Gatemaster Superlock Quick Exit Push Pad Key Access lock is designed to provide fast, convenient egress and secure key entry for metal gates. Featuring a quick-exit push pad on the inside and key access on the outside, it is ideal for applications requiring quick evacuation or easy exit.

Constructed with marine-grade weather resistance, this lock has been salt spray tested for 1,000 hours to ensure reliable performance in harsh outdoor environments. It features a slim 70mm case width, making it suitable for a wide variety of gate styles. The adjustable latchbolt springs 22mm into the gate post for excellent security.

This lock is available in multiple configurations to suit different gate frame thicknesses and handing requirements. Please choose from the available options below to select either a Left Hand or Right Hand orientation, and a size to suit 10mm to 30mm or 40mm to 60mm gate frames. Each lock comes complete with three keys, a bolt guide plate, a gate post strike plate, and a 1-year guarantee.

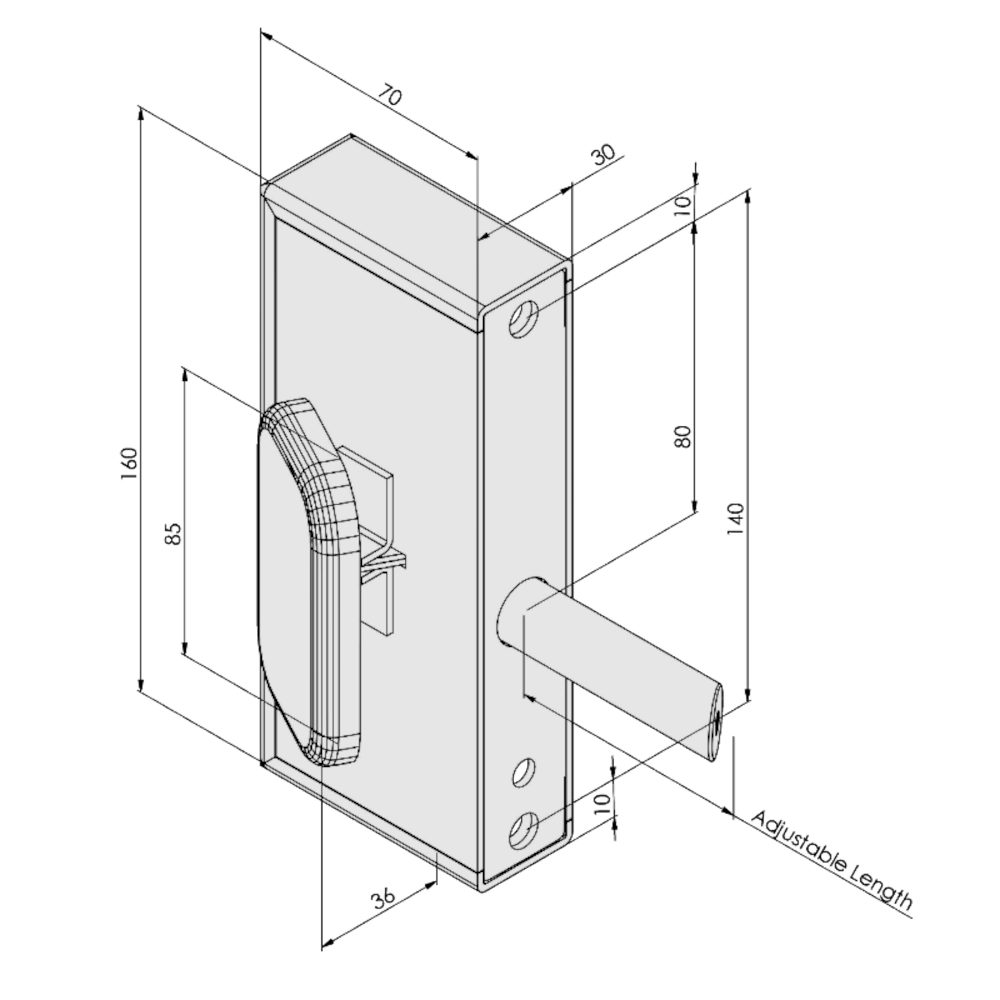

Technical Specifications

• Brand: Gatemaster
• Finish: Black
• Case Width: 70mm
• Case Depth: 30mm
• Screw Centres: 140mm
• Bolt Throw: 22mm (adjustable latchbolt)
• Gate Frame Thickness: Options to suit 10mm to 30mm or 40mm to 60mm (please select below)

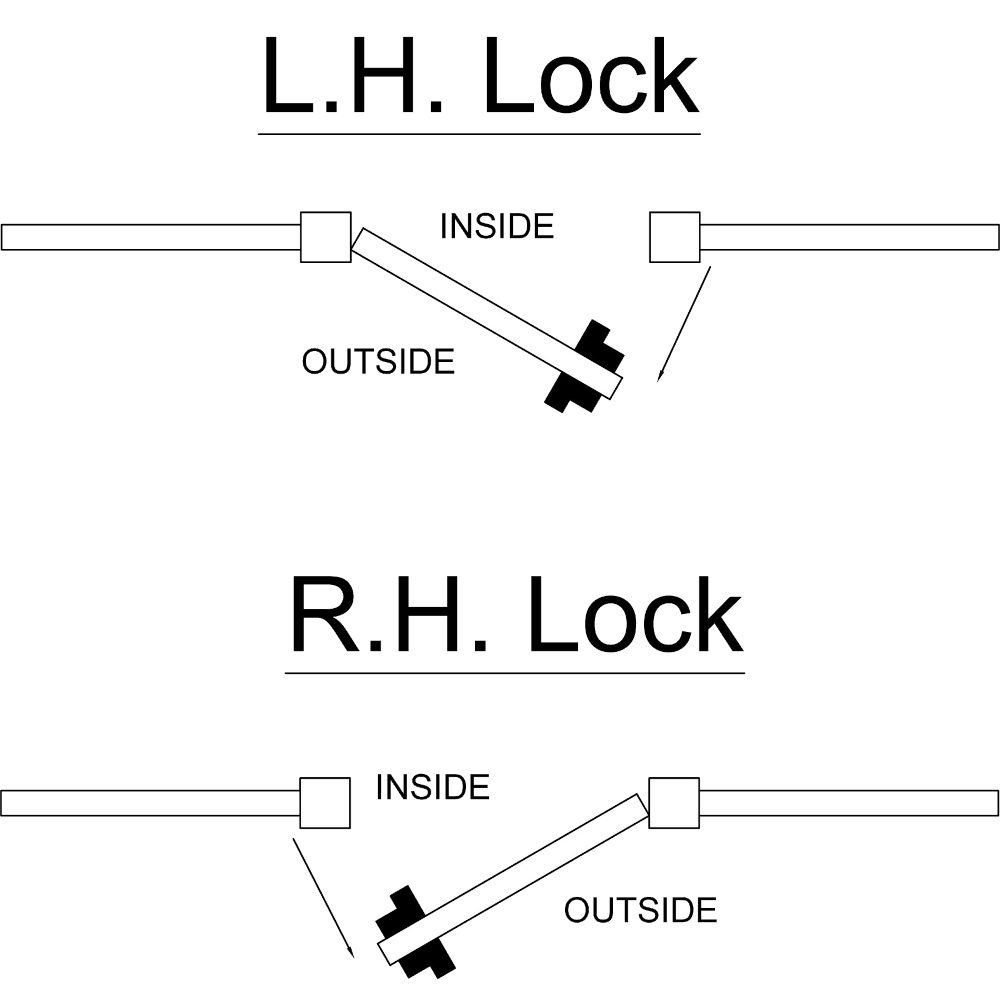

• Handing: Left Hand or Right Hand options available (please select below)
• Operation Outside: Key Access
• Operation Inside: Push Pad
• Keys Supplied: 3
• Weight: 2kg
• Guarantee: 1 Year

Key Features

• Quick exit push pad on the inside for fast and convenient egress
• Secure key access from the outside for controlled entry
• Marine-grade weather resistance, salt spray tested for 1,000 hours
• Adjustable latchbolt springs 22mm into the gate post for enhanced security
• Slim 70mm case design to suit a wide variety of gate styles
• Supplied complete with a bolt guide plate, gate post strike plate, and 3 keys
