GATEMASTER Superlock Digital Single Sided

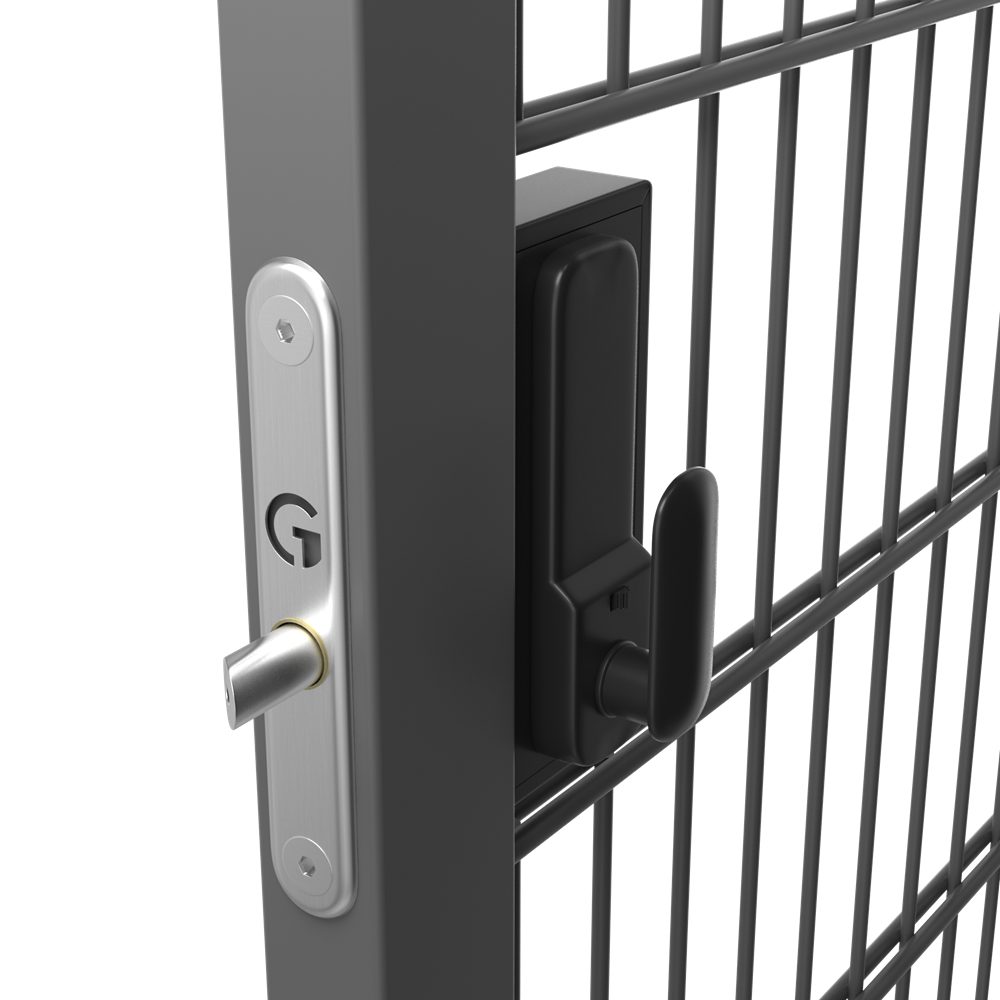

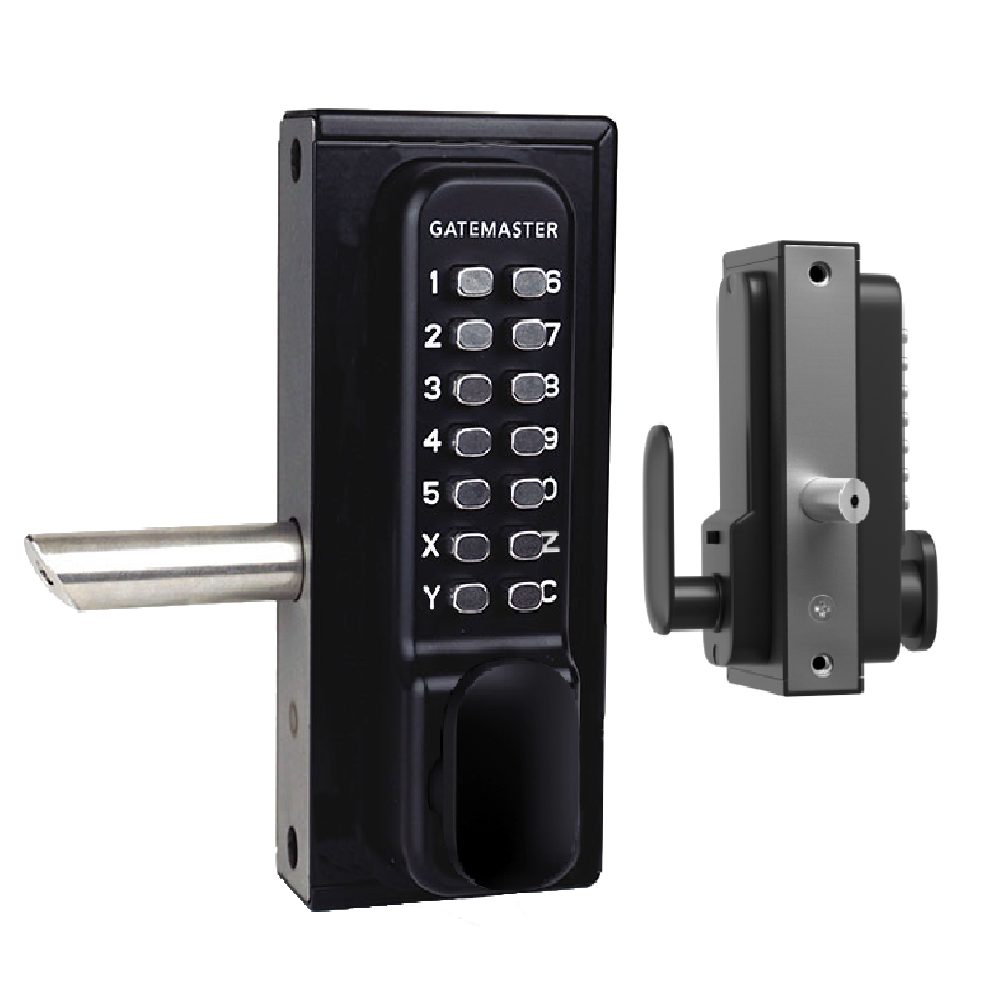

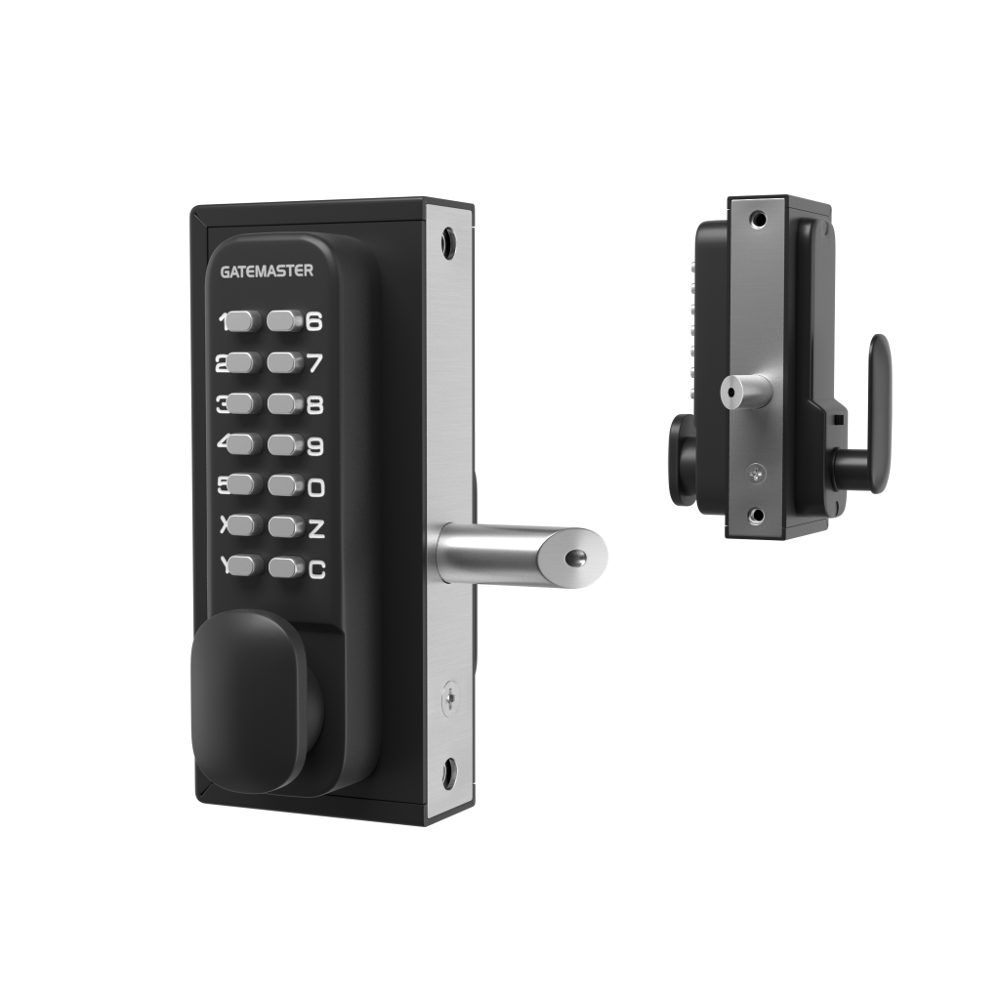

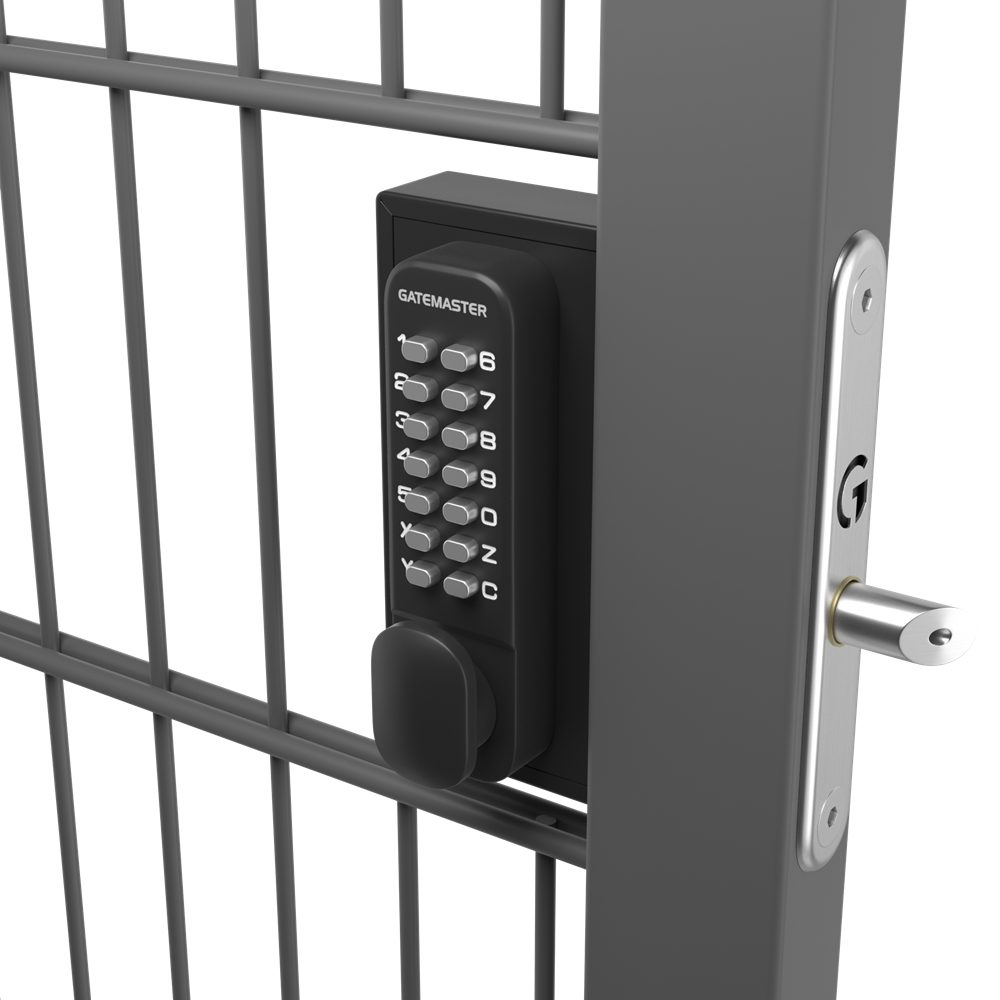

The Gatemaster Superlock Digital Single Sided is a slim, robust mechanical digital lock designed specifically for metal gate frames. It features a digital keypad on the exterior for secure, keyless entry and a free-exit rear handle on the inside. This lock is ideal for box section metal gate frames and is exceptionally easy to install, requiring only three drilled holes to bolt directly onto the gate.

A key benefit of this single-sided model is its integrated hold-back function, which is easily activated via a switch on the rear handle to keep the gate open when required. The latchbolt is adjustable in length and is supported by a guide plate with a brass bearing to reduce friction and ensure long-lasting durability.

This lock is available in multiple options to suit your specific gate setup. It comes in two sizes to fit either 10mm to 30mm or 40mm to 60mm gate frames, and is available in both left-handed and right-handed configurations. Please choose your required gate frame thickness, handing, manufacturer reference, and barcode from the options below.

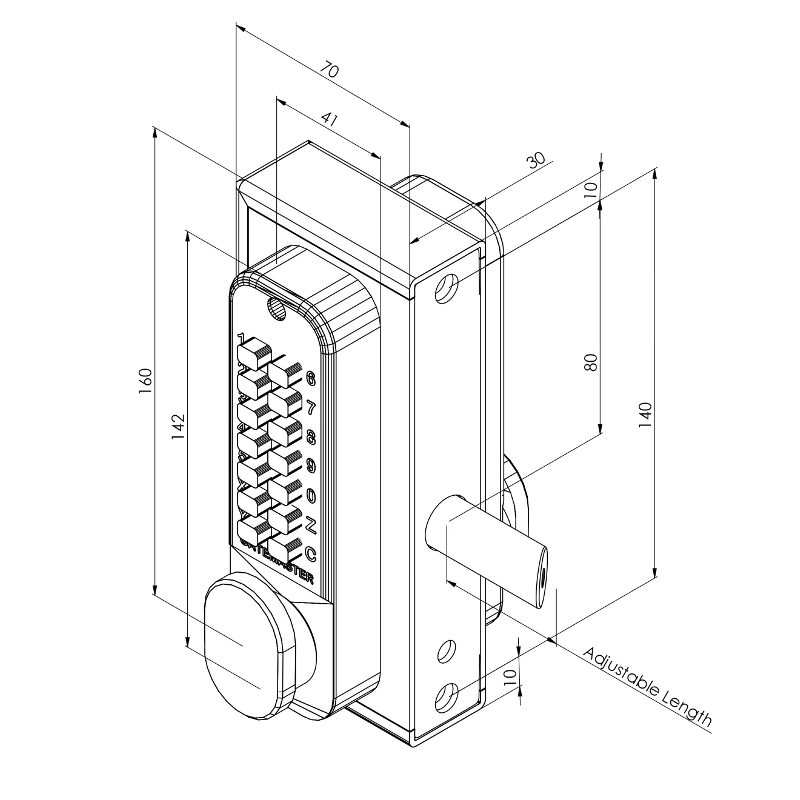

Technical Specifications

• Brand: Gatemaster
• Mechanism: Mechanical digital
• Case Width: 41mm
• Overall Width: 70mm
• Bolt Throw: 15mm
• Screw Centres: 140mm
• Code Length: 3 to 5 digits (over 500 combinations)
• Number of Buttons: 14
• Gate Frame Thickness: 10mm to 30mm or 40mm to 60mm (please select from the options below)

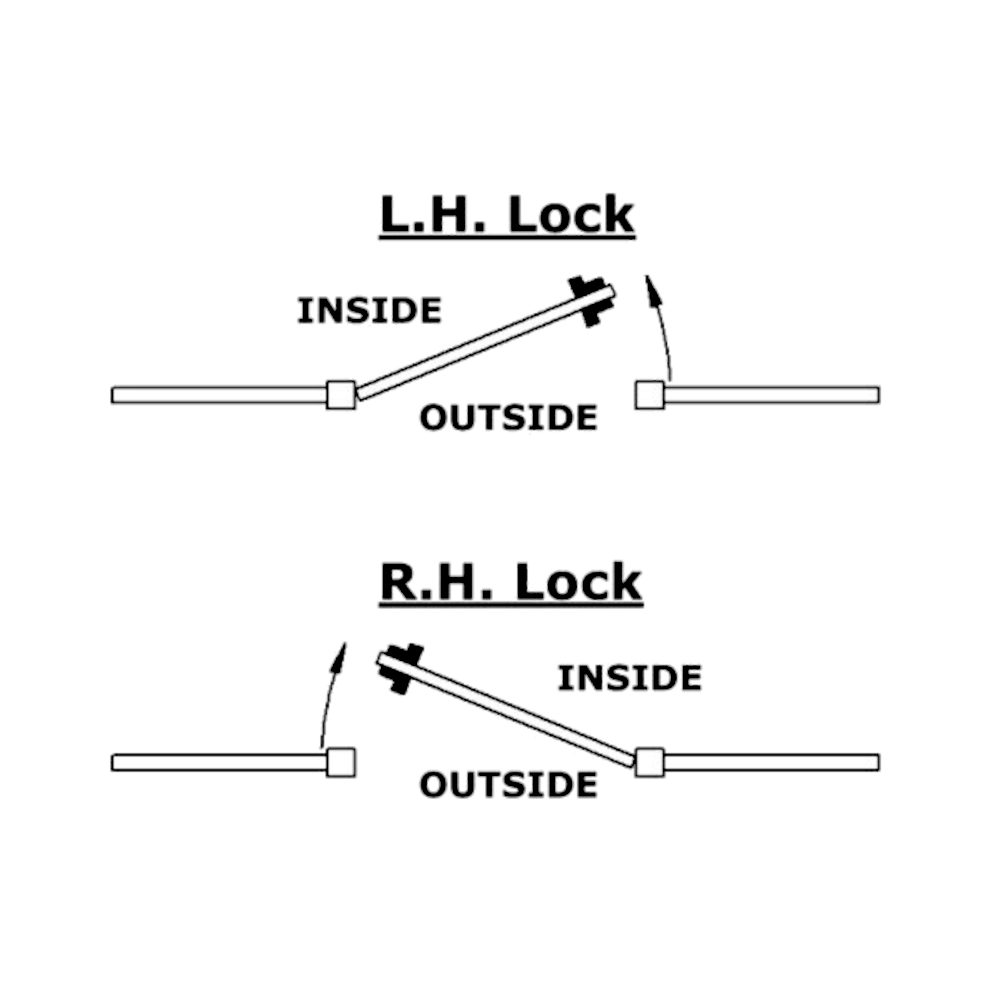

• Handing: Left hand or right hand (please select from the options below)
• Operation Outside: Thumbturn on entry of correct code
• Operation Inside: Thumbturn free exit
• Finish: Black
• Weight: 2.2kg
• Guarantee: 1 Year

Key Features

• Keyless Access: Mechanical digital keypad on the outside with a convenient free-exit rear handle on the inside.
• Hold-Back Function: Integrated switch on the rear handle allows the gate to be held open for easy passage.
• Slim Profile: Only 70mm wide stainless steel lock case to fit a wide range of narrow metal gate profiles.
• Easy Installation: Simple bolt-on design requiring only three drilled holes in the gate frame.
• Adjustable Latchbolt: Latchbolt can be adjusted for a precise fit and projects 15mm into the gate post for secure latching.
• Durable Construction: Supplied with a stainless steel bolt support plate and a brass bearing to reduce friction and wear.
• Complete Kit: Supplied with a guide plate, gate post strike plate, and fixing bolts.
