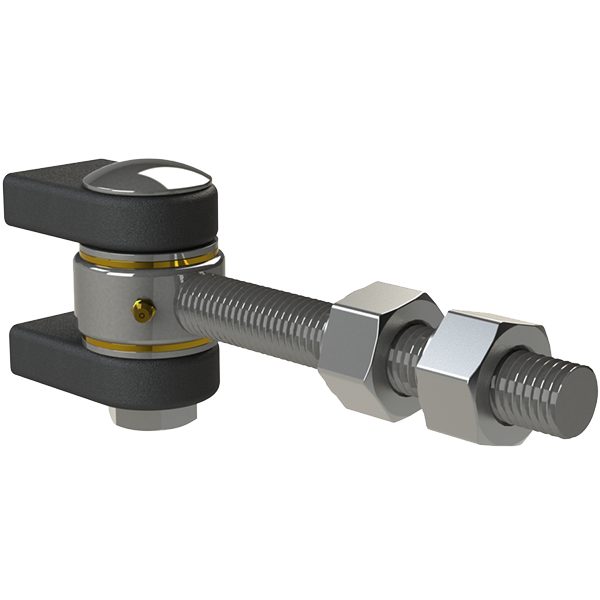

GATEMASTER Superhinge

The GATEMASTER Superhinge is an exceptionally durable, heavy-duty gate hinge designed to withstand constant heavy wear in demanding outdoor environments. It is ideal for high-traffic, industrial, and automated gate systems. Featuring integrated brass bearings, it provides a smooth, low-friction opening and closing action, making it highly compatible with gate automation.

Rigorously tested to 500,000 openings with no signs of wear - equivalent to approximately 50 years of daily use at 25 openings per day - this hinge offers outstanding longevity. It is also incredibly low maintenance, requiring only a simple grease application every six months.

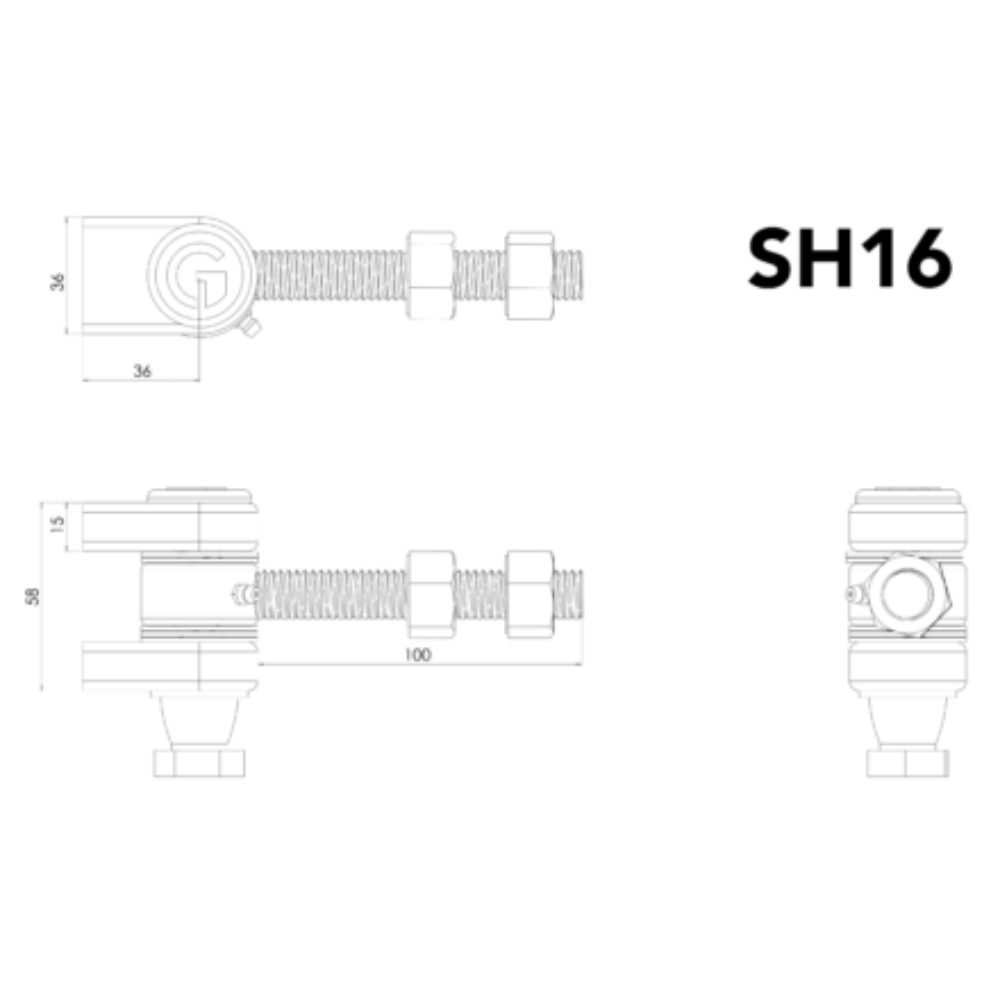

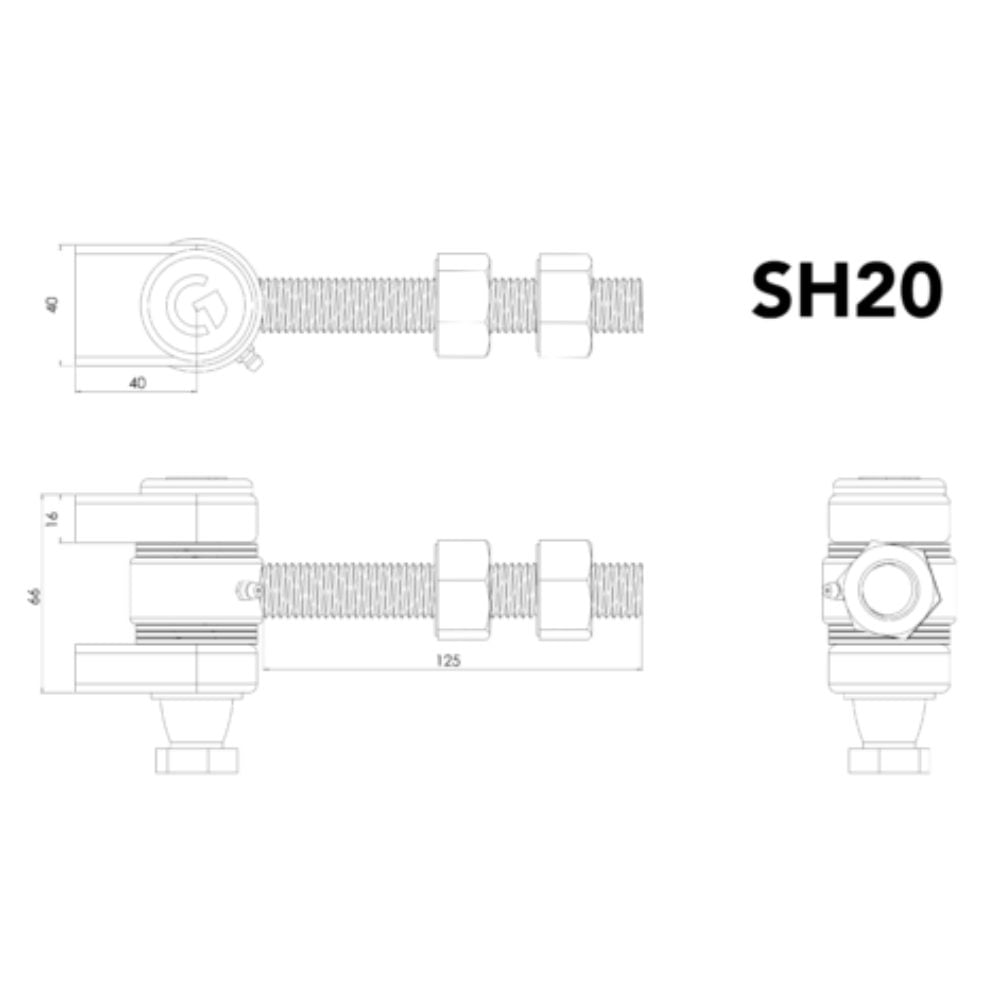

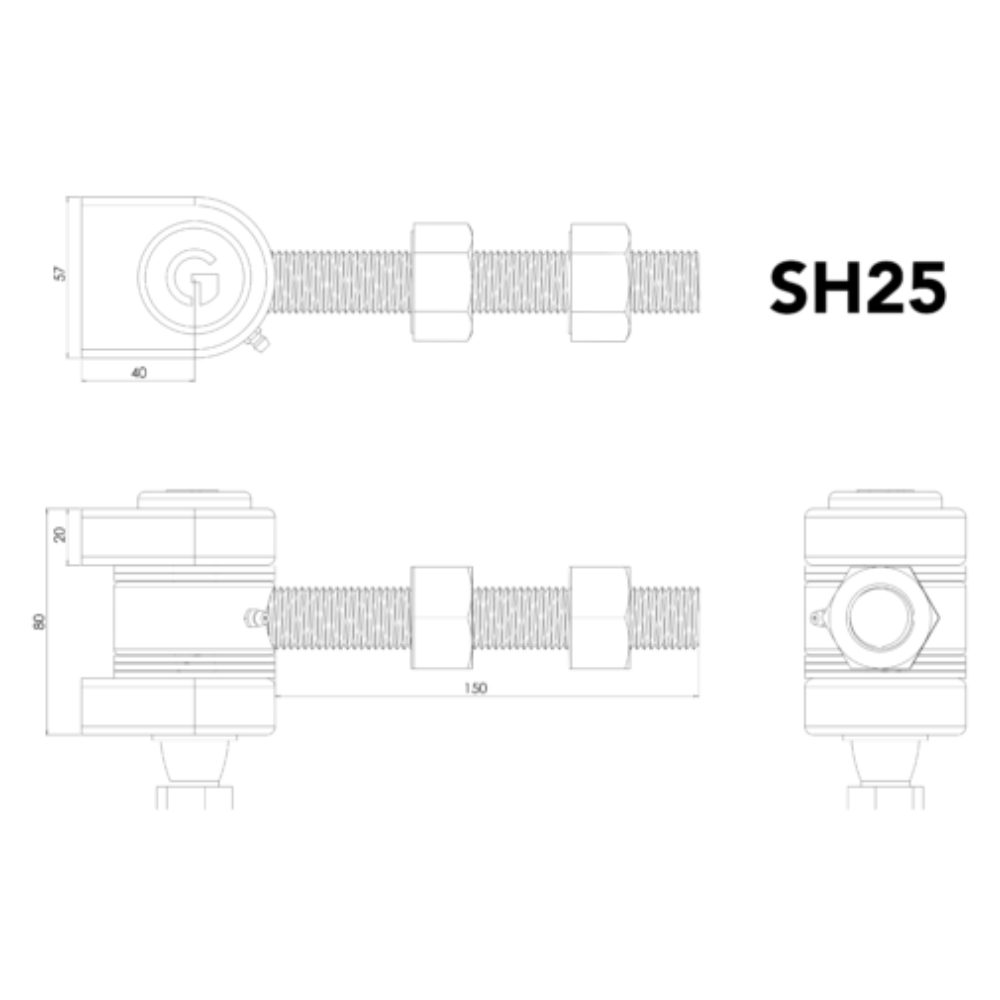

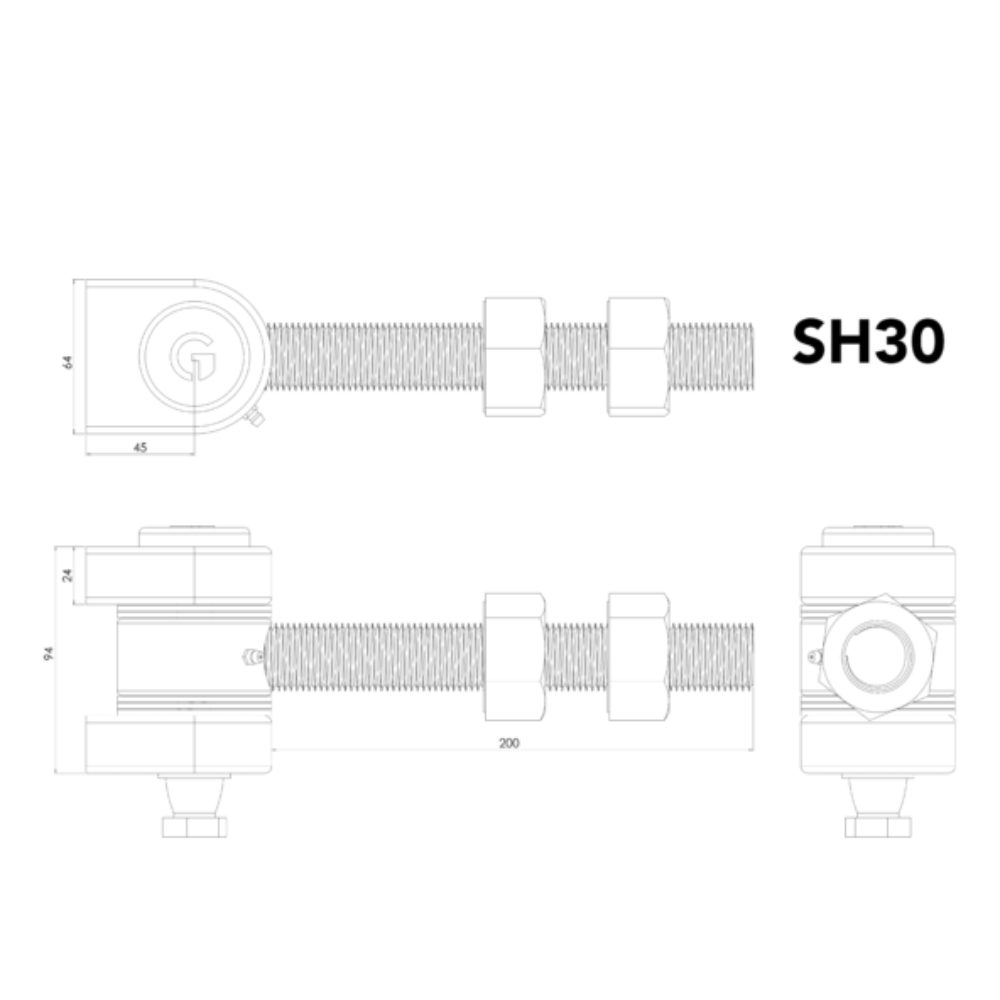

The Superhinge is available in four sizes, with lengths ranging from 10cm to 20cm and weights from 1kg to 3.8kg. Depending on the model, these hinges can support maximum gate weights from 150kg up to 900kg (assuming a standard gate width-to-height ratio of 1 to 1.6). Thread options include M16, M20, M25, and M30. Please select your preferred size, weight capacity, and thread specification from the options below.

Technical Specifications

• Brand: Gatemaster
• Finish: Self-Colour
• Lengths: 10cm, 12.5cm, 15cm, or 20cm (please choose from the options below)
• Thread Sizes (Notes): M16, M20, M25, or M30 (please choose from the options below)
• Max Gate Weight: 150kg, 300kg, 450kg, or 900kg (please choose from the options below)
• Hinge Weights: 1kg, 1.3kg, 2.1kg, or 3.8kg (please choose from the options below)
• Pack Quantity: 1
• Packaging: Loose

Key Features

• Exceptional Durability: Tested to 500,000 openings with no wear, equivalent to approximately 50 years of use at 25 openings per day.
• Low Friction: Integrated brass bearings ensure a smooth, quiet action, making it ideal for automated gate systems.
• Low Maintenance: Requires minimal upkeep - simply grease the hinges every 6 months.
• High Load Capacity: Heavy-duty design capable of supporting gates up to 900kg (assuming a 1 to 1.6 width-to-height ratio).
