GATEMASTER Screw Fixed Closing Strut

The Gatemaster Screw Fixed Gate Closing Strut (GSBW) is a robust and reliable gas-spring closer designed to provide smooth, controlled closure for gates weighing up to 80kg. This makes it an ideal choice for a wide variety of applications, from commercial gates to domestic wooden or wrought iron gates.

Supplied with screw-fixed adjustable brackets, this closer is perfect for retrofit installations. The clever adjustable bracket design eliminates the need to compress the strut during fitting, making installation straightforward. Adjusting the closing force is equally simple - just slide the strut along the bracket slots to achieve the desired tension.

Featuring a unique oil-dampened design to control closing speed and a durable black finish for exterior use, this closing strut ensures long-lasting performance in all weather conditions. The piston rod is also protected by a steel cover tube to prevent damage and extend the life of the seals.

Technical Specifications

• Brand: Gatemaster
• Manufacturer Reference: GSBW
• Finish: Black
• Maximum Gate Weight: 80kg
• Maximum Gate Width: 1200mm
• Maximum Gate Height: 2500mm
• Force: 300N
• Stroke Length: 240mm
• Screw Centres: 140mm
• Weight: 1.8kg

Key Features

• Supplied with screw-fixed adjustable brackets, making it ideal for retrofit applications
• Unique oil-dampened design controls the closing speed for smooth operation
• Adjustable brackets eliminate the need to compress the strut during installation

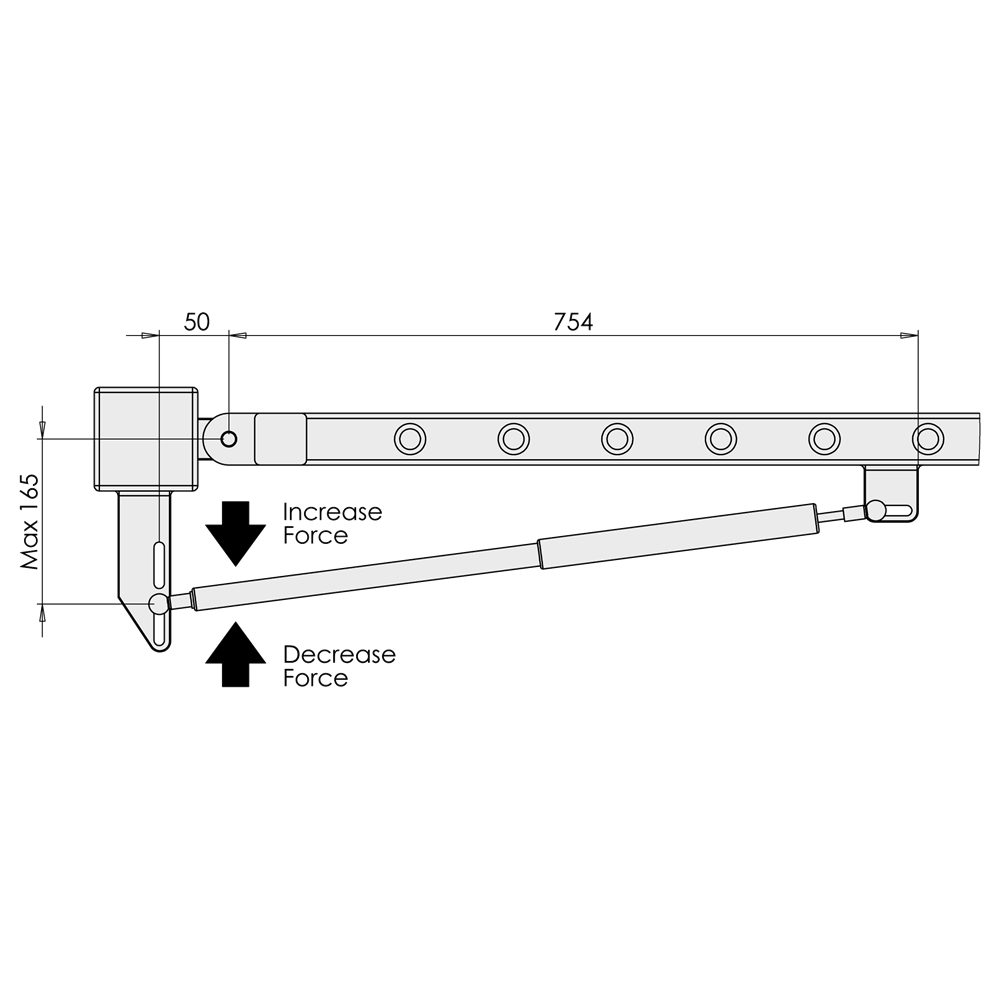

• Closing force is easily adjusted by moving the strut along the bracket slots
• Durable black finish designed for reliable exterior use
• Steel cover tube protects the piston rod to extend the life of the seals
• Suitable for a wide range of gates up to 80kg, including wooden and wrought iron
